Serial Console (Raspberry Pi?)

[Ramosel]

Good Morning,
Since putting up my SG-4860 I've (low priority) been looking for a cheap/easy/low power/small way to access the serial console port. Yes, I can and do monitor the unit remotely via the web interface and an SSH connection via Putty. The SG-4860 lives in an electronics vault under the house and when I'm physically in front of it, I like to have local console access. I've been using an old USFF desktop and have a couple different terminal emulators on it. But, in my ever increasing move towards going completely off-(power)grid, I've been looking for a lower wattage solution. I'm thinking about just using a Raspberry Pi (~5watts at full tilt).

Is anyone doing it this way? Hints, suggestions, warnings, tips?

[johnpoz]

I have like 4 different pi's setting next to my 4860.. I could move the serial cable from my pc that goes into the 4860 and test this for you.

I have a zero, a 2 and two 3's When I get home I will move the serial cable over and to a little test see.

But other the 4860 blowing up some how and needing access.. you really shouldn't need console access. But yeah guess your pi on wifi would be a good out of bound sort of access... A poor man's terminal server so to speak.. Let you know tonight or in the morning which is normally my tinker time ;)

[Ramosel]

@johnpoz if you don't mind, please test with a 3. And thank you. With your 4860 plugged in before booting the Pi... If I remember correctly you should be able to use "dmesg" to find the USB port that gets assigned to the connection during boot.

[johnpoz]

Yup let you know... I have a pi3 that I don't really do anything with - its just play box.. The other 3 is my ntp server so not going to just reboot that out of the blue for a test ;)

I don't have any screens or keyboards on these things... So the test will be ssh into the pi and then via the console connected to the 4860 see that..

[bigsy]

I'm doing this with an old Pi Model B (512MB, revision 000e) running ser2net on Raspbian with a USB to serial adapter. pfSense is on a Jetway box and it works well.

[johnpoz]

Just plugged it in

[251274.073154] usb 1-1.5: new full-speed USB device number 4 using dwc_otg
[251274.207921] usb 1-1.5: New USB device found, idVendor=10c4, idProduct=ea60
[251274.207935] usb 1-1.5: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[251274.207945] usb 1-1.5: Product: CP2104 USB to UART Bridge Controller
[251274.207953] usb 1-1.5: Manufacturer: Silicon Labs
[251274.207961] usb 1-1.5: SerialNumber: 01327C19
[251274.265492] usbcore: registered new interface driver usbserial
[251274.267680] usbcore: registered new interface driver usbserial_generic
[251274.268497] usbserial: USB Serial support registered for generic
[251274.274090] usbcore: registered new interface driver cp210x
[251274.274569] usbserial: USB Serial support registered for cp210x
[251274.274719] cp210x 1-1.5:1.0: cp210x converter detected
[251274.278492] usb 1-1.5: cp210x converter now attached to ttyUSB0

Then a simple
screen /dev/ttyUSB0 115200

[jimp]

Pis make great little serial console boxes. Slap on a USB hub and they can talk to a bunch of things at once.

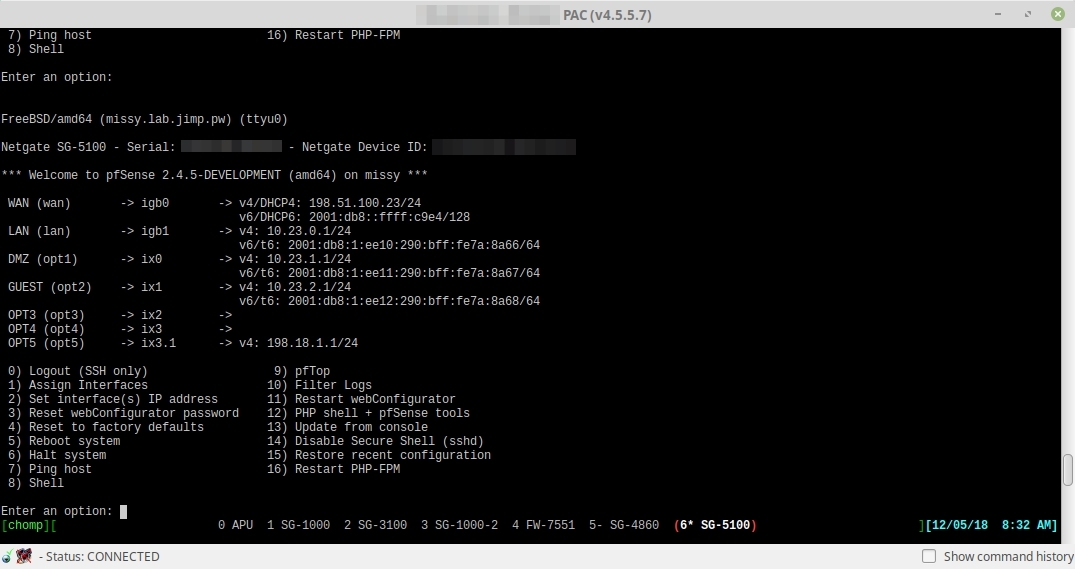

I have a screen config setup to load a bunch of consoles and stay running (not on a Pi here but it will work on one).

$ cat ~/.consoles.screenrc
startup_message off
defscrollback 50000
sessionname consoles
screen -t 'APU' /dev/ttyU0 115200
screen -t 'SG-1000' /dev/ttyU1 115200
screen -t 'SG-3100' /dev/ttyU2 115200
screen -t 'SG-1000-2' /dev/ttyU3 115200
screen -t 'FW-7551' /dev/ttyU4 115200
screen -t 'SG-4860' /dev/ttyU5 115200
screen -t 'SG-5100' /dev/ttyU6 115200

Change the names and serial devices to match your setup.

To start: sudo screen -c ~/.consoles.screenrc
To reattach: sudo screen -d -S consoles -r

[Ramosel]

Thanks guys, I'll work my setup that direction!

Rick

[Ramosel]

Thanks gents, works as hoped and knocked another 85 watts of part time load off my solar project.

Rick

[Ramosel]

@johnpoz said in Serial Console (Raspberry Pi?):

The other 3 is my ntp server so not going to just reboot that out of the blue for a test ;)

John, This part of your reply has been bouncing around in my head since I read it. Any chance you are using this Pi 3 as a Stratum 1 NTP server? if so, I'll be glad to take this to another area of the forum if you'd care to discuss.

[johnpoz]

Yeah I run ntp stratum 1 server on pi 3.. And it part of ntp pool both ipv4 and ipv6

Just cost a few bucks for the hat, and some setup time..
