load balancing Multi WAN problem

Scheduled Pinned Locked Moved Routing and Multi WAN
11 Posts 2 Posters 718 Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • L
    LabNet
    last edited by LabNet Dec 20, 2018, 6:04 AM Dec 20, 2018, 5:38 AM

    This post is deleted!
    1 Reply Last reply Reply Quote 0
    • N
      netblues
      last edited by Dec 20, 2018, 5:57 AM

      Post your relevant rules

      1 Reply Last reply Reply Quote 0
      • L
        LabNet
        last edited by Dec 20, 2018, 6:06 AM

        Firewall Rules ANY (source) ANY (Destination) gateway (gateway group name) this applied in all VLAN

        1 Reply Last reply Reply Quote 0
        • N
          netblues
          last edited by Dec 20, 2018, 6:11 AM

          So if you send all your traffic from vlans to gateway group, then why it should be able to reach your nas?

          1 Reply Last reply Reply Quote 0
          • L
            LabNet
            last edited by Dec 20, 2018, 6:22 AM

            @netblues that my problem i set it by any any in firewall rules but when in load balance gateway it cannot reach my storage in VLAN 1. But when i set only in my default gateway under Vlan rules advanced its working. the only problem is when my gateway in firewall rules is my group gateway i cannot access my storage

            N 1 Reply Last reply Dec 20, 2018, 6:40 AM Reply Quote 0
            • N
              netblues @LabNet
              last edited by Dec 20, 2018, 6:40 AM

              @limuel If you are policy routing (which you are, for multiwan) then you also need to exclude local access from policy.

              L 1 Reply Last reply Dec 21, 2018, 1:10 AM Reply Quote 0
              • L
                LabNet @netblues
                last edited by Dec 21, 2018, 1:10 AM

                @netblues what kind of local access policy? Windows Firewall?

                1 Reply Last reply Reply Quote 0
                • N
                  netblues
                  last edited by Dec 21, 2018, 4:47 AM

                  We are always talking about pf sense related policies here..
                  if Firewall Rules ANY (source) ANY (Destination) gateway (gateway group name) this applied in all VLAN
                  then packets from vlan will end to (gateway group name) and NOT your nas lan.
                  Please post your fw rules.

                  L 1 Reply Last reply Dec 21, 2018, 5:26 AM Reply Quote 0
                  • L
                    LabNet @netblues
                    last edited by Dec 21, 2018, 5:26 AM

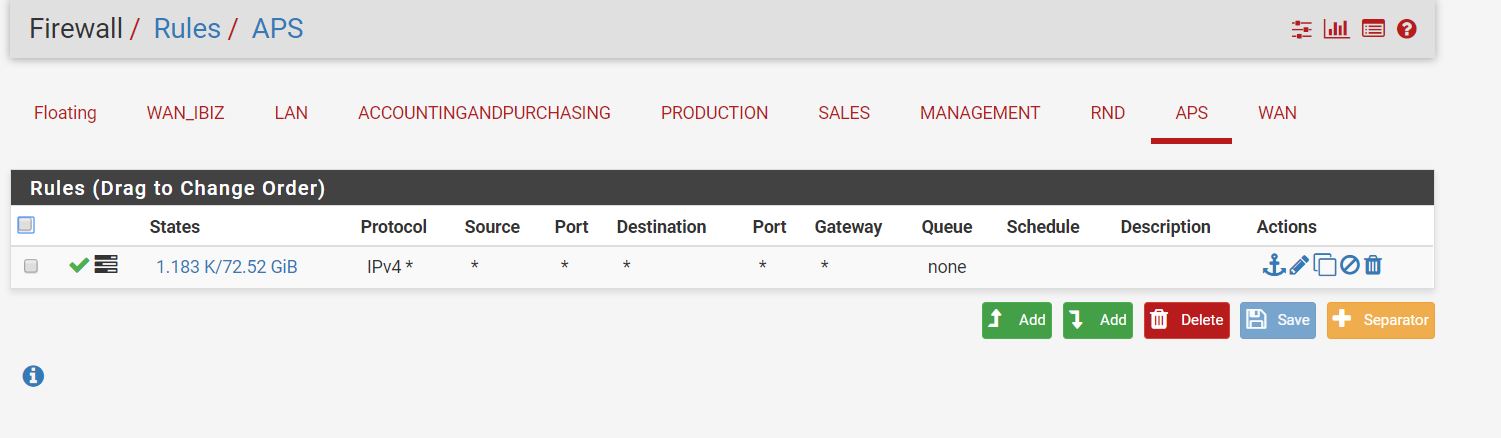

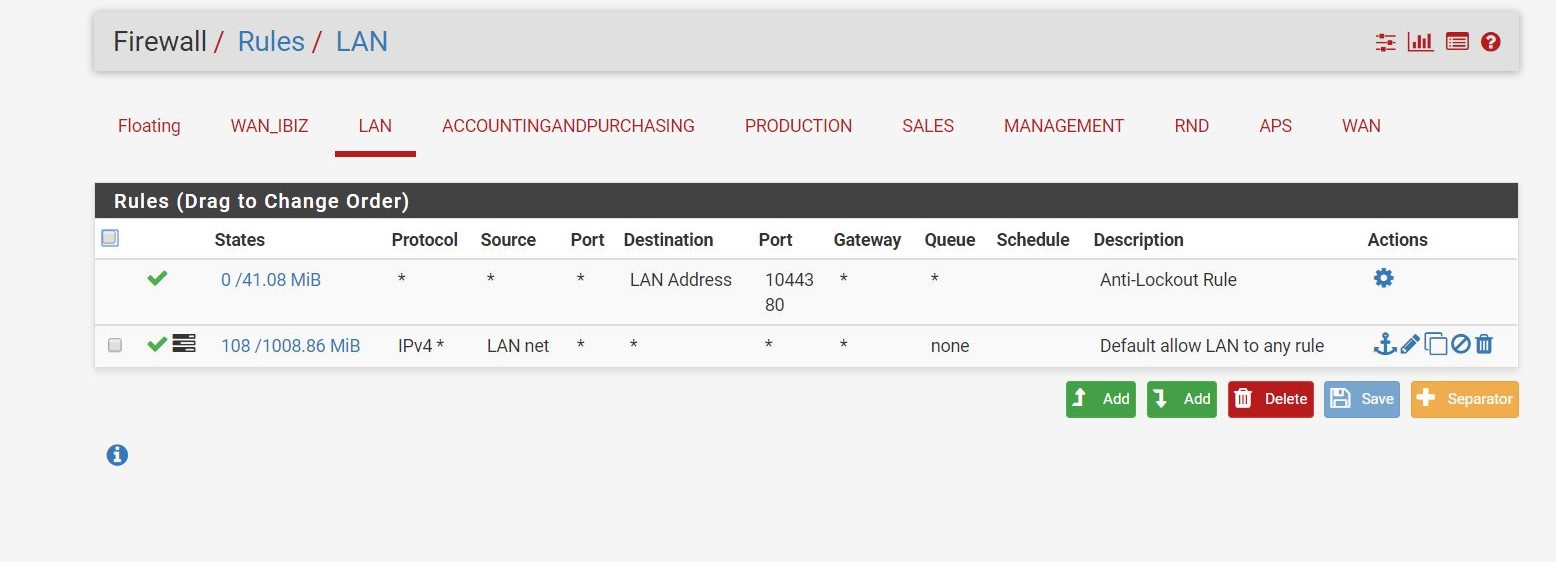

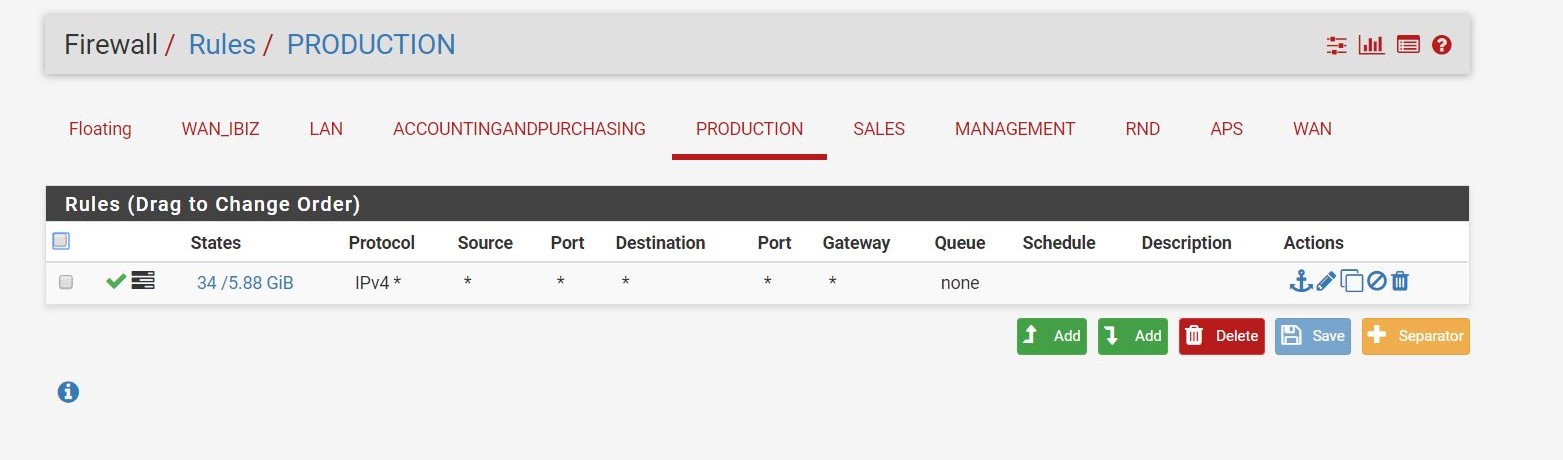

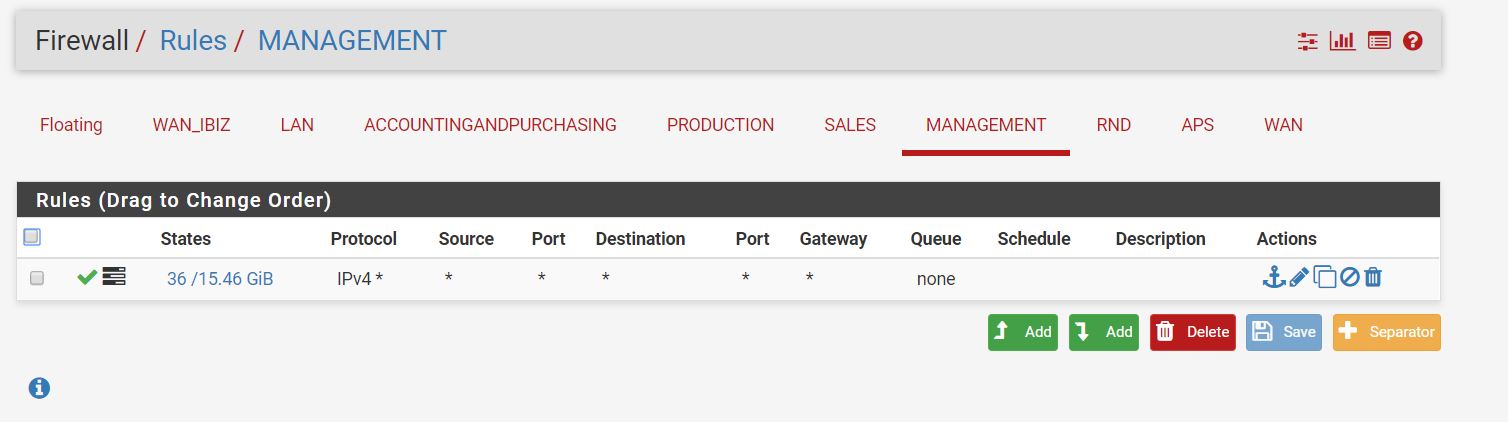

                    @netblues here are my FW Rules :








                    So what rules should i create to access my NAS in different Vlan with load balancing gateway?

                    1 Reply Last reply Reply Quote 0
                    • N
                      netblues
                      last edited by Dec 21, 2018, 6:04 AM

                      Where is policy for wan group?

                      L 1 Reply Last reply Dec 26, 2018, 12:56 AM Reply Quote 0
                      • L
                        LabNet @netblues
                        last edited by Dec 26, 2018, 12:56 AM

                        @netblues for now i set WAN_IBIZ and WAN to any (source ) any (destination)

                        1 Reply Last reply Reply Quote 0
