stunnel question

[DerKlaus]

Hello.

Are these the latest settings?

WAN-IP should in most cases be your static wan ip address, but lan ip works as well.
–---------------------------------------------
cert = /usr/local/etc/stunnel/stunnel.pem
chroot = /var/tmp/stunnel
setuid = stunnel
setgid = stunnel
[stunnel]
key = /usr/local/etc/stunnel/f8ea8f75.key
cert = /usr/local/etc/stunnel/f8ea8f75.chain
local = your-WAN-IP
accept = your-WAN-IP:443
connect = your-WAN-IP:1194
TIMEOUTclose = 0
–----------------------------------------------------
--OpenVPN server must be be set for TCP and not UDP.

I also try to configure OpenVPN Client with STunnel Package.

1. First, I have to use OpenVPN Client TCP, right?

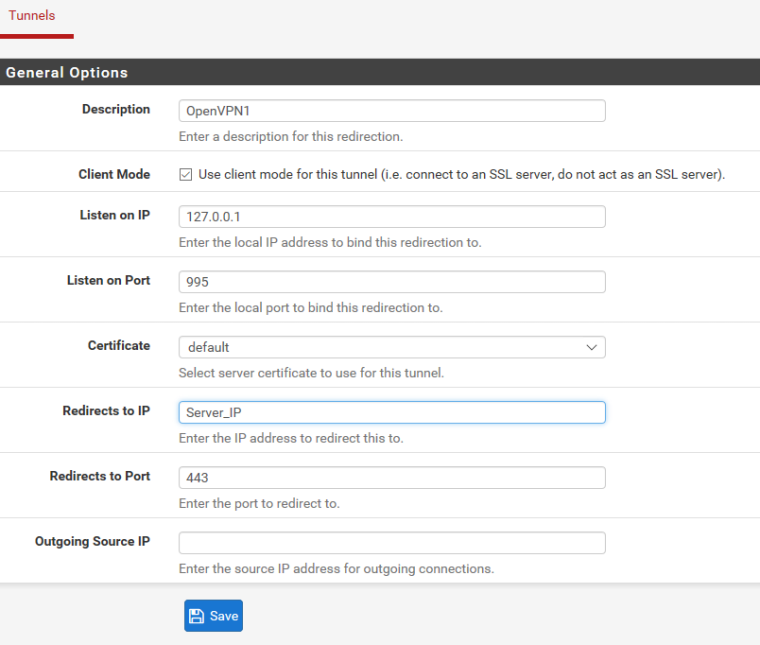

2. Then under Services => STunnel these settings?

• Description [STunnel]
• Client Mode [YES]
• Listen on IP [127.0.0.1]
• Listen on Port [443]
• Redirects to IP [amsterdam.server.com]
• Redirects to Port [1142]
• Outgoing Source IP [?]

Are these settings correct?
3. I use load balancing with 4 x amsterdam.server.com. How do I have to configure it for load balancing?

Thanks

Klaus

[DerKlaus]

I have now configured OpenVPN Client and stunnel from AirVPN.

browse "VPN: OpenVPN: Client"
Protocol: TCP
Interface: Localhost
Server host or address: 127.0.0.1
Server port: 995
Advanced:
       route Server_IP 255.255.255.255 net_gateway

And with this stunnel configuration:

I'm trying to configure load balancing now with exactly 4 same openvpn clients.

My problem: the openvpn clients allways crash.
I get an error Message:

/rc.newwanip: The command '/usr/local/sbin/unbound -c /var/unbound/unbound.conf' returned exit code '1', the output was '[1547574979] unbound[12781:0] error: can't bind socket: Address already in use for 127.0.0.1 port 953 [1547574979] unbound[12781:0] error: cannot open control interface 127.0.0.1 953 [1547574979] unbound[12781:0] fatal error: could not open ports'

Can someone help me?

best regards

Klaus

[DerKlaus]

Who wrote the stunnel package?

Why is only ip 127.0.0.1 accepted and not other IPs in "Listen on IP" field?
