Port Forwarding

[roryahanan]

@johnpoz Theres the rule. Thanks for the article ill take a look now

[johnpoz]

NO post up your wan Rules!! And your port forwards page..

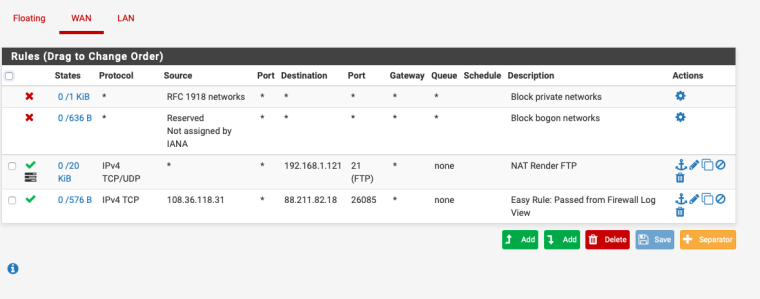

Example - here is mine

For all we know you have a rule above the rule that allows the nat blocking.. Say pfblocker rules for example... Rules are evaluated top down, first rule to trigger wins, no other rules evaluated. So we need to see rules on WAN so can tell if there is something that would block the auto rule that gets created for your nat, etc.

[roryahanan]

@johnpoz

[johnpoz]

Wow you actually see hits on your Bogon Rules? See that 636 B... Curious wtf that is... Also have hits on your block rfc1918 rules..

I see some hits on your 21 firewall rule... So I would think traffic is getting to your wan... So do a packet captures and validate being sent to your host... You should see the SYN to port 21, if you go to can you see me . org, etc.

[no_jah]

Could it be that the internal IP of your FTP-server has changed since you set up the port forward?

[roryahanan]

@no_jah I checked that earlier just incase

[no_jah]

@roryahanan

And no Firewall software blocking incoming connections on the FTP-server computer?

[johnpoz]

Do your sniff, diag packet capture on your lan interface... Do you see the syn to your ftp server private IP... If you do not see an answer its not pfsense that is your problem.

Here I just setup a port forward for ftp (21) and can you see me shows closed..

See how my client on 192.168.2.11 sent a RST... Basically he said to F off ;)
