    Weird issue with large files

    Scheduled Pinned Locked Moved General pfSense Questions
    10 Posts 2 Posters 1.1k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      mewsense
      last edited by

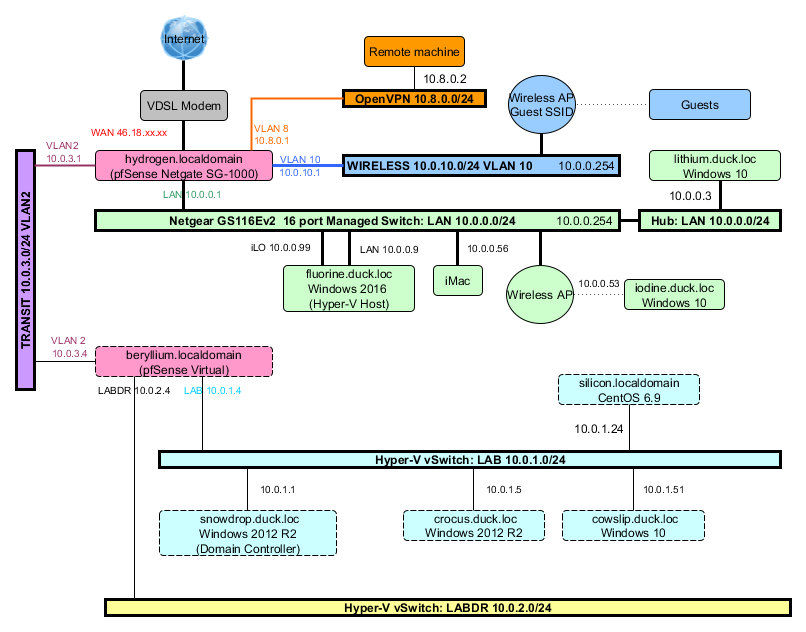

      Here's my network setup.


      Whenever I copy a large file, say over 50 GB from the 10.0.0.0 network to the 10.0.1.0 network, my WAN modem drops internet and reboots itself. As far as I can tell, pfsense router SG-1000 seems OK during this process. Any ideas on what causes it and how to fix?

      1 Reply Last reply Reply Quote 0
      • johnpozJ
        johnpoz LAYER 8 Global Moderator
        last edited by

        So pfsense is going to be pinging the gateway every second.. And when packet loss or response time goes up to a point. pfsense will think gateway is offline and reset connections (unless you turned off that feature).

        Your not running any of these vlans over your wan connection are you? All your vlans are on your LAN interface? or do you have some running on the wan physical interface? And I do believe the interfaces on the sg1000 are actual just switched interfaces so yeah you could be running into issues with saturating your checks to the wan?

        Keep an eye on the latency and packetloss to the wan when your moving the large amount of data..

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        1 Reply Last reply Reply Quote 1
        • M
          mewsense
          last edited by

          Yes I think that's what's happening. It's so bad that I can't access pfSense during the file copy. After checking the logs it looks like the VLAN2 interface gets reset as well. I'm seeing this:

          send_interval 500ms loss_interval 2000ms time_period 60000ms report_interval 0ms data_len 0 alert_interval 1000ms latency_alarm 500ms loss_alarm 20% dest_addr 10.0.3.4 bind_addr 10.0.3.1 identifier "LABGW "


          Do I need better hardware for running large file copies across VLANs with pfSense? Or should I just disable the pinger? How to disable the pinger?

          Thanks.

          1 Reply Last reply Reply Quote 0
          • johnpozJ
            johnpoz LAYER 8 Global Moderator
            last edited by johnpoz

            You don't have to disable the pinger... Just set it so it doesn't reset states on loss of gateway.

            What interfaces do you have the vlan setup on pfsense - on the wan interface, just the lan?


            You could also set your gateway to be always UP.


            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            1 Reply Last reply Reply Quote 1
            • M
              mewsense
              last edited by

              Thanks, there are no VLANs on the WAN interface.

              I can't find your top screenshot. Where is it in pfSense? I'll configure that and then try another large file copy and see what happens.

              1 Reply Last reply Reply Quote 0
              • johnpozJ
                johnpoz LAYER 8 Global Moderator
                last edited by

                System / Advanced / Miscellaneous


                An intelligent man is sometimes forced to be drunk to spend time with his fools
                If you get confused: Listen to the Music Play
                Please don't Chat/PM me for help, unless mod related
                SG-4860 24.11 | Lab VMs 2.8, 24.11

                M 1 Reply Last reply Reply Quote 0
                • M
                  mewsense @johnpoz
                  last edited by

                  @johnpoz Thanks all good now.

                  1 Reply Last reply Reply Quote 0
                  • johnpozJ
                    johnpoz LAYER 8 Global Moderator
                    last edited by johnpoz

                    You prob want to update your pfsense to something with more interfaces that are distinct vs switched ports. That way when you vlan on an interface it has no effect on your wan interface.

                    Other option would be to move to a downstream router... Possible your switch can do L3 and route at your switch for your large intervlan traffic?

                    Maybe the sg1100 would be option? But maybe not since all the ports are just part of mvneta0, and not actually distinct interfaces?

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                    M 1 Reply Last reply Reply Quote 1
                    • M
                      mewsense @johnpoz
                      last edited by

                      @johnpoz Thanks I don't know if my Switch can route. What is L3? The manufacturer site is https://www.netgear.com/support/product/GS116Ev2.aspx

                      Can I route my VLANs through the switch? My gut feel is it doesn't.

                      1 Reply Last reply Reply Quote 0
                      • johnpozJ
                        johnpoz LAYER 8 Global Moderator
                        last edited by

                        L3, ie layer 3... Vs L2 - layer 2... That seems to be only a layer 2 switch, so no routing..

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        1 Reply Last reply Reply Quote 1
