    Help with domain network behind pfsense

    NAT
    3
    11
    741
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • H
      Hugovsky
      last edited by Hugovsky

      I need help with my setup. I'll try to explain it best way I can.

      I have one LAN network using 1 windows PDC and this network is using gateway 1 to internet. I have another LAN behind pfsense and another internet gateway. These networks are connected thru a wireless bridge and I use pfsense to, on the second LAN, separate domain traffic from internet trafic.

      To this point, they're just two separate LANs. What I need is a way so that the second LAN can use the windows PDC and it's domain.

      What's the best aproach? the computers on the second LAN have no problems using the domain with a simple rule to the domain gateway. But, I have a printer in the first LAN side. I'm using a VPN to let it conect to the second LAN. Does this makes sense?

      1 Reply Last reply Reply Quote 0
      • KOMK
        KOM
        last edited by

        You could add the printer as an AD resource so it can be pushed to your domain clients, and then just add firewall rules to allow LAN2 to talk to the DC and printer on LAN1. You said you can already get LAN2 clients to talk to LAN1, so I'm not sure what the problem here is.

        1 Reply Last reply Reply Quote 0
        • H
          Hugovsky
          last edited by

          Thanks for repling KOM. What I'm tring to understand is if I'm making it right. Your idea of an AD resource is what I'll try. I'm asking because, sometimes under heavy load, I have printer timeouts. It's an intermitent problem. I want to be shure it's not a bad config with pfsense or network designe.

          1 Reply Last reply Reply Quote 0
          • johnpozJ
            johnpoz LAYER 8 Global Moderator
            last edited by

            Could you draw up this network please. So you have 2 networks connected together with a wireless bridge?

            These networks are connected thru a wireless bridge

            This wireless bridge is connected to your 2 routers and is just a transit network? Or is it connected into the 2 lans at each location? if so your going to have an asymmetrical routing problem..

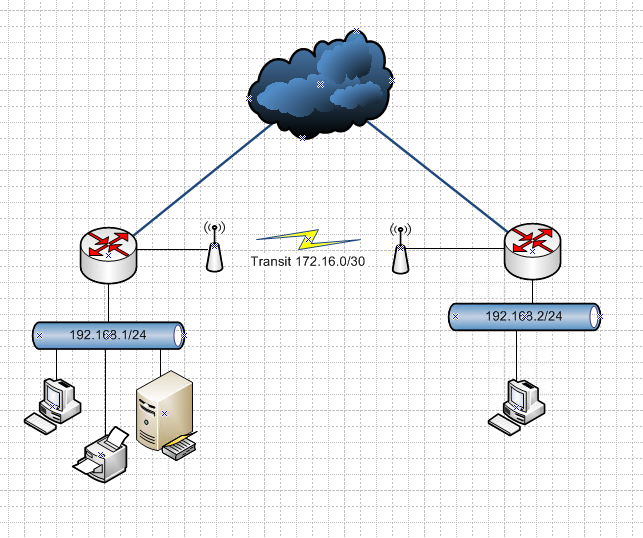

            This would be the correct way to set this up.


            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.7.2, 24.11

            1 Reply Last reply Reply Quote 0
            • H
              Hugovsky
              last edited by Hugovsky

              @johnpoz,

              The wireless bridge is where the traffic is flowing to and from LAN2.

              The lans should be independente except for using the same domain. I don't want LAN1 to connect to LAN2 but I want LAN2 to connect to LAN1 resources. Domain and printer. To LAN1, LAN2 is just one IP because it's NATed thru pfsense.
              See my draw, please. Printer is on LAN2 but is connected to server at LAN1. LAN2 prints to print server and printserver uses VPN to connect to LAN2 and send print jobs. I know it's a stupid design but there's nothing I can do about it. Just try to use it as good as I can.

              1 Reply Last reply Reply Quote 0
              • johnpozJ
                johnpoz LAYER 8 Global Moderator
                last edited by johnpoz

                Yeah that is borked! You have your PDC and Print server talking to lan 1 router IP as their gateway.. Yeah borked asymmetrical mess..

                ahhh.
                Your natting from lan2 to lan1.. Ok so asymetrical wouldn't be an issue.. So you would have to port forward for that printer server to talk to your printer, etc.

                Not how I would do it at all...

                An intelligent man is sometimes forced to be drunk to spend time with his fools
                If you get confused: Listen to the Music Play
                Please don't Chat/PM me for help, unless mod related
                SG-4860 24.11 | Lab VMs 2.7.2, 24.11

                1 Reply Last reply Reply Quote 0
                • H
                  Hugovsky
                  last edited by

                  Do you have a suggestion? Imagine that lan1 can't be changed.

                  1 Reply Last reply Reply Quote 0
                  • johnpozJ
                    johnpoz LAYER 8 Global Moderator
                    last edited by

                    Not changed how? You want a transit between your networks is all.. Not you don't have to nat or port forward just firewall for what gets accessed or not..

                    My drawing is how you would connect two networks via a transit.

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.7.2, 24.11

                    1 Reply Last reply Reply Quote 0
                    • H
                      Hugovsky
                      last edited by

                      What I'm asking is if there's a way I can do things better without reconfiguring LAN1. Only changing LAN2 if needed. Thanks for your time.

                      1 Reply Last reply Reply Quote 0
                      • johnpozJ
                        johnpoz LAYER 8 Global Moderator
                        last edited by johnpoz

                        You asked if you are doing it correctly.

                        What's the best aproach?
                        I'm using a VPN to let it conect to the second LAN. Does this makes sense?
                        What I'm tring to understand is if I'm making it right.

                        I have showed you how you would correctly connect two different networks together via wireless bridge..

                        No your method is not the best approach.
                        No makes zero sense to vpn to allow your 2 segments to talk to each other.
                        No your not making it right..

                        You have been given the correct way to connect to network together via a wireless bridge. Will allow for full firewall control between the segments, and allow for either side to use whatever resources on either side you want to allow for with min effort once the transit is configured.

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.7.2, 24.11

                        1 Reply Last reply Reply Quote 0
                        • H
                          Hugovsky
                          last edited by

                          Thank you johnpoz. I understand what you're saying.
