    site-to-site, cannot ping from one lan to other lan

    Scheduled Pinned Locked Moved OpenVPN
    47 Posts 4 Posters 7.0k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • K
      Konstanti @A Former User
      last edited by Konstanti

      @asdffdsa6131
      As far as I understand , now PFSense - an internal host in a network 10.0.0.0/24 on which port 1194 from the main router is forwarded . Right ?

      I think you should do this.
      1 configure static routes on virtual machines for network 192.168.62.0 / 24 through 10.0.0.7

      2 create rules on wan interface 10.0.0.7 to allow traffic for network 192.168.62.0 / 24

      ? 1 Reply Last reply Reply Quote 0
      • ?
        A Former User @Konstanti
        last edited by

        @konstanti hi there,
        correct, pfsense server is an internal host of 10.0.0.0/24 and its ip address is 10.0.0.7
        and from my computer, 192.168.62.181, behind the sg1110, I can ping 10.0.0.7.

        1 Reply Last reply Reply Quote 0
        • ?
          A Former User
          last edited by

          ok. can you please be a little more specific as to what needs to be done on the openvpn server and openvpn client.
          I am new to linux, pfsense and azure, I have been many days getting this far and I am growing from the experience.
          I am not asking you for exactly what needs to be done, in 100% detail but a more detailed outline?
          thanks again.

          1 Reply Last reply Reply Quote 0
          • K
            Konstanti
            last edited by

            @asdffdsa6131
            This is easily explained, it is a feature of PFSense, an icmp packet that has passed through The OpenVPN client interface rule , is considered good and it is not blocked . But you can not ping , for example, 10.0.0.4 from your local computer , because the computer 10.0.0.4 knows nothing about the network 192.168. and sends the answer to 10.0.0.1 ( if you create the NAT OUTBOUND rule on the wan interface 10.0.0.7 for the network 192.168 , you can ping the entire network 10.0.0.0/24.
            And in the opposite direction there is no (10.0.0.0 - >192.168.)
            As much as I did , I wrote above
            1 static routes
            2 an allow rule for the network 192.168 on the WAN interface 10.0.0.7

            1 Reply Last reply Reply Quote 0
            • ?
              A Former User
              last edited by

              ok. i will work on that thanks much

              K 1 Reply Last reply Reply Quote 0
              • K
                Konstanti @A Former User
                last edited by

                @asdffdsa6131
                what is the guest operating system on the virtual machines ? For example, 10.0.0.4 ?

                1 Reply Last reply Reply Quote 0
                • ?
                  A Former User
                  last edited by

                  ms.windows.10

                  K 1 Reply Last reply Reply Quote 0
                  • K
                    Konstanti @A Former User
                    last edited by Konstanti

                    @asdffdsa6131
                    1.From windows cli
                    route add 192.168.62.0 mask 255.255.255.0 10.0.0.7

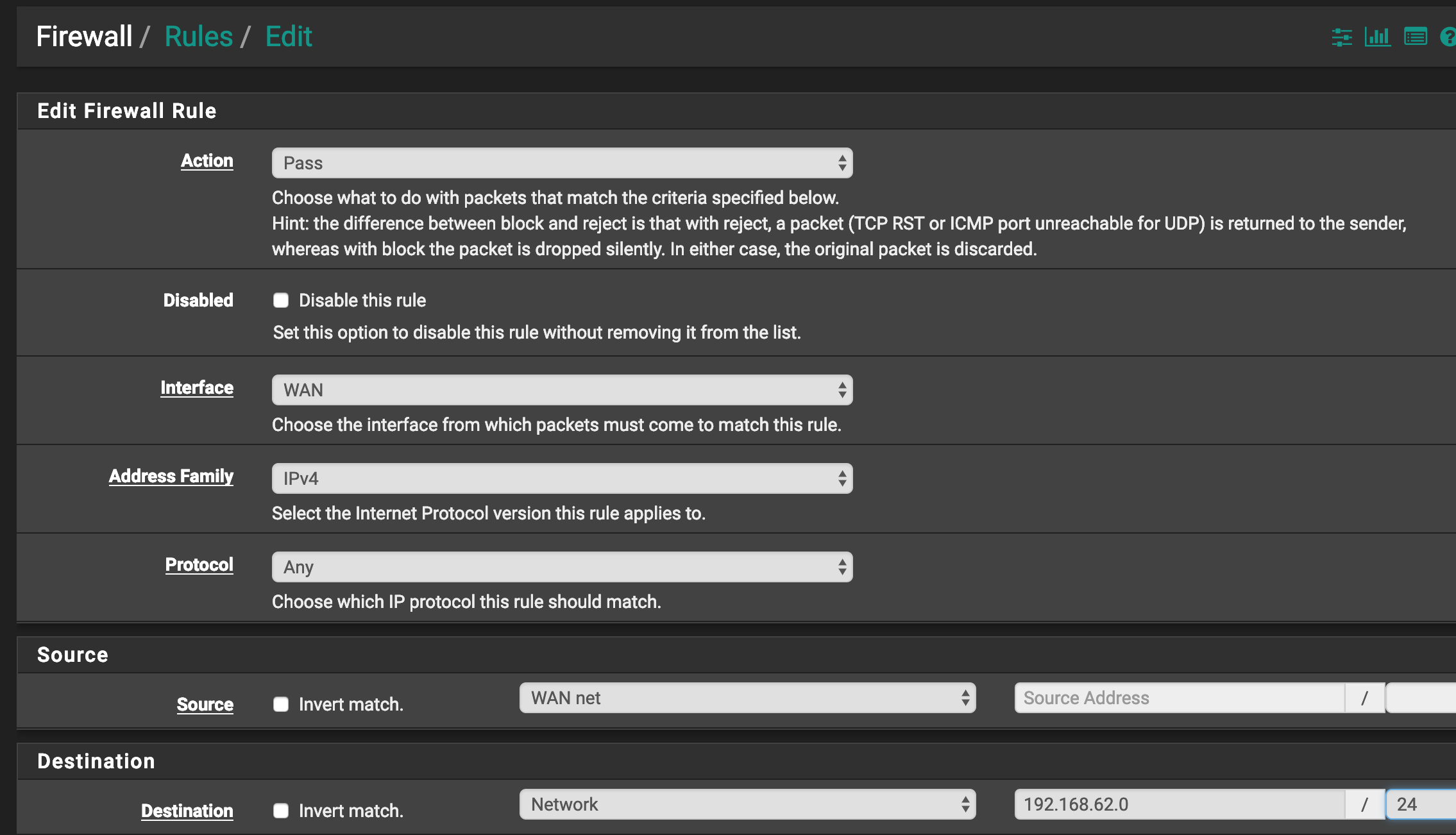

                    2 Create an allow rule for the network 192.168 on the WAN interface 10.0.0.7


                    1 Reply Last reply Reply Quote 0
                    • ?
                      A Former User
                      last edited by

                      newbie question, on 10.0.0.7, the openvpn client, the outbound nat rule mode is automatic outbound nat rule generation and there is no option for adding rules, but I can add a mapping.
                      should I add a mapping or do I need to change the outbound nat mode?

                      K 1 Reply Last reply Reply Quote 0
                      • K
                        Konstanti @A Former User
                        last edited by Konstanti

                        @asdffdsa6131

                        Do not create a NAT OUTBOUND rule yet
                        Try to do as I wrote in the previous post

                        If I understand everything correctly, you will be able to ping 10.0.0.4 from a network 192.168.62.0 / 24 and Vice versa

                        1 Reply Last reply Reply Quote 0
                        • ?
                          A Former User
                          last edited by

                          on the openvpn client, I did

                          on 10.0.0.7, the openvpn client, the outbound nat rule mode is automatic outbound nat rule generation and there is no option for adding rules, but I can add a mapping.
                          should I add a mapping or do I need to change the outbound nat mode?

                          K 1 Reply Last reply Reply Quote 0
                          • ?
                            A Former User
                            last edited by

                            are you running a different version of pfsense, as your screenshot look visually different


                            1 Reply Last reply Reply Quote 0
                            • K
                              Konstanti @A Former User
                              last edited by Konstanti

                              @asdffdsa6131

                              1. 10.0.0.7 already knows about this network

                              No need to create another static route on 10.0.0.7 for network 192.168.62.0 / 24
                              Don't need to configure OUTBOUND NAT now
                              Need to, for example

                              1. on host 10.0.0.4, run the route add command ( see previous post)
                              2. create allow rule (see previous post)

                              Then you can ping the host 10.0.0.4 from the network 192.168.62.0/24
                              and the host 10.0.0.4 will be able to ping the network 192.168.62.0/24

                              https://forum.netgate.com/topic/140925/site-to-site-cannot-ping-from-one-lan-to-other-lan/17

                              1 Reply Last reply Reply Quote 0
                              • ?
                                A Former User
                                last edited by

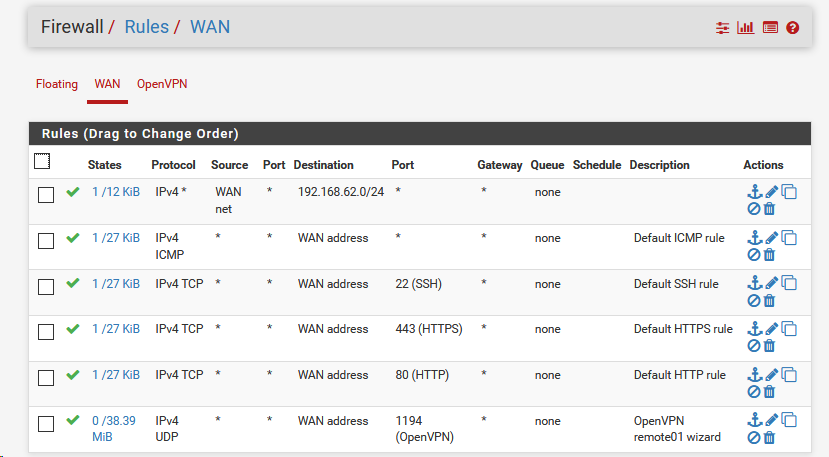

                                thanks but i added the firewall rule in openvpn client and the route add 192.168.62.0 mask 255.255.255.0 10.0.0.7 on 10.0.0.4
                                but no pinging.

                                and added the "route add 192.168.62.0 mask 255.255.255.0 10.0.0.7"

                                C:\Users\user01>route print

                                Interface List
                                7...00 0d 3a 1c 73 51 ......Microsoft Hyper-V Network Adapter
                                8...00 ff e3 05 f1 eb ......TAP-ProtonVPN Windows Adapter V9
                                6...00 ff d6 ca 59 0c ......TAP-Windows Adapter V9
                                1...........................Software Loopback Interface 1

                                IPv4 Route Table

                                Active Routes:
                                Network Destination Netmask Gateway Interface Metric
                                0.0.0.0 0.0.0.0 10.0.0.1 10.0.0.4 10
                                10.0.0.0 255.255.255.0 On-link 10.0.0.4 266
                                10.0.0.4 255.255.255.255 On-link 10.0.0.4 266
                                10.0.0.255 255.255.255.255 On-link 10.0.0.4 266
                                127.0.0.0 255.0.0.0 On-link 127.0.0.1 331
                                127.0.0.1 255.255.255.255 On-link 127.0.0.1 331
                                127.255.255.255 255.255.255.255 On-link 127.0.0.1 331
                                168.63.129.16 255.255.255.255 10.0.0.1 10.0.0.4 11
                                169.254.169.254 255.255.255.255 10.0.0.1 10.0.0.4 11
                                192.168.62.0 255.255.255.0 10.0.0.7 10.0.0.4 11
                                224.0.0.0 240.0.0.0 On-link 127.0.0.1 331
                                224.0.0.0 240.0.0.0 On-link 10.0.0.4 266
                                255.255.255.255 255.255.255.255 On-link 127.0.0.1 331
                                255.255.255.255 255.255.255.255 On-link 10.0.0.4 266

                                Persistent Routes:
                                None

                                IPv6 Route Table

                                Active Routes:
                                If Metric Network Destination Gateway
                                1 331 ::1/128 On-link
                                1 331 ff00::/8 On-link

                                Persistent Routes:
                                None

                                K 1 Reply Last reply Reply Quote 0
                                • K
                                  Konstanti @A Former User
                                  last edited by Konstanti

                                  @asdffdsa6131
                                  Hmmm.
                                  Let's check.

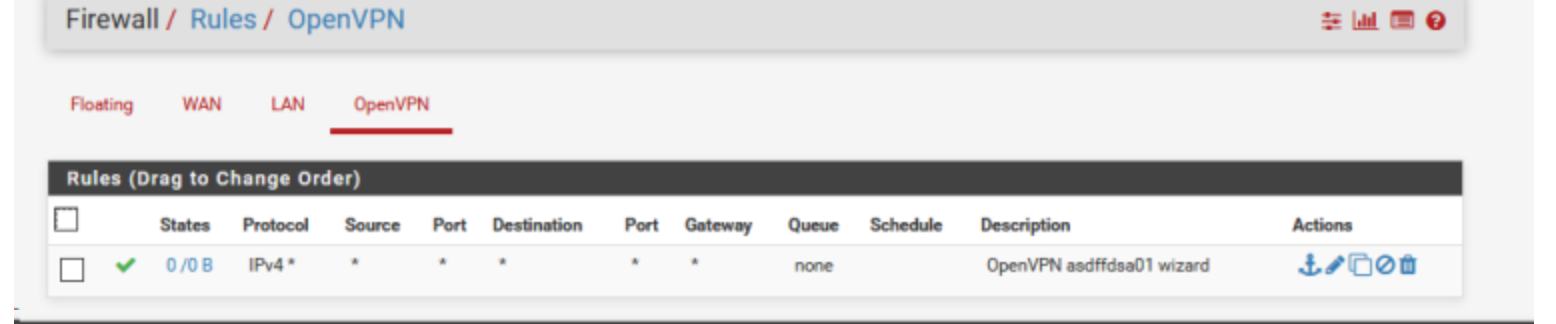

                                  I see that packets went in the direction 192.168.62.0/24
                                  Check to see if the numbers appear in this place ?
                                  This is a rule on the OpenVpn server interface

                                  Can host 10.0.0.4 ping 192.168.62.1 ?
                                  Can host 192.168.62.1 ping 10.0.0.4 ?

                                  1 Reply Last reply Reply Quote 0
                                  • ?
                                    A Former User
                                    last edited by

                                    hi again,
                                    I have a continuous ping from 10.0.0.4 to 192.168.62.1 and it is 'request time out'

                                    K 1 Reply Last reply Reply Quote 0
                                    • K
                                      Konstanti @A Former User
                                      last edited by Konstanti

                                      @asdffdsa6131
                                      On the Openvpn server side
                                      In WEBGUI
                                      /Diagnostics/Packet Capture /
                                      Interface Openvpn
                                      Protocol ICMP
                                      Start

                                      what is the result ?

                                      1 Reply Last reply Reply Quote 0
                                      • ?
                                        A Former User
                                        last edited by

                                        thank much,

                                        18:05:09.356421 IP 192.168.62.181 > 10.0.0.4: ICMP echo request, id 1, seq 15875, length 40
                                        18:05:11.355996 IP 192.168.62.181 > 10.0.0.4: ICMP echo request, id 1, seq 15876, length 40
                                        18:05:13.344929 IP 192.168.62.181 > 10.0.0.4: ICMP echo request, id 1, seq 15877, length 40

                                        K 1 Reply Last reply Reply Quote 0
                                        • K
                                          Konstanti @A Former User
                                          last edited by Konstanti

                                          @asdffdsa6131

                                          Now the same is on the Openvpn client side
                                          WAN interface only
                                          we continue to ping 192.168.62.181 > 10.0.0.4

                                          1 Reply Last reply Reply Quote 0
                                          • ?
                                            A Former User
                                            last edited by

                                            192.168.62.181 is my windows 10 laptop

                                            1 Reply Last reply Reply Quote 0
