    Help with my PIA OpenVPN setup

    Scheduled Pinned Locked Moved OpenVPN
    4 Posts 2 Posters 381 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • T
      tiff1002
      last edited by

      Hello Everybody (and apologies in advance if I am posting in the wrong place),

      I currently am using pfsense as a virtual router for an esxi environment.

      I currently have three interfaces attached to the pfsense VM. One that is WAN, One that is my Main LAN, and one that I want to be a secondary LAN that routes all traffic through Private internet access via Open VPN with a kill switch should the VPN go down.

      I can't seem to get it right though. Either everything goes through the VPN or I don't have internet access, and until I get it working I won't start trying to configure the kill switch part.

      Any help anyone can give me would be greatly appreciated. I am happy to provide any details about my config anyone might need to point me in the right direction.

      Again thanks in advance,
      Tiff

      1 Reply Last reply Reply Quote 0
      • NogBadTheBadN
        NogBadTheBad
        last edited by

        Enable Don't pull routes in OpenVPN.

        Andy

        1 x Netgate SG-4860 - 3 x Linksys LGS308P - 1 x Aruba InstantOn AP22

        1 Reply Last reply Reply Quote 0
        • T
          tiff1002
          last edited by

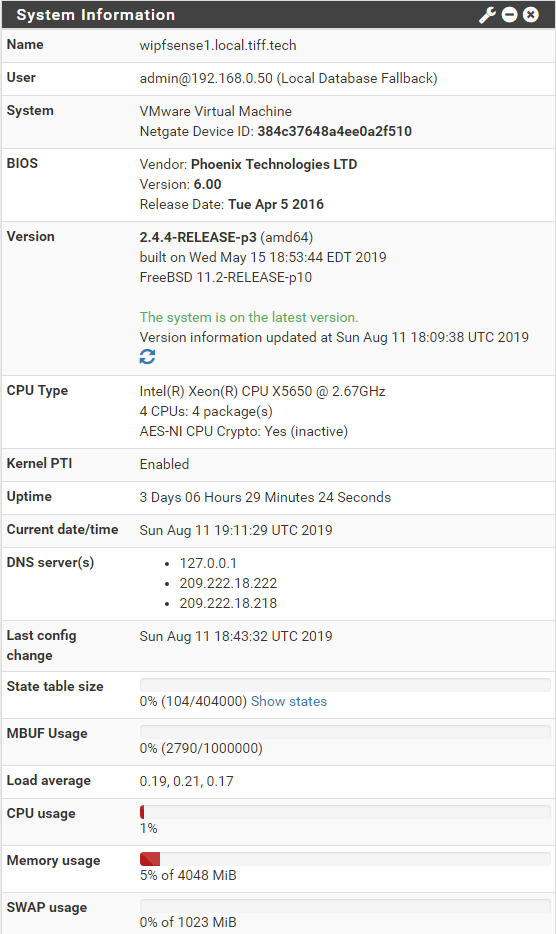

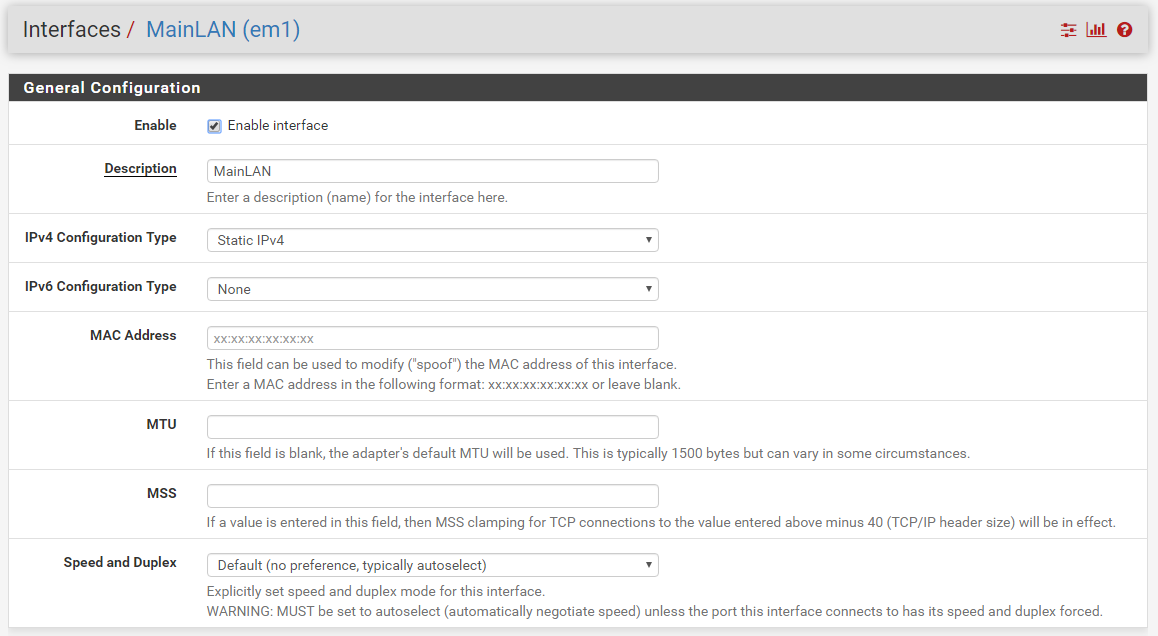

          Here are screen caps of all my settings I am not sure what you are recommending I change.

          interface assignments.PNG

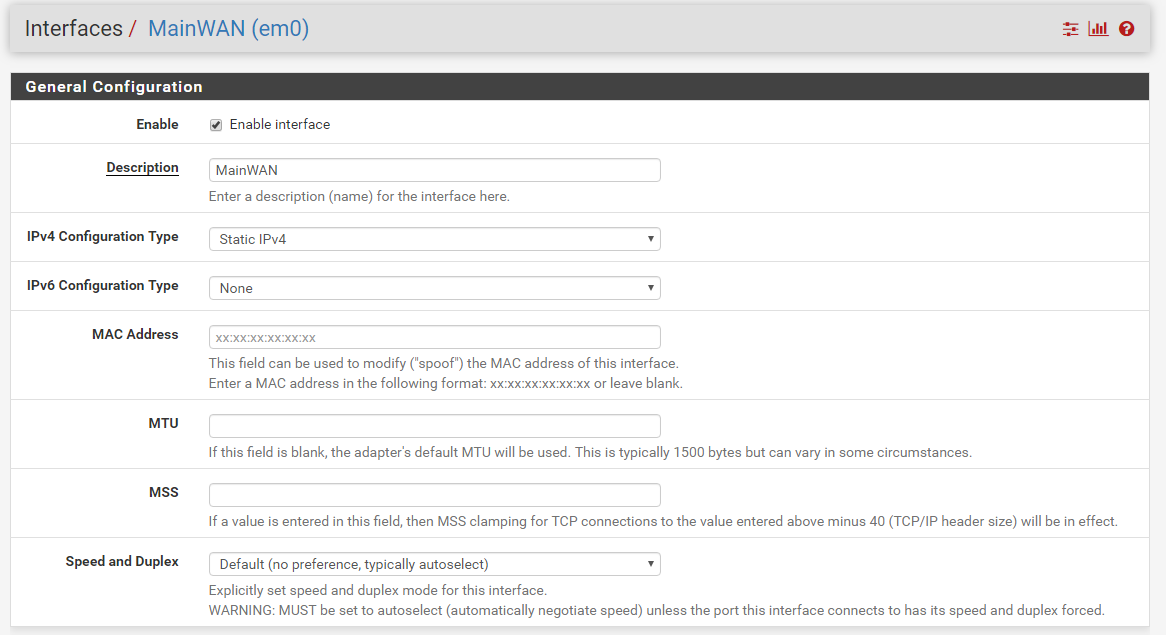

          ![interfacewan1.PNG](/assets/upinterfacewan2.jpg loads/files/1565551542468-interfacewan1.png)
          outbound nat1.PNG
          outbound nat2.PNG
          vpn clients.PNG

          1 Reply Last reply Reply Quote 0
          • NogBadTheBadN
            NogBadTheBad
            last edited by NogBadTheBad

            In the OpenVPN client settings:-

            Screenshot 2019-08-11 at 20.35.04.png

            I bet if you were to look at Diagnostics -> Routes the default route is pointing to the VPN

            Andy

            1 x Netgate SG-4860 - 3 x Linksys LGS308P - 1 x Aruba InstantOn AP22

            1 Reply Last reply Reply Quote 0
