    Switching Static IPs to Dynamic

    Scheduled Pinned Locked Moved General pfSense Questions
    7 Posts 2 Posters 638 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • V
      vMAC
      last edited by vMAC

      Ok really need some help here as I'm losing it. I've spent the last two hours trying to figure out what the issue is to no avail. Really need some help as I don't want to nuke my current pfSense setup if I don't have to do so. So here are the particulars:

      • I had an (Metro) Ethernet connection running to my house with 40/40 and with 5 IPs from my provider.
      • My internal LAN has been setup with with 192.168.1.1/24
      • I have vLANs that operate at 192.168.2.x 192.168.3.x and 192.168.50.x
      • I switched my provider and now have Cox residential service (300/30) with just 1 dynamic IP.
      • I purchased a Motorola 8600 cable modem, which seems to default to 192.168.100.1 for internal traffic

      So I connected to the router via SSH and changed it so that my WAN ip would now be pulled via DHCP. I then powered off the router, powered on the modem and then powered it back up (the router) with the Ethernet connected to the modem. I have not gotten past this step as my modem shows it is connected to Cox, however, I can't get to the internet.

      When I got to Status > Interfaces: it shows the IP that I am being assigned by Cox!alt text
      However when I got to Status > Gateway: it shows that the WAN DHCP gateway is "offline." alt text

      I've checked the firewall logs and I see nothing except for IPv6 traffic that is blocked by default.
      However, I can not browse to any websites, or directly by IP addresses. I can't ping 8.8.8.8, I can't even ping the Gateway address in the image above. At first I couldn't browse to 192.168.100.1 from behind the pfSense, however, now it lets me.
      When I go to this address and log into the modem it tells me that the modem is connected to yet another private IP alt text. I can ping this address from pfSense.

      I'm at a loss and need help. Please let me know what I'm missing. Thank you in advance.

      1 Reply Last reply Reply Quote 0
      • DerelictD
        Derelict LAYER 8 Netgate
        last edited by

        It doesn't look like you are missing anything.

        Did you set something like manual outbound NAT before? (Firewall > NAT, Outbound)

        Chattanooga, Tennessee, USA
        A comprehensive network diagram is worth 10,000 words and 15 conference calls.
        DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
        Do Not Chat For Help! NO_WAN_EGRESS(TM)

        1 Reply Last reply Reply Quote 0
        • V
          vMAC
          last edited by

          No outbound is set to Automatic Outbound NAT rule generation.

          However, there do appear to be automatic rules that were created. Do I need to refresh this? I don't see a way to delete these rules and see if that might help.

          1 Reply Last reply Reply Quote 0
          • DerelictD
            Derelict LAYER 8 Netgate
            last edited by

            No. They should be fine.

            You should be able to ping that gateway address. Not exactly sure why you wouldn't be able to.

            Have you called your ISP?

            Chattanooga, Tennessee, USA
            A comprehensive network diagram is worth 10,000 words and 15 conference calls.
            DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
            Do Not Chat For Help! NO_WAN_EGRESS(TM)

            1 Reply Last reply Reply Quote 0
            • DerelictD
              Derelict LAYER 8 Netgate
              last edited by Derelict

              I have Cox and a Motorola 8600 too. It just worked for me.

              I do not have an address on the modem, however, so that's different:

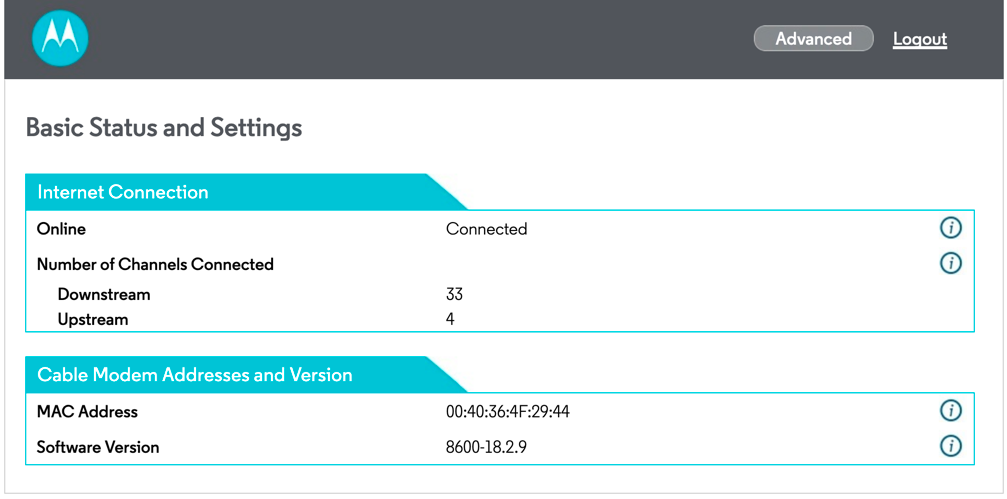

              Screen Shot 2019-08-19 at 12.57.23 AM.png

              It looks like my firmware version is about a decade later than yours.

              Chattanooga, Tennessee, USA
              A comprehensive network diagram is worth 10,000 words and 15 conference calls.
              DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
              Do Not Chat For Help! NO_WAN_EGRESS(TM)

              1 Reply Last reply Reply Quote 0
              • V
                vMAC
                last edited by

                I will call them tomorrow morning.
                Just want to be sure that I'm not crazy, or didn't setup something correctly. My understanding is that this modem operates in Bridge mode, so I wanted to make sure there is nothing I need to do in pfSense to make sure that it is operating correctly. Why can I ping a 10.130 address but not the gateway? I'm wondering if I need to set the gateway as the IP address given to me by the modem? Could that be it? If so how can I change it considering since I have it coming from DHCP it doesn't allow me to change the ip just says "dynamic"

                1 Reply Last reply Reply Quote 0
                • DerelictD
                  Derelict LAYER 8 Netgate
                  last edited by Derelict

                  You should not have to do anything. DHCP will assign your WAN address, subnet, and gateway.

                  Your firmware version looks ancient compared to mine. I would start there.

                  https://motorolamentor.zendesk.com/hc/en-us/articles/216091737

                  Chattanooga, Tennessee, USA
                  A comprehensive network diagram is worth 10,000 words and 15 conference calls.
                  DO NOT set a source address/port in a port forward or firewall rule unless you KNOW you need it!
                  Do Not Chat For Help! NO_WAN_EGRESS(TM)

                  1 Reply Last reply Reply Quote 0
