    [Version - 2.4.4-RELEASE-p3(amd64)]Changing Phase 1 Key Exchange version to IKEv2 messes up ipsec status command output

    Scheduled Pinned Locked Moved IPsec
    3 Posts 2 Posters 418 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • F
      fawo123
      last edited by

      Recently I changed version of Phase 1 KEY-EXCHANGE to IKEv2 and all my tunnel connection output have been concatenated into one line

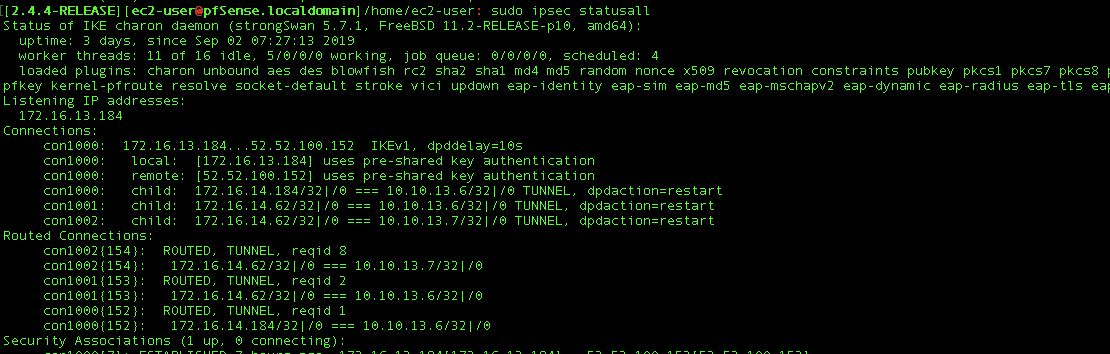

      It worked fine previously in version IKEv1, as shown by the output below:

      I am using this command to scrape logs for my prometheus server using a bash script.

      Is there any way I could get all child entries on different lines keeping Key exchange version to IKEv2, since IKEv2 is critical to our project.

      Here's the tunnel setup :

      1 Reply Last reply Reply Quote 0
      • F
        fawo123
        last edited by

        Figured it out, you need to edit phase 1 and check 'Split Connections' box

        1 Reply Last reply Reply Quote 0
        • jimpJ
          jimp Rebel Alliance Developer Netgate
          last edited by

          You don't have to check that box, but you can. IKEv2 is more efficient there, it doesn't need to separate all those out. Some other equipment (notably Cisco) doesn't like that, though.

          Remember: Upvote with the 👍 button for any user/post you find to be helpful, informative, or deserving of recognition!

          Need help fast? Netgate Global Support!

          Do not Chat/PM for help!

          1 Reply Last reply Reply Quote 0
