    I broke my Netgate XG-7100 pfsense router by changing switch VLAN config

    Scheduled Pinned Locked Moved Official Netgate® Hardware
    4 Posts 2 Posters 696 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • P
      prot0type
      last edited by

      I am hoping someone who has a better understanding of the VLAN setup on the XG-7100 switch can help? I have done something stupid and turned off the 'Enable 802.1q VLAN mode' setting on the switch. The effect of this is that now my pfsense router is completely inaccessible and so I can't change the setting back via the GUI.

      Is there another way in? Any pointers on how to roll this back would be amazing. If its not possible to roll back then how do I factory reset the whole unit and re-install pfsense?

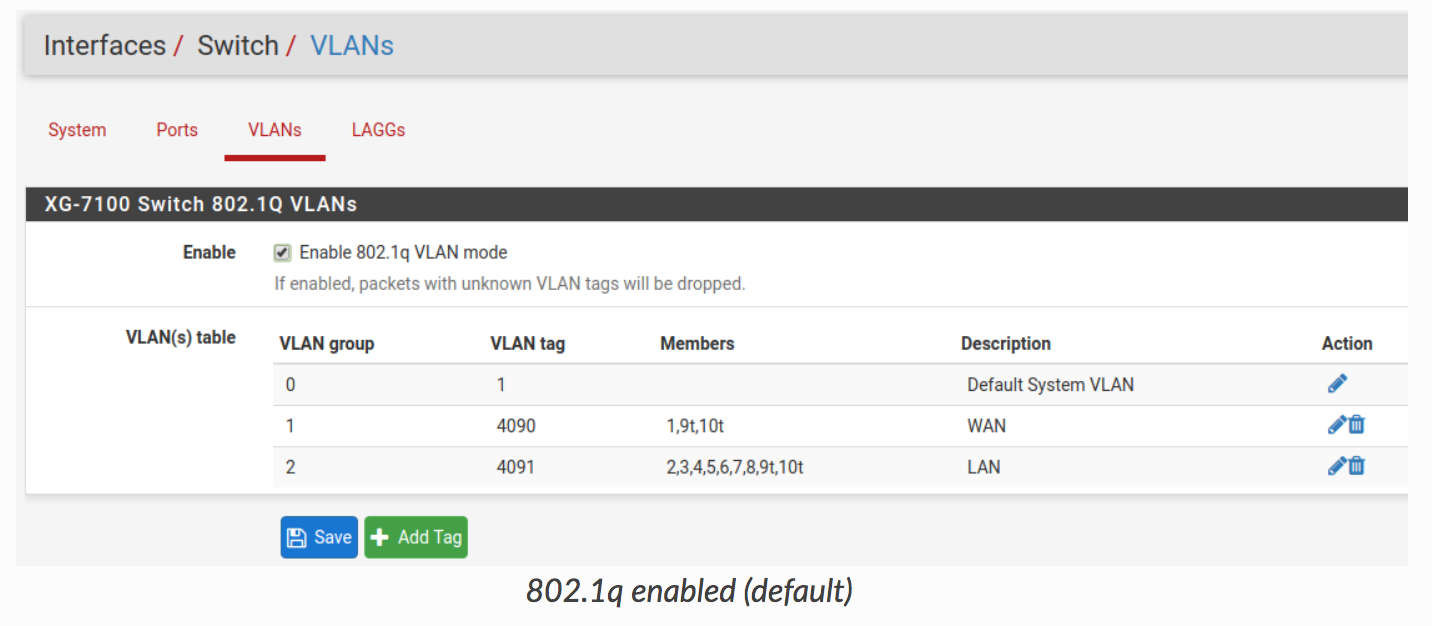

      Here is pic of the config setting I am talking about:

      Screen Shot 2019-09-11 at 12.45.54 pm.png

      1 Reply Last reply Reply Quote 0
      • RicoR
        Rico LAYER 8 Rebel Alliance
        last edited by Rico

        Hmmm the only way I could think of is to use ix0/ix1 or the add-in card.
        If this is not possible, connect with the serial console cable and choose Option 4 (Reset to factory defaults). This will of course blow away your config.

        -Rico

        1 Reply Last reply Reply Quote 0
        • P
          prot0type
          last edited by

          Perfect, of course, should have realised I could connect via console. Worked like a dream. Thank you, all up and running again now.

          1 Reply Last reply Reply Quote 0
          • RicoR
            Rico LAYER 8 Rebel Alliance
            last edited by

            Glad you have your XG-7100 back on track. ☺

            -Rico

            1 Reply Last reply Reply Quote 0
