Netgate XG-7100 1U



  • I have a new netgate XG-7100 1U. I have what I think is a simple setup that I can not get to work on here. My WAN and LAN interfaces work fine with the default VLAN 4090 and 4091. My problem is I'm trying to just add a vlan 30 with a address of 10.1.30.1. I'm able to configure that fine and I'm able to ping that network from the default vlan 4091. I made sure dhcp is configured and I also added that network on the swith and tried assigning different ports. But no matter what i do I can get that network to work when i attach to it. Is there something I'm missing here or something I'm doing wrong?

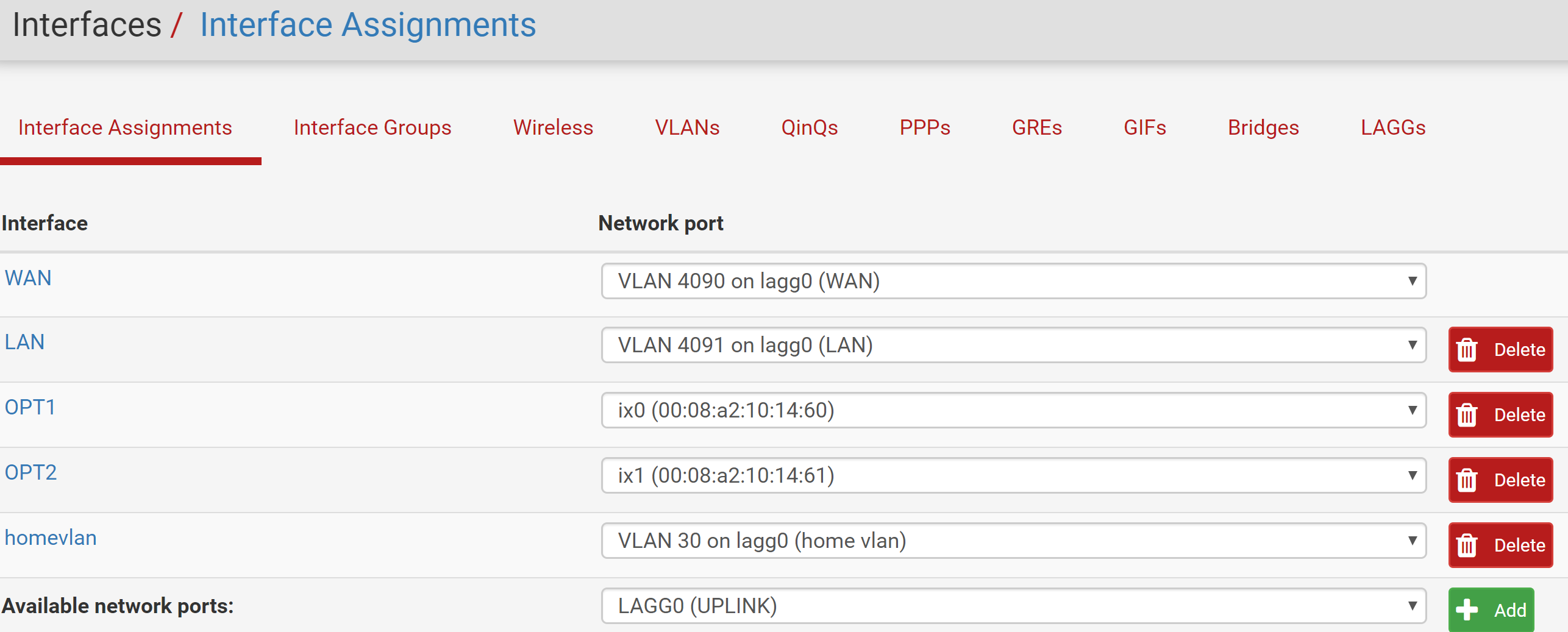

    Annotation 2020-01-05 005655.png Annotation 2020-01-05 005613.png Annotation 2020-01-05 005234.png
    Any help would be appreciated. I can provide more info if needed.


  • LAYER 8 Netgate

    firewall rules on the homevlan interface passing traffic you want to pass?


  • Netgate Administrator

    What you have setup there looks correct. Do clients get a DHCP lease when you connect them to Eth5? In the correct VLAN30 subnet?

    Steve



  • subnet mask?



  • Did you create a Virtual IP for that subnet?
    Please show us a screenshot from Firewall/Virtual IPs.

    Steve, correct me if I'm wrong, but this isn't the use for a VIP since the interface is fully configured on the router.

    Check Status / Interfaces to see if the interface is enabled. If it is disabled, enable it at Interfaces / Assignments - click on the homevlan interface link.
