pFsense with OpenVPN filter navigate with proxy

[A Former User]

Hi, i have configure pfsense with openvpn with roadwarrior mode this have a tcp connection in 7443 port all work fine, but my question is, as how can filter the navigate of users to internet, when the access of my user is page denied in my Lan by squidguard. I need that all connection that make the vpn user be filtered by the modules of security (squid, squiguard, pfblocker). I hope your help.

[stephenw10]

Assign the OpenVPN server as an interface. Select that interface in Squid.

Same in pfBlocker if you're using it's auto added rules. Or add the aliases to the rules for traffic coming in on the VPN manually if not.

Steve

[A Former User]

Hi, i have only two interface and i select the WAN interface for the VPN, also i configure this with tcp port 7443 in this connection, how can filter or i need create a routed for filter the connection by proxy and pfblocker.

[stephenw10]

If you need to do it transparently you need to set Squid to listen on the OpenVPN interface so it adds the required port forwards.

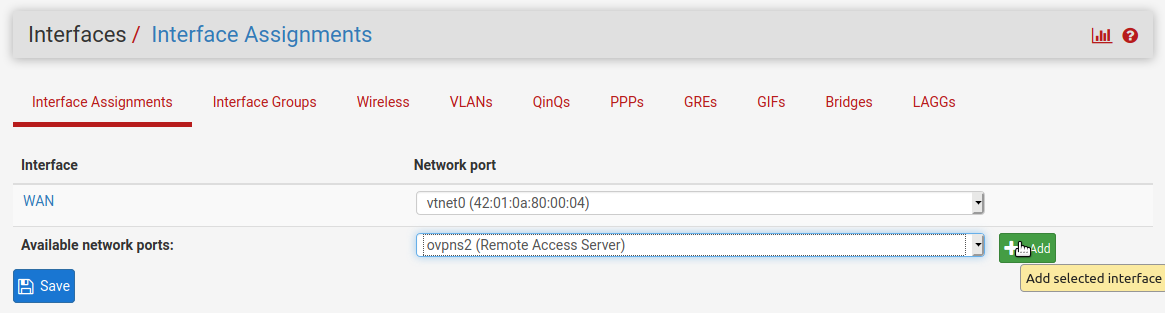

To do that you need to assign the OpenVPN server as an interface:

Enable the new interface, rename it if you wish. Then you can select it in Squid.

Steve
