    Design issue in Floating tab

    Scheduled Pinned Locked Moved General pfSense Questions
    8 Posts 4 Posters 641 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • emammadovE
      emammadov
      last edited by emammadov

      Hello,

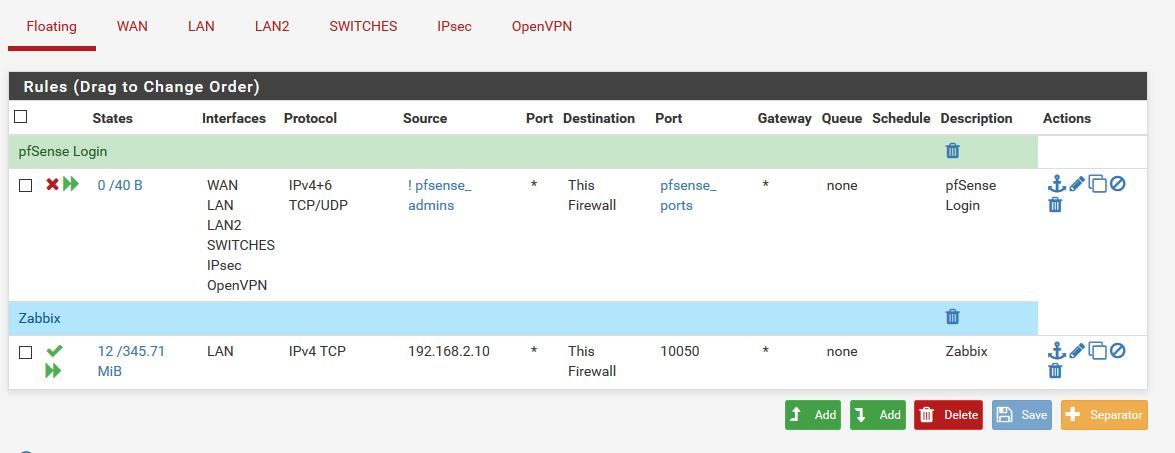

      I know, it is not important to mention, but after upgrading to 2.4.5 p1, I see that there is a problem with design in Floating rules, so "Separator" is not fully stretched from left to right. There is a gap in the right side.

      Elvin

      1 Reply Last reply Reply Quote 0
      • GertjanG
        Gertjan
        last edited by


        It seems to depend on something but not pfSense....
        The CSS and html theme files didn't change.l

        I'm using FF 77.0.1.

        No "help me" PM's please. Use the forum, the community will thank you.
        Edit : and where are the logs ??

        1 Reply Last reply Reply Quote 0
        • emammadovE
          emammadov
          last edited by emammadov

          This issue is only in Floating tab, the other tabs such as Wan, Lan is ok.

          Elvin

          1 Reply Last reply Reply Quote 1
          • GertjanG
            Gertjan
            last edited by

            Yeah - just saw the same thing. Only on floating ....
            I'll edit my CSS, and tell you what to do "if it works and I didn't blew my GUI out of the water".

            No "help me" PM's please. Use the forum, the community will thank you.
            Edit : and where are the logs ??

            1 Reply Last reply Reply Quote 0
            • emammadovE
              emammadov
              last edited by

              Maybe we can wait it to be fixed in the next release such as 2.4.5p2. But it would be better this to be mentioned in Redmine.

              Elvin

              GertjanG 1 Reply Last reply Reply Quote 0
              • GertjanG
                Gertjan @emammadov
                last edited by

                @emammadov said in Is this design issue?:

                this to be mentioned in Redmine.

                I'll put it on my list with 'micro items'.

                /usr/local/www/firewall_rules.php - line 33 :

                // Update this if you add or remove columns!
                $columns_in_table = 13;


                Add these two lines right after :

                if ($if == "FloatingRules")
                	$columns_in_table++;


                because the Floating firewall rules page has one more colon called "Interfaces".

                Works for me©.

                No "help me" PM's please. Use the forum, the community will thank you.
                Edit : and where are the logs ??

                fireodoF 1 Reply Last reply Reply Quote 2
                • fireodoF
                  fireodo @Gertjan
                  last edited by

                  @Gertjan said in Design issue in Floating tab:

                  @emammadov said in Is this design issue?:

                  this to be mentioned in Redmine.

                  I'll put it on my list with 'micro items'.

                  /usr/local/www/firewall_rules.php - line 33 :

                  // Update this if you add or remove columns!
                  $columns_in_table = 13;


                  Add these two lines right after :

                  if ($if == "FloatingRules")
                  	$columns_in_table++;


                  because the Floating firewall rules page has one more colon called "Interfaces".

                  Works for me©.

                  Thanx - works for me too!

                  Regards,
                  fireodo

                  Kettop Mi4300YL CPU: i5-4300Y @ 1.60GHz RAM: 8GB Ethernet Ports: 4
                  SSD: SanDisk pSSD-S2 16GB (ZFS) WiFi: WLE200NX
                  pfsense 2.8.0 CE
                  Packages: Apcupsd, Cron, Iftop, Iperf, LCDproc, Nmap, pfBlockerNG, RRD_Summary, Shellcmd, Snort, Speedtest, System_Patches.

                  1 Reply Last reply Reply Quote 1
                  • jimpJ
                    jimp Rebel Alliance Developer Netgate
                    last edited by

                    https://redmine.pfsense.org/issues/10667

                    Remember: Upvote with the 👍 button for any user/post you find to be helpful, informative, or deserving of recognition!

                    Need help fast? Netgate Global Support!

                    Do not Chat/PM for help!

                    1 Reply Last reply Reply Quote 2
