    Disabling NIC Fan montoring

    Scheduled Pinned Locked Moved Hardware
    11 Posts 4 Posters 1.9k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      mira-dta
      last edited by

      First, Thank you kind stranger for your assistance, whether you can point me in the right direction or not, it warms my heart that you clicked on this thread.

      one of the fans on my 10G NIC is making an ugly sound, so i replaced it. Now because the new fan spins slower than the original one the driver is not liking the tach signal, so my mom of a NIC driver yells at me with the following error:

      ![0_1604792851494_fan err.jpg](Uploading 100%)

      Error trace:

      bxe1: Warning: SPIO5 hw attention
      bxe1 Warning: Fan Failure on Network Controller has caused the driver to shutdown the card to prevent permanent damage.  Please contact OEM Support for assistance
      bxe1: bxe_fan_failure (build/ce-crossbuild-245/sources/Free-BSD-srd/sys/dev/bxe/bxe.c,7027)


      So my question is: Given that we are a loose cannon that does not play by the rules, and are willing to accept any consequence when the router explodes, is there a way for us to turn off this annoying error? Or is this a FreeBSD thing and we need to recompile the aforementioned driver and somehow get FreeBSD to make use of that instead?

      Thanks!

      1 Reply Last reply Reply Quote 0
      • M
        mira-dta
        last edited by

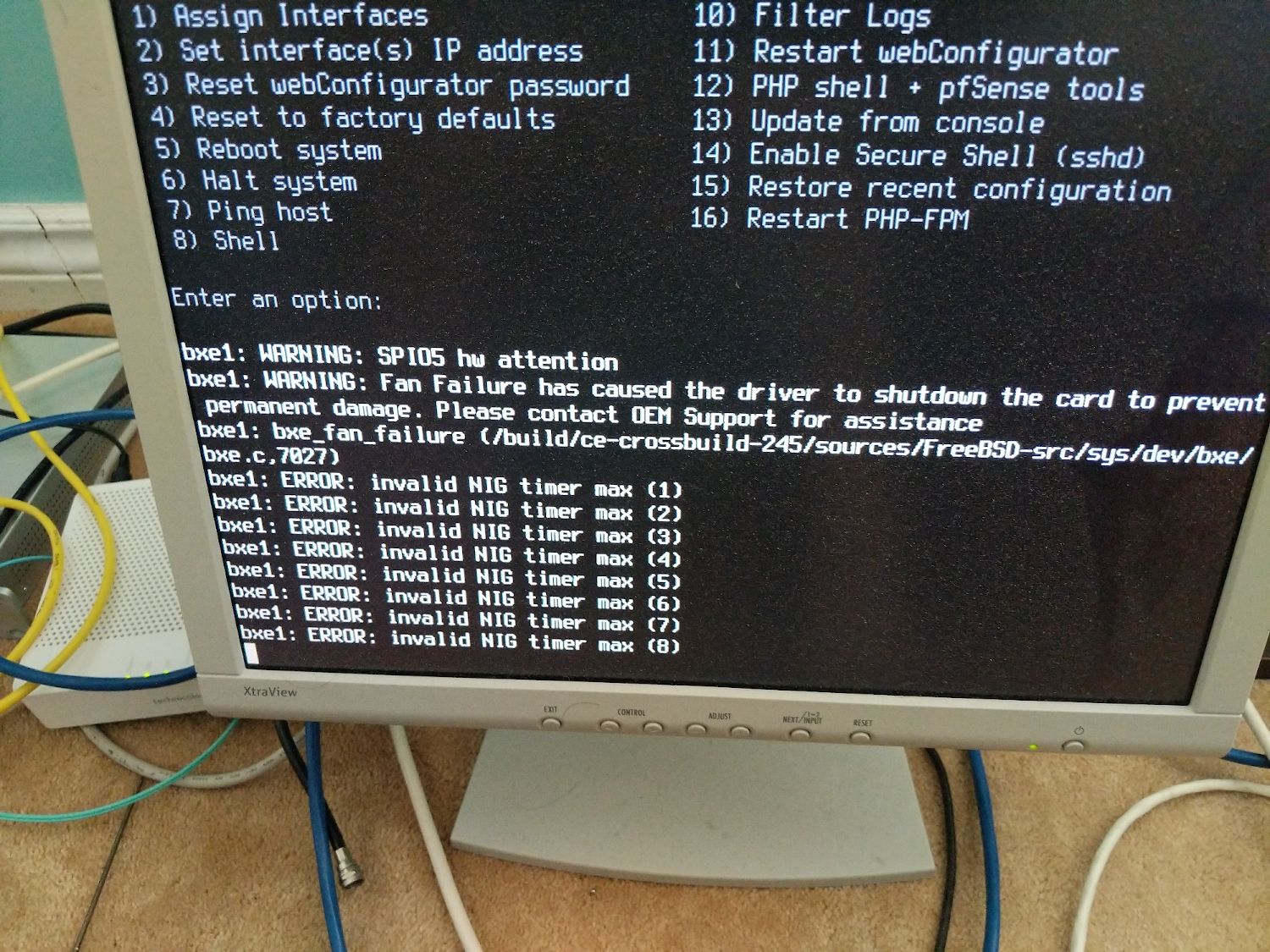

        ***photo didn't upload for some reason.
        fan err.jpg

        also the nic is one of these

        Dell Broadcom 57810S Dual Port 10GbE PCIe Converged Network Adapter w/SFP+ N20KJ

        1 Reply Last reply Reply Quote 0
        • stephenw10S
          stephenw10 Netgate Administrator
          last edited by

          Hmm, looks like it's hard coded, there is no tunable to prevent that:
          https://github.com/pfsense/FreeBSD-src/blob/RELENG_2_4_5/sys/dev/bxe/bxe.c#L7026

          Steve

          M 1 Reply Last reply Reply Quote 0
          • O
            oldlongjohnson
            last edited by

            You will have to use eDiag tool to shut off the fan warnings, its baked into the firmware of the card. See here:

            https://www.dslreports.com/forum/r32505518-

            TLDR if you know what youre doing, you set bitflag 83 to 1.

            If you arent familiar with eDiag, check the first post in that thread, it has some basic instructions and a download link (Scroll down to "How-to enable 2.5g capability via DOS eDiag" section, thats what theyre using it for). Basically, its a bootable firmware config program for broadcom/qlogic cards, which yours is. Careful messing with that program though, you can obviously put the card into an unworkable state if you dont know what youre doing. Be extra sure and doublecheck your changed values before writing anything to the card.

            1 Reply Last reply Reply Quote 2
            • provelsP
              provels
              last edited by

              I'd probably just get the fan that operates at the expected speed. You don't really want to cook the card because you never knew the fan failed.

              Peder

              MAIN - pfSense+ 24.11-RELEASE - Adlink MXE-5401, i7, 16 GB RAM, 64 GB SSD. 500 GB HDD for SyslogNG
              BACKUP - pfSense+ 23.01-RELEASE - Hyper-V Virtual Machine, Gen 1, 2 v-CPUs, 3 GB RAM, 8GB VHDX (Dynamic)

              1 Reply Last reply Reply Quote 0
              • M
                mira-dta @stephenw10
                last edited by

                @stephenw10 Thanks, that helped a a lot, i ended up re-compiling this bit of the FreeBSD Kernel. And got rid of the entire message.

                1 Reply Last reply Reply Quote 0
                • stephenw10S
                  stephenw10 Netgate Administrator
                  last edited by

                  My preference here (if you can't use a fan that doesn't trigger it) would be to disable it in the NIC firmware using eDiag. Using a modified driver will require you to compile it for every new release that uses a significantly different base. It will fail to boot at upgrade.

                  Steve

                  M 1 Reply Last reply Reply Quote 0
                  • provelsP
                    provels
                    last edited by

                    PS - Do you know the card is being cooled sufficiently with the new fan? Just a thought.

                    Peder

                    MAIN - pfSense+ 24.11-RELEASE - Adlink MXE-5401, i7, 16 GB RAM, 64 GB SSD. 500 GB HDD for SyslogNG
                    BACKUP - pfSense+ 23.01-RELEASE - Hyper-V Virtual Machine, Gen 1, 2 v-CPUs, 3 GB RAM, 8GB VHDX (Dynamic)

                    M 1 Reply Last reply Reply Quote 0
                    • M
                      mira-dta @provels
                      last edited by

                      @provels
                      Oh yes indeed, I know the thermal solution is good enough due to 3 reasons,

                      1. Under full load, the heatsink is only slightly warm to the touch, Took the liberty of reapplying thermal paste during the fan swap.
                      2. There's versions of the qlogic 57810 that's just passively air cooled so even with no fan it should be fine. Our card is in an atx pc case with plenty of airflow just in case.
                      3. We turned off the fan protection, not the thermo protection. those will still work if anything happens.
                      1 Reply Last reply Reply Quote 0
                      • M
                        mira-dta @stephenw10
                        last edited by

                        @stephenw10
                        if this was my job and im doing it for work, new fan would definitively be my preference too, this is just something we cobbled together from e-waste for our home network, not a big deal if it catch fire and explodes or something. Which is why we are really scrappy with our solution.

                        1 Reply Last reply Reply Quote 1
                        • stephenw10S
                          stephenw10 Netgate Administrator
                          last edited by

                          I understand. I would still try to disable it in ediag just so you don't have to maintain the driver yourself or struggle with upgrades.

                          Steve

                          1 Reply Last reply Reply Quote 0
