DNS Resolver intranet clients and hosting

Scheduled Pinned Locked Moved DHCP and DNS
7 Posts 3 Posters 762 Views 3 Watching
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • K Offline
    kidalabama
    last edited by kidalabama Jan 11, 2021, 2:14 PM Jan 11, 2021, 1:54 PM

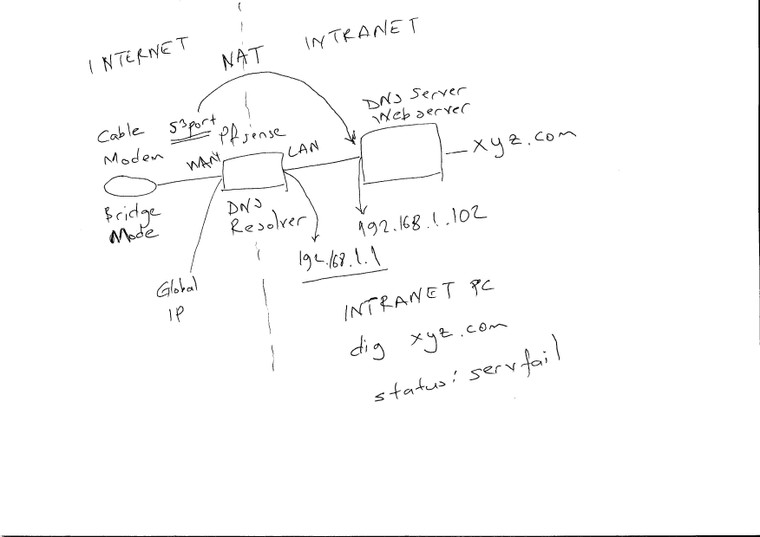

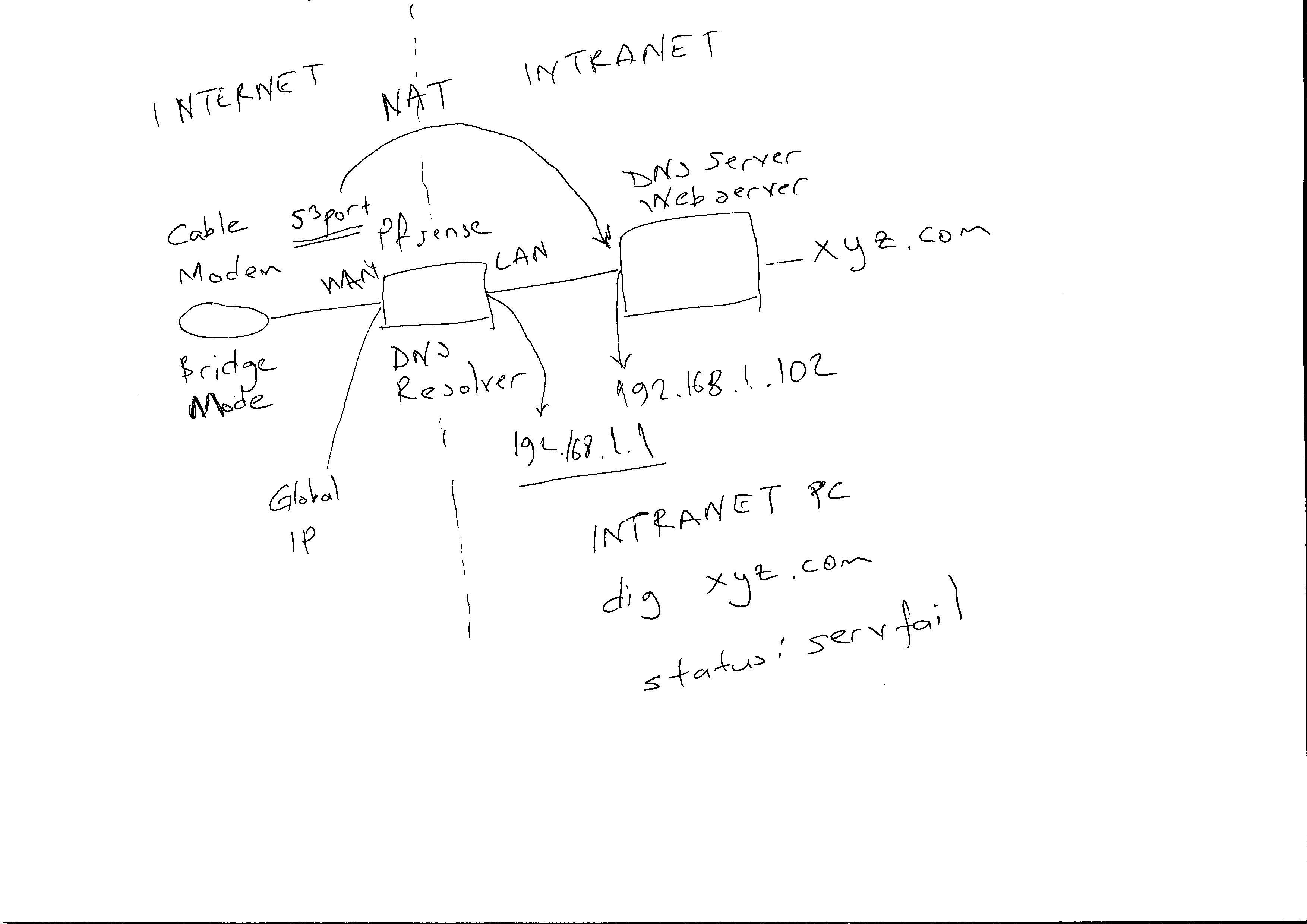

    only problem is intranet users can't run, i hosted domains problem.

    NAT Config

    WAN TCP/UDP * * WAN address 53 (DNS) 192.168.1.102 53 (DNS) dns

    dig xyz.com

    ; <<>> DiG 9.11.5-P4-5.1+deb10u2-Debian <<>> nurettinalp.com
    ;; global options: +cmd
    ;; Got answer:
    ;; ->>HEADER<<- opcode: QUERY, status: SERVFAIL, id: 59902
    ;; flags: qr rd ra; QUERY: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 1

    ;; OPT PSEUDOSECTION:
    ; EDNS: version: 0, flags:; udp: 4096
    ;; QUESTION SECTION:
    ;xyz.com. IN A

    ;; Query time: 0 msec
    ;; SERVER: 192.168.1.1#53(192.168.1.1)
    ;; WHEN: Mon Jan 11 17:01:48 +03 2021
    ;; MSG SIZE rcvd: 44

    V 1 Reply Last reply Jan 11, 2021, 6:55 PM Reply Quote 0
    • V Offline
      viragomann @kidalabama
      last edited by Jan 11, 2021, 6:55 PM

      @kidalabama
      You have to add a domain override for xyz.com to the DNS resolver pointing to your internal server.

      K 2 Replies Last reply Jan 12, 2021, 6:58 AM Reply Quote 0
      • K Offline
        kidalabama @viragomann
        last edited by kidalabama Jan 12, 2021, 7:50 AM Jan 12, 2021, 6:58 AM

        @viragomann i have got lot of domain and when disable bridge mode problem solve but i want use modem in bridge mode.

        i can solve problem with

        "DNS Query Forwarding
        Enable Forwarding Mode If this option is set, DNS queries will be forwarded to the upstream DNS servers defined under System > General Setup or those obtained via DHCP/PPP on WAN (if DNS Server Override is enabled there)."

        8.8.8.8
        8.8.4.4

        but i want use pfsense's dns resolver. or i can use 192.168.1.102 dns server.

        if problem 8.8.8.8 or 192.168.1.102 pfsense not running. or i can use bind dns server.

        V 1 Reply Last reply Jan 12, 2021, 3:13 PM Reply Quote 0
        • V Offline
          viragomann @kidalabama
          last edited by Jan 12, 2021, 3:13 PM

          @kidalabama
          Do these domains resolve to private IP addresses?

          S 1 Reply Last reply Jan 12, 2021, 3:20 PM Reply Quote 0
          • S Offline
            SteveITS Rebel Alliance @viragomann
            last edited by Jan 12, 2021, 3:20 PM

            Is xyz.com a real domain? The reason for using NAT on port 53 would be so the world would be able to access DNS. If you want the NAT rule to work from inside, you need to enable NAT reflection in System->Advanced->Firewall & NAT. Otherwise as viragomann suggests you can set a domain override in Services->DNS Resolver to have LAN computers be told to access the local server for DNS requests for that domain.

            Only install packages for your version, or risk breaking it. Select your branch in System/Update/Update Settings.
            When upgrading, allow 10-15 minutes to reboot, or more depending on packages, and device or disk speed.
            Upvote 👍 helpful posts!

            K 1 Reply Last reply Jan 12, 2021, 7:16 PM Reply Quote 0
            • K Offline
              kidalabama @viragomann
              last edited by Jan 12, 2021, 7:13 PM

              @viragomann dig dns status: SERVFAIL nothing found. neither public ip nor private ip.

              1 Reply Last reply Reply Quote 0
              • K Offline
                kidalabama @SteveITS
                last edited by Jan 12, 2021, 7:16 PM

                @teamits yes a lot of real domain and already opened

                Enable NAT Reflection for 1:1 NAT
                Enable automatic outbound NAT for Reflection.

                this problem happened when cable modem chenged to bridge mode(old router mode)

                1 Reply Last reply Reply Quote 0
