    L2TP Interface shows IPv6 WAN Address

    Scheduled Pinned Locked Moved General pfSense Questions
    6 Posts 2 Posters 346 Views 2 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • G Offline
      Griffo
      last edited by

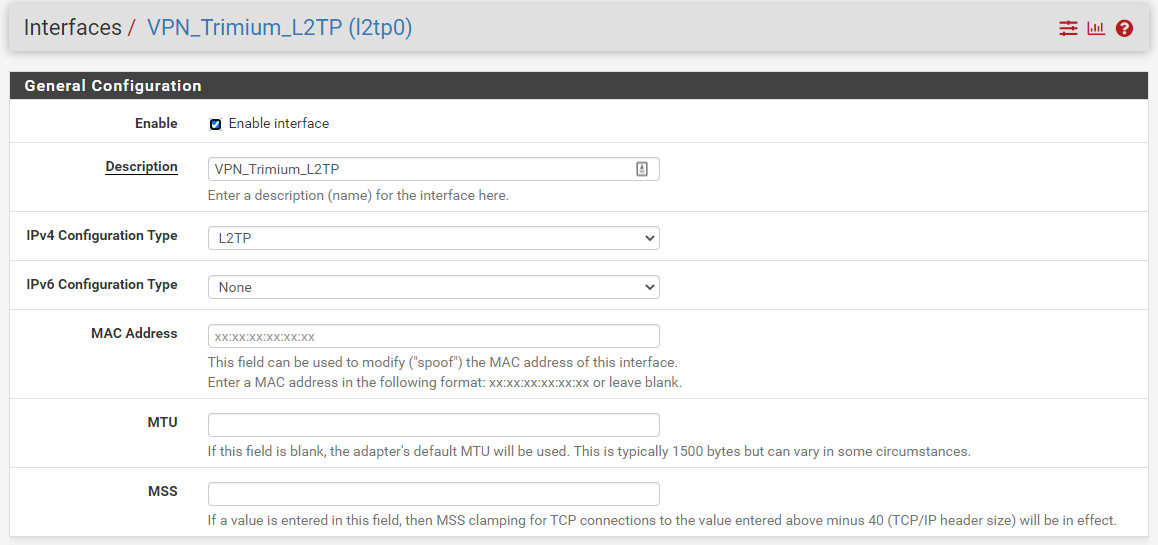

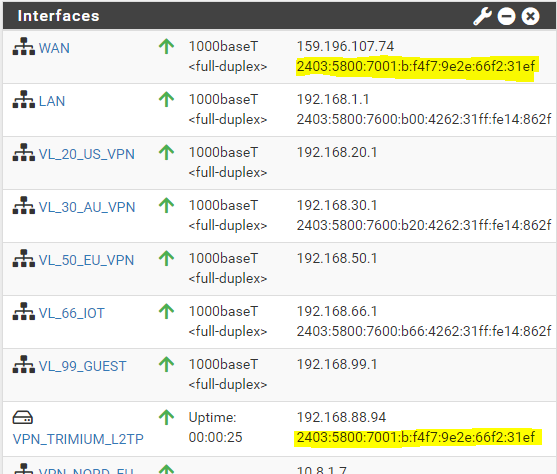

      Not sure if this is a bug or a "feature". I use an L2TP tunnel, and have an interface assigned to the L2TP. Despite having configured IPv6 on the Interface as Disabled, on the status screens and via an ifconfig, it shows the IPv6 address which is identical to teh WAN DHCP address.

      Is this expected?

      1 Reply Last reply Reply Quote 0
      • stephenw10S Offline
        stephenw10 Netgate Administrator
        last edited by

        Not exactly sure what you mean there. Can we see that output?

        G 1 Reply Last reply Reply Quote 0
        • G Offline
          Griffo @stephenw10
          last edited by Griffo

          @stephenw10

          Sure can



          [2.5.0-RC][root@gw.griffo.co]/root: ifconfig
          igb0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: WAN
                  options=e120bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCS                                                                                  UM,WOL_MAGIC,VLAN_HWFILTER,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2e
                  inet6 fe80::4262:31ff:fe14:862e%igb0 prefixlen 64 scopeid 0x1
                  inet6 2403:5800:7001:b:f4f7:9e2e:66f2:31ef prefixlen 128
                  inet 159.196.107.74 netmask 0xfffffc00 broadcast 159.196.107.255
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=23<PERFORMNUD,ACCEPT_RTADV,AUTO_LINKLOCAL>
          igb1: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: LAN
                  options=e120bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCS                                                                                  UM,WOL_MAGIC,VLAN_HWFILTER,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1 prefixlen 64 scopeid 0x2
                  inet6 fe80::1:1%igb1 prefixlen 64 scopeid 0x2
                  inet6 2403:5800:7600:b00:4262:31ff:fe14:862f prefixlen 64
                  inet 192.168.1.1 netmask 0xffffff00 broadcast 192.168.1.255
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb2: flags=8802<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCS                                                                                  UM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:30
                  media: Ethernet autoselect
                  status: no carrier
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb3: flags=8802<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCS                                                                                  UM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:31
                  media: Ethernet autoselect
                  status: no carrier
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb4: flags=8802<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCS                                                                                  UM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:32
                  media: Ethernet autoselect
                  status: no carrier
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb5: flags=8802<BROADCAST,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  options=e527bb<RXCSUM,TXCSUM,VLAN_MTU,VLAN_HWTAGGING,JUMBO_MTU,VLAN_HWCS                                                                                  UM,TSO4,TSO6,LRO,WOL_MAGIC,VLAN_HWFILTER,VLAN_HWTSO,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:33
                  media: Ethernet autoselect
                  status: no carrier
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          enc0: flags=0<> metric 0 mtu 1536
                  groups: enc
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> metric 0 mtu 16384
                  options=680003<RXCSUM,TXCSUM,LINKSTATE,RXCSUM_IPV6,TXCSUM_IPV6>
                  inet6 ::1 prefixlen 128
                  inet6 fe80::1%lo0 prefixlen 64 scopeid 0x8
                  inet 127.0.0.1 netmask 0xff000000
                  inet 10.10.10.1 netmask 0xffffffff
                  groups: lo
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          pflog0: flags=100<PROMISC> metric 0 mtu 33160
                  groups: pflog
          pfsync0: flags=0<> metric 0 mtu 1500
                  groups: pfsync
          igb1.20: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: VL_20_US_VPN
                  options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1.20 prefixlen 64 scopeid 0xb
                  inet 192.168.20.1 netmask 0xffffff00 broadcast 192.168.20.255
                  groups: vlan
                  vlan: 20 vlanpcp: 0 parent interface: igb1
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb1.30: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: VL_30_AU_VPN
                  options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1.30 prefixlen 64 scopeid 0xc
                  inet6 fe80::1:1%igb1.30 prefixlen 64 scopeid 0xc
                  inet6 2403:5800:7600:b20:4262:31ff:fe14:862f prefixlen 64
                  inet 192.168.30.1 netmask 0xffffff00 broadcast 192.168.30.255
                  groups: vlan
                  vlan: 30 vlanpcp: 0 parent interface: igb1
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb1.50: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: VL_50_EU_VPN
                  options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1.50 prefixlen 64 scopeid 0xd
                  inet 192.168.50.1 netmask 0xffffff00 broadcast 192.168.50.255
                  groups: vlan
                  vlan: 50 vlanpcp: 0 parent interface: igb1
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb1.66: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: VL_66_IoT
                  options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1.66 prefixlen 64 scopeid 0xe
                  inet6 fe80::1:1%igb1.66 prefixlen 64 scopeid 0xe
                  inet6 2403:5800:7600:b66:4262:31ff:fe14:862f prefixlen 64
                  inet 192.168.66.1 netmask 0xffffff00 broadcast 192.168.66.255
                  groups: vlan
                  vlan: 66 vlanpcp: 0 parent interface: igb1
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb1.99: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: VL_99_Guest
                  options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1.99 prefixlen 64 scopeid 0xf
                  inet 192.168.99.1 netmask 0xffffff00 broadcast 192.168.99.255
                  groups: vlan
                  vlan: 99 vlanpcp: 0 parent interface: igb1
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          igb1.40: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> metric 0 mtu 1500
                  description: VL_40_AU_VPN
                  options=600003<RXCSUM,TXCSUM,RXCSUM_IPV6,TXCSUM_IPV6>
                  ether 40:62:31:14:86:2f
                  inet6 fe80::4262:31ff:fe14:862f%igb1.40 prefixlen 64 scopeid 0x10
                  inet 192.168.40.1 netmask 0xffffff00 broadcast 192.168.40.255
                  groups: vlan
                  vlan: 40 vlanpcp: 0 parent interface: igb1
                  media: Ethernet autoselect (1000baseT <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          ovpns5: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500
                  options=80000<LINKSTATE>
                  inet6 fe80::4262:31ff:fe14:862e%ovpns5 prefixlen 64 scopeid 0x13
                  inet 192.168.70.1 --> 192.168.70.2 netmask 0xffffffff
                  groups: tun openvpn
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
                  Opened by PID 99838
          ovpnc3: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500
                  options=80000<LINKSTATE>
                  inet6 fe80::4262:31ff:fe14:862e%ovpnc3 prefixlen 64 scopeid 0x14
                  inet 10.8.3.8 --> 10.8.3.1 netmask 0xffffff00
                  groups: tun openvpn
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
                  Opened by PID 8910
          ovpnc2: flags=8051<UP,POINTOPOINT,RUNNING,MULTICAST> metric 0 mtu 1500
                  options=80000<LINKSTATE>
                  inet6 fe80::4262:31ff:fe14:862e%ovpnc2 prefixlen 64 scopeid 0x15
                  inet 10.8.1.7 --> 10.8.1.1 netmask 0xffffff00
                  groups: tun openvpn
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
                  Opened by PID 18229
          wg0: flags=8080c1<UP,RUNNING,NOARP,MULTICAST> metric 0 mtu 1420
                  options=880000<LINKSTATE>
                  inet 10.70.216.246 netmask 0xffffffff
                  inet6 fe80::4262:31ff:fe14:862e%wg0 prefixlen 64 scopeid 0x12
                  groups: wg
                  listen-port: 51820
                  private-key: GFeaYI8bYOFrCfk/N/r1GAa+/vZOC0u8PIEqaHKx/nk=
                  public-key:  yBrQjNLbMEl0WCF4cdehnZ6+H8RY4rFTeJRphikmbGQ=
                  media: Ethernet autoselect (25GBase-ACC <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          wg1: flags=8080c1<UP,RUNNING,NOARP,MULTICAST> metric 0 mtu 1420
                  options=880000<LINKSTATE>
                  inet 192.168.70.65 netmask 0xffffffc0
                  inet6 fe80::4262:31ff:fe14:862e%wg1 prefixlen 64 scopeid 0x16
                  groups: wg
                  listen-port: 51821
                  private-key: qIJxtOGI7RU635vzMLqn31gF9i2sEa975+acIpkvPG0=
                  public-key:  6iEV/lkOxZTe7naSF3LvLl+M9KfMDqdFYqhzmvoD1io=
                  media: Ethernet autoselect (25GBase-ACC <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          wg2: flags=8080c1<UP,RUNNING,NOARP,MULTICAST> metric 0 mtu 1420
                  options=880000<LINKSTATE>
                  inet 10.68.2.28 netmask 0xffffffff
                  inet6 fe80::4262:31ff:fe14:862e%wg2 prefixlen 64 scopeid 0x11
                  groups: wg
                  listen-port: 51822
                  private-key: gA/AQzkQtUJvRQeo8xxROQ77JMEHNp3RgF0kbejfR1g=
                  public-key:  tVD80+9oTjefKZxWsY0+ulZv0/vWYH8qjUenuc1Ma1I=
                  media: Ethernet autoselect (25GBase-ACC <full-duplex>)
                  status: active
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>.
          l2tp0: flags=88d1<UP,POINTOPOINT,RUNNING,NOARP,SIMPLEX,MULTICAST> metric 0 mtu 1492
                  description: VPN_Trimium_L2TP
                  inet 192.168.88.94 --> 192.168.88.1 netmask 0xffffffff
                  inet6 fe80::4262:31ff:fe14:862e%l2tp0 prefixlen 64 scopeid 0x17
                  nd6 options=21<PERFORMNUD,AUTO_LINKLOCAL>
          [2.5.0-RC][root@gw.griffo.co]/root:

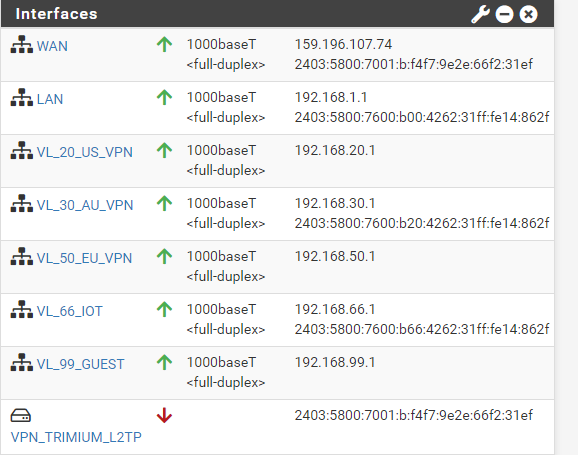

          even in down state


          1 Reply Last reply Reply Quote 0
          • stephenw10S Offline
            stephenw10 Netgate Administrator
            last edited by

            Oh I see it's an L2TP client?
            I assume the server is not passing IPv6 to it? Not sure I've ever considered if that's possible to be honest.

            Mmm, that is probably an edge case that slipped though. L2TP clients are not at all common.
            I would open a bug report for that: https://redmine.pfsense.org/
            I don't see anything there that looks like that already.

            Steve

            G 1 Reply Last reply Reply Quote 0
            • G Offline
              Griffo @stephenw10
              last edited by

              @stephenw10 Thanks. I actually don't want any IPv6 on this interface, but it seems to get one anyway. I'll raise a bug. There's actually a bunch of small bugs with L2TP clients so I might get busy raising them all.

              1 Reply Last reply Reply Quote 0
              • stephenw10S Offline
                stephenw10 Netgate Administrator
                last edited by

                Yes, I'd go ahead and do that. That interface type is probably the least well used. Or maybe pptp!

                It's likely a display bug only. You can see the actual interface does not have an IPv6 address.

                Steve
