    Trackinterface Prefix can be only 0

    Scheduled Pinned Locked Moved IPv6
    2 Posts 1 Posters 560 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • D
      dersch
      last edited by

      Hi,

      i'm getting IPv6 via PPPOE and assign it to local LAN via TrackInterface. But the Prefix can be only 0. If i change it to ff there is no route anymore. (Pfsense 2.5.0)

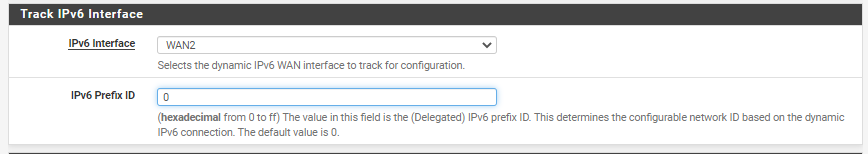

      2021-02-18 14_25_34-Hitzeschild.steingaesser.net - Interfaces_ Freifunk (bge1).png

      traceroute6 -i br0 google.de
      traceroute to google.de (2a00:1450:4001:828::2003), 30 hops max, 80 byte packets
       1  * * 2003:0:8305:a000::1 (2003:0:8305:a000::1)  4.233 ms
       2  2003:0:1304:801f::2 (2003:0:1304:801f::2)  4.932 ms  4.903 ms  4.880 ms
       3  2a00:1450:8152::1 (2a00:1450:8152::1)  5.159 ms 2a00:1450:80d7::1 (2a00:1450:80d7::1)  6.114 ms *
       4  2001:4860:0:1::5010 (2001:4860:0:1::5010)  5.592 ms 2001:4860:0:1::10d6 (2001:4860:0:1::10d6)  5.573 ms 2001:4860:0:1::5008 (2001:4860:0:1::5008)  5.873 ms
       5  2001:4860:0:11e2::2 (2001:4860:0:11e2::2)  5.390 ms 2001:4860:0:11e0::10 (2001:4860:0:11e0::10)  5.842 ms 2001:4860:0:11e2::2 (2001:4860:0:11e2::2)  5.356 ms
       6  2001:4860::c:4000:f873 (2001:4860::c:4000:f873)  5.497 ms fra24s05-in-x03.1e100.net (2a00:1450:4001:828::2003)  5.125 ms  5.194 ms



      2021-02-18 14_25_54-Hitzeschild.steingaesser.net - Interfaces_ Freifunk (bge1).png

      traceroute6 -i br0 google.de
      traceroute to google.de (2a00:1450:4013:c02::5e), 30 hops max, 80 byte packets
       1  * * *
       2  * * *
       3  * * *
       4  * * *
       5  * * *
       6  * * *
       7  * * *
       8  * * *
       9  * * *
      10  * * *
      11  * *^C



      Information about the Setup

      2021-02-18 14_26_33-Hitzeschild.steingaesser.net - Services_ DHCPv6 Server & RA_ FREIFUNK_ Router Ad.png

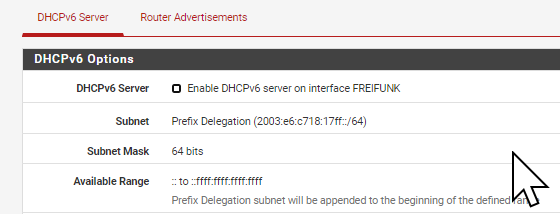

      2021-02-18 14_26_15-Hitzeschild.steingaesser.net - Services_ DHCPv6 Server & RA_ FREIFUNK_ DHCPv6 Se.png

      As a side note. Actually there is only one LAN interface which tracks the WAN.

      Regards
      Dirk

      1 Reply Last reply Reply Quote 0
      • D
        dersch
        last edited by

        I just did another test with a second LAN Track Interface on WAN2.

        There i used Prefix 1 and after a reboot (why is this necessary?) the second LAN also get it's IPv6 prefix.

        So it seems you just can use it with increasing values. So why is this the case?

        1 Reply Last reply Reply Quote 0
