Backup and Restore - Dell T3500 for HP DL 360e

[wesleylc1]

Specifically, this refers to using a Dell T3500 (Intel (R) Xeon (R) CPU W3530) hardware backup to HP DL360e (Intel (R) Xeon (R) CPU E5-2420), both with 4 interfaces, on the old Harwadere Dell T3500 identified (MUNDIVOX Interface (wan, sk0), LAN Interface (lan, re0), DMZ Interface (opt1, re1), CLARO Interface (opt3, bge0)), on the new HP DL360e hardware are defined as (ibg0, ibg1, ibg2, ibg3), so I made the backup of the current firewall, in the file (.XML) I adjusted the name of the interfaces, leaving them according to the new hardware, after performing the restoration, but the same applied only correctly in three interfaces (ibg0, ibg1, ibg2) and not applying the restoration of the fourth interface (ibg3).

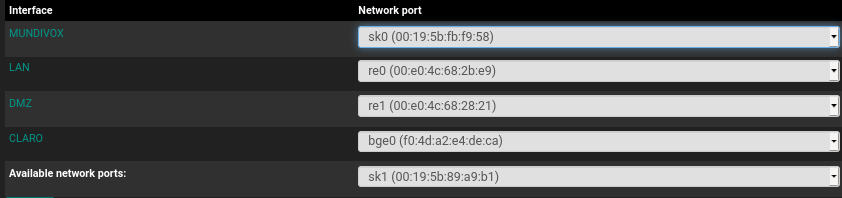

Name the interfaces for the old Dell T3500 hardware:

sk0 ---> MUNDIVOX interface (wan)
re0 -> LAN interface (lan)
re1 - DMZ interface (opt)
ibge0 - CLARO interface (opt3)

Name the interfaces HP DL360e:

ibg0 ---> interface MUNDIVOX
ibg1 -> interface LAN (lan)
ibg2 - interface DMZ (opt1)
ibg3 - interface CLEAR (opt3)

ibg0 ---> MUNDIVOX interface
ibg1 -> LAN interface (lan)
ibg2 - DMZ interface (opt1)
ibg3 - CLARO interface (opt3)
