Multiple clients on same VPN IP?

[DominikHoffmann]

I am playing around with having both of my iOS devices (an iPhone and an iPad) connect to my OpenVPN via the OpenVPN Connect client app.

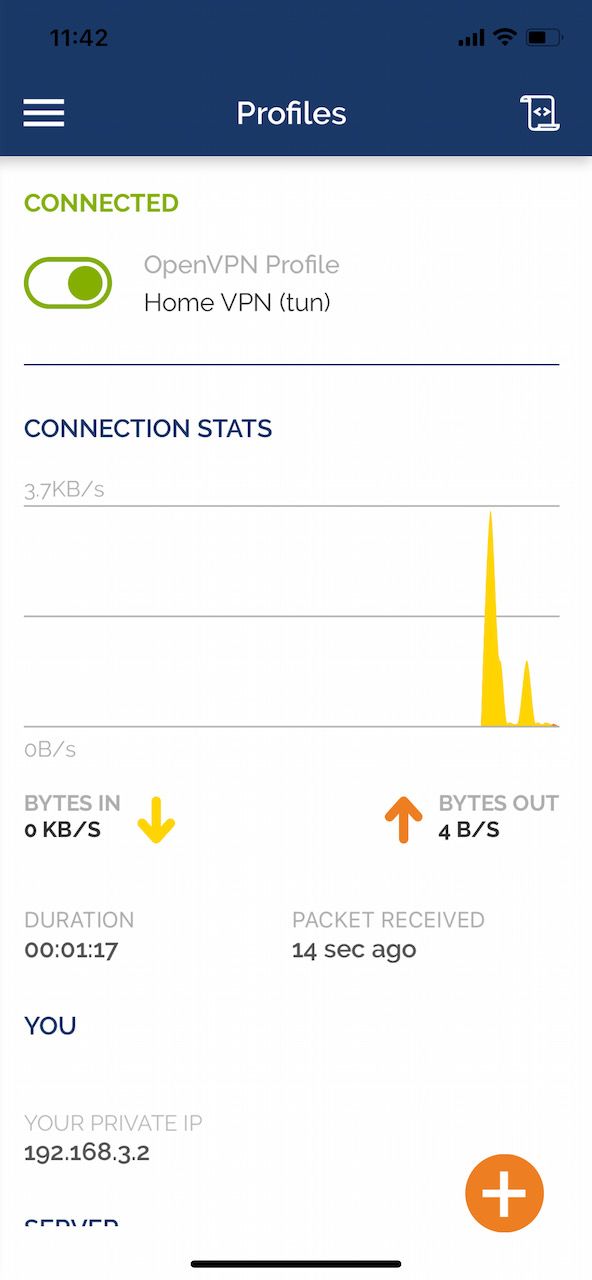

I did not expect both clients to report the same private IP:

Both are at 192.168.3.2. Are these spoofed, only local, IP addresses? I guess, I don’t fully understand how OpenVPN works.

[JKnott]

@dominikhoffmann

Assuming they're both connected at the same time, they should have different addresses. Otherwise, neither will work. When you set up OpenVPN, you provide a network for remote users and can specify how many are allowed to connect. Perhaps you could show your OpenVPN config.

[DominikHoffmann]

@JKnott

Here is the client config file:

persist-tun
persist-key
data-ciphers AES-128-GCM:AES-256-CBC
data-ciphers-fallback AES-256-CBC
auth SHA256
tls-client
client
remote ***.***.***.*** 1194 udp4
verify-x509-name "server" name
remote-cert-tls server
compress
explicit-exit-notify

<ca>
-----BEGIN CERTIFICATE-----
(…)
-----END CERTIFICATE-----
</ca>
<cert>
-----BEGIN CERTIFICATE-----
(…)
-----END CERTIFICATE-----
</cert>
<key>
-----BEGIN PRIVATE KEY-----
(…)
-----END PRIVATE KEY-----
</key>

And the server config:

ovpn
dev ovpns2
verb 1
dev-type tun
dev-node /dev/tun2
writepid /var/run/openvpn_server2.pid
#user nobody
#group nobody
script-security 3
daemon
keepalive 10 60
ping-timer-rem
persist-tun
persist-key
proto udp4
auth SHA256
up /usr/local/sbin/ovpn-linkup
down /usr/local/sbin/ovpn-linkdown
local ***.***.***.***
tls-server
server 192.168.3.0 255.255.255.0
client-config-dir /var/etc/openvpn/server2/csc
tls-verify "/usr/local/sbin/ovpn_auth_verify tls 'server' 1"
lport 1194
management /var/etc/openvpn/server2/sock unix
max-clients 3
push "route 192.168.1.0 255.255.255.0"
push "route 192.168.2.0 255.255.255.0"
push "route 192.168.4.0 255.255.255.0"
push "dhcp-option DOMAIN hoffmann.homeunix.net"
push "dhcp-option DNS 192.168.3.1"
client-to-client
capath /var/etc/openvpn/server2/ca
cert /var/etc/openvpn/server2/cert
key /var/etc/openvpn/server2/key
dh /etc/dh-parameters.2048
data-ciphers AES-128-GCM:AES-256-CBC
data-ciphers-fallback AES-256-CBC
allow-compression asym
compress
persist-remote-ip
float
topology subnet

I do not see a hard-coded 192.168.3.2 anywhere.

[viragomann]

@dominikhoffmann
Ensure that you use a different SSL certificate on each client.

[JKnott]

@dominikhoffmann

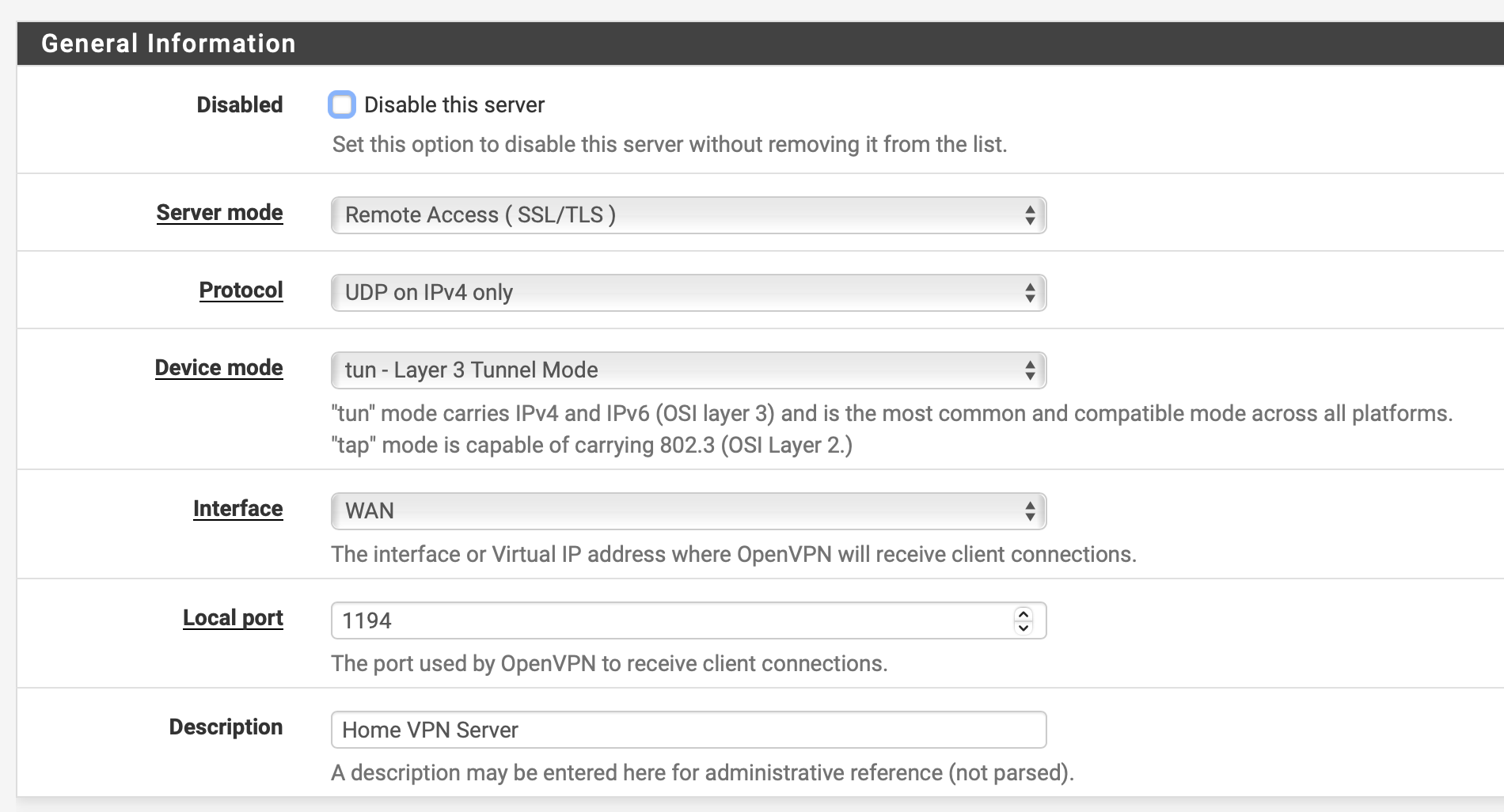

I was thinking screen shots of the area where you configure your VPN network on the server page.

[DominikHoffmann]

@jknott

Is there anything else I am failing to include?

[bingo600]

@dominikhoffmann

Are you connecting these devices at the same time ??
I'd expect the asigned client ip address to be returned to the "pool" , a bit after the client has disconected from the server.

/Bingo

[DominikHoffmann]

@bingo600 said in Multiple clients on same VPN IP?:

Are you connecting these devices at the same time ??

Yes, those screenshots in the original post are concurrent.

[DominikHoffmann]

I turned on the “Allow multiple concurrent connections from the same user” option only after the original post in this thread. With that checked, two concurrent clients using the same certificates get distinct IP addresses.

That option turns on a configuration line in

/var/etc/openvpn/server*

that says

duplicate-cn

A post on ServerFault had pointed me in that direction.
