Status / Monitoring "Error: '/var/db/rrd/system-processor.rrd' is too small"

chrispage

Hi,

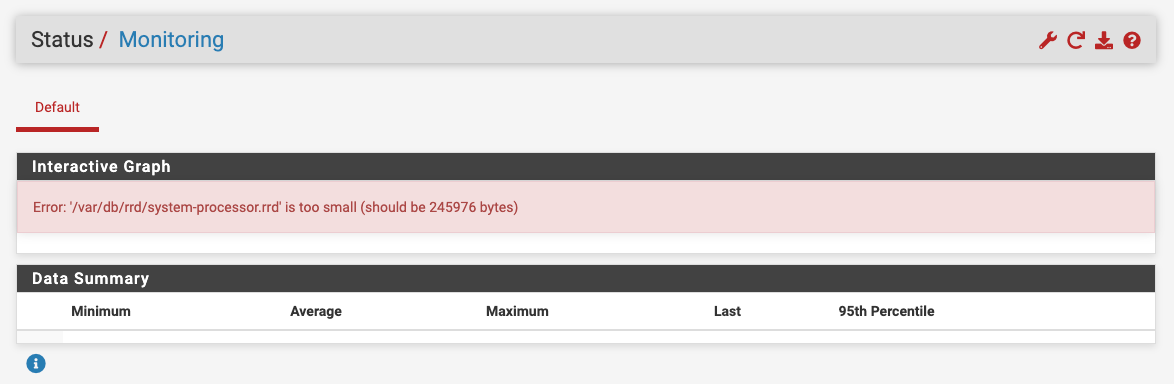

We've got a Netgate SG-2100. I'm trying to monitor our interfaces using the Status > Monitoring section of the PFSense dashboard. When viewing the page I'm getting an error regarding the file size of system-processor.rrd and as such get no monitoring data

Does anybody know what the cause of this is / how I can fix it?

Thanks,
Chris.

Gertjan

@chrispage

Hi :

First, have a look at that folder :

ls -al /var/db/rrd

You should see several rrd files.
These files have 'fixed' sizes, depending on what's stored in it, and what the maximum history.

What you could try :
Disable the grahhing. (red button on the Satus => Monitoring page)
Copy (move or rename actually)the file /var/db/rrd/system-processor.rrd to /var/db/rrd/system-processor.rrd.old
Enable the graphing.
The file should be re created.

A file like "system-processor.rrd" is created when the system (the rrd system) start up the very first time. The main reason why that shouldn't work out is mainly : file system bad or no more space on the disk.

See the Youtube => Netgate "file system check" video how you can check and repair, if needed, the file system.

chrispage

@gertjan

Thank you for your reply. Sorry for taking so long to get back to you. I've just renamed the file to .old, re-enabled graphing and everything is back and working.

Thanks for your help.

Chris.
