Adding another Network Card - Not showing

Scheduled Pinned Locked Moved General pfSense Questions
5 Posts 3 Posters 671 Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • M
    mikeinnyc
    last edited by Aug 1, 2021, 5:12 PM

    Hello,
    I have added another network card 10/100/1000 NX3031 Multifunction 1/10-Gigabit Server Adapter 4 ports but it's not showing up.

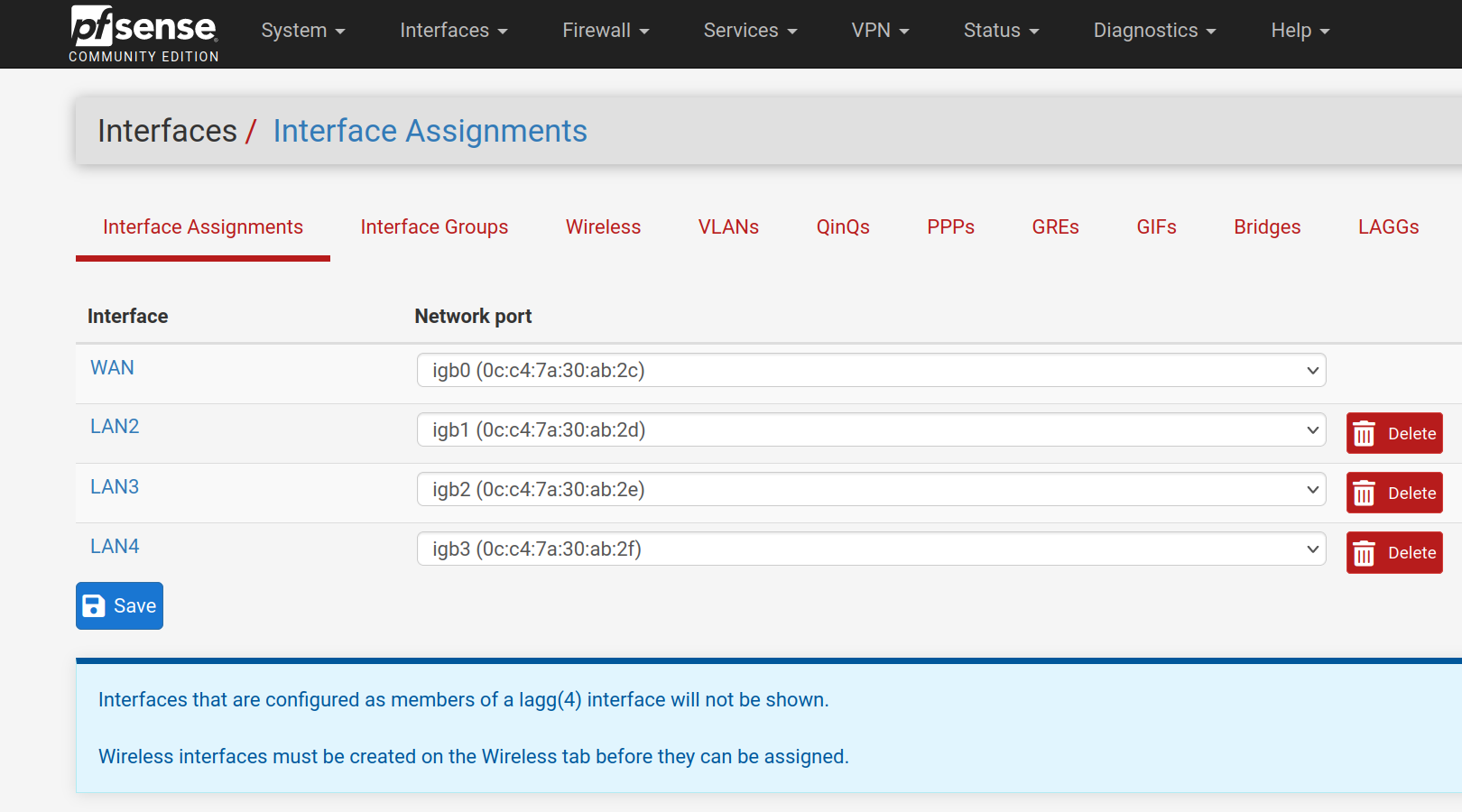

    I should have 8 ports now but I still have 4 ports.

    Any ideas how to add drivers or if this is even supported card?

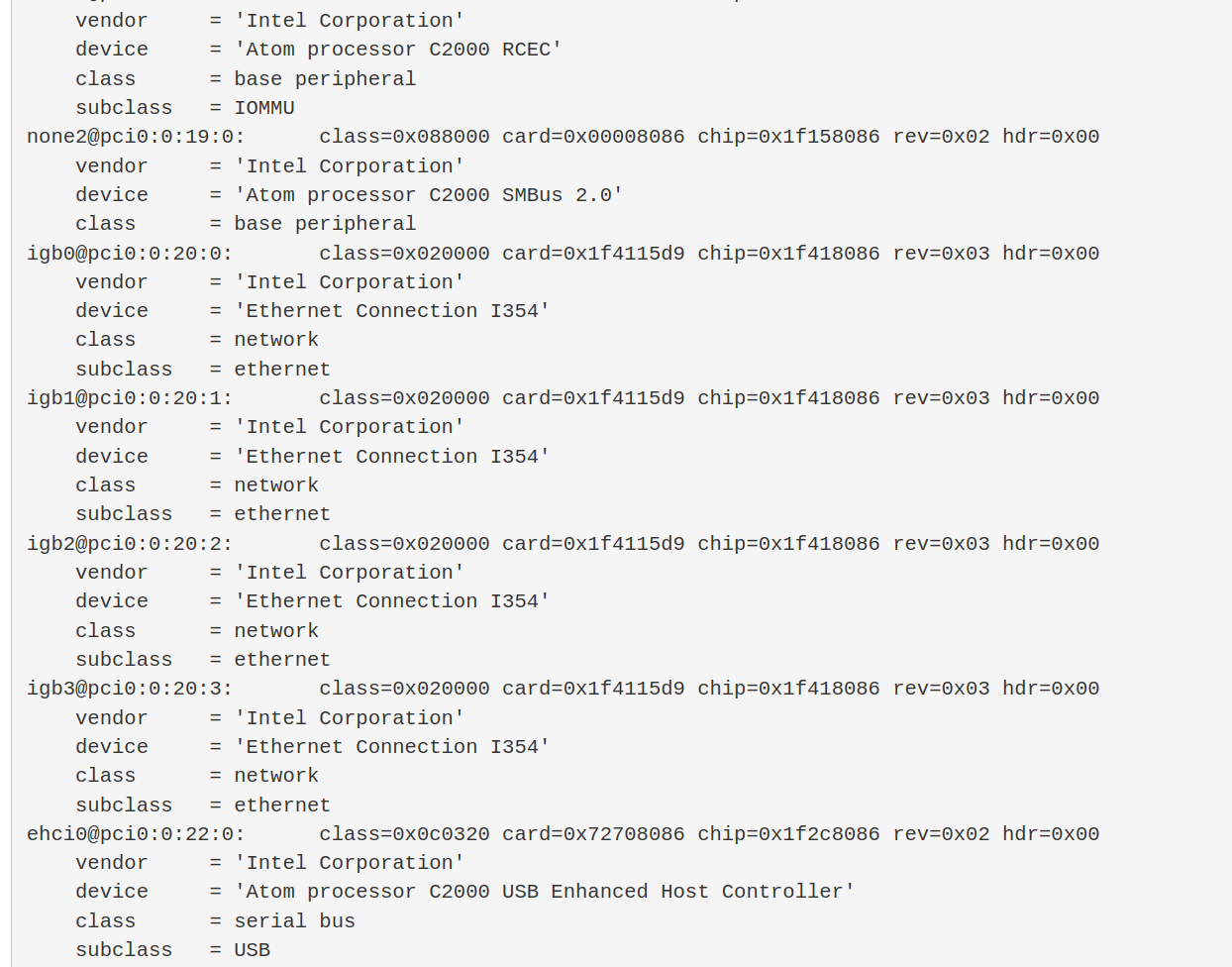

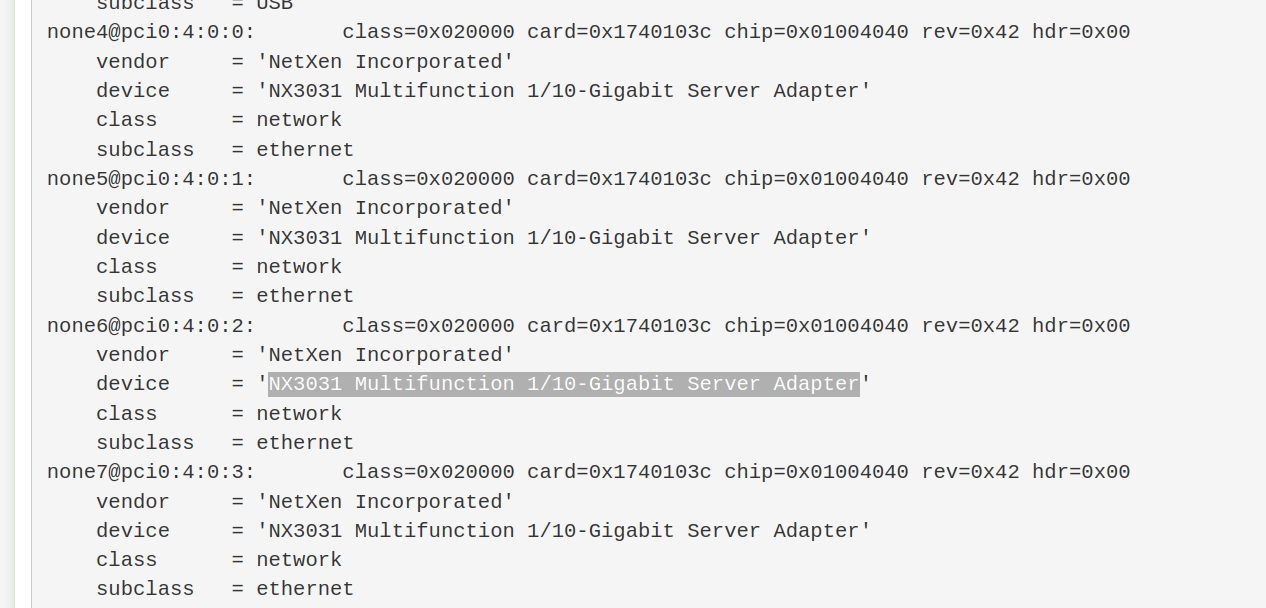

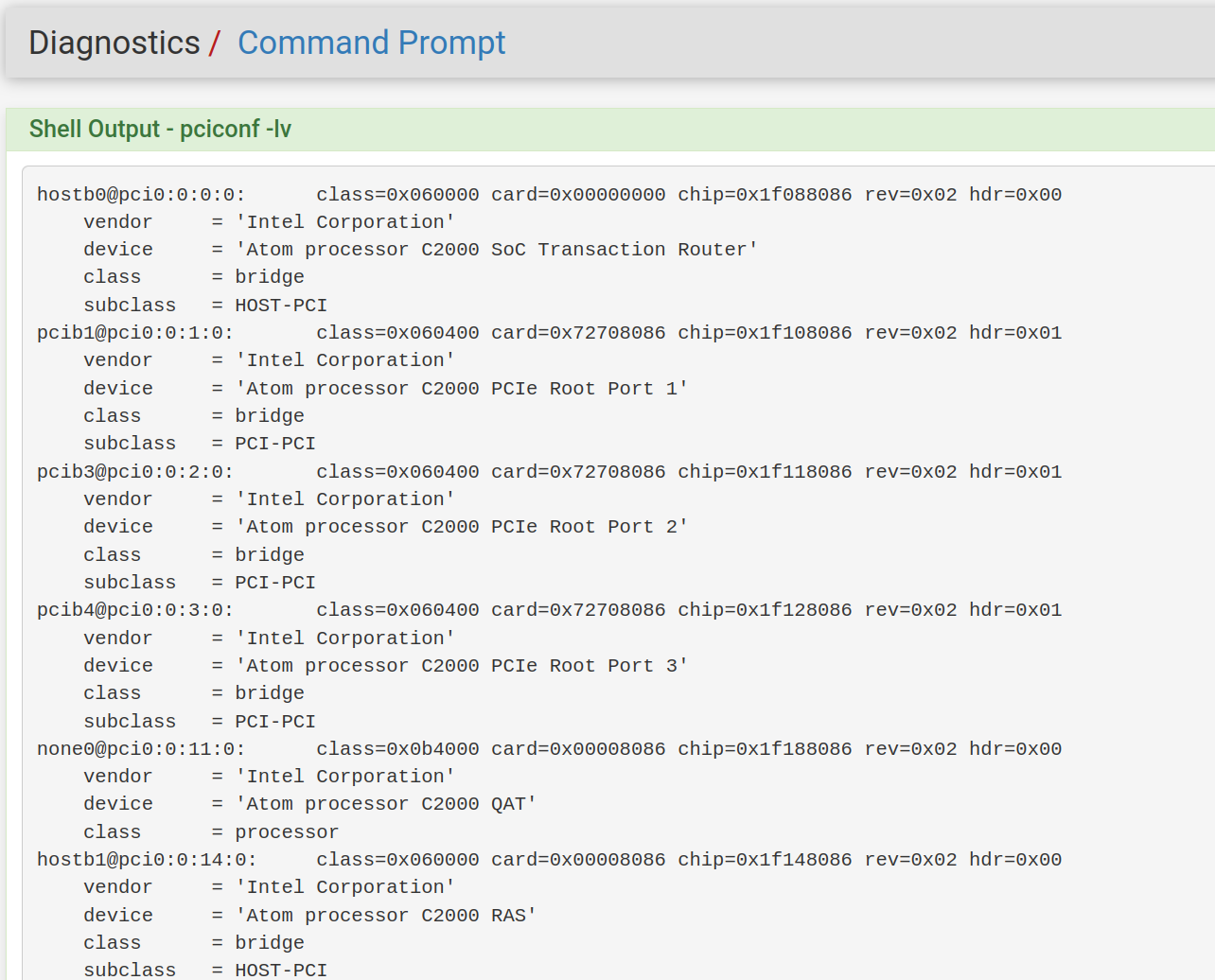

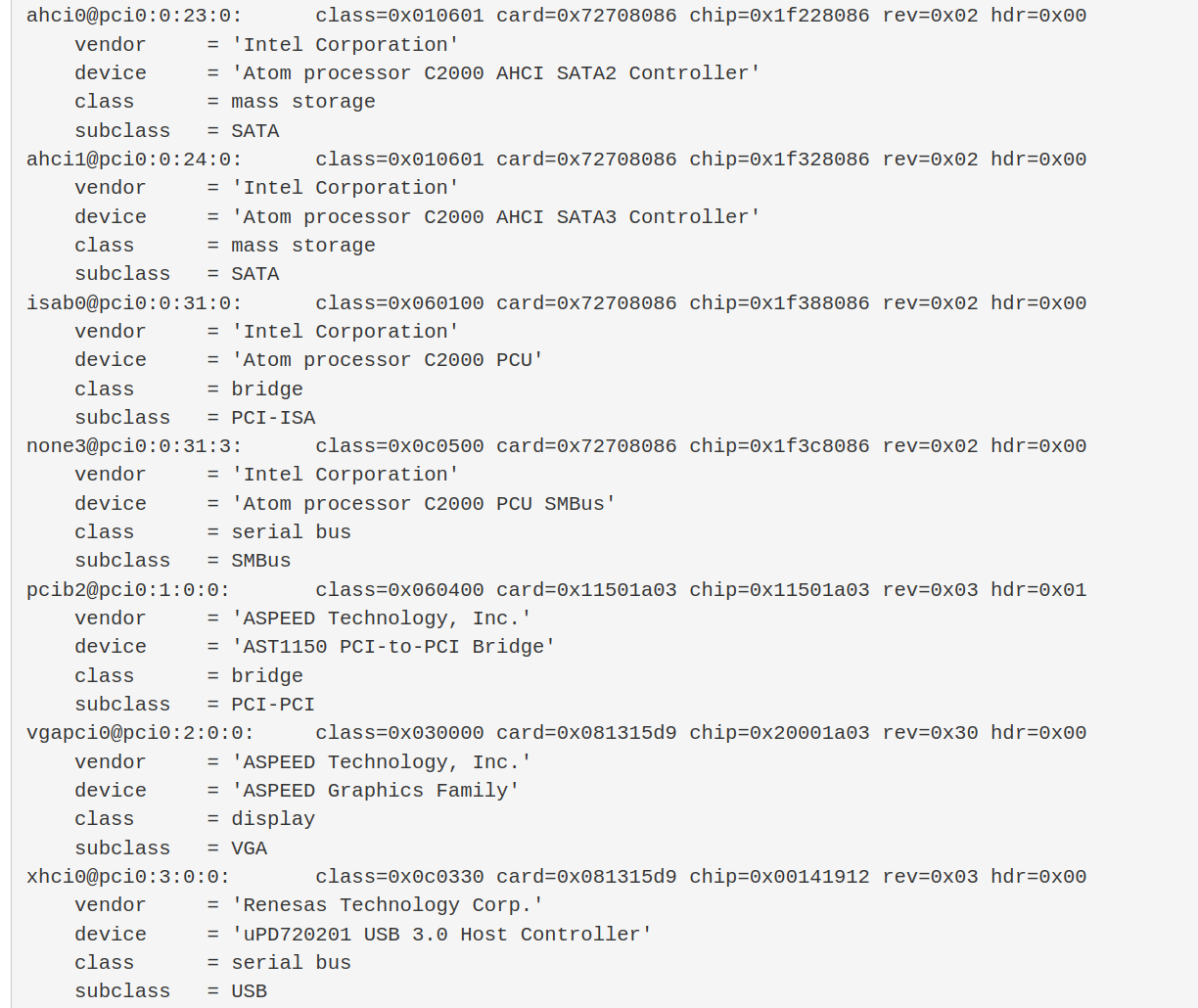

    Diagnostics / Command Prompt
    Shell Output - pciconf -lv
    shell output PFsense1.png shell output PFsense2.png shell output PFsense3.png shell output PFsense4.png

    N V 2 Replies Last reply Aug 1, 2021, 6:13 PM Reply Quote 0
    • N
      NogBadTheBad @mikeinnyc
      last edited by Aug 1, 2021, 6:13 PM

      This post is deleted!
      1 Reply Last reply Reply Quote 0
      • V
        viragomann @mikeinnyc
        last edited by Aug 1, 2021, 6:25 PM

        @mikeinnyc
        Better to look into the FreeBSD 12.0-RELEASE Hardware Notes before purchasing a new hardware.

        M 1 Reply Last reply Aug 1, 2021, 7:46 PM Reply Quote 1
        • M
          mikeinnyc @viragomann
          last edited by mikeinnyc Aug 1, 2021, 7:48 PM Aug 1, 2021, 7:46 PM

          @viragomann yeah ebay deal is no deal. I'll just get an Intel 4 port. Thanks for the link that helped

          M 1 Reply Last reply Aug 1, 2021, 8:24 PM Reply Quote 0
          • M
            mikeinnyc @mikeinnyc
            last edited by Aug 1, 2021, 8:24 PM

            @mikeinnyc I'll get a trusty Intel

            The em(4) driver supports Gigabit Ethernet adapters based on the Intel 82540, 82541ER, 82541PI, 82542, 82543, 82544, 82545, 82546, 82546EB, 82546GB, 82547, 82571, 82572, 82573, 82574, 82575, 82576, and 82580 controller chips:

            Intel Gigabit ET Dual Port Server Adapter (82576)

            Intel Gigabit VT Quad Port Server Adapter (82575)

            Intel Single, Dual and Quad Gigabit Ethernet Controller (82580)

            Intel i210 and i211 Gigabit Ethernet Controller

            Intel i350 and i354 Gigabit Ethernet Controller

            Intel PRO/1000 CT Network Connection (82547)

            Intel PRO/1000 F Server Adapter (82543)

            Intel PRO/1000 Gigabit Server Adapter (82542)

            Intel PRO/1000 GT Desktop Adapter (82541PI)

            Intel PRO/1000 MF Dual Port Server Adapter (82546)

            Intel PRO/1000 MF Server Adapter (82545)

            Intel PRO/1000 MF Server Adapter (LX) (82545)

            Intel PRO/1000 MT Desktop Adapter (82540)

            Intel PRO/1000 MT Desktop Adapter (82541)

            Intel PRO/1000 MT Dual Port Server Adapter (82546)

            Intel PRO/1000 MT Quad Port Server Adapter (82546EB)

            Intel PRO/1000 MT Server Adapter (82545)

            Intel PRO/1000 PF Dual Port Server Adapter (82571)

            Intel PRO/1000 PF Quad Port Server Adapter (82571)

            Intel PRO/1000 PF Server Adapter (82572)

            Intel PRO/1000 PT Desktop Adapter (82572)

            Intel PRO/1000 PT Dual Port Server Adapter (82571)

            Intel PRO/1000 PT Quad Port Server Adapter (82571)

            Intel PRO/1000 PT Server Adapter (82572)

            Intel PRO/1000 T Desktop Adapter (82544)

            Intel PRO/1000 T Server Adapter (82543)

            Intel PRO/1000 XF Server Adapter (82544)

            Intel PRO/1000 XT Server Adapter (82544)

            1 Reply Last reply Reply Quote 0
