    My Rules to block certain IPs from the internet is not working

    Scheduled Pinned Locked Moved Firewalling
    19 Posts 3 Posters 871 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • D
      derekmarch
      last edited by

      I feel like I have followed the guides I read to the T, but when I test it out the laptop on one of these two IPs still can access the internet like normal.

      The setup is just modem, going to netgate, going to a wifi router that is set as access point. It's setup for 192.168.3.### so those IPs are proper. The two devices in the alias are both set so they always have those IPs in the DHCP.

      Any advice would be welcome.

      I believe these 5 screen shots show all the relevant information but I can gather other info if needed.

      Thanks

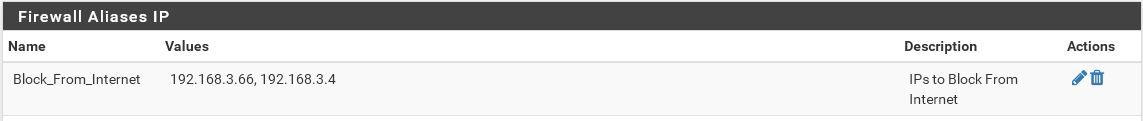

      block_wan.JPG block_wan2.JPG block_lan.JPG block_lan2.JPG block_alias.JPG

      KOMK 1 Reply Last reply Reply Quote 0
      • KOMK
        KOM @derekmarch
        last edited by KOM

        @derekmarch You put rules on the interface that the traffic ENTERS, not exits. Put your rules on LAN, not WAN. Also, each interface has an implicit block rule that you can imagine being at the bottom of the list, so you don't need to put a specific block rule. If you don't allow it explicitly, it will be blocked.

        Firewalling Fundamentals

        Troubleshooting Firewall Rules

        D 1 Reply Last reply Reply Quote 0
        • D
          derekmarch @KOM
          last edited by

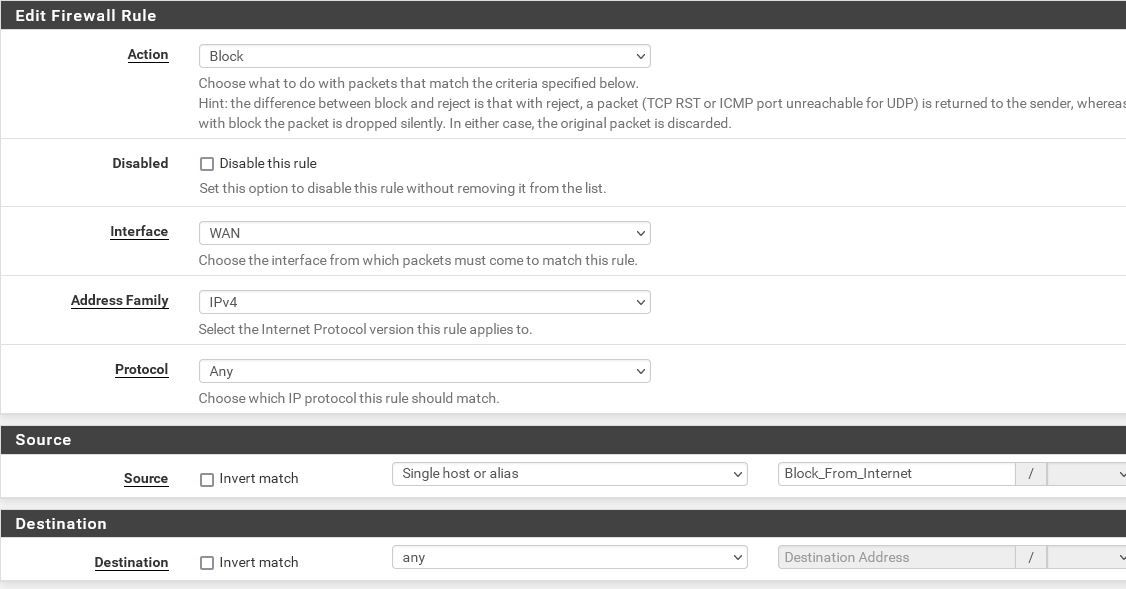

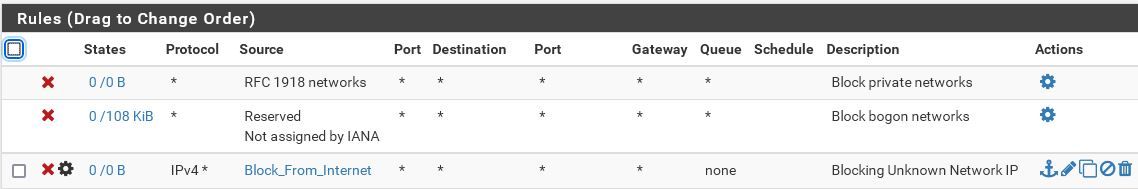

          @kom Sorry I should have labeled those screen shots better. The top 2 screen shots are a WAN rule and the next 2 screen shots are a LAN rule. This is what the walkthrough I followed told me to do.

          Am I supposed to setup both of these things up as LAN rules?

          The last LAN rule (not in the screen shot) is the allow everything rule.

          If you know what changes I need to make are you able to tell me specifically by chance? I don't have a ton of experience working without help in the pfsense.

          Thanks

          KOMK 1 Reply Last reply Reply Quote 0
          • KOMK
            KOM @derekmarch
            last edited by KOM

            @derekmarch Ah I didn't notice with that big wall of white.

            Get rid of that rule on WAN. It's not needed. One thing with firewall rules that trips up new people is that a new rule or modified rule will not affect established traffic. For the rule to take effect, you must clear the states of the clients that the rule will apply to.

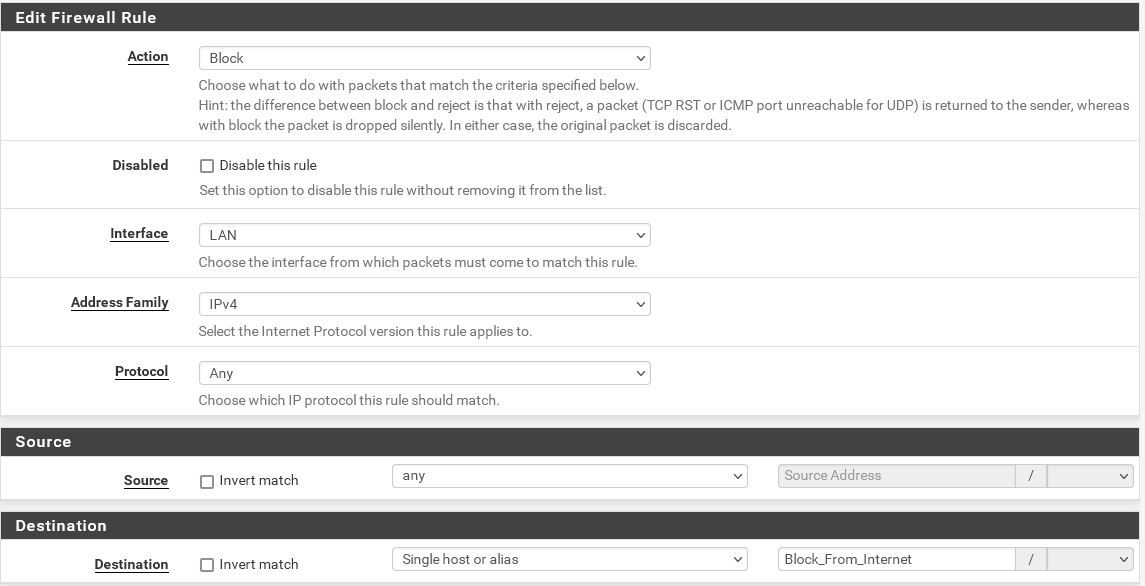

            For your LAN rules, you have told it to block access from LAN to destination Block_from_Internet. That isn't valid. You want to block from SOURCE, not destination. The source is your LAN clients, destination would be where they're trying to go. Change your rule so that the Source is Block_from_Internet and Destination is Any. Then go to Diagnostics - States and clear the states of those two LAN client.

            D 1 Reply Last reply Reply Quote 0
            • D
              derekmarch @KOM
              last edited by

              @kom I have tried clearing the states a number of times during my hours of troubleshooting. But I will keep that in mind. After my current meeting I'll give this rule change a try. Thanks for the suggestion

              KOMK 1 Reply Last reply Reply Quote 0
              • KOMK
                KOM @derekmarch
                last edited by

                @derekmarch Take the time to quickly read up on the two links I gave you. It's hard to play the game when you don't know the rules.

                johnpozJ D 2 Replies Last reply Reply Quote 0
                • johnpozJ
                  johnpoz LAYER 8 Global Moderator @KOM
                  last edited by

                  Also what else did you do to that rule, you have the advanced gear showing.. But your not showing your advanced settings...

                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                  If you get confused: Listen to the Music Play
                  Please don't Chat/PM me for help, unless mod related
                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                  D 1 Reply Last reply Reply Quote 0
                  • D
                    derekmarch @johnpoz
                    last edited by

                    @johnpoz 106c420b-98f0-49f1-82f4-ab26fc63cb1a-image.png

                    The only thing I did in advanced as part of my troubleshooting was set state from Keep to None.

                    Should i revert that back to Keep?

                    1 Reply Last reply Reply Quote 0
                    • D
                      derekmarch @KOM
                      last edited by

                      @kom Thank you for those links, I will give them a read.

                      johnpozJ KOMK 2 Replies Last reply Reply Quote 0
                      • johnpozJ
                        johnpoz LAYER 8 Global Moderator @derekmarch
                        last edited by johnpoz

                        yeah your going to want to keep states ;)

                        The way your rule was written it would never triggered as you can see by the 0/0 - your destination was what you want your source to be if you want to block those 2 IPs from going to the internet.

                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        1 Reply Last reply Reply Quote 0
                        • KOMK
                          KOM @derekmarch
                          last edited by

                          @derekmarch Also:

                          Firewall and NAT Fundamentals on pfSense

                          johnpozJ 1 Reply Last reply Reply Quote 0
                          • johnpozJ
                            johnpoz LAYER 8 Global Moderator @KOM
                            last edited by

                            BTW something is missing from this puzzle - because with the way those rules are. Nothing would be able to go to the internet.. Since you have no allow other than going to the gui of pfsense.

                            Do you have rules in floating or something?

                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                            If you get confused: Listen to the Music Play
                            Please don't Chat/PM me for help, unless mod related
                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                            D 1 Reply Last reply Reply Quote 0
                            • D
                              derekmarch @johnpoz
                              last edited by

                              @johnpoz Sorry for the confusion with my screen shots, there are plenty more rules below my screen shot, i just cut it off at the relevant line I had added for this purpose.

                              johnpozJ 1 Reply Last reply Reply Quote 0
                              • D
                                derekmarch
                                last edited by

                                OK,

                                I disabled the WAN rule and flipped the LAN rule I had. and it now appears my laptop has no access to the internet.

                                It appears my laptop can still access other items on the LAN.

                                How do I set this up so that the IPs in this alias can't access the WAN or the LAN?

                                Thanks for all the help so far

                                1 Reply Last reply Reply Quote 0
                                • johnpozJ
                                  johnpoz LAYER 8 Global Moderator @derekmarch
                                  last edited by johnpoz

                                  @derekmarch ah - if you look close you can see the difference in color that would be the next row.. But yeah its always best to show all rules on an interface when troubleshooting..

                                  It appears my laptop can still access other items on the LAN.

                                  Well yeah.. pfsense has nothing to do with devices on the same network talking to each other.

                                  If you don't want them accessing other stuff - move them to their own vlan would be the easy simple best solution.. Filtering devices on the same network from talking to each other would have to be done via your switch infrastructure, ie like a private vlan setup. Or via host firewalls. Pfsense has nothing to do with devices talking amongst themselves on a network - only to get off said network is where pfsense comes into play routing and firewalling.

                                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                                  If you get confused: Listen to the Music Play
                                  Please don't Chat/PM me for help, unless mod related
                                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                                  D 1 Reply Last reply Reply Quote 0
                                  • D
                                    derekmarch @johnpoz
                                    last edited by

                                    @johnpoz I will be sure to keep that in mind next time I need help.

                                    I guess i'll have to research what other options I might have if I want to block random devices from my LAN.

                                    Thanks again, everyone, for all the help

                                    johnpozJ D 2 Replies Last reply Reply Quote 0
                                    • johnpozJ
                                      johnpoz LAYER 8 Global Moderator @derekmarch
                                      last edited by johnpoz

                                      See my edit to your question about devices on the same network.

                                      Vlans are very handing for keeping device X from talking to Y - because you just put them in different vlans. Grouping like devices together that you want to talk to each other, etc and other devices that you don't want talking to other devices in their own vlan - but they would be able to talk amongst them selves on that vlan.

                                      To keep devices on the same network from talking to each other - wired this is normally called a private vlan. In wireless its called client or ap isolation.

                                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                                      If you get confused: Listen to the Music Play
                                      Please don't Chat/PM me for help, unless mod related
                                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                                      1 Reply Last reply Reply Quote 0
                                      • D
                                        derekmarch @derekmarch
                                        last edited by

                                        @derekmarch

                                        Hm, I do have a managed switch that I'll be configuring soon. I guess I'll setup a rule at that time to move this alias to its own VLAN.

                                        Thanks

                                        johnpozJ 1 Reply Last reply Reply Quote 0
                                        • johnpozJ
                                          johnpoz LAYER 8 Global Moderator @derekmarch
                                          last edited by

                                          Yeah any smart switch should be able to do vlans - not all entry level smart switches would support stuff like private vlans though..
