AirVPN (OpenVPN) port forward working externally but not internally

[zageyiff]

Hello,

I have configured port forwarding with AirVPN, when test from outside the network (via cellphone network) it works.
But when tested from inside the network, it times out.

I'm attaching some screenshots, and the packet capture for when it works and when it doesn't plus the /tmp/rules.debug

I'm using pfSense 2.5.2-RELEASE, knowing there was a port forward bug in 2.5.1.
I already went through the https://docs.netgate.com/pfsense/en/latest/troubleshooting/nat-port-forwards.html, which actually help me to have it working (at least externally). And many posts in this forum, and other places in reddit, and server fault questions.

My setup is based on these guides
https://nguvu.org/pfsense/pfsense-baseline-setup/
https://nguvu.org/pfsense/pfsense-port-forward/

Explaining some IPs

ISP                         104.163.184.210
VPN external IP:port        139.28.218.235:8107
VPN internal IP             10.35.38.107
External IP (phone)         67.69.76.131
VLAN 10 Local IP            192.168.10.103
Port forward destination    192.168.20.103:8107

I have a docker running nginx, just showing the welcome nginx page to test the port forward.

Locally I use curl -v 139.28.218.235:8107, and get a timeout
When testing from an external network, on the phone, I open http://139.28.218.235:8107

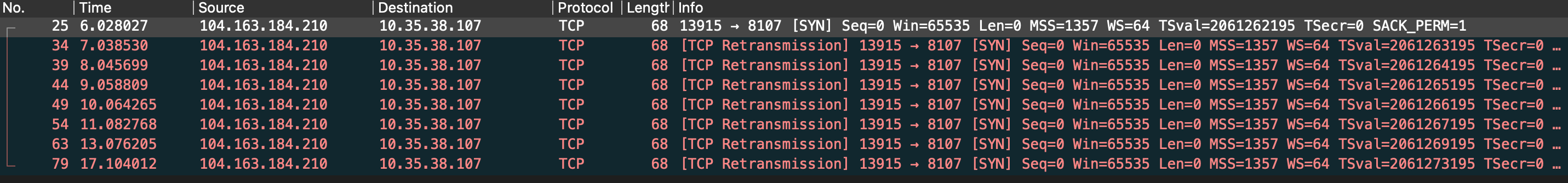

When it doesn't work, this is the packet capture file opened in wireshark, so there are retransmissions

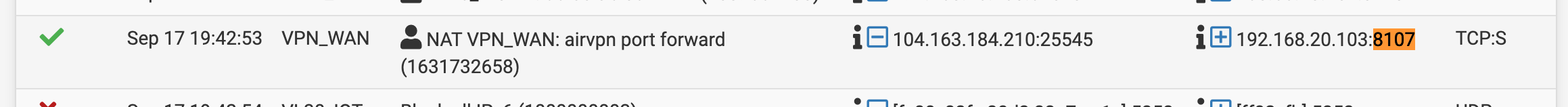

I can see on the firewall logs, that the NAT port forward rule is being logged, so it's working

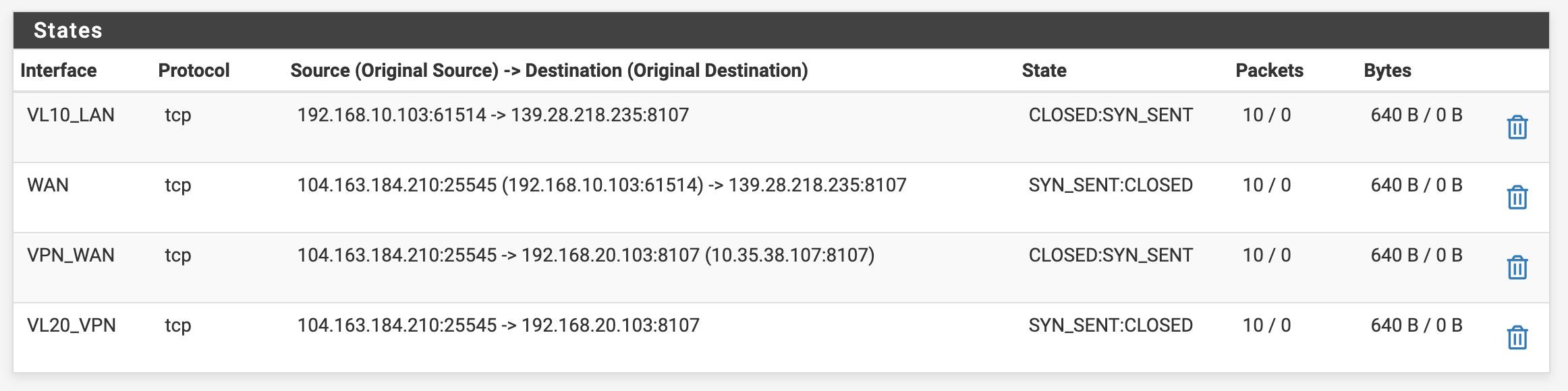

On the states this is what I see for the port 8107

And just in case this is the CAP file during the small test
timeout.cap

Now when it works, using the phone with the phone network (no home wifi)

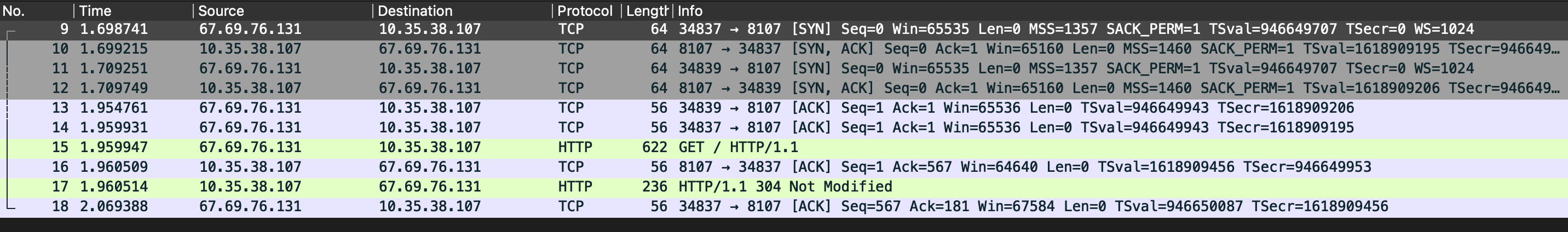

The packet capture file opened in wireshark, so we can even see the HTTP protocol request and response

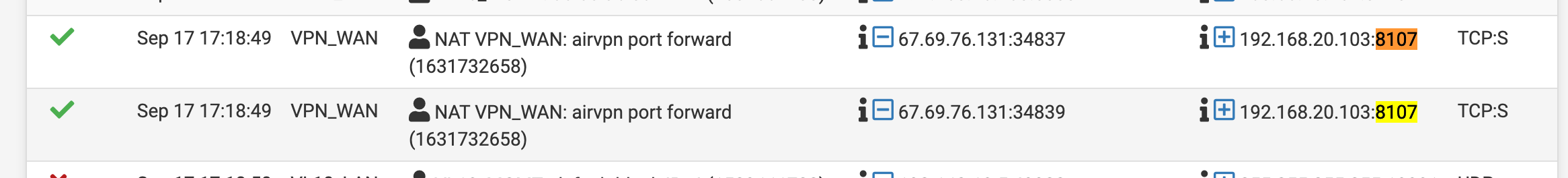

The firewall rule get logged

The states look different when working

And the capture file when working
working.cap

Here are my /tmp/rules.debug
rules.debug.txt

I thought some local firewall rules might be affecting, so tried adding some allow rules from any to any at the top of vlan 10 and 20, it didn't help.
I have assigned an interface WAN_VPN to the ovpnc1, and the port forward is on the WAN_VPN
I have NAT reflection set as Pure NAT in System Advance
I don't have any firewall rules in the OpenVPN tab

Any help is appreciated
