    site to site tunnel using wirguard

    Scheduled Pinned Locked Moved General pfSense Questions
    2 Posts 2 Posters 326 Views 2 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • neterminN Offline
      netermin
      last edited by netermin

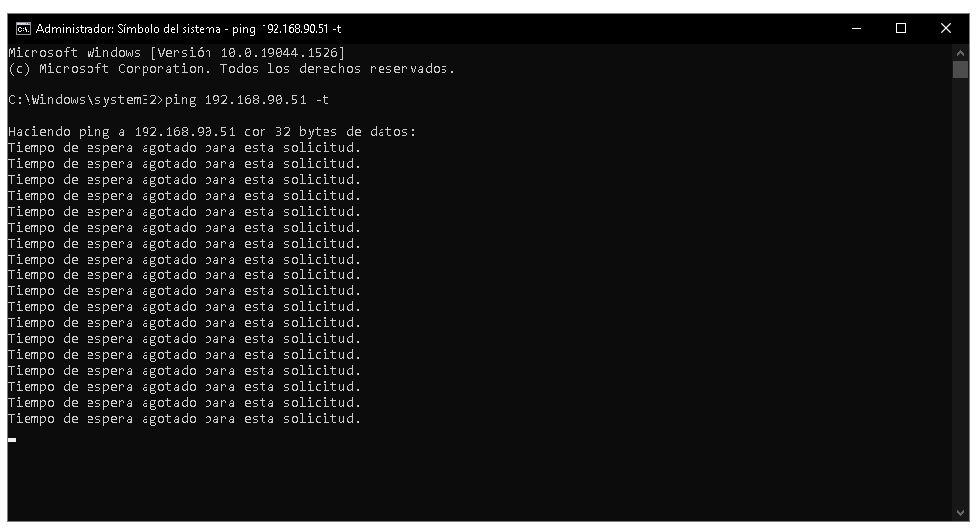

      Hi all I have configured a site to site tunnel using wirguard, the details is that I can ping from the pfsesense 2.6 on node1 to a host on node2 but can not ping from the host on node1 to the pfsense on node2, I have the ip allowed in the tunnel configuration on node2, and I also have a static route where I indicate that the IPs must pass through the Gateway of the Wireguard interface.ping desde pfsense.jpg host.jpg

      1 Reply Last reply Reply Quote 0
      • stephenw10S Offline
        stephenw10 Netgate Administrator
        last edited by

        When you ping from pfSense and leave the source set to auto it will use the closest logical IP. In this case that's probably the Wireguard tunnel address.

        Try setting that as the source.

        Then try setting the LAN as source.

        It looks like you have either a missing route or firewall rule. Probably at the node2 end.

        Steve
