Interface Assignments Won't Delete

Scheduled Pinned Locked Moved General pfSense Questions
5 Posts 3 Posters 678 Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • N
    nosenseatall
    last edited by Mar 24, 2022, 1:40 AM

    Hello All,

    I am trying to delete 2 Interface Assignments and pfSense isn't playing nice. I am trying to delete the Netgear and Camera Interfaces.

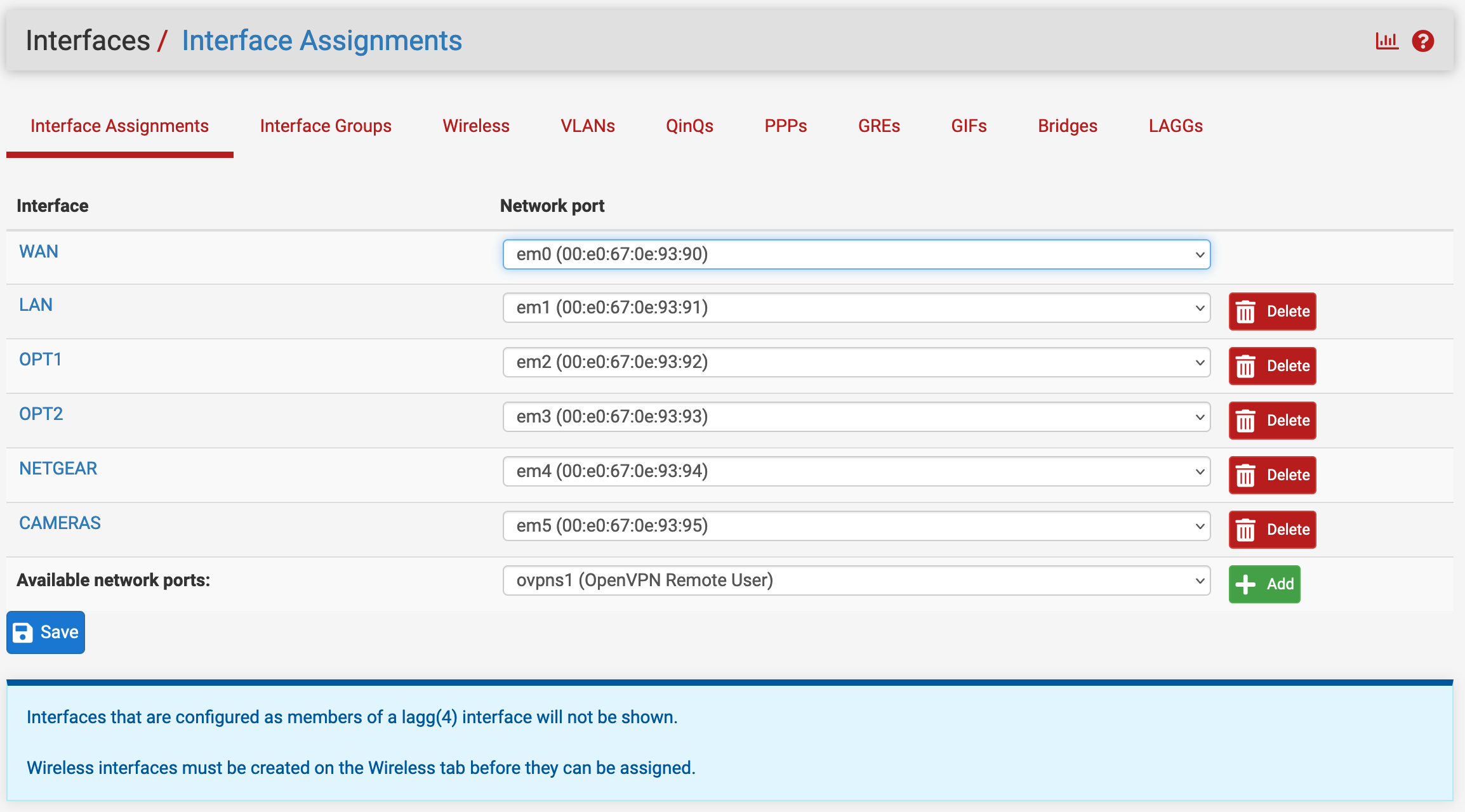

    Screen Shot 2022-03-23 at 6.32.28 PM.png

    When I click delete on either one of those I get this message:

    Screen Shot 2022-03-23 at 6.33.39 PM.png

    When I go to view the bridges I see this:

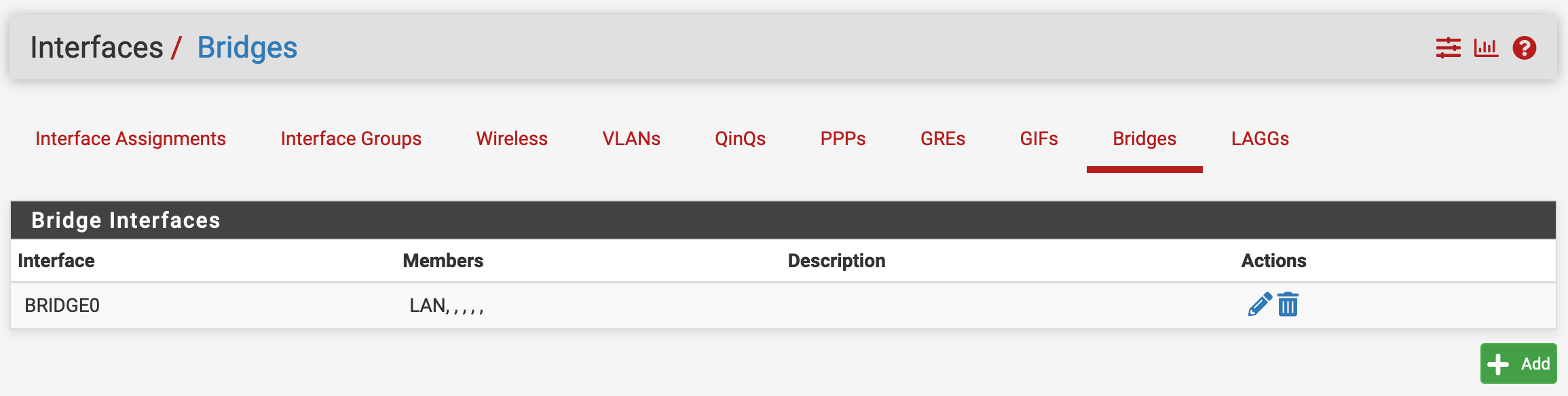

    Screen Shot 2022-03-23 at 6.36.00 PM.png

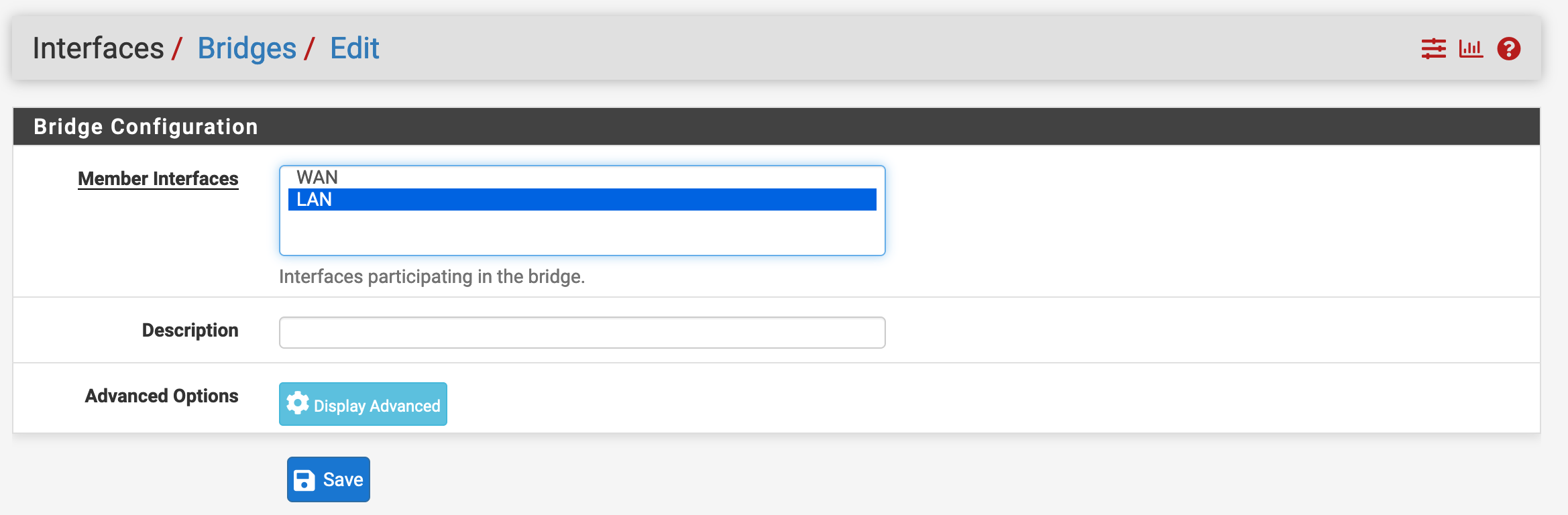

    Screen Shot 2022-03-23 at 6.36.06 PM.png

    I don't see that the Netgear and Camera Interfaces are part of a bridge, or at least this one. Am I looking in the wrong spot? If this is the only spot, is there another way for me to delete those? Also is the WAN & LAN normally bridged by default?

    Thank you very much for any help.

    V 1 Reply Last reply Mar 24, 2022, 12:05 PM Reply Quote 0
    • V
      viragomann @nosenseatall
      last edited by Mar 24, 2022, 12:05 PM

      @nosenseatall said in Interface Assignments Won't Delete:

      I don't see that the Netgear and Camera Interfaces are part of a bridge

      I'm also wondering, why you don't see OPT1 and OPT2 in the interface list. Aren't they enabled?

      Also is the WAN & LAN normally bridged by default?

      No, by default they are not. And if you don't have certain reasons you should not do that.
      Bridging WAN and LAN enables you to have public IPs behind pfSense in the LAN and that devices are able to pull IPs from the ISPs DHCP server, but that is not needed in most cases.

      N 1 Reply Last reply Mar 24, 2022, 8:42 PM Reply Quote 0
      • N
        nosenseatall @viragomann
        last edited by nosenseatall Mar 24, 2022, 8:45 PM Mar 24, 2022, 8:42 PM

        @viragomann OPT1 & 2 are not enabled at the moment, just as 3 & 4 are not enabled (where Netgear & Cameras are). Right now I am only using WAN and LAN port. LAN is connected to a switch.

        I will delete bridge, I just wanted to make sure it wasn't going to break my network.

        Interestingly enough, when I deleted the bridge referenced above, it allowed me to delete Netgear & Camera.

        Thank you.

        J 1 Reply Last reply Mar 24, 2022, 10:22 PM Reply Quote 0
        • J
          johnpoz LAYER 8 Global Moderator @nosenseatall
          last edited by Mar 24, 2022, 10:22 PM

          @nosenseatall If I had to guess, since you had the interfaces not actually enabled, they were not listed in the bridge. But they were prob still assigned there, just not showing in the gui because they were not actually enabled.

          You could prob try duplicating the problem my putting couple of interfaces into a bridge, then disable them and see if they are still listed in the bridge gui.

          An intelligent man is sometimes forced to be drunk to spend time with his fools
          If you get confused: Listen to the Music Play
          Please don't Chat/PM me for help, unless mod related
          SG-4860 24.11 | Lab VMs 2.7.2, 24.11

          N 1 Reply Last reply Mar 29, 2022, 9:05 PM Reply Quote 1
          • N
            nosenseatall @johnpoz
            last edited by Mar 29, 2022, 9:05 PM

            @johnpoz Thank you for the information. Just as you said, it was because they were not enabled.

            1 Reply Last reply Reply Quote 0
