    22.05 Pfsense+ Upgraded - Higher CPU usage?

    Scheduled Pinned Locked Moved General pfSense Questions
    7 Posts 4 Posters 941 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • D
      Darkk
      last edited by Darkk

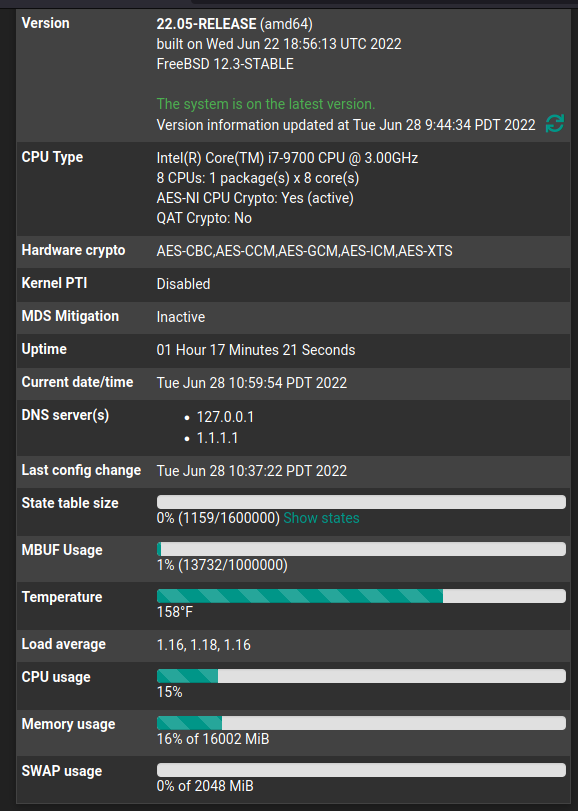

      Normally the CPU would bounce between 2% to 5% which is fine. Once in awhile it would spike to 15%.

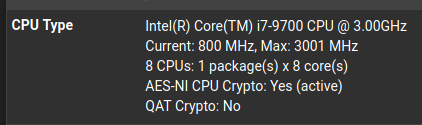

      I have noticed the CPU speeds aren't changing as it stays at 3Ghz all the time. I've checked the PowerD which is enabled and the power settings are set to adaptive. Before the upgrade this was working fine.

      I can say once in awhile the CPU speed would go down to around 1Ghz and then bounces back to 3Ghz at 100% all the time now. CPU is capable of 4.5Ghz Turbo Boost but that never happens, it's FreeBSD thing not pfsense.

      I will take a look at the services and see if one of them is causing it. Someone suggested pfblocker might be the cause.

      CPU at 15% may not seem like a big deal but the problem is it generates alot of heat and I don't have enough cooling in the house to keep it low enough during the summer heat. When CPU speed drops the temps are ok.

      I am using my own hardware which is Dell OptiPlex 7000 series.

      Thanks.



      johnpozJ 1 Reply Last reply Reply Quote 0
      • jimpJ jimp moved this topic from Problems Installing or Upgrading pfSense Software on
      • F
        fragged
        last edited by

        There's an issue with pfBlocker:
        https://redmine.pfsense.org/issues/13156
        https://redmine.pfsense.org/issues/13154

        D 1 Reply Last reply Reply Quote 1
        • johnpozJ
          johnpoz LAYER 8 Global Moderator @Darkk
          last edited by

          @darkk said in 22.05 Pfsense+ Upgraded - Higher CPU usage?:

          problem is it generates alot of heat and I don't have enough cooling in the house

          So while I have not noticed any issues with cpu, this got me curious to look to see if temps have changed any since update.

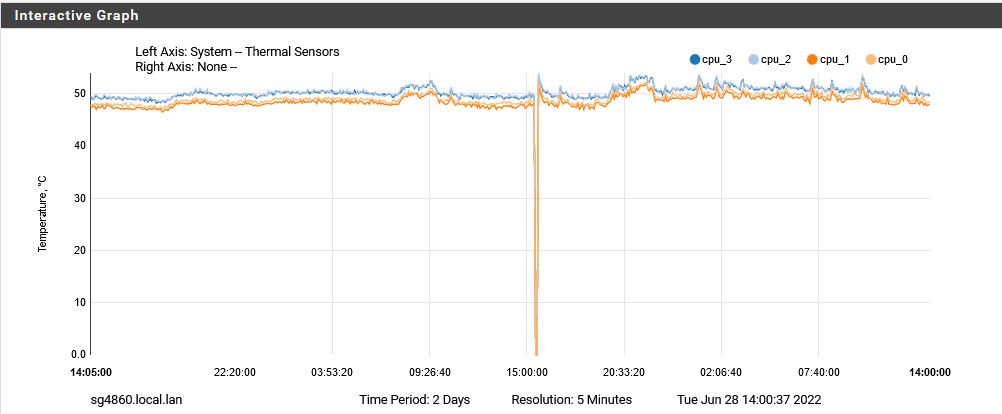

          And while it looks very minor from this graph.. Does seem like something has changed..

          You can see where the upgrade happened, and does look like the temps are slightly higher.. Have to keep an eye on it for a few days.

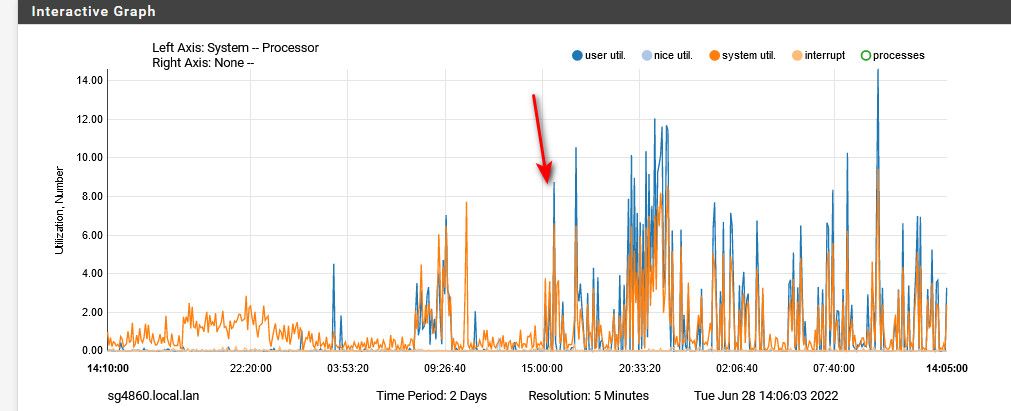

          If I look at cpu, and day before and day after up the upgrade - the cpu does seem like its working a bit more..


          An intelligent man is sometimes forced to be drunk to spend time with his fools
          If you get confused: Listen to the Music Play
          Please don't Chat/PM me for help, unless mod related
          SG-4860 24.11 | Lab VMs 2.8, 24.11

          D 1 Reply Last reply Reply Quote 1
          • D
            Darkk @fragged
            last edited by

            @fragged Yep that's exactly what it was. CPU is back where it should be after I've disabled it. Thank you for confirming it.


            1 Reply Last reply Reply Quote 0
            • D
              Darkk @johnpoz
              last edited by

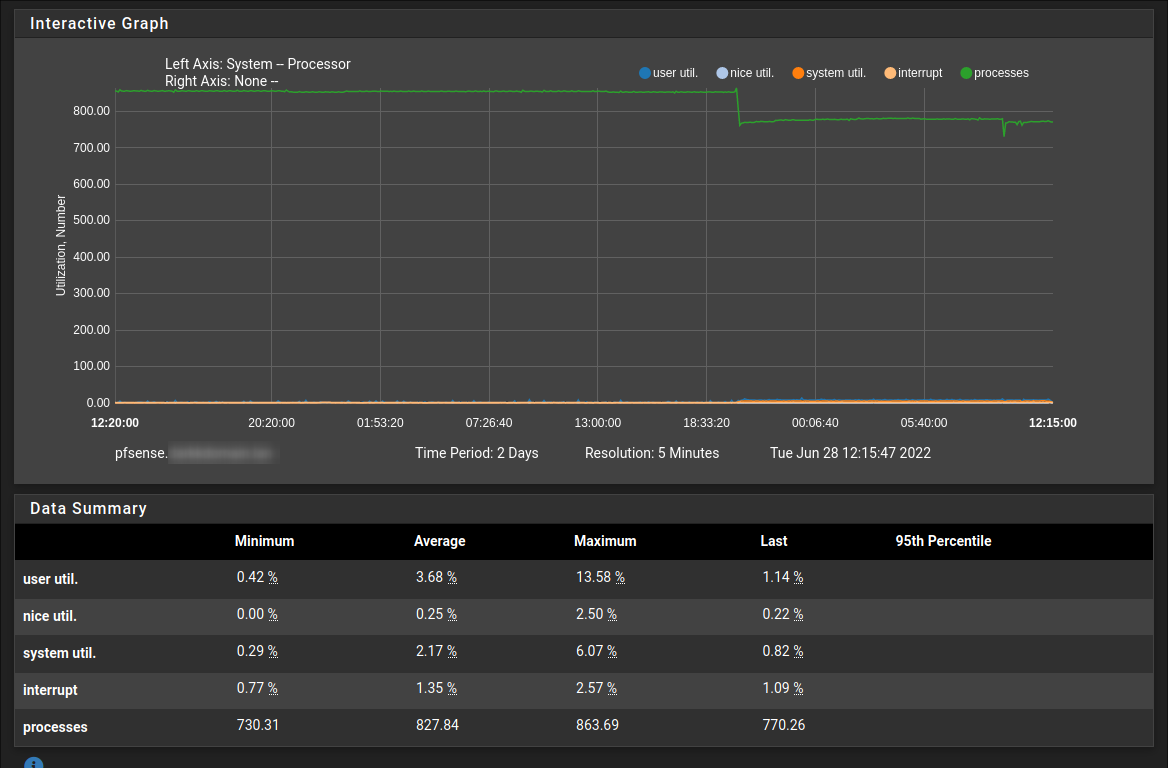

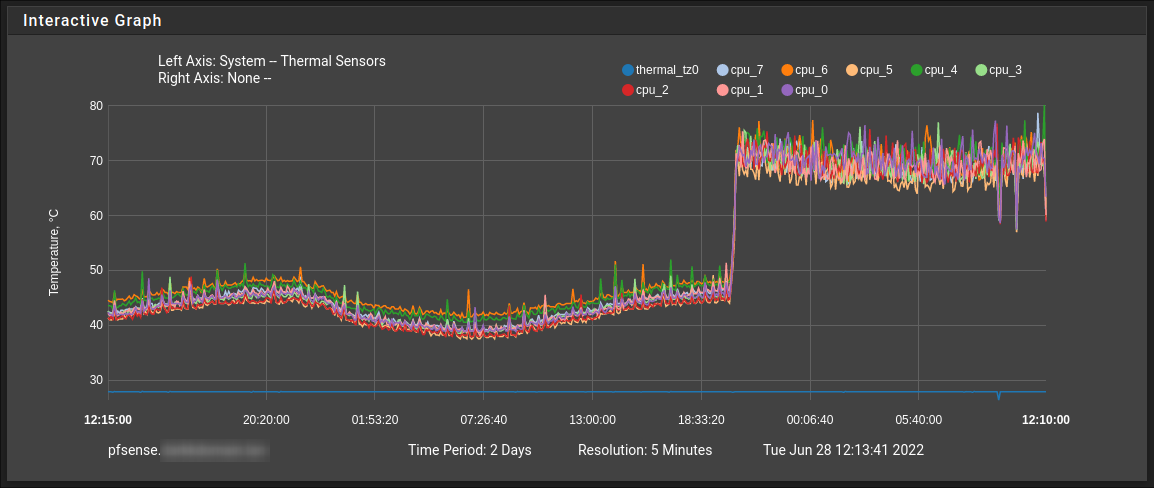

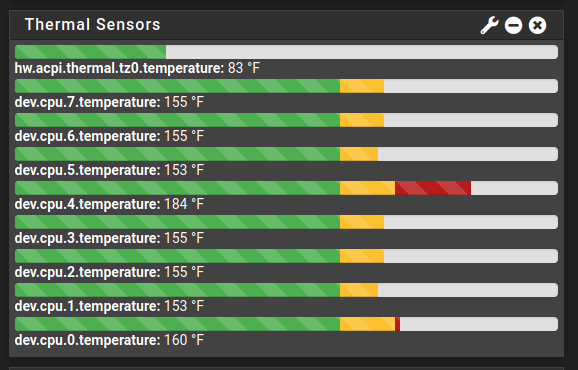

              @johnpoz Good catch. Here are mine:



              johnpozJ 1 Reply Last reply Reply Quote 0
              • johnpozJ
                johnpoz LAYER 8 Global Moderator @Darkk
                last edited by

                @darkk wow your temps really went up.. Mine is like maybe 1-2 C difference..

                From those redmines listed - showing some patch details I would expect to see a new pfblocker package somewhat soon.

                I do very limited use of pfblocker - maintaining some aliases I use in my own rules, etc.

                An intelligent man is sometimes forced to be drunk to spend time with his fools
                If you get confused: Listen to the Music Play
                Please don't Chat/PM me for help, unless mod related
                SG-4860 24.11 | Lab VMs 2.8, 24.11

                1 Reply Last reply Reply Quote 0
                • stephenw10S
                  stephenw10 Netgate Administrator
                  last edited by

                  Yeah, it really depends on the system. On one CE test box here (Core2duo era) it caused the fans to spool up to max! Was really obvious.

                  1 Reply Last reply Reply Quote 0
