    UI bug? -- when using resolver -and- forwarder

    Scheduled Pinned Locked Moved DHCP and DNS
    16 Posts 3 Posters 1.2k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • D
      dirkx
      last edited by

      When using the (unbound) DNS resolver; one can nicely limit it to only bind to the needed interfaces. And this is reflected in the /var/unbound/unbound.conf as interface: and outgoing-interface:.

      The DNS forwarder has that same functionality - and a checkbox to be 'strictly' bound to that specific interface/IP.

      Yet if one tries to run both on mutually exclusive settings - the UI seems to block this with a "The DNS Resolver is enabled using this port. Choose a non-conflicting port, or disable DNS Resolver."

      Is this a bug ?

      Secondly - when using a VLAN - I am not entirely sure if unbound honours the interface: setting. Just an ```interface: 10.44.0.1`` on an igb7 interface whose raw IP is 10.44.0.1/24 and which also has a 192.168.0.1/24 allocated on vlan100 - sees unbound reply to DNS queries on 192.168.0.1 which I had not expected.

      Any thoughts anyone ?

      johnpozJ 1 Reply Last reply Reply Quote 0
      • johnpozJ
        johnpoz LAYER 8 Global Moderator @dirkx
        last edited by johnpoz

        @dirkx what version of pfsense are you using - I was able to start forwarder on one of my other interfaces that unbound is not using.


        I'm on 22.05

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        1 Reply Last reply Reply Quote 0
        • D
          dirkx
          last edited by

          Hmm - that is odd - as that is the exact thing I was expecting/think I am configuring.

          Version wise - I am on

          2.6.0-RELEASE (amd64)
          built on Mon Jan 31 19:57:53 UTC 2022
          FreeBSD 12.3-STABLE


          which it reports as the latest/greatest. Your interfaces are normal ? Or is one of them a VLAN ?

          johnpozJ 1 Reply Last reply Reply Quote 0
          • johnpozJ
            johnpoz LAYER 8 Global Moderator @dirkx
            last edited by johnpoz

            @dirkx I have vlans sure - but that interface is not... Let me setup a vlan and test it with that. But maybe you got something else duplicated, like local host? Or something?

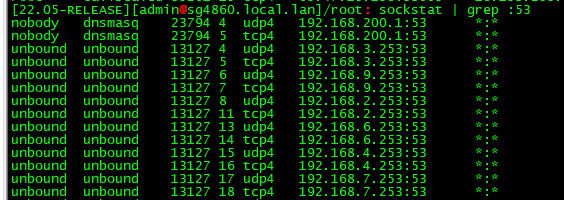

            Here just turned off unbound on my guest vlan, nobody currently on it - and enabled forwarder on it

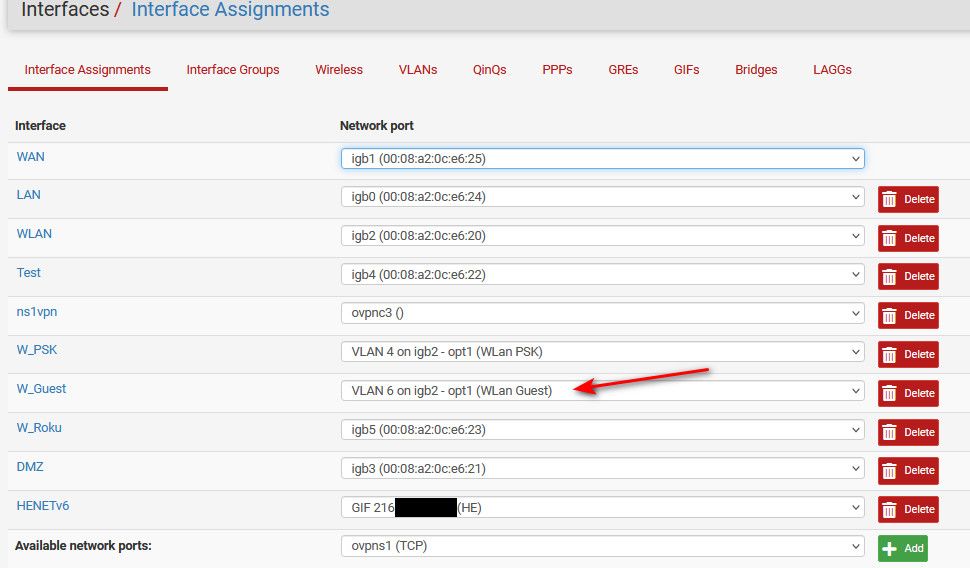

            edit: so guest is a vlan that forwarder is not listening on - and another vlan unbound is on, same physical interface igb2


            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            1 Reply Last reply Reply Quote 0
            • D
              dirkx
              last edited by

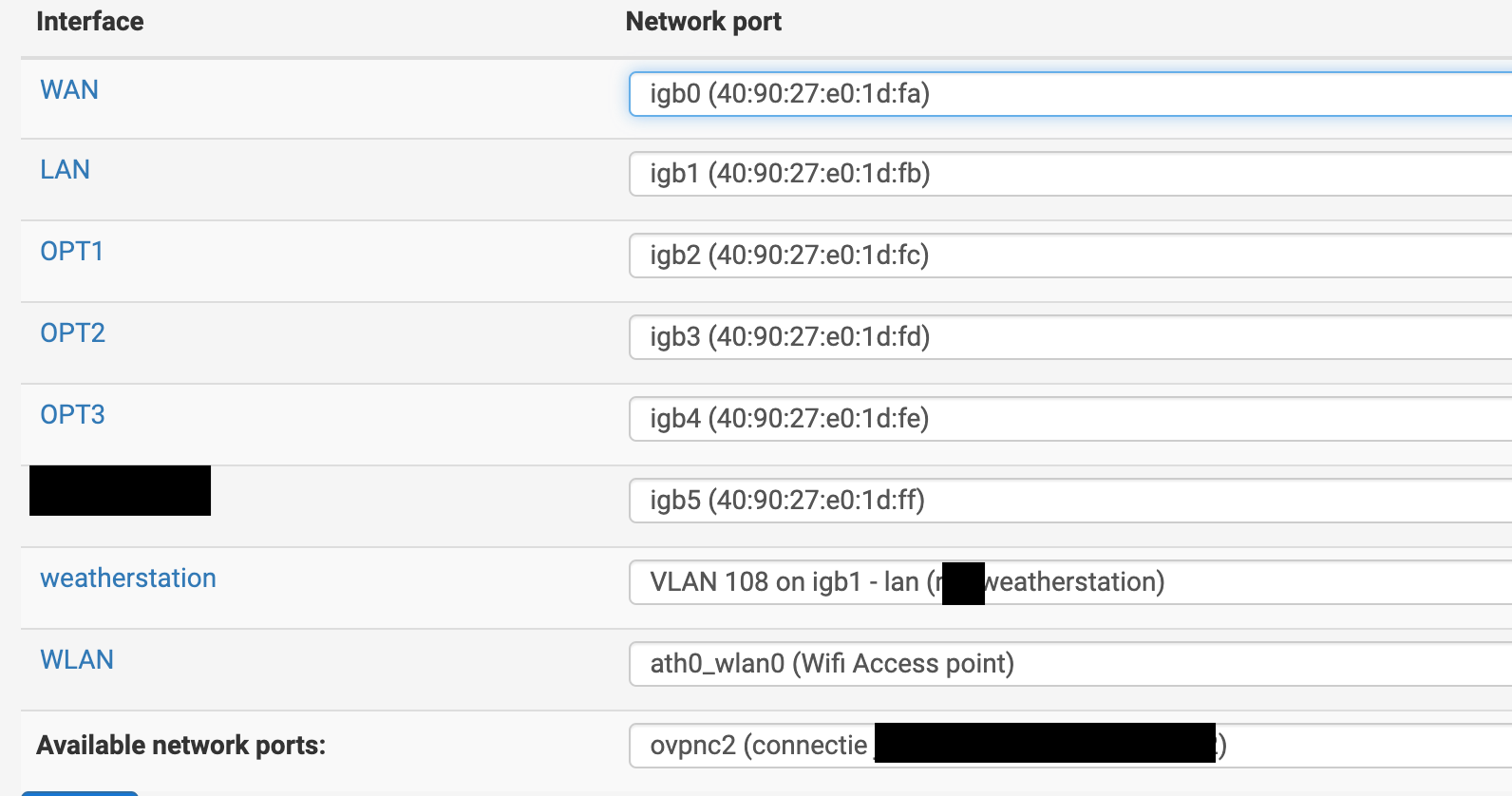

              Ok - so not sure what the difference is. Images of the config below. And I am trying to start the forwarder on just that VLAN108 which is explictly not in the list of bound interfaces of the resolver (for IPv4 and v6).

              Screenshot 2022-08-15 at 10.23.23.png Screenshot 2022-08-15 at 10.18.50.png Screenshot 2022-08-15 at 10.18.36.png

              johnpozJ 1 Reply Last reply Reply Quote 0
              • johnpozJ
                johnpoz LAYER 8 Global Moderator @dirkx
                last edited by

                @dirkx what are you wanting to do with a vlan that is not bound to a physical interface.. How would do anything?

                If you have a vlan106 and its not bound to a physical interface - what is its point?

                An intelligent man is sometimes forced to be drunk to spend time with his fools
                If you get confused: Listen to the Music Play
                Please don't Chat/PM me for help, unless mod related
                SG-4860 24.11 | Lab VMs 2.8, 24.11

                1 Reply Last reply Reply Quote 0
                • D
                  dirkx
                  last edited by

                  No sorry - misunderstanding - it is bound to igb1 -- which is also a normal, non-tagged interface.

                  So on igb1 we have LAN - with a DNS resolver on 10.44.0.1/24 and try to run the wordwarder on igb1.VLAN108 on 192.168.108.1/24.

                  And it is config of the latter than the UI rejects.

                  johnpozJ 1 Reply Last reply Reply Quote 0
                  • johnpozJ
                    johnpoz LAYER 8 Global Moderator @dirkx
                    last edited by johnpoz

                    @dirkx

                    Forwarder states
                    "If an interface has both IPv4 and IPv6 IPs, both are used"
                    "The default behavior is to respond to queries on every available IPv4 and IPv6 address."

                    You have unbound bound to IPv6 link local..

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                    1 Reply Last reply Reply Quote 0
                    • D
                      dirkx
                      last edited by

                      Right - which is neede. But that is only unbound; the forwarder is not. Or is that the issue - that neither can be bound to IPv6 link local ?

                      johnpozJ 1 Reply Last reply Reply Quote 0
                      • johnpozJ
                        johnpoz LAYER 8 Global Moderator @dirkx
                        last edited by johnpoz

                        @dirkx if forwarder doesn't allow you to pick not to be on IPv6, and you have unbound bound to IPv6 then yeah you have a problem.

                        I don't have unbound bound to any IPv6 addresses. On the interfaces I tested with. Nor do I have any IPv6 on those interfaces.


                        An intelligent man is sometimes forced to be drunk to spend time with his fools
                        If you get confused: Listen to the Music Play
                        Please don't Chat/PM me for help, unless mod related
                        SG-4860 24.11 | Lab VMs 2.8, 24.11

                        1 Reply Last reply Reply Quote 0
                        • D
                          dirkx
                          last edited by

                          Ok - clear & many thanks.

                          So need to figure out a way around that - as we need to answer on link local to keep the routing happy. Which should be do-able as the forwarder can simply forward that too.

                          johnpozJ 2 Replies Last reply Reply Quote 0
                          • johnpozJ
                            johnpoz LAYER 8 Global Moderator @dirkx
                            last edited by

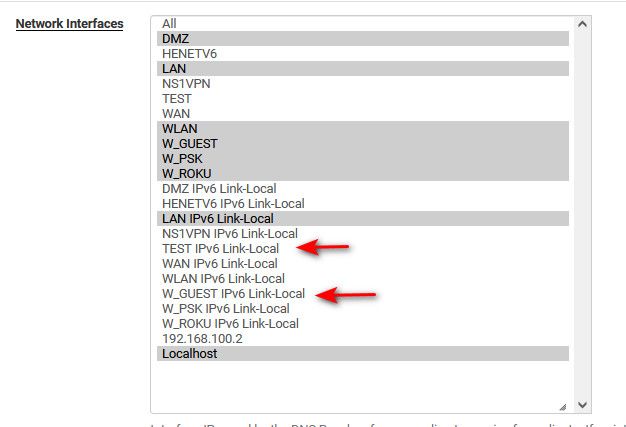

                            @dirkx I just tried binding test to linklocal, but it has no real IPv6 address and test came up on forwarder.

                            An intelligent man is sometimes forced to be drunk to spend time with his fools
                            If you get confused: Listen to the Music Play
                            Please don't Chat/PM me for help, unless mod related
                            SG-4860 24.11 | Lab VMs 2.8, 24.11

                            1 Reply Last reply Reply Quote 0
                            • johnpozJ
                              johnpoz LAYER 8 Global Moderator @dirkx
                              last edited by

                              @dirkx can you not just have forwarder listen on a different port, and use a port forward on your vlan to send 53 traffic to the port listens on say 5353?

                              An intelligent man is sometimes forced to be drunk to spend time with his fools
                              If you get confused: Listen to the Music Play
                              Please don't Chat/PM me for help, unless mod related
                              SG-4860 24.11 | Lab VMs 2.8, 24.11

                              1 Reply Last reply Reply Quote 0
                              • U
                                Uglybrian
                                last edited by

                                Off subject question for john.

                                Hi John, On your interface assignments in post 4. You have a interface labeled ns 1 vpn. If you don't mind could you elaborate what it is for? Is it some service you subscribe to, or a remote name server you have on a VPS? I'm just curious.

                                johnpozJ 1 Reply Last reply Reply Quote 0
                                • johnpozJ
                                  johnpoz LAYER 8 Global Moderator @Uglybrian
                                  last edited by

                                  @uglybrian just a vps I run - I have a client vpn connection to it that I use for testing vpn connections mostly for here, i don't have any traffic routed through it normally.

                                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                                  If you get confused: Listen to the Music Play
                                  Please don't Chat/PM me for help, unless mod related
                                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                                  1 Reply Last reply Reply Quote 0
                                  • U
                                    Uglybrian
                                    last edited by

                                    Thank you John

                                    1 Reply Last reply Reply Quote 0
