    100% Swap

    Scheduled Pinned Locked Moved General pfSense Questions
    26 Posts 8 Posters 2.0k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • S
      scorpoin
      last edited by

      Dear Community,

      I observed 100% swap on my pfsense dashboard version 2.5.2 .
      I have 48gb of ram and pfblock-ng installed . Swap 100% of 4095 MiB , how to over come this issue?

      Regards

      GertjanG ? 2 Replies Last reply Reply Quote 0
      • GertjanG
        Gertjan @scorpoin
        last edited by Gertjan

        @scorpoin said in 100% Swap:

        pfblock-ng installed

        pfblock-ng will work fine with one (1) Giga byte of memory.

        But if you select all the feeds , you'll be loading a lot of files, and some of them are very big. Download them yourself one by one to check.

        Still .... really .... you have a pfSense with 48 Gb and you ran out of memory .... I'm impressed.

        Can you show your :


        edit : maybe you found memory issue.
        Good news : the problem is solved.
        Just upgrade, as 2.5.2 is old.

        No "help me" PM's please. Use the forum, the community will thank you.
        Edit : and where are the logs ??

        S 1 Reply Last reply Reply Quote 0
        • O
          OpIT GmbH
          last edited by

          there is a problem with pfblocker-ng in the actual pfsense version

          /usr/local/pkg/pfblockerng/pfblockerng.inc
          Vrom: $r = explode(')', $result, 2);
          To $r = explode(' ', $result, 2);

          Reboot pfsense

          fireodoF S 2 Replies Last reply Reply Quote 0
          • ?
            A Former User @scorpoin
            last edited by

            @scorpoin said in 100% Swap:

            I have 48gb of ram and pfblock-ng installed . Swap 100% of 4095 MiB , how to over come this issue?

            I have a small pfSense+ 22.05 and 4 GB of RAM and I
            installed squid & squidguard, clamav, snort and pfBlockerng
            and pfSense is using 34 % - 42 % of all ram. The other pfSense installation is sorted with 64 GB RAM and there
            is all like the other system installed and running but with more lists and more space for ram disk usage so it is
            using something around 52 GB - 56 GB but running
            liquid and smooth. BGB IP lists (peers), much snort rules,
            extra clamav signature DBs, many pfblockerng lists and
            huge squidguard lists so you will see it is more pointed
            to;

            • how many lists are installed
            • how many rules are in game
            • how much virus av signatures DBs are loaded
            • RAM disk is used
            • tunings or tuneables are set up

            You may be better going with another or bigger SSD/HDD/NVME/mSATA or you may set up a swap file.

            Inserting more ram or setting up less rules and/or lists may be also nice.

            1 Reply Last reply Reply Quote 0
            • fireodoF
              fireodo @OpIT GmbH
              last edited by

              @opit-gmbh said in 100% Swap:

              there is a problem with pfblocker-ng in the actual pfsense version

              The Threadstarter is running pfsense version 2.5.2 😏

              Kettop Mi4300YL CPU: i5-4300Y @ 1.60GHz RAM: 8GB Ethernet Ports: 4
              SSD: SanDisk pSSD-S2 16GB (ZFS) WiFi: WLE200NX
              pfsense 2.8.0 CE
              Packages: Apcupsd, Cron, Iftop, Iperf, LCDproc, Nmap, pfBlockerNG, RRD_Summary, Shellcmd, Snort, Speedtest, System_Patches.

              1 Reply Last reply Reply Quote 0
              • O
                OpIT GmbH
                last edited by

                ahh ok :=) so there should not be the problem as i postet

                1 Reply Last reply Reply Quote 0
                • S
                  scorpoin @OpIT GmbH
                  last edited by

                  @opit-gmbh said in 100% Swap:

                  there is a problem with pfblocker-ng in the actual pfsense version

                  /usr/local/pkg/pfblockerng/pfblockerng.inc
                  Vrom: $r = explode(')', $result, 2);
                  To $r = explode(' ', $result, 2);

                  Reboot pfsense

                  I would give it a try and will let you know.

                  1 Reply Last reply Reply Quote 0
                  • S
                    scorpoin @Gertjan
                    last edited by

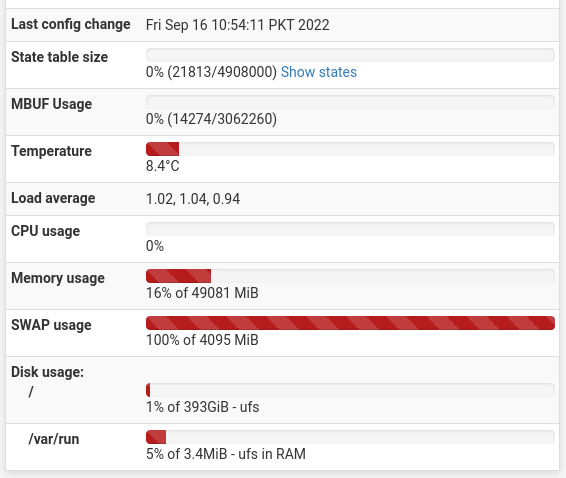

                    @gertjan

                    there you go.

                    johnpozJ 1 Reply Last reply Reply Quote 0
                    • johnpozJ
                      johnpoz LAYER 8 Global Moderator @scorpoin
                      last edited by johnpoz

                      @scorpoin 47.12 F is your temp? that can't be correct either.. Can it? Why would swap be 100% when your no where close to using your ram?

                      Something for sure is out of wack.

                      How is your load at 1, but you show no cpu usage?

                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                      If you get confused: Listen to the Music Play
                      Please don't Chat/PM me for help, unless mod related
                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                      S 1 Reply Last reply Reply Quote 0
                      • S
                        scorpoin @johnpoz
                        last edited by scorpoin

                        @johnpoz at the time I took screen shot cpu load decrease but it stays between 2 - 6% . But my concern here is to over come swap which is 100%.

                        johnpozJ 1 Reply Last reply Reply Quote 0
                        • johnpozJ
                          johnpoz LAYER 8 Global Moderator @scorpoin
                          last edited by

                          @scorpoin from what you posted I don't trust any of those.. I don't even have a swap file on my pfsense. I do not believe it creates one by default to be honest. Or it gives you an option during install..

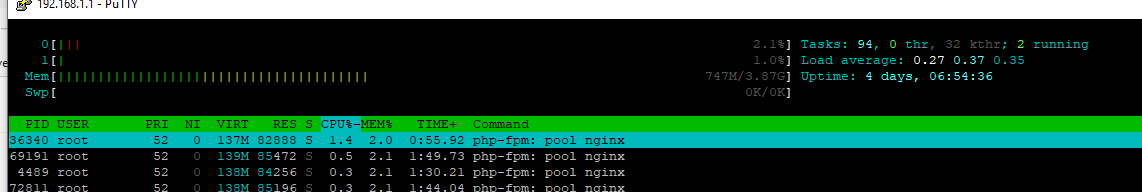

                          what does swapinfo show you? What is the output of top?

                          top -o size

                          An intelligent man is sometimes forced to be drunk to spend time with his fools
                          If you get confused: Listen to the Music Play
                          Please don't Chat/PM me for help, unless mod related
                          SG-4860 24.11 | Lab VMs 2.8, 24.11

                          1 Reply Last reply Reply Quote 0
                          • stephenw10S
                            stephenw10 Netgate Administrator
                            last edited by

                            It does create a swap partition by default, nominally double the RAM size but......

                            There's no way you should ever be using the SWAP space for memory with 48GB of RAM. However the SWAP is also used for dumping crash reports. That would be a massive amount of crash data though. Have you seen any crashes?

                            Steve

                            johnpozJ 1 Reply Last reply Reply Quote 0
                            • johnpozJ
                              johnpoz LAYER 8 Global Moderator @stephenw10
                              last edited by

                              @stephenw10 I doubt I would of gone with anything other than default - does ZFS not create swap, does it not show it. I see no swap with swapinfo, I see no swap in the system widget, I see no swap listed with top, etc.

                              An intelligent man is sometimes forced to be drunk to spend time with his fools
                              If you get confused: Listen to the Music Play
                              Please don't Chat/PM me for help, unless mod related
                              SG-4860 24.11 | Lab VMs 2.8, 24.11

                              GertjanG 1 Reply Last reply Reply Quote 0
                              • GertjanG
                                Gertjan @johnpoz
                                last edited by

                                Same thing here on a ZFS 22.05 :


                                no swap.

                                I didn't install, Netgate did that for me ;)

                                No "help me" PM's please. Use the forum, the community will thank you.
                                Edit : and where are the logs ??

                                johnpozJ 1 Reply Last reply Reply Quote 0
                                • johnpozJ
                                  johnpoz LAYER 8 Global Moderator @Gertjan
                                  last edited by johnpoz

                                  @gertjan yeah that is what I am running 22.05 zfs.. Im going to fire up my vms and check them they are running 2.6 and 2.7

                                  edit: ok that is odd, my 2.6 vm which is running zfs does show swap.. None of it being used, but it has a 2G swap.. swapinfo shows it..

                                  So why does my 22.05 not have one?

                                  An intelligent man is sometimes forced to be drunk to spend time with his fools
                                  If you get confused: Listen to the Music Play
                                  Please don't Chat/PM me for help, unless mod related
                                  SG-4860 24.11 | Lab VMs 2.8, 24.11

                                  GertjanG 1 Reply Last reply Reply Quote 0
                                  • GertjanG
                                    Gertjan @johnpoz
                                    last edited by Gertjan

                                    @johnpoz said in 100% Swap:

                                    So why does my 22.05 not have one?

                                    You installed yours from scratch ?
                                    Mine is a SG4100 and when I opened it, it had still Texan air in it.

                                    No, wait, it was 22.02 and I upgraded straight to 22.05.

                                    @johnpoz said in 100% Swap:

                                    why does my 22.05 not have one?

                                    Because you're not needing it ? ;)

                                    No "help me" PM's please. Use the forum, the community will thank you.
                                    Edit : and where are the logs ??

                                    johnpozJ 1 Reply Last reply Reply Quote 0
                                    • johnpozJ
                                      johnpoz LAYER 8 Global Moderator @Gertjan
                                      last edited by

                                      @gertjan said in 100% Swap:

                                      Because you're not needing it ? ;)

                                      hehehe - that is true.. But still curious, I doubt I would of clicked on no swap in setup. I don't recall if this was clean install of 22.05 or upgrade from 22.02...

                                      Not something I am worried about, just more curious is all. I don't recall ever seeing swap ever be used in pfsense, as far back as I can remember even when I do recall swap being listed on the system widget, etc..

                                      An intelligent man is sometimes forced to be drunk to spend time with his fools
                                      If you get confused: Listen to the Music Play
                                      Please don't Chat/PM me for help, unless mod related
                                      SG-4860 24.11 | Lab VMs 2.8, 24.11

                                      GertjanG ? 2 Replies Last reply Reply Quote 0
                                      • GertjanG
                                        Gertjan @johnpoz
                                        last edited by Gertjan

                                        @johnpoz

                                        This intrigues me :

                                        @stephenw10 said in 100% Swap:

                                        However the SWAP is also used for dumping crash reports.

                                        and this is nice to know : swap is a scratch pad for crash dumps !
                                        If the drive went bad, and the OS crashes, it will dumping the crash dump not on the head of a sick drive / root partition.

                                        Not that I can not recall that the pfSense OS ( FreeBSD) crashed on me ...
                                        I do see a lot of PHP errors, nearly daily these days.

                                        No "help me" PM's please. Use the forum, the community will thank you.
                                        Edit : and where are the logs ??

                                        1 Reply Last reply Reply Quote 0
                                        • stephenw10S
                                          stephenw10 Netgate Administrator
                                          last edited by

                                          Possibly because it's running from eMMC? The installer chooses different defaults depending on what it's installing to, the size of the install target.
                                          Everything I've checked here has swap expect where I disabled it. Or on ARM devices where the image is written out directly.

                                          Yes, not being able to retain crash dumps is a serious consideration when disabling SWAP:
                                          https://docs.netgate.com/pfsense/en/latest/development/panic-information.html#install-without-swap-space

                                          Steve

                                          GertjanG 1 Reply Last reply Reply Quote 0
                                          • ?
                                            A Former User @johnpoz
                                            last edited by

                                            @johnpoz said in 100% Swap:

                                            as far back as I can remember even when I do recall swap being listed on the system widget, etc..

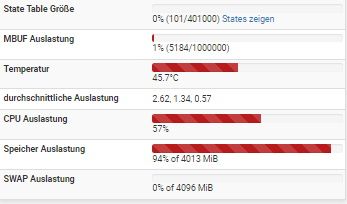

                                            22.05 Swap.jpg

                                            This is right but also if you need really much ram, it is not fully filled automatically.

                                            1 Reply Last reply Reply Quote 0
