Dynamic DNS taking down PFSense

Thierry 1

Hello,

I had a lot of connectivity trouble lately with PFSense. My DNS would suddenly not resolve queries and the server becomes unresponsive. Sometime I could use the web interface to login and reboot the server. sometime, the web interface is not responsive and I can reboot using SSH. sometime, the server is unresponsive and I have to perform a hard reset.

I tried few things:

move to pfsense plus with no luck
move to a test version with no luck
remove dpinger and pfbockerNG from Service WatchDog. I had less severe crashes but still, they happened to often
I switched to a different ISP. everything was running fine for few days. Suddenly, the server became unresponsive again.

I noticed the Dynamic DNS feature would was trying to update the current public IP, but it was hanging. I tried to disable the dynamic DNS but the page would not open. I tried many other pages in the firewall and they could be open just fine. My guess is the Dynamic DNS feature was eating too much CPU all that time, making pfsense to become unresponsive and the connectivity will go down.

I have turned off the Dynamic DNS feature and everything is fine again. I will keep an eye on the server for a few days to see if I have some randome crashes / hanging issues.

I was using Dynamic DNS with cloudflare api token.

-Thierry

Gertjan

@thierry-1

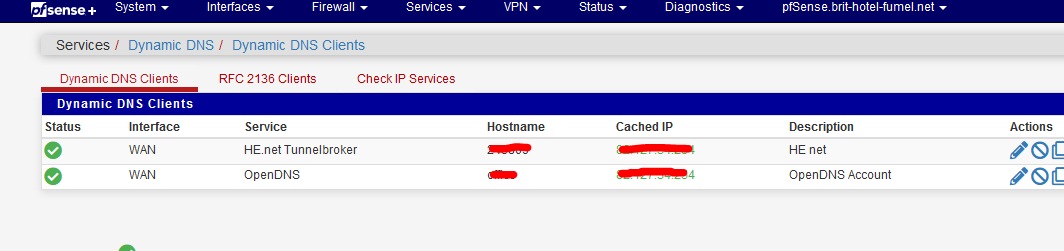

You mean, showing this page :

doesn't work 'well' / slows down / aborts ?

@thierry-1 said in Dynamic DNS taking down PFSense:

Service WatchDog

Only experts should use it.
For you and me, don't install/use it.
It makes things being works, masks the original erroneous situation. In one word : perfect to make a mess out of it.

@thierry-1 said in Dynamic DNS taking down PFSense:

I noticed the Dynamic DNS feature would was trying to update the current public IP, but it was hanging

Yep.
It visits :

If pfSense can't 'visit' http://checkip.dyndns.org , then, yeah, you have a real issue.

Let me try it out on the pfSense command line :

[22.05-RELEASE][admin@pfSense.mylocalrubbish.]/root: curl http://checkip.dyndns.org
<html><head><title>Current IP Check</title></head><body>Current IP Address: 82.127.39.254</body></html>

so it works.
My WAN IP is shown.

The origin of your issue might be this :

@thierry-1 said in Dynamic DNS taking down PFSense:

My DNS would suddenly not resolve queries

Your "DNS" is most probably the resolver, 'unbound'.

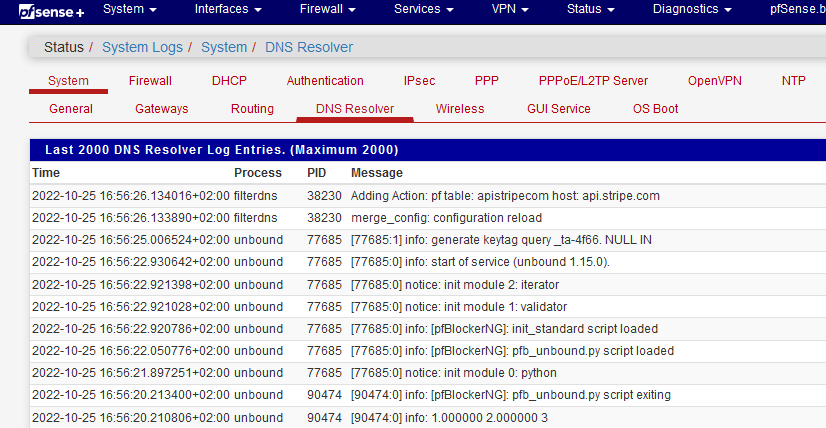

Go to the DNS Resolver log, here :

and look (count) lines that look like this :

Now, count the lines that contain

start of service (unbound

Type Ctrl-F, enter that string and count them.

You can also see how long it takes for unbound to 'stop' and 'start'.
Add to this knowledge : the time it shuts down, and starts, your DNS on your network (and for pfSense itself) doesn't answer ...

Knowing all this : it might be a good thing to take measures so that unbound is restarted less often ;)

Other forum threads also mention 'unbound' not answering any more. Or worse : it hangs.
It could have been related to IPv6.

I'm using 22.05 myself : no issues what so ever. Although I know where to look for, and I can smell a 'no DNS' situation from a mile away.
I was using 2.6.0 before : no issues neither.

@thierry-1 said in Dynamic DNS taking down PFSense:

remove dpinger

That's a system process.
I wouldn't touch that.
It just sends a ping every 100 ms or so. That shouldn't have an impact on your system.

Thierry 1

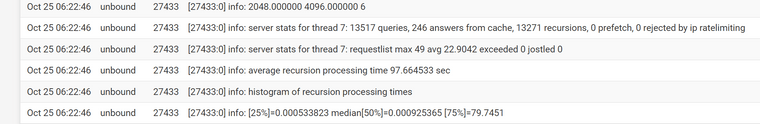

@gertjan there was a DNS issue because the average dns resolution was 97s

and yes, I could not open the Dynamic DNS page. the page will not open

Thierry 1

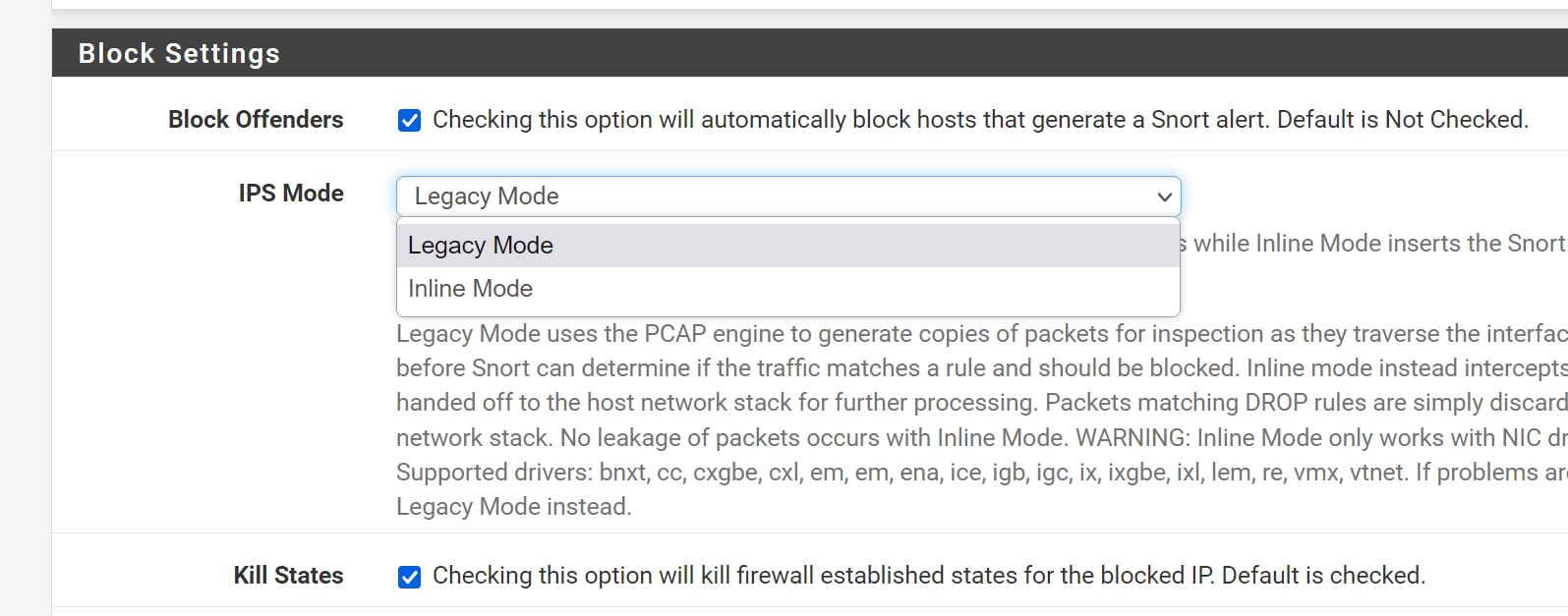

@gertjan this was probably part of the reason I had so much trouble. I setup Inline blocking mode in Snort interface settings. Since I reverted that, things seem to work fine again. Almost 18hr without interruption.

Gertjan

@thierry-1

Wait ....
Because snort has nothing to do on the 'hot' side (WAN) as all traffic is already blocked in the first place, it decided to focus on your side (LAN) and makes your live miserable by blocking traffic from the firewall itself ??
What was the reason you installed snort in the first place ? To do what ?

But ok, you made a good choice : remove (snort) as much non essential stuff on your firewall : things work way better, less maintenance, less can go wrong. Use only what you can manage
