Need help with (Outbound) NAT
-

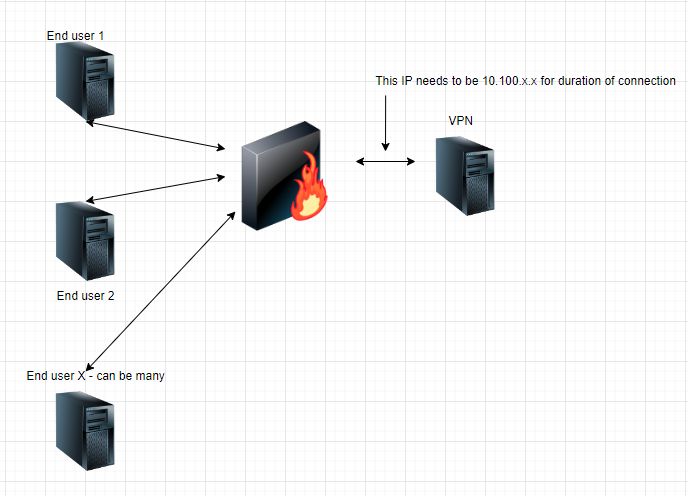

Referencing picture
-
end user device will connect to firewall via WAN, traverse via OPT1 and connect to VPN
-
Outbound nat on OPT1 sets IP to 10.100.0.10, tunnel comes up, all is good. Now, need to add more users to the mix...
-
2nd (3rd, etc) end user device connects in same fashion - in WAN, out OPT1 to VPN
-
Cant nat to same 10.100.0.10 address, as that would cause issues
-
How does one set up outbound (or other appropriate NAT) so that
2nd (3rd, 4th, etc) user gets their own 10.100.0.x IP
and maintains that NATed IP for duration of connection -
tried setting up a virtual IP range for the outbound NAT, it kind of worked except that IP does not appear to be maintained for duration of connection.
Moving VPN to edge is not an option, must go thru firewall
This does work in production - I did not set it up and dont have easy access to person with knowledge of how it was set up.
I am trying to create this in virtualbox
- to learn how its done
- to be able to experiment with various settings (FW, VPN) without impacting production or QA environment.
- Yes, this exceeds my current knowledge level, so these may be stupid questions or super simple to set up for someone with the knowledge. Any help is appreciated.
-
-
Ok, thanks to all who looked at this... got in touch with person who was more knowledgeable about the production version of this. There is NAT'ing going on, but it is not at the FW level - its being handled at the router level before the FW. So... that makes my question null/void. I will have to re-examine what I am trying to do and find another way to accomplish it.
