    PPPoE Negate 2100 VLAN, Bridge mode help!

    Scheduled Pinned Locked Moved General pfSense Questions
    4 Posts 4 Posters 1.8k Views 4 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • L
      lawmans3
      last edited by lawmans3

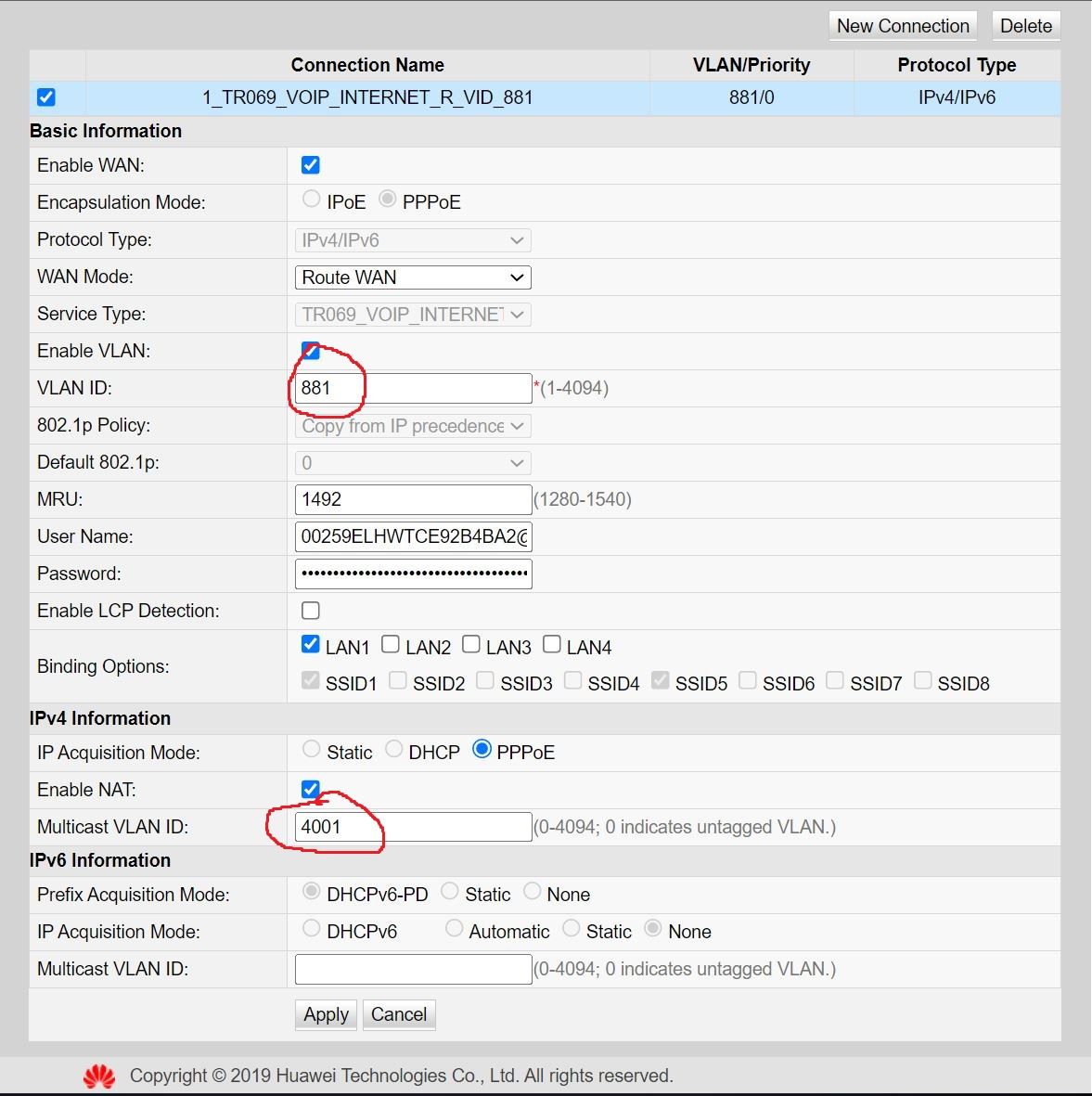

      I have an Huawei HG8145V5 fiber router which is setup in bridge mode. I just bought a Negate 2100 and I'm trying to bypass the ISP's (HG8145V5 ) cheap router. The company is Telmex (Mexico). I believe I have most of the work done, but the last part has me confused (doesn't take much). There are two different VLAN ports shown the setup in the router.

      telmex -1.JPG

      I'm working on the basis that my VLAN with pfsense should be set to the '881'? I don't know how important the 'Multicast VLAN' is?

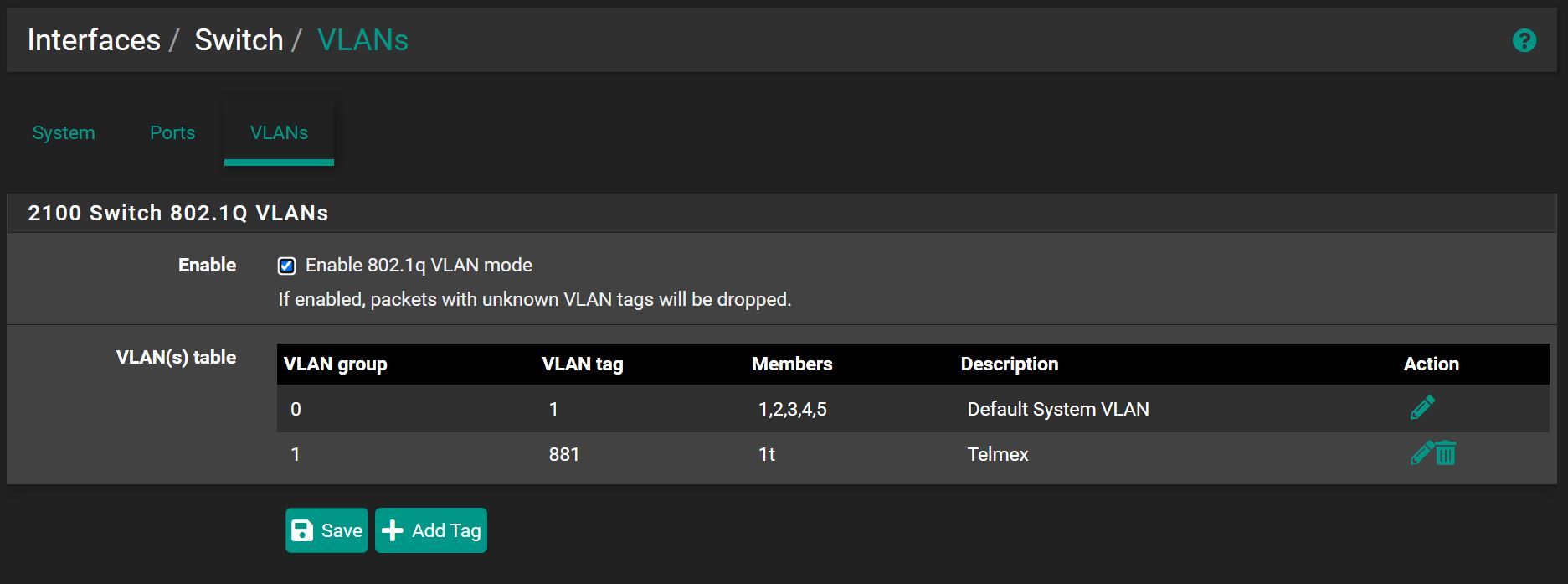

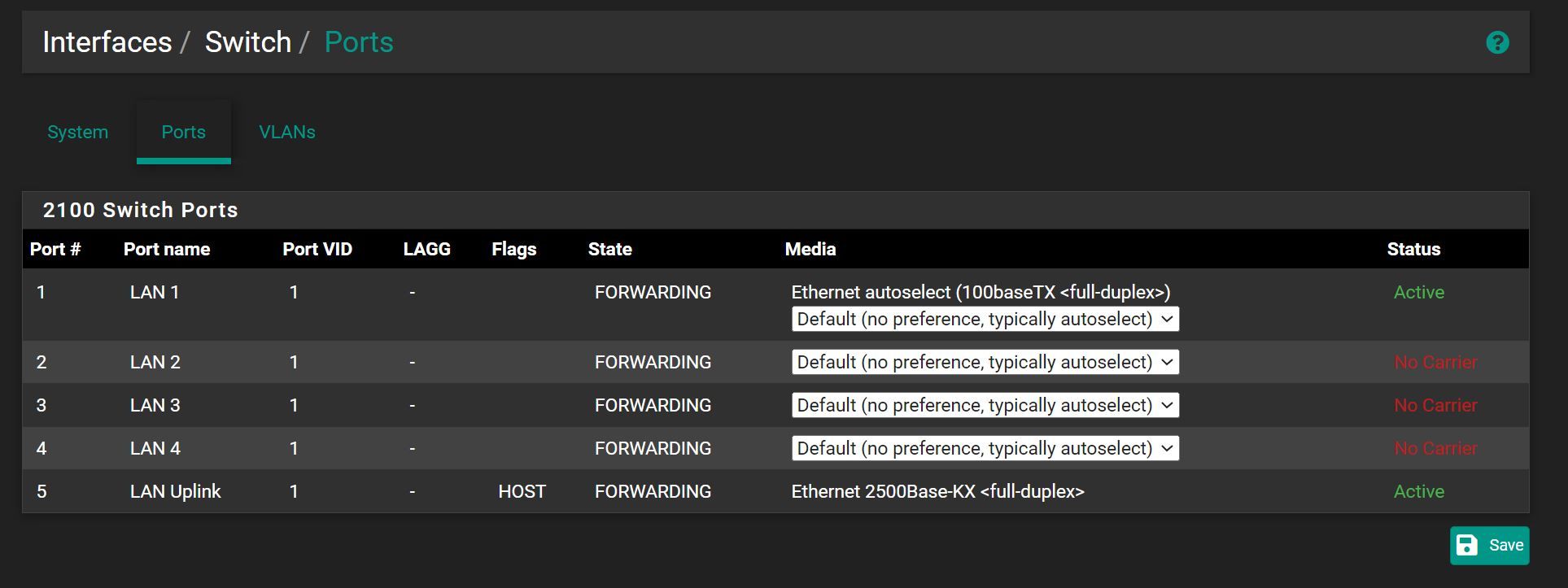

      Reading other posts says I need to setup my INTERFACEES=SWITCH=PORTS/VLANS. Here is my attempt at it so far:


      I don't understand how to use the VLAN table? How do I assign 0t? I get an error when I try. I can get 1t but I really don't even know what that means?

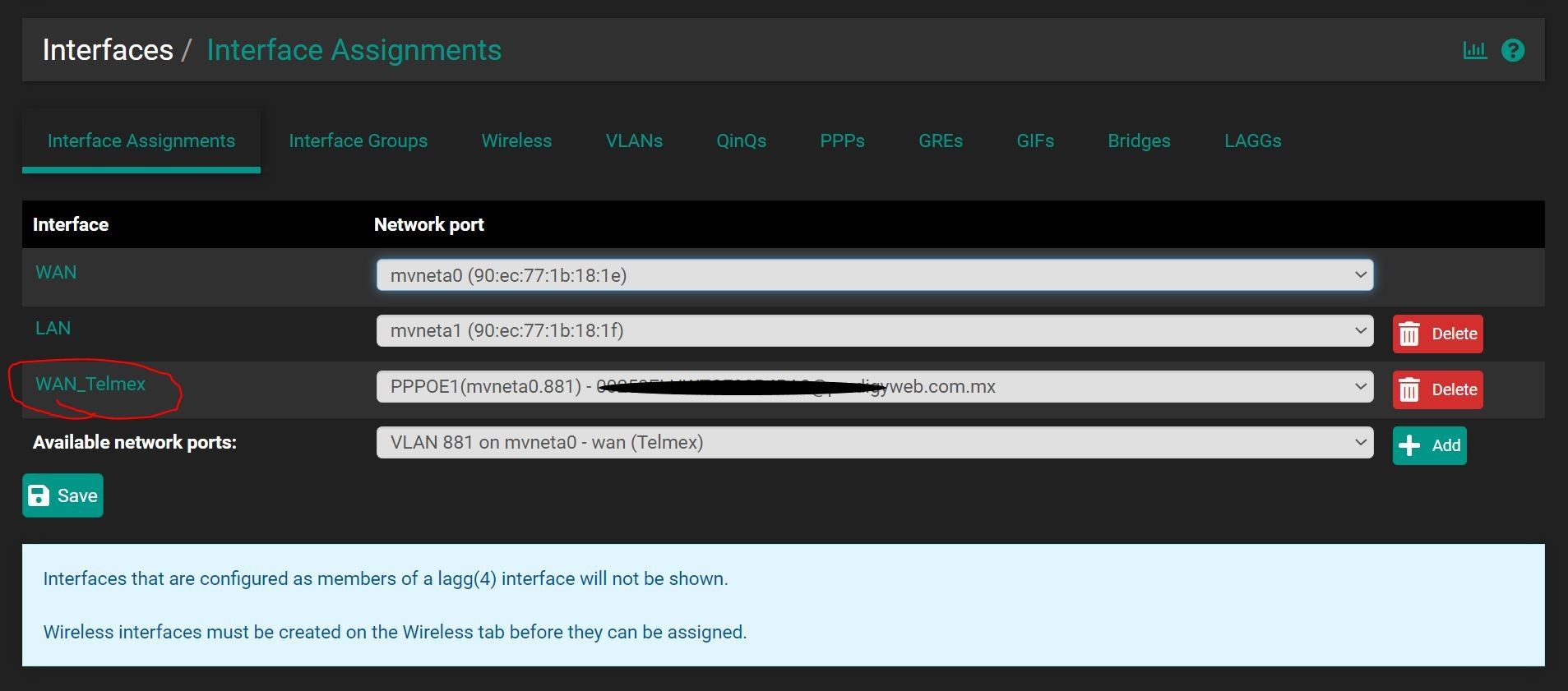

      Here is the photo of my interfaces:

      Any and all help is greatly appreciated! I have been messing with this for two days and my wife is ready to kill me for turning the internet on and off. I know....I'm depriving a village somewhere:)

      R NollipfSenseN 2 Replies Last reply
      Reply Quote 0
      • R
        rcoleman-netgate Netgate @lawmans3
        last edited by

        @lawmans3 mvneta0 is your WAN port so the switch has nothing to do with it on the 2100.

        Not sure about the multicast part of that, though... I haven't seen that requirement before.

        Ryan
        Repeat, after me: MESH IS THE DEVIL! MESH IS THE DEVIL!
        Requesting firmware for your Netgate device? https://go.netgate.com
        Switching: Mikrotik, Netgear, Extreme
        Wireless: Aruba, Ubiquiti

        1 Reply Last reply
        Reply Quote 0
        • stephenw10S
          stephenw10 Netgate Administrator
          last edited by

          Yes, no switch config should be required here. What are you actually seeing happen? Your config looks good for the PPPoE on a VLAN.
          Do you see any replies in the PPP logs?

          The ISP modem/router may still tag the packets in bridge mode in which case you wouldn't need to tag it in pfSense.

          Steve

          1 Reply Last reply
          Reply Quote 0
          • NollipfSenseN
            NollipfSense @lawmans3
            last edited by

            @lawmans3 Congratulations on purchasing a Haiwei device.

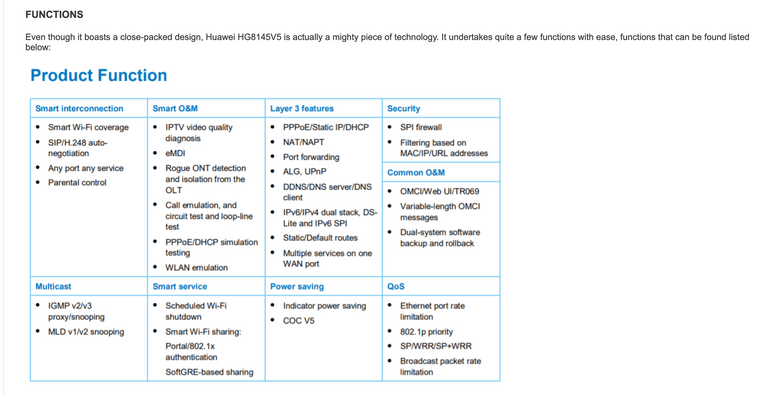

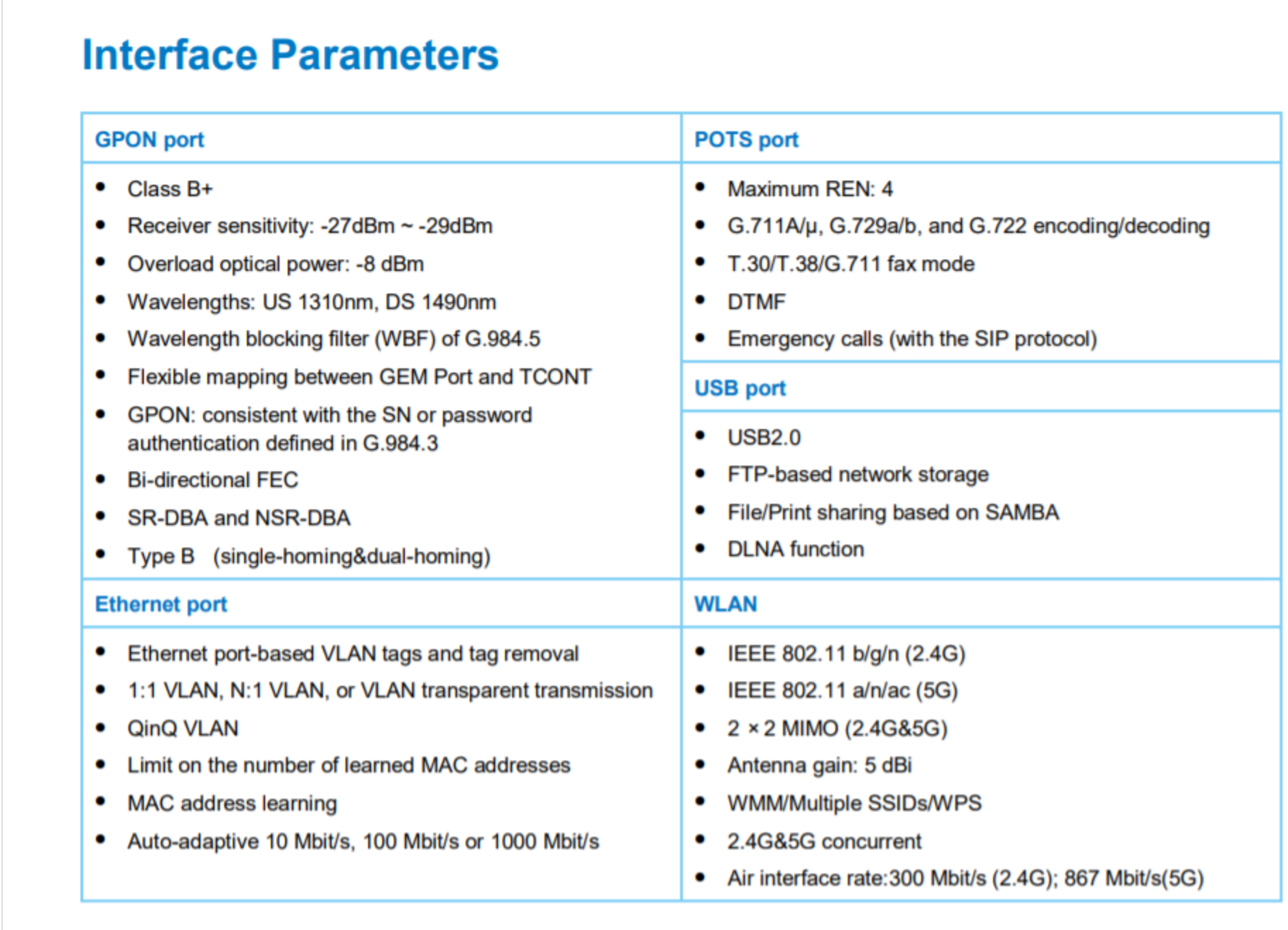

            This is from eBay and may help Netgate administrators in providing a solution to your setting issue since I have no direct experience with Vlan...see images below.
            Screenshot 2023-01-17 at 10.58.42 AM.png
            Screenshot 2023-01-17 at 10.59.11 AM.png

            pfSense+ 23.09 Lenovo Thinkcentre M93P SFF Quadcore i7 dual Raid-ZFS 128GB-SSD 32GB-RAM PCI-Intel i350-t4 NIC, -Intel QAT 8950.
            pfSense+ 23.09 VM-Proxmox, Dell Precision Xeon-W2155 Nvme 500GB-ZFS 128GB-RAM PCIe-Intel i350-t4, Intel QAT-8950, P-cloud.
