    Upgrade from 22.05 to 23.01 fails device not booting

    Scheduled Pinned Locked Moved Problems Installing or Upgrading pfSense Software
    7 Posts 4 Posters 1.2k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • E
      emmaylots
      last edited by emmaylots

      Hi,

      I attempted upgrading from 22.05 to 23.01 and it failed. Then I re-installed 22.05 and I cannot install packages or upgrade to 23.05. So I got the installer for 23.01 from Netgate and now I am unable to install it.

      I have tried to run recovery several times:

      run usbrecovery
      switch to partitions #0, OK
      mmc1(part 0) is current device

      MMC erase: dev # 1, block # 0, count 4194304 ...

      I keep getting this error:

      Trying to mount root from ufs:/dev/ufsid/63e6b2a98b3567af [rw,noatime]...
      uhub1: 2 ports with 2 removable, self powered
      uhub0: 1 port with 1 removable, self powered
      e6000sw0port1: link state changed to DOWN
      e6000sw0port2: link state changed to DOWN
      e6000sw0port3: link state changed to DOWN
      Root mount waiting for: usbus1 CAM
      Root mount waiting for: usbus1 CAM
      ugen1.2: <General USB Flash Disk> at usbus1
      umass0 on uhub0
      umass0: <General USB Flash Disk, class 0/0, rev 2.00/1.00, addr 2> on usbus1
      Root mount waiting for: CAM
      Root mount waiting for: CAM
      Root mount waiting for: CAM
      Root mount waiting for: CAM
      Root mount waiting for: CAM
      Root mount waiting for: CAM
      Root mount waiting for: CAM
      da0 at umass-sim0 bus 0 scbus0 target 0 lun 0
      da0: <General USB Flash Disk 1.0> Removable Direct Access SCSI-2 device
      da0: Serial Number 0.....
      da0: 40.000MB/s transfers
      da0: 3824MB (7831552 512 byte sectors)
      da0: quirks=0x2<NO_6_BYTE>
      GEOM_PART: integrity check failed (da0, MBR)
      GEOM_PART: integrity check failed (diskid/DISK-04.., MBR)
      mountroot: waiting for device /dev/ufsid/63e6b2a98b3567af...
      Mounting from ufs:/dev/ufsid/63e6b2a98b3567af failed with error 19.

      Loader variables:
      vfs.root.mountfrom=ufs:/dev/ufsid/63e6b2a98b3567af
      vfs.root.mountfrom.options=rw,noatime

      Manual root filesystem specification:
      <fstype>:<device> [options]
      Mount <device> using filesystem <fstype>
      and with the specified (optional) option list.

      eg. ufs:/dev/da0s1a
    zfs:zroot/ROOT/default
    cd9660:/dev/cd0 ro
      (which is equivalent to: mount -t cd9660 -o ro /dev/cd0 /)

      ? List valid disk boot devices
      . Yield 1 second (for background tasks)
      <empty line> Abort manual input

      mountroot> random: unblocking device.

      Another Error:

      FreeBSD EFI boot block
      Loader path: /boot/loader.efi

      Initializing modules: ZFS UFS
      Load Path: /MemoryMapped(0x1,0x7000000,0x7027e88)
      Probing 1 block devices...not supported
      done
      ZFS found no pools
      UFS found no partitions
      Failed to load '/boot/loader.efi'
      panic: No bootable partitions found!

      Application terminated, r = 1

      If I allow it to boot I get this:

      Model: Netgate 1100
      Net: eth0: neta@30000 [PRIME]
      Hit any key to stop autoboot: 0
      Card did not respond to voltage select!
      ** No partition table - mmc 1 **

      Reset SCSI
      scanning bus for devices...
      ** Bad device scsi 0 **

      Any advice on how to address this?

      S R 2 Replies Last reply Reply Quote 0
      • S
        SteveITS Galactic Empire @emmaylots
        last edited by

        @emmaylots “integrity check failed” sounds like the USB stick has a problem, if I’m reading that right? Can you try another?

        If you’re on 22.05 set the update branch to the version you’re on, e.g. Previous not Current, to install /update packages.

        If you’re on an 1100/2100 they blocked online updating to 23.01 last night.

        Pre-2.7.2/23.09: Only install packages for your version, or risk breaking it. Select your branch in System/Update/Update Settings.
        When upgrading, allow 10-15 minutes to restart, or more depending on packages and device speed.
        Upvote 👍 helpful posts!

        E 1 Reply Last reply Reply Quote 0
        • E
          emmaylots @SteveITS
          last edited by emmaylots

          @steveits

          Thanks, it seems something might be wrong either with writing the new 23.01 image to disk or the image itself. I used the old 22.05 image and wrote it to flash and it worked okay.

          How do I set the update branch to Previous? Tried editing some config file but it didn't work

          See the error I got with 23.01

          ugen1.2: <General USB Flash Disk> at usbus1
          umass0 on uhub0
          umass0: <General USB Flash Disk, class 0/0, rev 2.00/1.00, addr 2> on usbus1
          Root mount waiting for: CAM
          Root mount waiting for: CAM
          Root mount waiting for: CAM
          Root mount waiting for: CAM
          Root mount waiting for: CAM
          Root mount waiting for: CAM
          Root mount waiting for: CAM
          da0 at umass-sim0 bus 0 scbus0 target 0 lun 0
          da0: <General USB Flash Disk 1.0> Removable Direct Access SCSI-2 device
          da0: Serial Number 041
          da0: 40.000MB/s transfers
          da0: 3824MB (7831552 512 byte sectors)
          da0: quirks=0x2<NO_6_BYTE>
          GEOM_PART: integrity check failed (da0, MBR)
          GEOM_PART: integrity check failed (diskid/DISK-041, MBR)
          mountroot: waiting for device /dev/ufsid/63e6b2a98b3567af...
          Mounting from ufs:/dev/ufsid/63e6b2a98b3567af failed with error 19.

          Loader variables:
          vfs.root.mountfrom=ufs:/dev/ufsid/63e6b2a98b3567af
          vfs.root.mountfrom.options=rw,noatime

          Manual root filesystem specification:
          <fstype>:<device> [options]
          Mount <device> using filesystem <fstype>
          and with the specified (optional) option list.

          eg. ufs:/dev/da0s1a
    zfs:zroot/ROOT/default
    cd9660:/dev/cd0 ro
      (which is equivalent to: mount -t cd9660 -o ro /dev/cd0 /)

          ? List valid disk boot devices
          . Yield 1 second (for background tasks)
          <empty line> Abort manual input

          mountroot> random: unblocking device.

          S 1 Reply Last reply Reply Quote 0
          • S
            SteveITS Galactic Empire @emmaylots
            last edited by

            @emmaylots said in Upgrade from 22.05 to 23.01 fails device not booting:

            How do I set the update branch to Previous

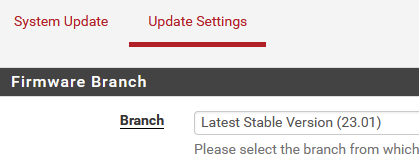

            System/Update/Update Settings.

            @emmaylots said in Upgrade from 22.05 to 23.01 fails device not booting:

            See the error I got with 23.05.

            23.01? 23.05 is the bleeding edge dev version.

            Pre-2.7.2/23.09: Only install packages for your version, or risk breaking it. Select your branch in System/Update/Update Settings.
            When upgrading, allow 10-15 minutes to restart, or more depending on packages and device speed.
            Upvote 👍 helpful posts!

            E 1 Reply Last reply Reply Quote 1
            • E
              emmaylots @SteveITS
              last edited by

              @steveits

              Thank you. I meant 23.01.

              I've started re-installing 22.05, I'll stick with it for the next 1 year 😁

              M 1 Reply Last reply Reply Quote 0
              • M
                marcosm Netgate @emmaylots
                last edited by

                @emmaylots Personally I would not wait that long, but I understand why one would. There shouldn't be any issues doing a fresh install of 23.01 on the Netgate 1100. If you're still having trouble installing it, open a ticket with TAC and they should be able to assist.

                1 Reply Last reply Reply Quote 0
                • R
                  rcoleman-netgate Netgate @emmaylots
                  last edited by

                  @emmaylots said in Upgrade from 22.05 to 23.01 fails device not booting:

                  Trying to mount root from ufs:/dev/ufsid/63e6b2a98b3567af [rw,noatime]...

                  Whatever hardware you're on if you are not on a 3100 I would install from the 23.01 install image (request in the link in my signature) and go ZFS.

                  There is no reason to use UFS on an 1100.

                  Ryan
                  Repeat, after me: MESH IS THE DEVIL! MESH IS THE DEVIL!
                  Requesting firmware for your Netgate device? https://go.netgate.com
                  Switching: Mikrotik, Netgear, Extreme
                  Wireless: Aruba, Ubiquiti

                  1 Reply Last reply Reply Quote 0
