    (SOLVED) No upgrade for SG-1100?

    Scheduled Pinned Locked Moved Problems Installing or Upgrading pfSense Software
    9 Posts 2 Posters 1.2k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • K
      Klaus2314
      last edited by Klaus2314

      Hi there,

      I see this message on my SG-1100. Is the SG-110 EOL now?


      Also this:


      1 Reply Last reply Reply Quote 0
      • bmeeksB
        bmeeks
        last edited by bmeeks

        The crypto chip inside the SG-1100 has a history of getting stuck in an invalid state. The only way to reset it is to physically power down the box, wait several seconds, then apply power again. A reboot is not sufficient to reset the crypto chip.

        Shut down your SG-1100 from the menu. Be sure is has fully halted, then remove the power. Wait several seconds then power it up again and let it boot. If the crypto chip is the issue, things should work better for updating.

        To be positive the box has halted, it would be beneficial to connect up the USB serial console cable and watch the firewall's console via the PuTTY serial connection to be sure it has halted. If you remove the power before the box fully halts, it is possible to corrupt the file system.

        K 2 Replies Last reply Reply Quote 1
        • K
          Klaus2314 @bmeeks
          last edited by

          @bmeeks Thank you so much for the quick response! Power cycling fixed it!

          1 Reply Last reply Reply Quote 0
          • K
            Klaus2314 @bmeeks
            last edited by

            @bmeeks Oops now this when trying to update to 23.01

            ERROR: The EFI partition on this device is too small to receive the updated arm64 EFI loader. Contact TAC at https://www.netgate.com/tac-support-request for assistance upgrading this device.

            K bmeeksB 2 Replies Last reply Reply Quote 0
            • K
              Klaus2314 @Klaus2314
              last edited by

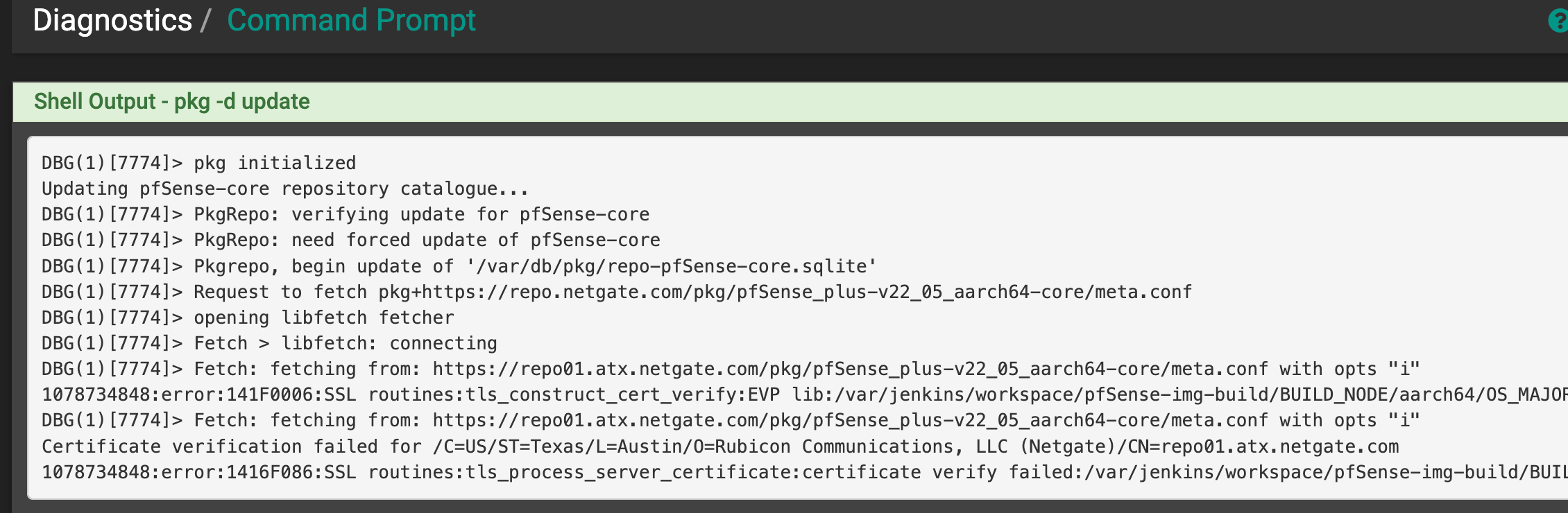

              @Klaus2314 ad272731-5dcd-4194-8fce-3f9976417f13-image.png

              1 Reply Last reply Reply Quote 0
              • bmeeksB
                bmeeks @Klaus2314
                last edited by bmeeks

                @Klaus2314 said in No upgrade for SG-1100?:

                @bmeeks Oops now this when trying to update to 23.01

                ERROR: The EFI partition on this device is too small to receive the updated arm64 EFI loader. Contact TAC at https://www.netgate.com/tac-support-request for assistance upgrading this device.

                This is a known limitation for some of the older SG-1100 boxes. Follow the advice given by the error and open a TAC Lite ticket here: https://www.netgate.com/tac-support-request. As an owner of Netgate hardware you are automatically entitled to basic hardware support. They can help you overcome the EFI issue.

                It's not a total disk space issue. Instead, there is a special reserved EFI partition that is part of the boot process in the SG-1100. In some early editions that reserved partition is too small.

                K 2 Replies Last reply Reply Quote 1
                • K
                  Klaus2314 @bmeeks
                  last edited by

                  @bmeeks Thanks again. I've submitted a support ticket.

                  1 Reply Last reply Reply Quote 0
                  • K
                    Klaus2314 @bmeeks
                    last edited by

                    @bmeeks I've re-installed and restored my config and everything seems to be back to normal with 23.05 running. Thank you again!

                    bmeeksB 1 Reply Last reply Reply Quote 0
                    • bmeeksB
                      bmeeks @Klaus2314
                      last edited by

                      @Klaus2314 said in (SOLVED) No upgrade for SG-1100?:

                      @bmeeks I've re-installed and restored my config and everything seems to be back to normal with 23.05 running. Thank you again!

                      Glad you got everything up and going on 23.05 😀

                      1 Reply Last reply Reply Quote 0
