    [opt1_link0] Link: DOWN event at the second PPPOE

    Routing and Multi WAN
    2
    2
    349
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • insmodI
      insmod
      last edited by insmod

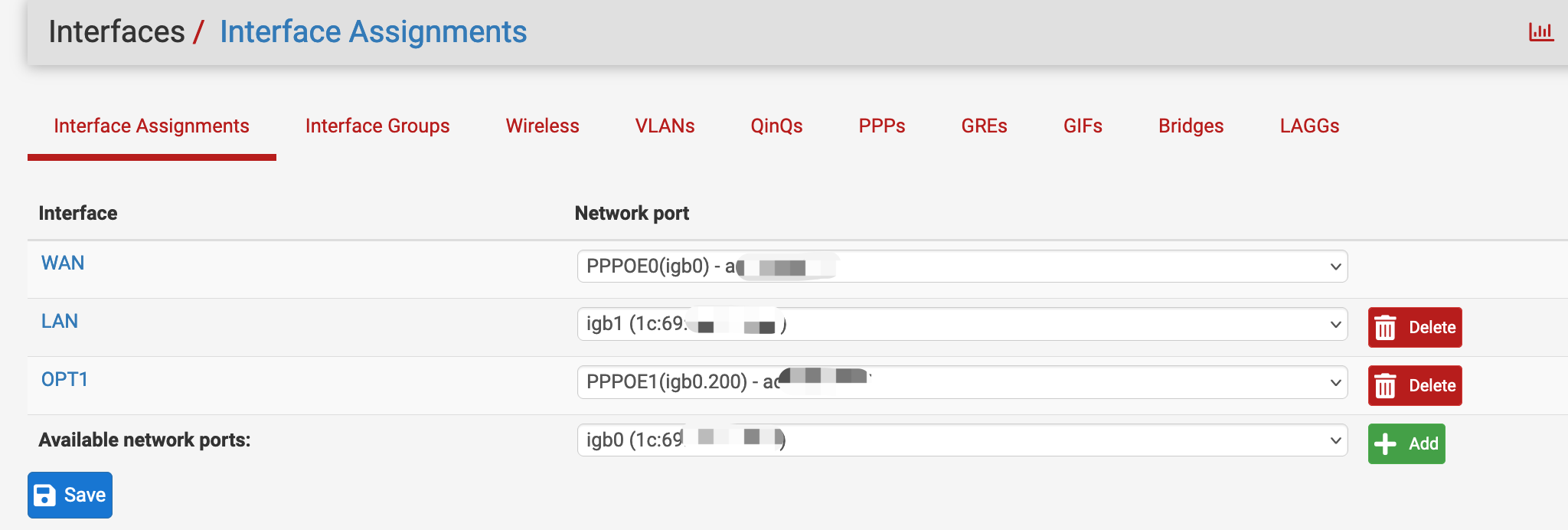

      I use two ADSL modem connect one pfSense with two ethernet ports,and I enabled VLAN in the switch.
      The WAN which tag VALN 100 works fine,but the OPT1 tag VLAN 200 returns:"Link: DOWN event"
      I can not find what's the problem.

      [23.05-RELEASE][root@GW.Tel]/root: tail -f /var/log/ppp.log
Jun 30 23:17:57 GW ppp[921]: [opt1_link0] LCP: Down event
Jun 30 23:17:57 GW ppp[921]: [opt1_link0] Link: reconnection attempt 5937 in 1 seconds
Jun 30 23:17:58 GW ppp[921]: [opt1_link0] Link: reconnection attempt 5937
Jun 30 23:17:58 GW ppp[921]: [opt1_link0] PPPoE: Connecting to ''
Jun 30 23:18:07 GW ppp[921]: [opt1_link0] PPPoE connection timeout after 9 seconds
Jun 30 23:18:07 GW ppp[921]: [opt1_link0] Link: DOWN event
Jun 30 23:18:07 GW ppp[921]: [opt1_link0] LCP: Down event
Jun 30 23:18:07 GW ppp[921]: [opt1_link0] Link: reconnection attempt 5938 in 4 seconds
Jun 30 23:18:11 GW ppp[921]: [opt1_link0] Link: reconnection attempt 5938
Jun 30 23:18:11 GW ppp[921]: [opt1_link0] PPPoE: Connecting to ''
Jun 30 23:18:20 GW ppp[921]: [opt1_link0] PPPoE connection timeout after 9 seconds
Jun 30 23:18:20 GW ppp[921]: [opt1_link0] Link: DOWN event
Jun 30 23:18:20 GW ppp[921]: [opt1_link0] LCP: Down event
Jun 30 23:18:20 GW ppp[921]: [opt1_link0] Link: reconnection attempt 5939 in 1 seconds
Jun 30 23:18:21 GW ppp[921]: [opt1_link0] Link: reconnection attempt 5939
Jun 30 23:18:21 GW ppp[921]: [opt1_link0] PPPoE: Connecting to ''
      M 1 Reply Last reply Reply Quote 0
      • M
        milew @insmod
        last edited by milew

        @insmod Try to use computer. Connect to first switch and change swtich port to vlan 200. Next configure pppoe on your computer. Install wireshark and watch packets.

        you have mishmash with vlan

        correct configuration
        modem0 vlan 100 access mode
        modem1 vlan 200 access mode

        igb0 switch port connect hybrid or general mode non tagged 100, tagged 200
        interface on pfsense igb0 non tagged (for 100 vlan), igb0 tagged 200 (for vlan 200)
        or
        igb0 switch port connect trunk mode tagged 100,200
        interface on pfsense igb0 tagged 100, igb0 tagged 200

        1 Reply Last reply Reply Quote 1
