    Slow upload to server

    Scheduled Pinned Locked Moved OpenVPN
    19 Posts 7 Posters 1.3k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      Marci
      last edited by

      Hi

      I have set up a VPN server on pfSense and I am getting quite slow speeds when uploading to the server.

      The connection on the server side has a 200 Mbit download and 60 Mbit upload line. The client side which I used for the test has 130 Mbit download and 85 MBit upload speed.

      When I establish the tunnel the client gets 55 Mbit download, which is cool because 60 Mbit would be the limitation. Strangely the client only gets ~25 MBit upload speed which I do not understand ๐Ÿ˜  , I was expecting a higher value.

      Any idea/explanation would be welcome.

      S 1 Reply Last reply Reply Quote 0
      • S
        SteveITS Galactic Empire @Marci
        last edited by

        @Marci How are you testing? What OS?

        Pre-2.7.2/23.09: Only install packages for your version, or risk breaking it. Select your branch in System/Update/Update Settings.
        When upgrading, allow 10-15 minutes to restart, or more depending on packages and device speed.
        Upvote ๐Ÿ‘ helpful posts!

        M 1 Reply Last reply Reply Quote 0
        • M
          Marci @SteveITS
          last edited by

          @SteveITS I am using the OpenVPN app on iOS as a client

          1 Reply Last reply Reply Quote 0
          • M
            Marci
            last edited by

            bump
            I would very much appreciate any ideas ๐Ÿ˜ข

            M 1 Reply Last reply Reply Quote 0
            • M
              michmoor LAYER 8 Rebel Alliance @Marci
              last edited by michmoor

              @Marci Are you testing on WiFi or cellular? Either one your speeds will vary.
              What are the speeds when not on vpn?

              Firewall: NetGate,Palo Alto-VM,Juniper SRX
              Routing: Juniper, Arista, Cisco
              Switching: Juniper, Arista, Cisco
              Wireless: Unifi, Aruba IAP
              JNCIP,CCNP Enterprise

              M 1 Reply Last reply Reply Quote 0
              • M
                Marci @michmoor
                last edited by

                @michmoor On the client side I am testing on cellular, server is connected via cable to ISP.
                The connection on the server side has a 200 Mbit download and 60 Mbit upload line. The client side which I used for the test has 130 Mbit download and 85 MBit upload speed, without VPN.

                H 1 Reply Last reply Reply Quote 0
                • H
                  hr1sha @Marci
                  last edited by

                  @Marci are you using tcp or udp? have you tried increasing sndbuf rcvbuf?

                  M 1 Reply Last reply Reply Quote 0
                  • M
                    Marci @hr1sha
                    last edited by

                    @hr1sha I am using UDP and I have really good download speed. Therefore I guess the protocol works.

                    I have tried setting
                    sndbuf 512000;
                    rcvbuf 512000;
                    push "sndbuf 512000";
                    push "rcvbuf 512000";
                    on the server side but it did not have any effect (I am not sure about the commands/values, I googled these).

                    H 2 Replies Last reply Reply Quote 0
                    • H
                      hr1sha @Marci
                      last edited by

                      This post is deleted!
                      1 Reply Last reply Reply Quote 0
                      • H
                        hr1sha @Marci
                        last edited by

                        @Marci please show your server and client configuration

                        M 1 Reply Last reply Reply Quote 0
                        • M
                          Marci @hr1sha
                          last edited by

                          @hr1sha
                          Client:

                          dev tun
                          persist-tun
                          persist-key
                          data-ciphers AES-256-GCM:AES-256-CBC
                          data-ciphers-fallback AES-256-GCM
                          auth SHA512
                          tls-client
                          client
                          resolv-retry infinite
                          remote *deleted IP* *deleted port* udp4
                          lport 0
                          verify-x509-name "VPN server Cert" name
                          auth-user-pass
                          remote-cert-tls server
                          explicit-exit-notify


                          Server:

                          reneg-sec 36000;
                          sndbuf 393216;
                          rcvbuf 393216;
                          push "sndbuf 393216";
                          push "rcvbuf 393216";


                          Thanks for looking into this ๐Ÿ‘

                          GertjanG H 2 Replies Last reply Reply Quote 0
                          • GertjanG
                            Gertjan @Marci
                            last edited by Gertjan

                            @Marci said in Slow upload to server:

                            reneg-sec 36000;
                            sndbuf 393216;
                            rcvbuf 393216;
                            push "sndbuf 393216";
                            push "rcvbuf 393216";

                            Noop.
                            These are the option you added manually.

                            edit : and you don't need to add

                            sndbuf 1048576
                            rcvbuf 1048576

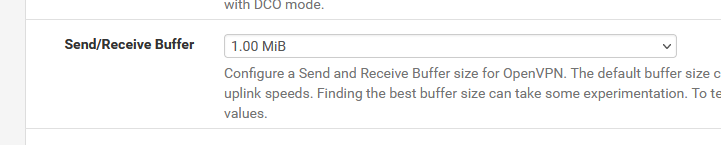

                            and these get added as soon as you select :

                            reneg-sec 36000;


                            is more a security thing. Maybe not ok to set this to 10 hours. The default '3600' won't bite you (one hour !)

                            The actual OpenVPN server config looks like a OpenVPN client config.
                            Go console, or better : SSH,, option 8 :
                            It's here : /var/etc/openvpn/serverX/config.ovpn
                            Where X is your server ID, normally it's '1'

                            Here it is :

                            dev ovpns1
                            disable-dco
                            verb 1
                            dev-type tun
                            dev-node /dev/tun1
                            writepid /var/run/openvpn_server1.pid
                            #user nobody
                            #group nobody
                            script-security 3
                            daemon
                            keepalive 10 60
                            ping-timer-rem
                            persist-tun
                            persist-key
                            proto udp4
                            auth SHA256
                            up /usr/local/sbin/ovpn-linkup
                            down /usr/local/sbin/ovpn-linkdown
                            client-connect /usr/local/sbin/openvpn.attributes.sh
                            client-disconnect /usr/local/sbin/openvpn.attributes.sh
                            learn-address "/usr/local/sbin/openvpn.learn-address.sh bhf.net"
                            local 192.168.10.4
                            engine rdrand
                            tls-server
                            server 192.168.3.0 255.255.255.0
                            client-config-dir /var/etc/openvpn/server1/csc
                            tls-verify "/usr/local/sbin/ovpn_auth_verify tls 'bhf.net' 1"
                            lport 1194
                            management /var/etc/openvpn/server1/sock unix
                            max-clients 10
                            push "dhcp-option DOMAIN bhf.net"
                            push "dhcp-option DNS 192.168.3.1"
                            push "block-outside-dns"
                            push "register-dns"
                            push "redirect-gateway def1"
                            client-to-client
                            remote-cert-tls client
                            capath /var/etc/openvpn/server1/ca
                            cert /var/etc/openvpn/server1/cert
                            key /var/etc/openvpn/server1/key
                            dh /etc/dh-parameters.2048
                            tls-crypt /var/etc/openvpn/server1/tls-crypt
                            data-ciphers AES-256-GCM:AES-128-GCM:CHACHA20-POLY1305
                            data-ciphers-fallback AES-256-GCM
                            allow-compression asym
                            persist-remote-ip
                            float
                            topology subnet

                            status /var/log/openvpn.status
                            status-version 1

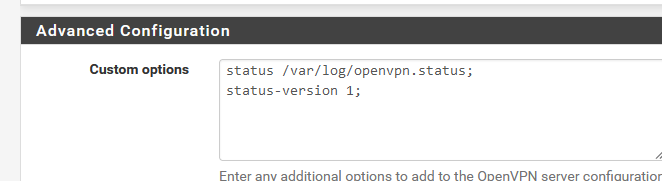

                            Note : my custom config :


                            so these are just added to the rest.

                            No "help me" PM's please. Use the forum, the community will thank you.
                            Edit : and where are the logs ??

                            M 1 Reply Last reply Reply Quote 0
                            • H
                              hr1sha @Marci
                              last edited by

                              @Marci try changing the encryption algorithm to 128 and test. A large buffer size is not always a good thing.

                              M 2 Replies Last reply Reply Quote 0
                              • RicoR
                                Rico LAYER 8 Rebel Alliance
                                last edited by

                                Could the iPhone be the bottleneck pushing encrypted traffic?
                                Maybe you can test with another more beefy client device first.

                                -Rico

                                M 1 Reply Last reply Reply Quote 0
                                • M
                                  Marci @Gertjan
                                  last edited by

                                  @Gertjan Thanks for the help, so here is the server config (I deleted some IPs)

                                  dev ovpns2
                                  verb 1
                                  dev-type tun
                                  dev-node /dev/tun2
                                  writepid /var/run/openvpn_server2.pid
                                  #user nobody
                                  #group nobody
                                  script-security 3
                                  daemon
                                  keepalive 10 60
                                  ping-timer-rem
                                  persist-tun
                                  persist-key
                                  proto udp4
                                  auth SHA512
                                  up /usr/local/sbin/ovpn-linkup
                                  down /usr/local/sbin/ovpn-linkdown
                                  client-connect /usr/local/sbin/openvpn.attributes.sh
                                  client-disconnect /usr/local/sbin/openvpn.attributes.sh
                                  local *IP deleted*
                                  engine rdrand
                                  tls-server
                                  server *IP deleted* 255.255.255.0
                                  client-config-dir /var/etc/openvpn/server2/csc
                                  username-as-common-name
                                  plugin /usr/local/lib/openvpn/plugins/openvpn-plugin-auth-script.so /usr/local/sbin/ovpn_auth_verify_async user TG9jYWwgRGF0YWJhc2U= false server2 1194
                                  tls-verify "/usr/local/sbin/ovpn_auth_verify tls 'VPN+server+Cert' 1"
                                  lport *port deleted*
                                  management /var/etc/openvpn/server2/sock unix
                                  max-clients 4
                                  push "dhcp-option DOMAIN localdomain"
                                  push "dhcp-option DNS *IP deleted""
                                  push "redirect-gateway def1"
                                  push "redirect-gateway ipv6"
                                  capath /var/etc/openvpn/server2/ca
                                  cert /var/etc/openvpn/server2/cert
                                  key /var/etc/openvpn/server2/key
                                  dh /etc/dh-parameters.2048
                                  tls-auth /var/etc/openvpn/server2/tls-auth 0
                                  data-ciphers AES-256-GCM:AES-256-CBC
                                  data-ciphers-fallback AES-256-GCM
                                  allow-compression no
                                  persist-remote-ip
                                  float
                                  topology subnet
                                  sndbuf 524288
                                  rcvbuf 524288
                                  push "sndbuf 524288"

                                  push "rcvbuf 524288"


                                  I have also removed the manual entry for regen-sec and send/receive buffer (I used the pfSense GUI to set the send/receive buffer)

                                  1 Reply Last reply Reply Quote 0
                                  • M
                                    Marci @hr1sha
                                    last edited by

                                    This post is deleted!
                                    1 Reply Last reply Reply Quote 0
                                    • M
                                      Marci @Rico
                                      last edited by

                                      @Rico That is a bit difficult for me as I am lacking the infrastructure for this test. I would need a PC/laptop in a different WLAN which I do not have.

                                      1 Reply Last reply Reply Quote 0
                                      • M
                                        Marci @hr1sha
                                        last edited by

                                        @hr1sha Great ๐Ÿ˜„ that solved the issue, I am now getting the expected upload speed.
                                        I guess that means I have been limited by the iPhone hardware (like also @Rico suspected).

                                        I chose 256 encryption because I thought it is safer that 128, but after some quick research I guess 128 should be sufficiently safe (I guess).

                                        1 Reply Last reply Reply Quote 0
                                        • U
                                          upgradeyard
                                          last edited by upgradeyard

                                          This post is deleted!
                                          1 Reply Last reply Reply Quote 0
