    After pfsense boots, DHCP offer does not contain `Option: (3) Router` so client has no default route

    Scheduled Pinned Locked Moved DHCP and DNS
    9 Posts 4 Posters 898 Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • L
      left4apple
      last edited by

      Recently there was two power outages at my home. Even after the power is back, I'm not able to ping 8.8.8.8 from my desktop. Initially I thought it's because pfSense boots too fast, faster than the modem getting ready. But then I found that all my devices that has static IP all work just fine.

      The next thing I found was that there's no default route(0.0.0.0/0) on my MacOS, and I realized it might be DHCP issue.

      Restarting pfSense solves the problem, but I eagerly want to know what's going on to prevent it from happening again. So I manually cut of the power and reconnect it to mimic the incident. The problem continued as expected. I use Wireshark to capture the DHCP packets in both cases, and I found that in the bad cases, DHCP OFFER packet does not contain Option: (3) Router which is exactly what tells the client to update their routing table.

      # Only the good case has this section in DHCP offering
          Option: (3) Router
              Length: 4
              Router: 10.0.0.1


      Can I get some hint about what's happening? Does pfSense DHCP service require the WAN to be up?

      Thanks!

      1 Reply Last reply Reply Quote 0
      • L
        left4apple
        last edited by

        Upon checking the DHCP server settings in pfSense, I'm not seeing where 10.0.0.1 as router/gateway (Option 3) is set anywhere which makes me wonder how DHCP figures out 10.0.0.1 in the first place? I guess it's using the IP of the LAN interface?

        bingo600B 1 Reply Last reply Reply Quote 1
        • bingo600B
          bingo600 @left4apple
          last edited by bingo600

          @left4apple

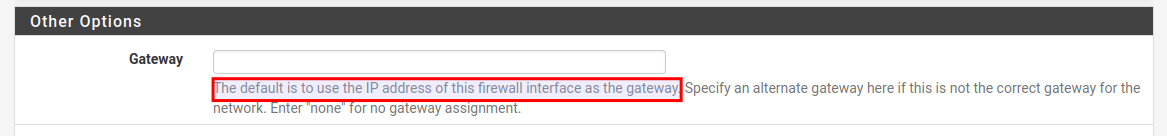

          On the DHCP Server settings, this is the Opt3 settings

          I have no idea if Opt3 would be suppressed of the fwall has no valid gateway.
          I use ISC-DHCPD on linux as my DHCP server.

          That said , you might want to goto system --> routing , and force def-gw to the WAN-GW (bottom)

          Leaving that one "default".
          Was once biting my "behind" hard, as it due to a small "glitch" on WAN , decided to use the "next" gateway .... And not switching back, when WAN came back.

          If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

          pfSense+ 23.05.1 (ZFS)

          QOTOM-Q355G4 Quad Lan.
          CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
          LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

          L 2 Replies Last reply Reply Quote 1
          • L
            left4apple @bingo600
            last edited by left4apple

            @bingo600 Thanks for the info. To find out if DHCP setting option 3 has anything to do with an active Internet gateway, I did some experiments:

            Observation:

            1. If pfSense and Modem are powered on at the same time, pfSense boots too fast will first get 192.168.100.x IP, and then change to the actual Internet IP(65.x.x.x). In this case, DHCP OFFER does not contain option 3, but pfSense has correct routing table.

            Experiments(each carried out independently):

            1. Boot pfSense 120 seconds after the modem. pfSense only sees 65.x.x.x.
              Result: Everything works correctly now.
            2. In the DHCP server setting, manually set the Gateway IP to 10.0.0.1. This works
              Result: DHCP contains Option (3) (for sure since it's hardcoded)
            3. Set the Default Gateway to WAN.
              Result: Doesn't Help. Even worse, after getting the 65.x.x.x IP, pfSense does not have default route table item, thus cannot ping any public IP. Restarting the interface works.

            So I guess the workaround(not even a solution) is:

            1. Manually set the Gateway IP in DHCP server. It's fine since my LAN interface won't change.
            2. Add a delay when booting the pfSense server.
            3. (Added) Reject 192.168.100.1 as DHCP server in WAN interface setting so that pfSense doesn't get 192.168.100.20. This slows down the booting a little as pfSense will wait on "Configuring WAN" to get the real Internet IP
            bingo600B B 2 Replies Last reply Reply Quote 0
            • bingo600B
              bingo600 @left4apple
              last edited by

              @left4apple said in After pfsense boots, DHCP offer does not contain `Option: (3) Router` so client has no default route:

              @bingo600 Thanks for the info. To find out if DHCP setting option 3 has anything to do with an active Internet gateway, I did some experiments:

              Observation:

              1. If pfSense and Modem are powered on at the same time, pfSense boots too fast will first get 192.168.100.x IP, and then change to the actual Internet IP(65.x.x.x). In this case, DHCP OFFER does not contain option 3, but pfSense has correct routing table.

              Experiments(each carried out independently):

              1. Boot pfSense 120 seconds after the modem. pfSense only sees 65.x.x.x.
                Result: Everything works correctly now.
              2. In the DHCP server setting, manually set the Gateway IP to 10.0.0.1. This works
                Result: DHCP contains Option (3) (for sure since it's hardcoded)
              3. Set the Default Gateway to WAN.
                Result: Doesn't Help. Even worse, after getting the 65.x.x.x IP, pfSense does not have default route table item, thus cannot ping any public IP. Restarting the interface works.

              So I guess the workaround(not even a solution) is:

              1. Manually set the Gateway IP in DHCP server. It's fine since my LAN interface won't change.
              1. Add a delay when booting the pfSense server.

              I think our local pfSense Guru stephenw10
              posted this as a workaround (delay)

              https://forum.netgate.com/post/1118393

              Edit /boot/loader.conf and set autoboot_delay to something larger so that the modem has brought the link up by the time pfSense tries to start the dhclient.
              If that works create the loader entry in /boot/loader.conf.local so it never gets overwritten.



              Yes, the delay time is in seconds.

              The /boot/loader.conf.local doesn't exist out of the box. You have to create it.
              Just enter in the shell

              echo "autoboot_delay=\"30\"" >> /boot/loader.conf.local

              to create it and enter the option for 30 s delay.





              If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

              pfSense+ 23.05.1 (ZFS)

              QOTOM-Q355G4 Quad Lan.
              CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
              LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

              1 Reply Last reply Reply Quote 1
              • B
                BassStation70 @left4apple
                last edited by

                @left4apple FWIW, I noticed this behavior on my pfSense instance as well. I ended up setting DHCP Gateway IP manually, as you did in option 2. Seemed like it shouldn't have been necessary, but it did solve my problem.

                1 Reply Last reply Reply Quote 0
                • L
                  left4apple @bingo600
                  last edited by

                  @bingo600 said in After pfsense boots, DHCP offer does not contain `Option: (3) Router` so client has no default route:

                  I use ISC-DHCPD on linux as my DHCP server.

                  Curious. What's the benefit of using a 3rd party DHCP server, instead of the one that pfSense integrates?

                  johnpozJ bingo600B 2 Replies Last reply Reply Quote 0
                  • johnpozJ
                    johnpoz LAYER 8 Global Moderator @left4apple
                    last edited by

                    @left4apple said in After pfsense boots, DHCP offer does not contain `Option: (3) Router` so client has no default route:

                    What's the benefit of using a 3rd party DHCP server

                    Would depend on the dhcp server - for example if your MS shop, prob better to just run dhcp on you windows server - so it can integrate easier with your AD. Along with dns

                    As to running the same ISC-DHCPD which is what pfsense runs anyway - prob not much. But with using just the .conf vs what is exposed in the pfsense gui for the dhcp server. More complex configurations would prob be the advantage here. If they are running that - prob time to move on, since isc dhcpd is eol.. And the version currently running on pfsense 4.4.3-P1 is currently the last plan release.

                    If you were already running a well rounded dhcp server, you prob wouldn't want to switch over to running it on pfsense since you already have something setup and stable, etc. But to advantages - again would depend on exactly what dhcpd you were or plan on running.

                    An intelligent man is sometimes forced to be drunk to spend time with his fools
                    If you get confused: Listen to the Music Play
                    Please don't Chat/PM me for help, unless mod related
                    SG-4860 24.11 | Lab VMs 2.8, 24.11

                    1 Reply Last reply Reply Quote 0
                    • bingo600B
                      bingo600 @left4apple
                      last edited by

                      @left4apple

                      1:
                      I already had the setup running, with Bind & ISC-DHCPD

                      2:
                      I had a fully working DDNS (Dynamic DNS) setup , where DHCP clients are realtime registering with the DNS part (Bind).
                      And i liked to be able to resolve my DHCP clients. - Unbound and DDNS sucks.

                      So DNS & DHCP runs on my linux server(s) , and pfSense (Unbound) uses my linuxes as DNS servers.
                      Since t have set my clients to ask pfSense for DNS, and pfSense asks linux for DNS records, I "get the best from both worlds" ... (Ie. i can still do dns overrides in pfSense)

                      /Bingo

                      If you find my answer useful - Please give the post a šŸ‘ - "thumbs up"

                      pfSense+ 23.05.1 (ZFS)

                      QOTOM-Q355G4 Quad Lan.
                      CPUĀ  : Core i5 5250U, Ram : 8GB Kingston DDR3LV 1600
                      LANĀ  : 4 x Intel 211, DiskĀ  : 240G SAMSUNG MZ7L3240HCHQ SSD

                      1 Reply Last reply Reply Quote 0
