      Hi everyone,

      I'm new arrival to pfsense from Arista/Untangle's discontinuation of home licenses.

      I've set up a few IP aliases so that I can use the "match" rules in the floating rules for CBQ queues.

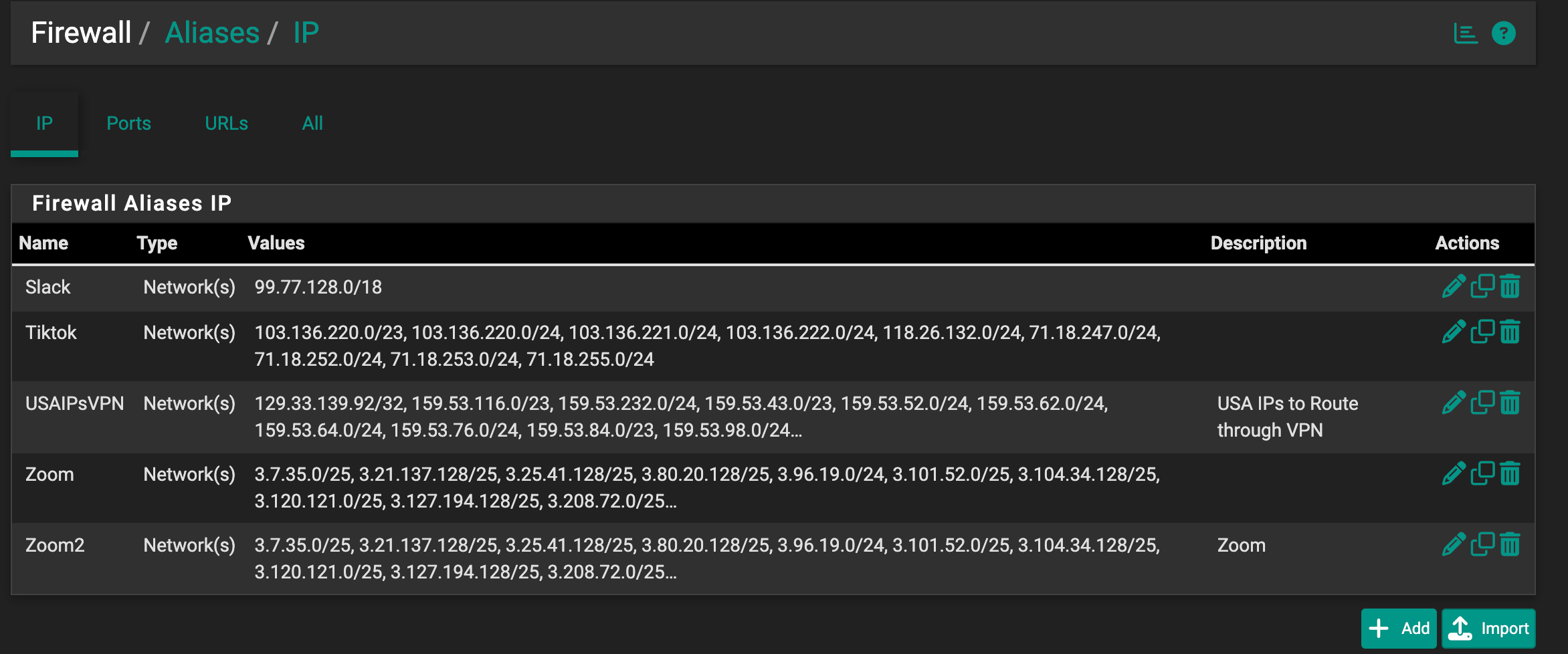

      Screenshot 2024-05-03 at 10.14.48 AM.png

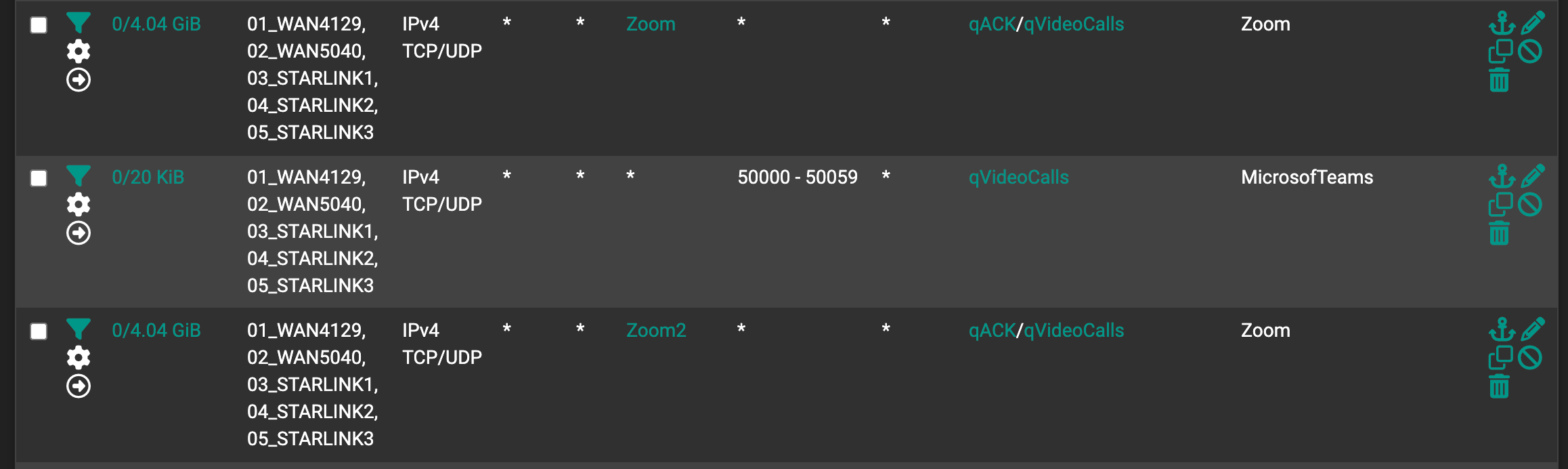

      Screenshot 2024-05-03 at 10.15.22 AM.png

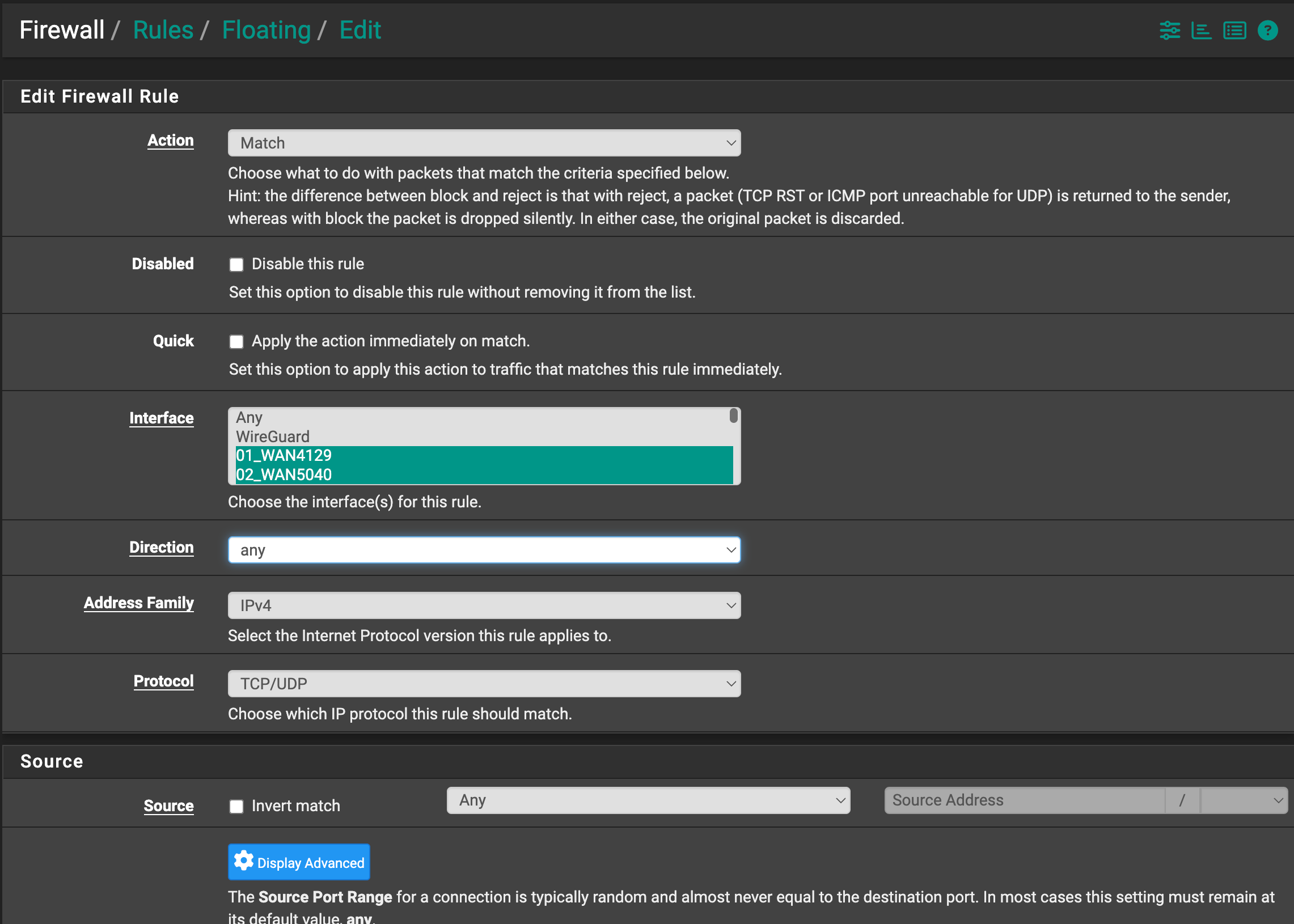

      Screenshot 2024-05-03 at 10.15.43 AM.png

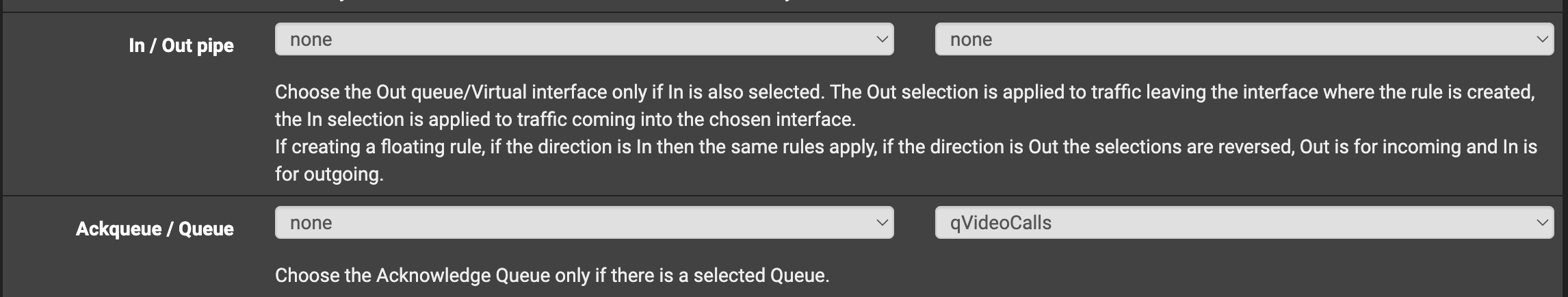

      Screenshot 2024-05-03 at 10.19.40 AM.png

      I changed the name of the qVOIP to qVideoCalls as Zoom is just as important as VOIP now for me.

      The issue is that I don't see any traffic in Status/Queues when I'm watching the queues. I do have a rule for HTTPS 443 to be matched to qOthersHigh, but that rule is below all my floating rules for the queue "qVideoCalls". Anyone know why the Zoom traffic isn't matching in the rules? Thanks in advance.
