Setting up FreeRADIUS on pfSense with Google LDAP and integrating with UniFi Controller

laurens.DS

Hi all,

I'm trying to set up the FreeRADIUS package on pfSense and link it with Google LDAP for user authentication. After that, I need to integrate the FreeRADIUS server with a UniFi Controller.

However, I’m stuck with the error message:

I've tried troubleshooting, but I can't seem to find where the issue is. Does anyone have a good step-by-step guide for setting this up, or any tips on resolving this error?

Any help or guidance would be greatly appreciated!

Thanks in advance!

laurens.DS

The error :

"(0) -: Expected Access-Accept, got Access-Reject".

laurens.DS

The configuration will follow shortly.

laurens.DS

Google Admin:

Go to Apps --> LDAP
Click Add Client
Give it a name and a discription
Access permissions

Verify user credentials = Entire domain

Read User information = Entire domain + System attributes

```
Read group information = ON
```
Download the generated google certificate
Generate new credentials en save it (User + Password)
Set the Service status = ON

pfSense:

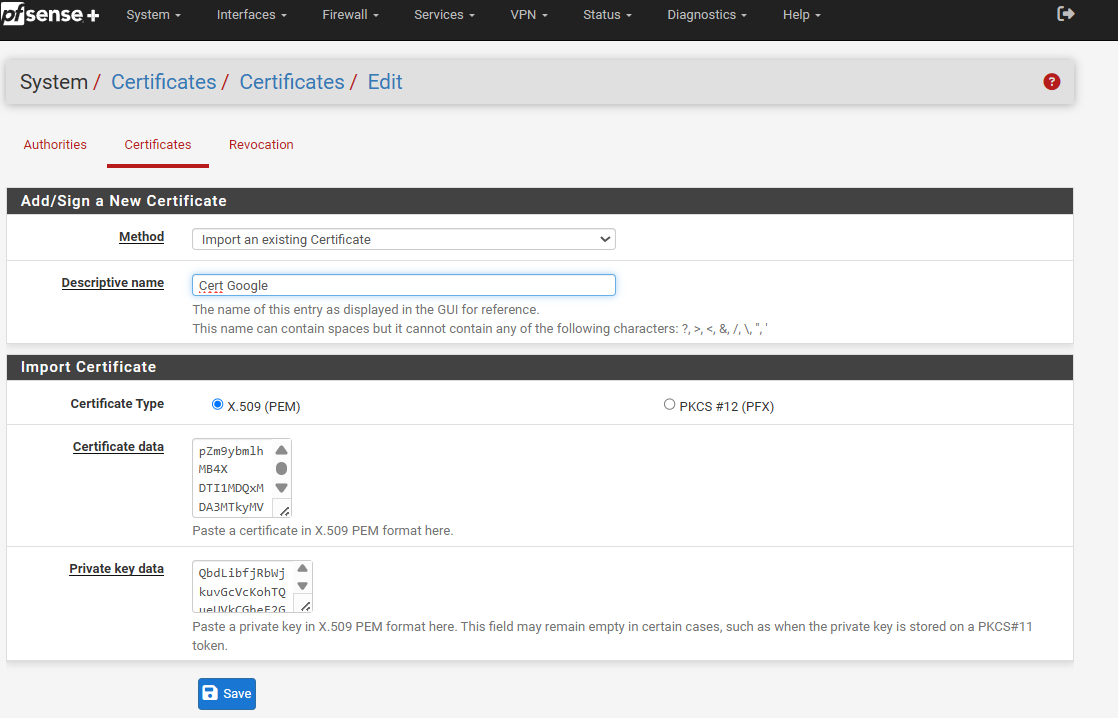

Add Certificates

Go to System --> Certificates --> Certificates
Click +Add
Give it a name and paste the contents of the certificate and private key

Install FreeRadius

Login
Go to System --> Package Manager
Search for freeradius and click on install
Wait while the installation of pfSense-pkg-freeradius3 completes.

Config FreeRadius

Go to Services --> FreeRADIUS
Go to interfaces
Click +add en make the follow interfaces

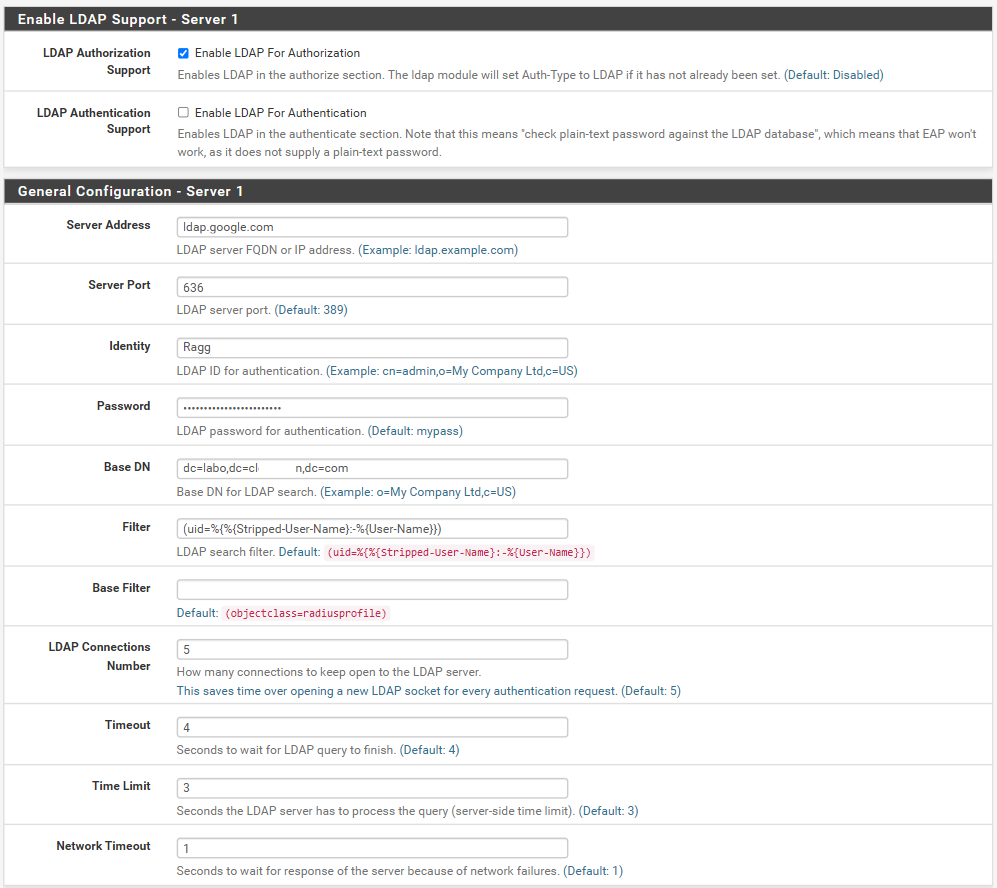

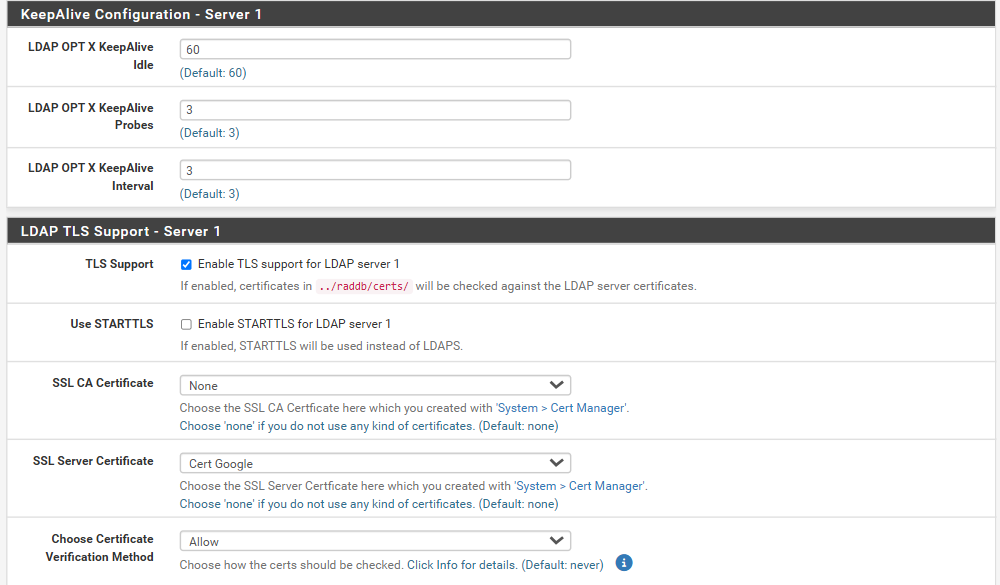

Go to LDAP and fill in the things

stephenw10

So what's working? What isn't working?

laurens.DS

@stephenw10 when i do a radtest i get always the result "(0) -: Expected Access-Accept, got Access-Reject".

Gertjan

First, in the GUI, stop FreeRadius.

Then, in a first console access, you run

radiusd -X

Then, in the second (use SSH ?!) start our radtest :

@laurens-DS said in Setting up FreeRADIUS on pfSense with Google LDAP and integrating with UniFi Controller:

when i do a radtest

In the first console, with the Radius debug log output, you can see the reason.
