IPsec Tunnel - LAN can’t reach VPN clients

[Alek]

Hi,

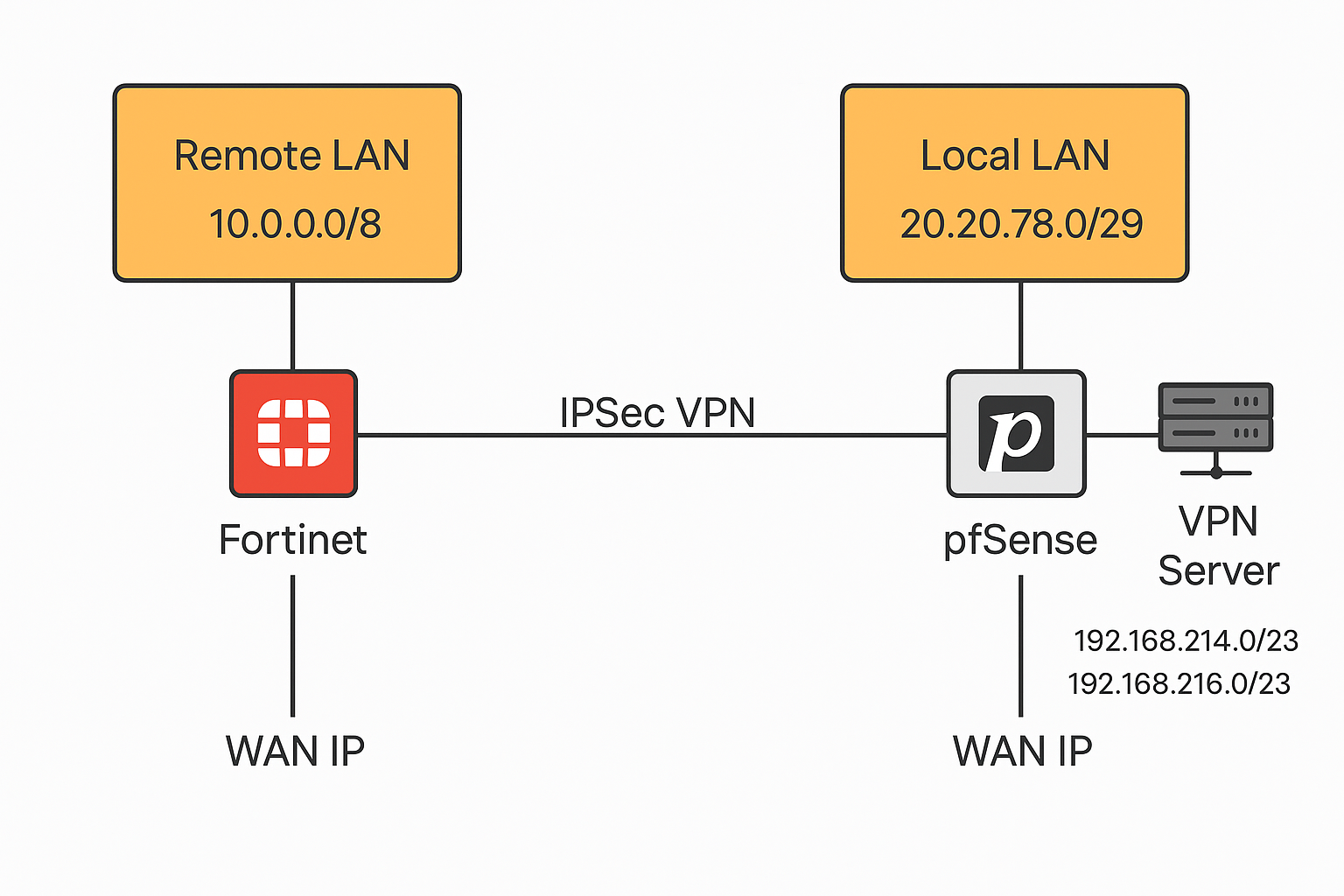

We have a site-to-site IPsec tunnel between a Fortinet firewall (remote) and our pfSense (local).

Setup:

• Remote LAN (Fortinet): 10.0.0.0/8
• Local LAN (Pfsense): 20.20.78.0/29
• VPN Server: Behind pfSense (VPN IP 20.20.78.2), running Pritunl
  Hosts VPN clients on 192.168.214.0/23 and 192.168.216.0/23

• Phase 2 entries:
  • Local: 20.20.78.0/29
  • Remote: 10.0.0.0/8
  • Same on Fortinet

What works:

• VPN clients <-> Internal LAN (10.0.0.0/8):
• VPN server <-> Internal LAN (10.0.0.0/8):
• Internal LAN Ping <-> VPN server:

What doesn’t:

• Internal LAN -> VPN clients (192.168.214.x)
  • ICMP echo seen on pfSense IPsec capture
  • Nothing seen on VPN server tun interfaces
  • Clients can reply to internal just fine (asymmetric?)

Is this a NAT or policy route issue?
Any way to SNAT/route traffic from internal -> VPN clients so replies come back through IPsec ?

Thanks !
