Only reverse lookups for localdomain from client, external domains work (i.e. google.com)

AWeidner

Settings:
pfSense 2.8.0 - LAN IP address 192.168.1.254

General Setup -> DNS -> 192.168.1.1 (main DNS server)
General Setup -> DNS Server Override -> Deactivated
General Setup -> DNS Resolution Behavior -> Use remote DNS, ignore local DNS

DNS Forwarder -> Enabled

Problem:
Clients can only do reverse lookups for localdomain. But for external domains both forward and reverse lookups work.

Testing DNS from the pfSense itself (Diagnostics -> DNS lookup) works for localdomain and external domains likewise. It shows the configured DNS server 192.168.1.1 as the source for the replies.

nslookup Example

> server 192.168.1.254
Default server: 192.168.1.254
Address: 192.168.1.254#53
> hostname.localdomain
Server:         192.168.1.254
Address:        192.168.1.254#53

*** Can't find hostname.localdomain: No answer
> 192.168.1.50
50.1.168.192.in-addr.arpa       name = hostname.localdomain.

Authoritative answers can be found from:

> google.com
Server:         192.168.1.254
Address:        192.168.1.254#53

Non-authoritative answer:
Name:   google.com
Address: 142.250.185.174
Name:   google.com
Address: 2a00:1450:4001:811::200e
>

viragomann

@AWeidner said in Only reverse lookups for localdomain from client, external domains work (i.e. google.com):

nslookup Example

> > server 192.168.1.254
> Default server: 192.168.1.254
> Address: 192.168.1.254#53
> > hostname.localdomain
> Server:         192.168.1.254
> Address:        192.168.1.254#53
>
> *** Can't find hostname.localdomain: No answer

I don't think, that there is much pfSense can do to make your DNS server giving a correct response.
pfSense just runs a DNS forwarder, forwarding any DNS request to your server.

Obviously it doesn't know the host name.

johnpoz

@AWeidner if your fowarding - be it a local name server or one out on the internet. Anything that returns rfc1918 would be a rebind.

You would need to turn off rebind protection for that specific .localdomain, or turn it off completely

https://docs.netgate.com/pfsense/en/latest/services/dns/rebinding.html

but if you have a client directly asking your name server 192.168.1.1 and you do not get an answer - then yeah something wrong with that NS.

But you state that diag dns lookup works - which would be a direct query from pfsense to your ns so that wouldn't be rebind.

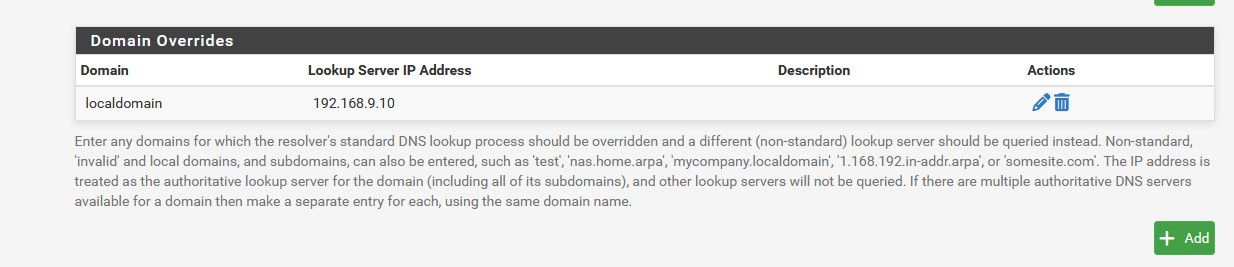

edit: here I setup local dns for .localdomain. And told pfsense to forward to it 192.168.9.10 to resolve localdomain

See it resolves something that is not rfc1918

> nonrfc1918.localdomain
Server:  sg4860.home.arpa
Address:  192.168.9.253

Non-authoritative answer:
Name:    nonrfc1918.localdomain
Address:  1.2.3.4

but if I ask it for something that would return rfc1918 it would be rebind.. But when you setup a manual forward for the domain like I did it adds that to the conf

cat /var/unbound/unbound.con

# DNS Rebinding
# For DNS Rebinding prevention
private-address: 127.0.0.0/8
private-address: 10.0.0.0/8
private-address: ::ffff:a00:0/104
private-address: 172.16.0.0/12
private-address: ::ffff:ac10:0/108
private-address: 169.254.0.0/16
private-address: ::ffff:a9fe:0/112
private-address: 192.168.0.0/16
private-address: ::ffff:c0a8:0/112
private-address: fd00::/8
private-address: fe80::/10
# Set private domains in case authoritative name server returns a Private IP address
private-domain: "localdomain"
domain-insecure: "localdomain"

But if your forwarding everything - it wouldn't so you would have to manually add it to your custom options. Or just manually setup a dns override for your domain and then it would auto add

AWeidner

@johnpoz
Thank you for the extensive summary. I was able to get it to work with the examples provided in the linked section of the documentation.

rebind-domain-ok=/example.com/
rebind-domain-ok=/dnsbl.example/

Using nslookup to directly query the server (192.168.1.1) pfSense forwards to, works. Forward and reverse lookups are resolved.

It just seems counterintuitive to me, that i have to add settings if all i want is to forward all DNS requests coming into pfSense and maybe (as a bonus) cache the results.

johnpoz

@AWeidner its just pfsense trying to proect you against a rebind. When you foward to something that is normal some external public NS - which normally should not be returning rfc1918.

You might want to read some of the history of rebind attacks. And why this good protection to have in place.
