Sophos XG230 Rev2 CPU upgrade
-
Has anyone upgraded the CPU on the XG230 Rev2 units, mine runs pfsense nicely, but looking to get a Xeon E3-1240L-V5 chip into it. However unsure re the support.
I've done an export of the hardware from the command line.
At the top it implies E3-1200 support, but also references H110 chipset.
This is the export from BSD, so looks like a H110, but references E3-1200 chip at the top and E3-1500
hostb0@pci0:0:0:0:class=0x060000 rev=0x07 hdr=0x00 vendor=0x8086 device=0x190f subvendor=0x8086 subdevice=0x2015
vendor = 'Intel Corporation'
device = 'Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor Host Bridge/DRAM Registers'
class = bridge
subclass = HOST-PCI
pcib1@pci0:0:1:0:class=0x060400 rev=0x07 hdr=0x01 vendor=0x8086 device=0x1901 subvendor=0x8086 subdevice=0x2015
vendor = 'Intel Corporation'
device = '6th-10th Gen Core Processor PCIe Controller (x16)'
class = bridge
subclass = PCI-PCI
vgapci0@pci0:0:2:0:class=0x030000 rev=0x06 hdr=0x00 vendor=0x8086 device=0x1902 subvendor=0x8086 subdevice=0x0000
vendor = 'Intel Corporation'
device = 'HD Graphics 510'
class = display
subclass = VGA
xhci0@pci0:0:20:0:class=0x0c0330 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa12f subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family USB 3.0 xHCI Controller'
class = serial bus
subclass = USB
pchtherm0@pci0:0:20:2:class=0x118000 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa131 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family Thermal Subsystem'
class = dasp
none0@pci0:0:22:0:class=0x078000 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa13a subvendor=0x8086 subdevice=0x1999
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family MEI Controller'
class = simple comms
ahci0@pci0:0:23:0:class=0x010601 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa102 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = 'Q170/Q150/B150/H170/H110/Z170/CM236 Chipset SATA Controller [AHCI Mode]'
class = mass storage
subclass = SATA
pcib2@pci0:0:28:0:class=0x060400 rev=0xf1 hdr=0x01 vendor=0x8086 device=0xa114 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family PCI Express Root Port'
class = bridge
subclass = PCI-PCI
pcib3@pci0:0:28:5:class=0x060400 rev=0xf1 hdr=0x01 vendor=0x8086 device=0xa115 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family PCI Express Root Port'
class = bridge
subclass = PCI-PCI
pcib4@pci0:0:28:6:class=0x060400 rev=0xf1 hdr=0x01 vendor=0x8086 device=0xa116 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family PCI Express Root Port'
class = bridge
subclass = PCI-PCI
pcib5@pci0:0:28:7:class=0x060400 rev=0xf1 hdr=0x01 vendor=0x8086 device=0xa117 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family PCI Express Root Port'
class = bridge
subclass = PCI-PCI
pcib6@pci0:0:29:0:class=0x060400 rev=0xf1 hdr=0x01 vendor=0x8086 device=0xa118 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family PCI Express Root Port'
class = bridge
subclass = PCI-PCI
pcib7@pci0:0:29:1:class=0x060400 rev=0xf1 hdr=0x01 vendor=0x8086 device=0xa119 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family PCI Express Root Port'
class = bridge
subclass = PCI-PCI
isab0@pci0:0:31:0:class=0x060100 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa143 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = 'H110 Chipset LPC/eSPI Controller'
class = bridge
subclass = PCI-ISA
none1@pci0:0:31:2:class=0x058000 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa121 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family Power Management Controller'
class = memory
hdac0@pci0:0:31:3:class=0x040380 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa170 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family HD Audio Controller'
class = multimedia
subclass = HDA
ichsmb0@pci0:0:31:4:class=0x0c0500 rev=0x31 hdr=0x00 vendor=0x8086 device=0xa123 subvendor=0x8086 subdevice=0x7270
vendor = 'Intel Corporation'
device = '100 Series/C230 Series Chipset Family SMBus'
class = serial bus
subclass = SMBus
igb0@pci0:2:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1539 subvendor=0x15bb subdevice=0x34e6
vendor = 'Intel Corporation'
device = 'I211 Gigabit Network Connection'
class = network
subclass = ethernet
igb1@pci0:3:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1539 subvendor=0x15bb subdevice=0x34e6
vendor = 'Intel Corporation'
device = 'I211 Gigabit Network Connection'
class = network
subclass = ethernet
igb2@pci0:4:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1539 subvendor=0x15bb subdevice=0x34e6
vendor = 'Intel Corporation'
device = 'I211 Gigabit Network Connection'
class = network
subclass = ethernet
igb3@pci0:5:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1539 subvendor=0x15bb subdevice=0x34e6
vendor = 'Intel Corporation'
device = 'I211 Gigabit Network Connection'
class = network
subclass = ethernet
igb4@pci0:6:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1539 subvendor=0x15bb subdevice=0x0000
vendor = 'Intel Corporation'
device = 'I211 Gigabit Network Connection'
class = network
subclass = ethernet
pcib8@pci0:7:0:0:class=0x060400 rev=0x05 hdr=0x01 vendor=0x12d8 device=0x2404 subvendor=0x0000 subdevice=0x0000
vendor = 'Pericom Semiconductor'
device = 'PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch'
class = bridge
subclass = PCI-PCI
pcib9@pci0:8:1:0:class=0x060400 rev=0x05 hdr=0x01 vendor=0x12d8 device=0x2404 subvendor=0x0000 subdevice=0x0000
vendor = 'Pericom Semiconductor'
device = 'PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch'
class = bridge
subclass = PCI-PCI
pcib10@pci0:8:2:0:class=0x060400 rev=0x05 hdr=0x01 vendor=0x12d8 device=0x2404 subvendor=0x0000 subdevice=0x0000
vendor = 'Pericom Semiconductor'
device = 'PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch'
class = bridge
subclass = PCI-PCI
pcib11@pci0:8:3:0:class=0x060400 rev=0x05 hdr=0x01 vendor=0x12d8 device=0x2404 subvendor=0x0000 subdevice=0x0000
vendor = 'Pericom Semiconductor'
device = 'PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch'
class = bridge
subclass = PCI-PCI
igb5@pci0:9:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1539 subvendor=0x15bb subdevice=0x0000
vendor = 'Intel Corporation'
device = 'I211 Gigabit Network Connection'
class = network
subclass = ethernet
igb6@pci0:10:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1536 subvendor=0x15bb subdevice=0x0000
vendor = 'Intel Corporation'
device = 'I210 Gigabit Fiber Network Connection'
class = network
subclass = ethernet
igb7@pci0:11:0:0:class=0x020000 rev=0x03 hdr=0x00 vendor=0x8086 device=0x1536 subvendor=0x15bb subdevice=0x0000
vendor = 'Intel Corporation'
device = 'I210 Gigabit Fiber Network Connection'
class = network
subclass = ethernet -

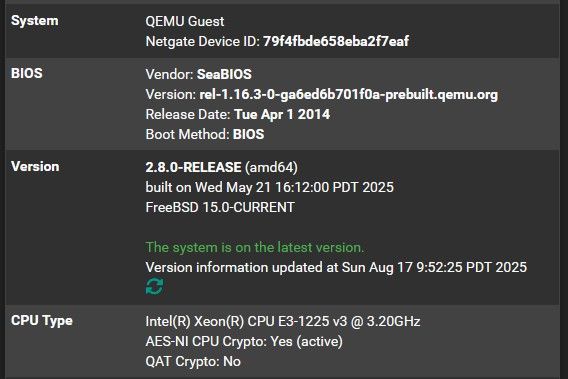

I have a SG210 and I upgraded the cpu to Xeon E3-1225v3, and 16Gb of RAM. Then I install proxmox and allocated 4Gb of RAM to a VM for pfsense, with dedicated network ports and even the serial port to the LCDproc. It is happily running for the last 12 months. I have other stuff running such as Unifi controller, pi-hole and ngnix as LCX and it worked fine. Pfsense is very efficient and it allows the SG/XG to run a lot more stuff.
