    DHCPv6 on LAN offering IPs from different interface

    Scheduled Pinned Locked Moved DHCP and DNS
    4 Posts 2 Posters 98 Views 2 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • A Offline
      altavatar
      last edited by altavatar

      Issues

      1. When using ISC, DHCPv6 is responding to requests on my LAN interface with IPs from the WATER interface's pool
      2. When using Kea instead, DHCPv6 is failing to start with an error: "subnet with the prefix of '2607:f2c0:b1b7:de00::/60' already exists (/usr/local/etc/kea/kea-dhcp6.conf:86:13)"

      Most of the following describes my experience with ISC, because Kea DHCPv6 won't start at all (Kea v4 works fine).

      Hardware: Netgate 3100
      Software: pfsense+ 25.07.1-RELEASE (arm)

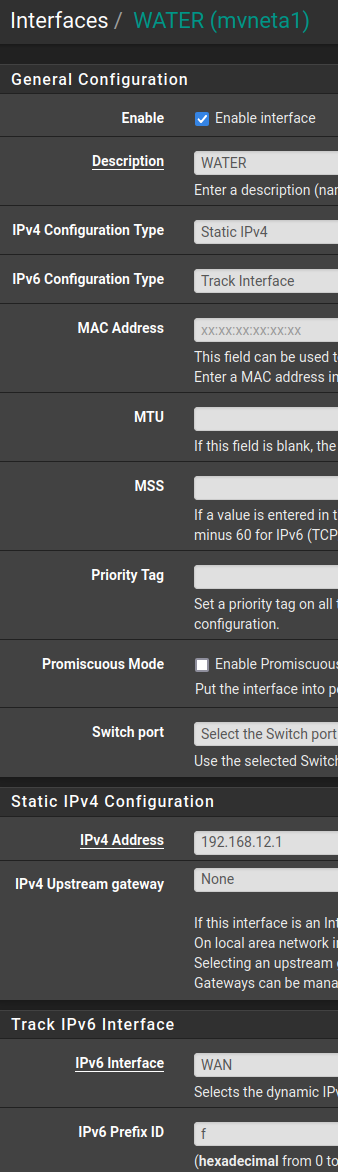

      Configuration

      My ISP delegates an /60 ipv6 network prefix, and I've configured my LAN and WATER networks to support ipv6. I'm running RA in "Assisted Mode" on both interfaces (I've also tried other router modes), and DHCPv6 (I've tried both ISC and Kea).

      (BTW. I had previously created a bridge between LAN and WATER, but I've since removed it. Not sure if that somehow broke some configuration?)

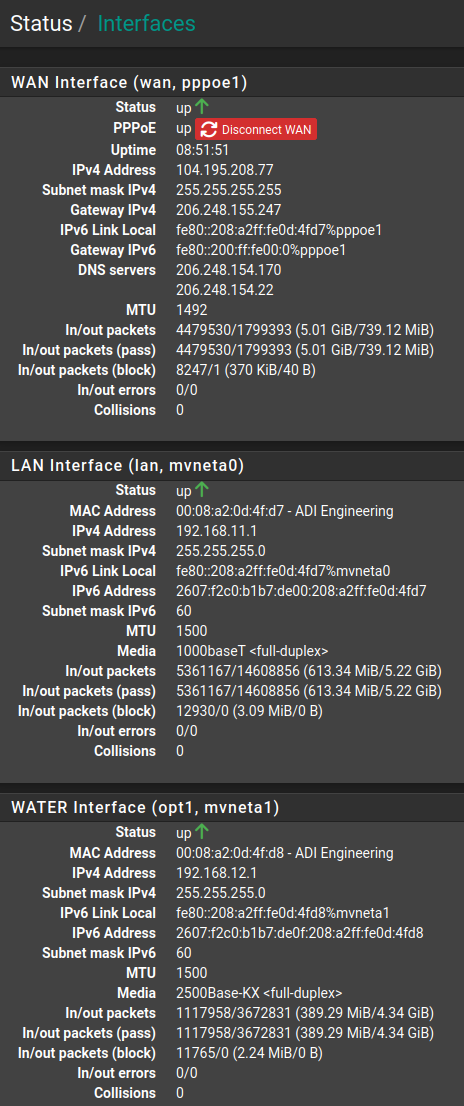

      Interfaces: WAN mvneta2, LAN mvneta0, WATER mvneta1

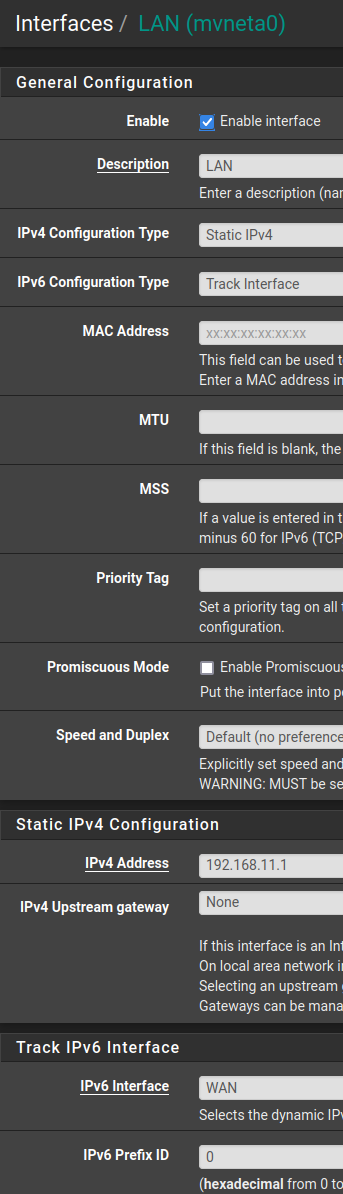

      IPv6 Prefix ID: LAN 0, WATER f
      IPv6 Address: LAN 2607:f2c0:b1b7:de00:208:a2ff:fe0d:4fd7, WATER 2607:f2c0:b1b7:de0f:208:a2ff:fe0d:4fd8

      Clients

      LAN clients

      Linux

      enp9s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.11.5  netmask 255.255.255.0  broadcast 192.168.11.255
        inet6 fd2b:590:27bc:35d4:4b89:e6b4:b5dd:a3c0  prefixlen 64  scopeid 0x0<global>
        inet6 2607:f2c0:b1b7:de0f::4000  prefixlen 128  scopeid 0x0<global>
        inet6 fd2b:590:27bc:35d4:22cb:b37:3c6c:215a  prefixlen 64  scopeid 0x0<global>
        inet6 fe80::20d3:f44f:798d:722a  prefixlen 64  scopeid 0x20<link>

      macOS

      Note that both of these clients are on my LAN but are getting GUAs from the WATER interface's prefix "de0f" and dynamic IP range (from "::3000" to "::4000").

      WATER clients

      Linux

      wlp10s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.12.5  netmask 255.255.255.0  broadcast 192.168.12.255
        inet6 2607:f2c0:b1b7:de0f::36e2  prefixlen 128  scopeid 0x0<global>
        inet6 fe80::51:f9ce:cdca:d229  prefixlen 64  scopeid 0x20<link>

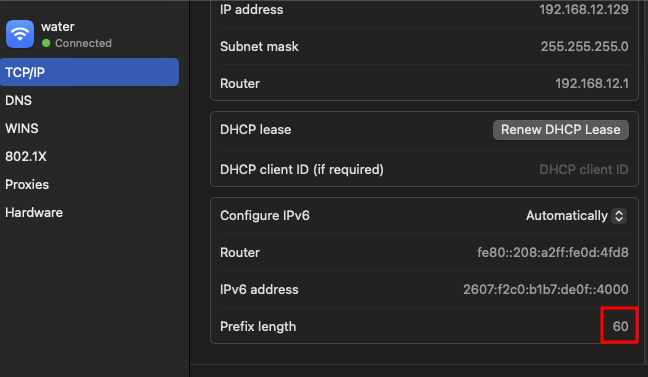

      macOS

      Note that the WATER macOS client's GUA is 2607:f2c0:b1b7:de0f::4000, which is the same as the LAN Linux client's GUA. It's as if both networks are sharing the same pool and yet somehow not conflicting?

      Logs

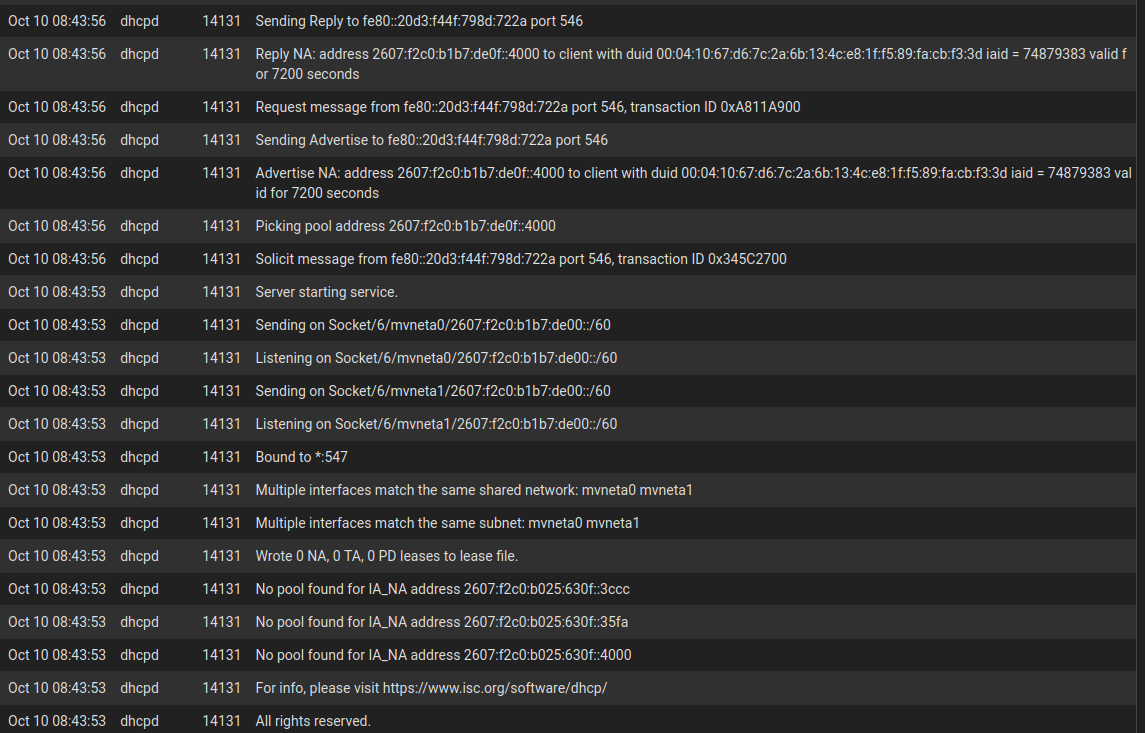

      ISC

      Oct 10 08:43:56 	dhcpd 	14131 	Sending Reply to fe80::20d3:f44f:798d:722a port 546
Oct 10 08:43:56 	dhcpd 	14131 	Reply NA: address 2607:f2c0:b1b7:de0f::4000 to client with duid 00:04:10:67:d6:7c:2a:6b:13:4c:e8:1f:f5:89:fa:cb:f3:3d iaid = 74879383 valid for 7200 seconds
Oct 10 08:43:56 	dhcpd 	14131 	Request message from fe80::20d3:f44f:798d:722a port 546, transaction ID 0xA811A900
Oct 10 08:43:56 	dhcpd 	14131 	Sending Advertise to fe80::20d3:f44f:798d:722a port 546
Oct 10 08:43:56 	dhcpd 	14131 	Advertise NA: address 2607:f2c0:b1b7:de0f::4000 to client with duid 00:04:10:67:d6:7c:2a:6b:13:4c:e8:1f:f5:89:fa:cb:f3:3d iaid = 74879383 valid for 7200 seconds
Oct 10 08:43:56 	dhcpd 	14131 	Picking pool address 2607:f2c0:b1b7:de0f::4000
Oct 10 08:43:56 	dhcpd 	14131 	Solicit message from fe80::20d3:f44f:798d:722a port 546, transaction ID 0x345C2700
Oct 10 08:43:53 	dhcpd 	14131 	Server starting service.
Oct 10 08:43:53 	dhcpd 	14131 	Sending on Socket/6/mvneta0/2607:f2c0:b1b7:de00::/60
Oct 10 08:43:53 	dhcpd 	14131 	Listening on Socket/6/mvneta0/2607:f2c0:b1b7:de00::/60
Oct 10 08:43:53 	dhcpd 	14131 	Sending on Socket/6/mvneta1/2607:f2c0:b1b7:de00::/60
Oct 10 08:43:53 	dhcpd 	14131 	Listening on Socket/6/mvneta1/2607:f2c0:b1b7:de00::/60
Oct 10 08:43:53 	dhcpd 	14131 	Bound to *:547
Oct 10 08:43:53 	dhcpd 	14131 	Multiple interfaces match the same shared network: mvneta0 mvneta1
Oct 10 08:43:53 	dhcpd 	14131 	Multiple interfaces match the same subnet: mvneta0 mvneta1

      Notes

      • re:"Multiple interfaces match the same shared network: mvneta0 mvneta1", those are my LAN and WATER interfaces. I'm not sure why they're described as shared?
      • I expected mvneta0 (LAN) to be listening on de00/64 and mvneta1 (WATER) to be listening on de0f/64, but it's listening on de00/60 for both?
      • The client fe80::20d3:f44f:798d:722a is on my LAN network but it's being sent "Reply NA: address 2607:f2c0:b1b7:de0f::4000" which is from my WATER network.

      Kea

      Kea dhcpv6 fails to start:

      Oct 10 09:43:52 	kea-dhcp4 	14452 	WARN [kea-dhcp4.dhcp4.0x2018f000] DHCP4_MULTI_THREADING_INFO enabled: yes, number of threads: 2, queue size: 64
Oct 10 09:43:52 	kea-dhcp6 	14792 	ERROR [kea-dhcp6.dhcp6.0x20182000] DHCP6_INIT_FAIL failed to initialize Kea server: configuration error using file '/usr/local/etc/kea/kea-dhcp6.conf': subnet with the prefix of '2607:f2c0:b1b7:de00::/60' already exists (/usr/local/etc/kea/kea-dhcp6.conf:86:13)
Oct 10 09:43:52 	kea-dhcp6 	14792 	ERROR [kea-dhcp6.dhcp6.0x20182000] DHCP6_CONFIG_LOAD_FAIL configuration error using file: /usr/local/etc/kea/kea-dhcp6.conf, reason: subnet with the prefix of '2607:f2c0:b1b7:de00::/60' already exists (/usr/local/etc/kea/kea-dhcp6.conf:86:13)
Oct 10 09:43:52 	kea-dhcp6 	14792 	ERROR [kea-dhcp6.dhcp6.0x20182000] DHCP6_PARSER_FAIL failed to create or run parser for configuration element subnet6: subnet with the prefix of '2607:f2c0:b1b7:de00::/60' already exists (/usr/local/etc/kea/kea-dhcp6.conf:86:13)
Oct 10 09:43:52 	kea-dhcp6 	14792 	WARN [kea-dhcp6.dhcp6.0x20182000] DHCP6_RESERVATIONS_LOOKUP_FIRST_ENABLED Multi-threading is enabled and host reservations lookup is always performed first.
Oct 10 09:43:52 	kea-dhcp6 	14792 	WARN [kea-dhcp6.dhcpsrv.0x20182000] DHCPSRV_MT_DISABLED_QUEUE_CONTROL disabling dhcp queue control when multi-threading is enabled.
Oct 10 09:43:52 	kea-dhcp4 	14452 	WARN [kea-dhcp4.dhcp4.0x2018f000] DHCP4_RESERVATIONS_LOOKUP_FIRST_ENABLED Multi-threading is enabled and host reservations lookup is always performed first.
Oct 10 09:43:52 	kea-dhcp4 	14452 	WARN [kea-dhcp4.dhcpsrv.0x2018f000] DHCPSRV_MT_DISABLED_QUEUE_CONTROL disabling dhcp queue control when multi-threading is enabled.

      Notes

      • See the error "ERROR [kea-dhcp6.dhcp6.0x20182000] DHCP6_CONFIG_LOAD_FAIL configuration error using file: /usr/local/etc/kea/kea-dhcp6.conf, reason: subnet with the prefix of '2607:f2c0:b1b7:de00::/60' already exists (/usr/local/etc/kea/kea-dhcp6.conf:86:13)"
      cat /usr/local/etc/kea/kea-dhcp6.conf
{
    "Dhcp6": {
        "interfaces-config": {
            "interfaces": [
                "mvneta0",
                "mvneta1"
            ]
        },
        "lease-database": {
            "type": "memfile",
            "persist": true,
            "name": "/var/lib/kea/dhcp6.leases"
        },
        "loggers": [
            {
                "name": "kea-dhcp6",
                "output_options": [
                    {
                        "output": "syslog"
                    }
                ],
                "severity": "WARN"
            }
        ],
        "valid-lifetime": 7200,
        "max-valid-lifetime": 86400,
        "host-reservation-identifiers": [
            "hw-address",
            "duid"
        ],
        "hooks-libraries": [
            {
                "library": "/usr/local/lib/kea/hooks/libdhcp_lease_cmds.so"
            },
            {
                "library": "/usr/local/lib/kea/hooks/libdhcp_lease_options.so"
            },
            {
                "library": "/usr/local/lib/kea/hooks/libdhcp_run_script.so",
                "parameters": {
                    "name": "/usr/local/bin/kea_run6",
                    "sync": false
                }
            }
        ],
        "control-socket": {
            "socket-type": "unix",
            "socket-name": "/var/run/kea6-ctrl-socket"
        },
        "sanity-checks": {
            "lease-checks": "fix-del"
        },
        "client-classes": [
            {
                "name": "pool_lan_0",
                "test": "member('ALL')"
            },
            {
                "name": "pool_opt1_0",
                "test": "member('ALL')"
            }
        ],
        "subnet6": [
            {
                "id": 1,
                "interface": "mvneta0",
                "subnet": "2607:f2c0:b1b7:de00::/60",
                "option-data": [
                    {
                        "name": "domain-search",
                        "data": "host.example.com"
                    },
                    {
                        "name": "dns-servers",
                        "data": "2607:f2c0:b1b7:de00:208:a2ff:fe0d:4fd7"
                    }
                ],
                "pools": [
                    {
                        "pool": "2607:f2c0:b1b7:de00::1000 - 2607:f2c0:b1b7:de00::2000",
                        "client-class": "pool_lan_0"
                    }
                ],
                "reservations-in-subnet": true
            },
            {
                "id": 2,
                "interface": "mvneta1",
                "subnet": "2607:f2c0:b1b7:de00::/60",
                "option-data": [
                    {
                        "name": "domain-search",
                        "data": "host.example.com"
                    },
                    {
                        "name": "dns-servers",
                        "data": "2607:f2c0:b1b7:de0f:208:a2ff:fe0d:4fd8"
                    }
                ],
                "pools": [
                    {
                        "pool": "2607:f2c0:b1b7:de0f::3000 - 2607:f2c0:b1b7:de0f::4000",
                        "client-class": "pool_opt1_0"
                    }
                ],
                "reservations-in-subnet": true
            }
        ]
    }
}

      Notes

      • Subnets with id 1 and 2 both specify the same range "subnet": "2607:f2c0:b1b7:de00::/60",. I would expect mvneta.0 to be de00/64 and mvneta.1 to be de0f/64
      • The "dns-servers" and "pools" are properly scoped to each subnet's respective pool, though de00 and de0f for LAN and WATER interfaces respectively

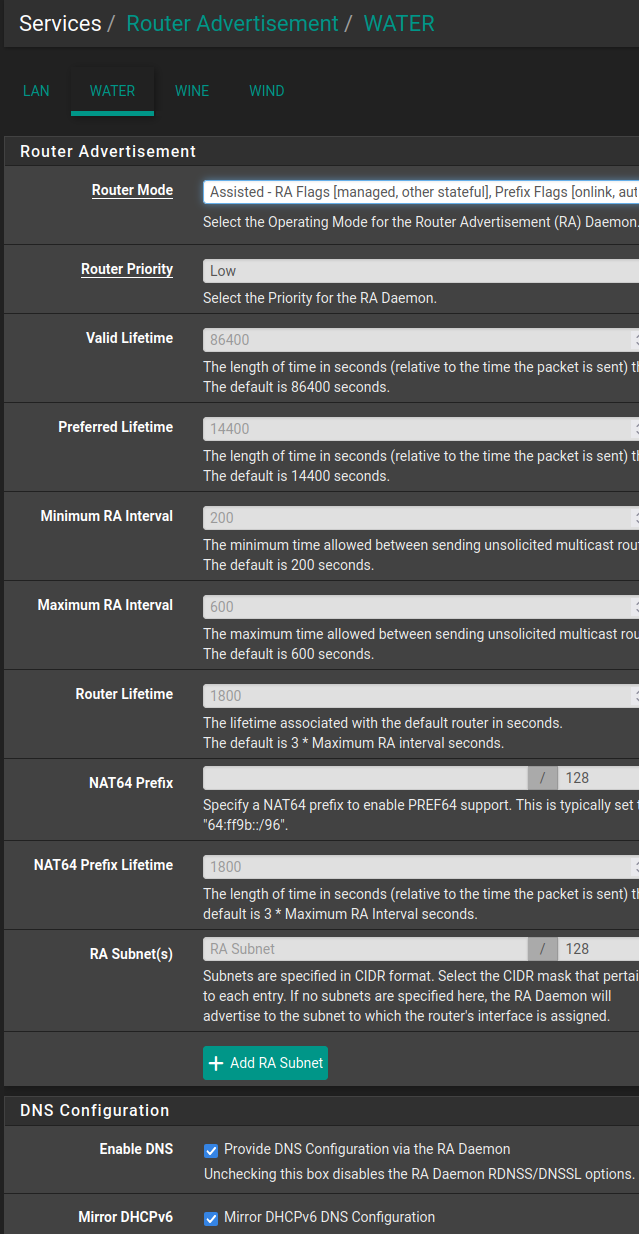

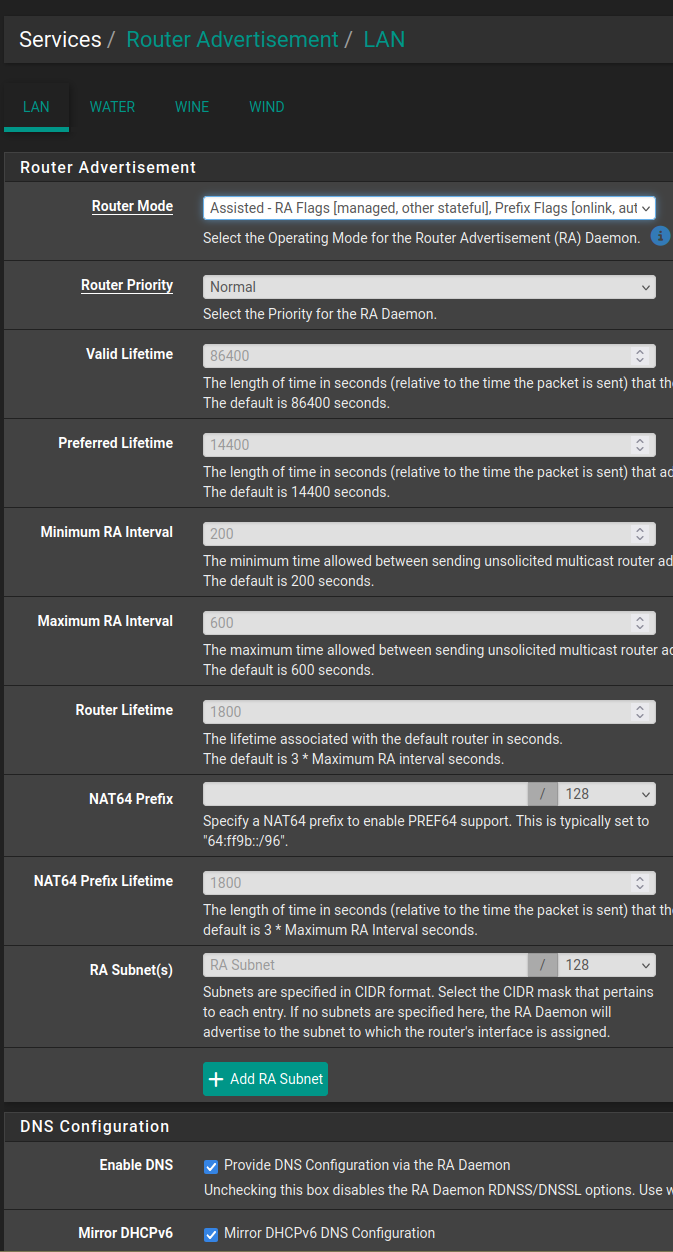

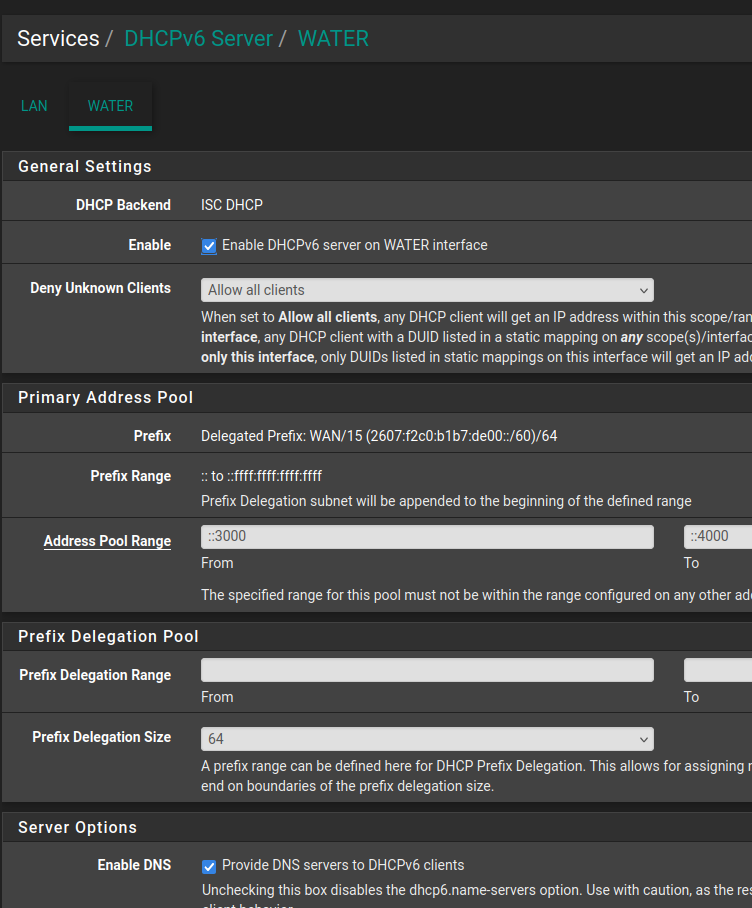

      Screenshots of pfSense web admin

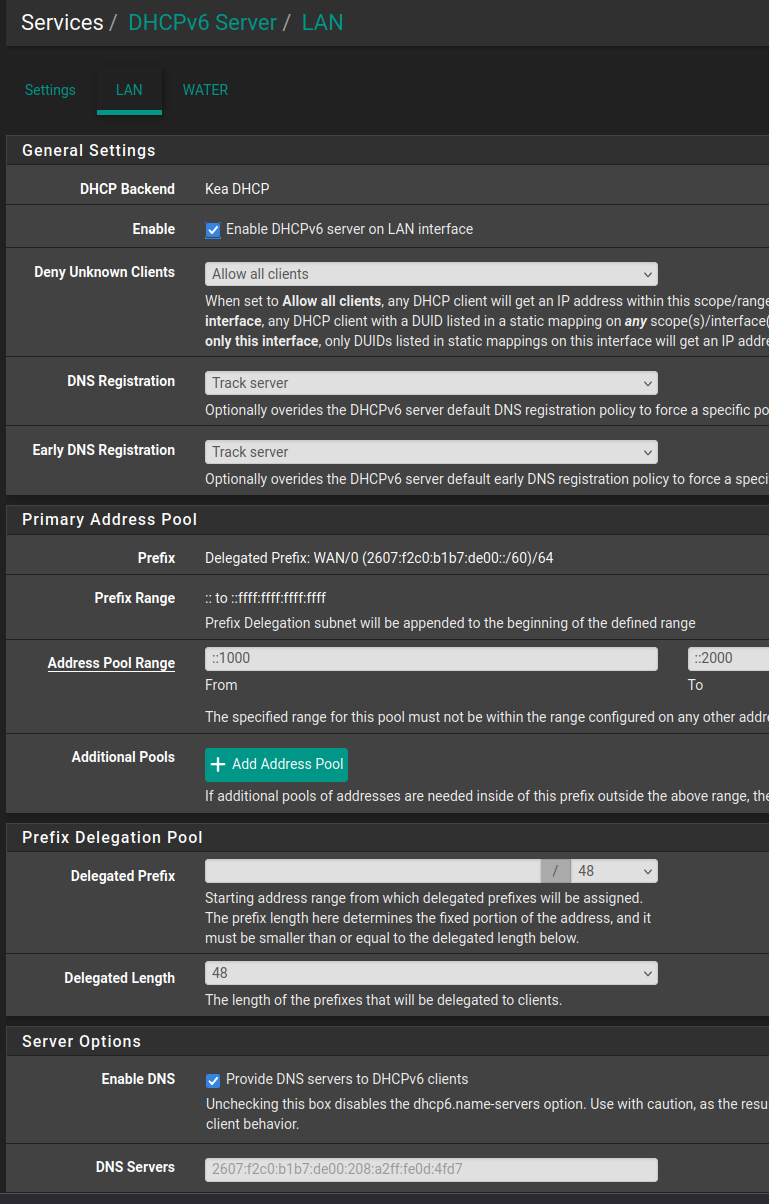

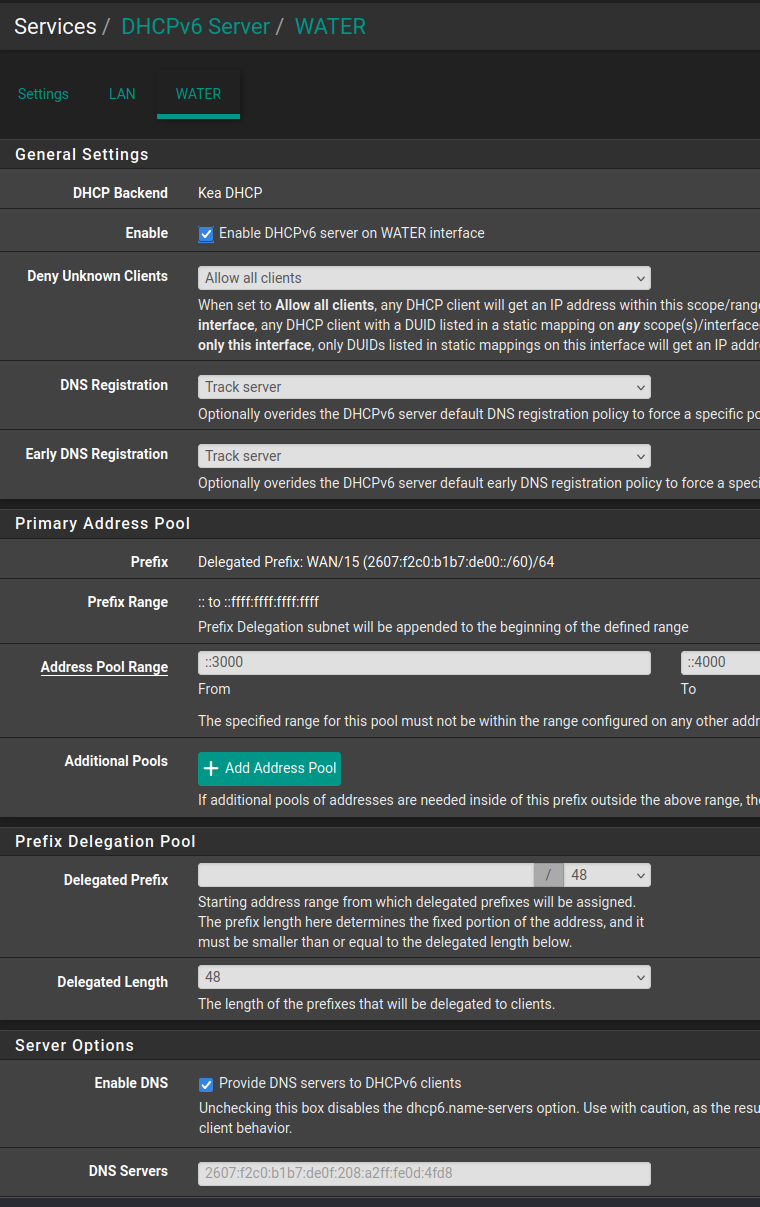

      kea-lan.png kea-water.png

      A 1 Reply Last reply Reply Quote 0
      • A Offline
        altavatar @altavatar
        last edited by altavatar

        [Update] I requested a /56 from my ISP (previously, I had requested a /60), and now everything works as expected. LAN gets 2607:f2c0:b031:a00::/64 and WATER gets 2607:f2c0:b031:a01::/64.

        ISC and Kea both work as expected - no more overlapping subnets.

        Was the previous behavior a bug, or was I missing something?

        $ cat /usr/local/etc/kea/kea-dhcp6.conf
{
    "Dhcp6": {
        "interfaces-config": {
            "interfaces": [
                "mvneta0",
                "mvneta1"
            ]
        },
        "lease-database": {
            "type": "memfile",
            "persist": true,
            "name": "/var/lib/kea/dhcp6.leases"
        },
        "loggers": [
            {
                "name": "kea-dhcp6",
                "output_options": [
                    {
                        "output": "syslog"
                    }
                ],
                "severity": "WARN"
            }
        ],
        "valid-lifetime": 7200,
        "max-valid-lifetime": 86400,
        "host-reservation-identifiers": [
            "hw-address",
            "duid"
        ],
        "hooks-libraries": [
            {
                "library": "/usr/local/lib/kea/hooks/libdhcp_lease_cmds.so"
            },
            {
                "library": "/usr/local/lib/kea/hooks/libdhcp_lease_options.so"
            },
            {
                "library": "/usr/local/lib/kea/hooks/libdhcp_run_script.so",
                "parameters": {
                    "name": "/usr/local/bin/kea_run6",
                    "sync": false
                }
            }
        ],
        "control-socket": {
            "socket-type": "unix",
            "socket-name": "/var/run/kea6-ctrl-socket"
        },
        "sanity-checks": {
            "lease-checks": "fix-del"
        },
        "client-classes": [
            {
                "name": "pool_lan_0",
                "test": "member('ALL')"
            },
            {
                "name": "pool_opt1_0",
                "test": "member('ALL')"
            }
        ],
        "subnet6": [
            {
                "id": 1,
                "interface": "mvneta0",
                "subnet": "2607:f2c0:b031:a00::/64",
                "option-data": [
                    {
                        "name": "domain-search",
                        "data": "host.example.com"
                    },
                    {
                        "name": "dns-servers",
                        "data": "2607:f2c0:b031:a00:208:a2ff:fe0d:4fd7"
                    }
                ],
                "pools": [
                    {
                        "pool": "2607:f2c0:b031:a00::1000 - 2607:f2c0:b031:a00::2000",
                        "client-class": "pool_lan_0"
                    }
                ],
                "reservations-in-subnet": true
            },
            {
                "id": 2,
                "interface": "mvneta1",
                "subnet": "2607:f2c0:b031:a01::/64",
                "option-data": [
                    {
                        "name": "domain-search",
                        "data": "host.example.com"
                    },
                    {
                        "name": "dns-servers",
                        "data": "2607:f2c0:b031:a01:208:a2ff:fe0d:4fd8"
                    }
                ],
                "pools": [
                    {
                        "pool": "2607:f2c0:b031:a01::3000 - 2607:f2c0:b031:a01::4000",
                        "client-class": "pool_opt1_0"
                    }
                ],
                "reservations-in-subnet": true
            }
        ]
    }
}

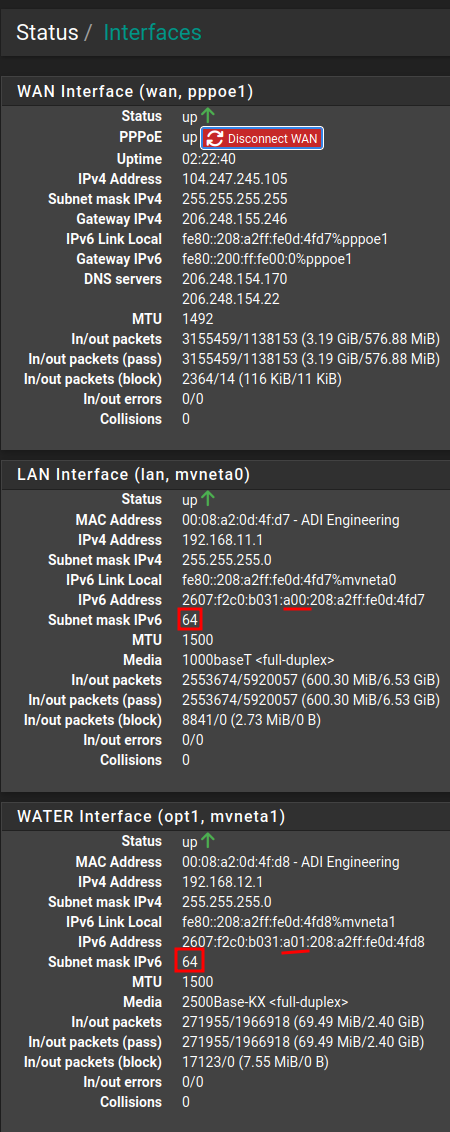

        Screenshots



        (I changed the IPv6 Prefix ID for WATER from "f" to "1", but it also worked with "f". I just mention this to explain this change from the previous logs/screenshots)

        GertjanG 1 Reply Last reply Reply Quote 0
        • GertjanG Offline
          Gertjan @altavatar
          last edited by

          @altavatar

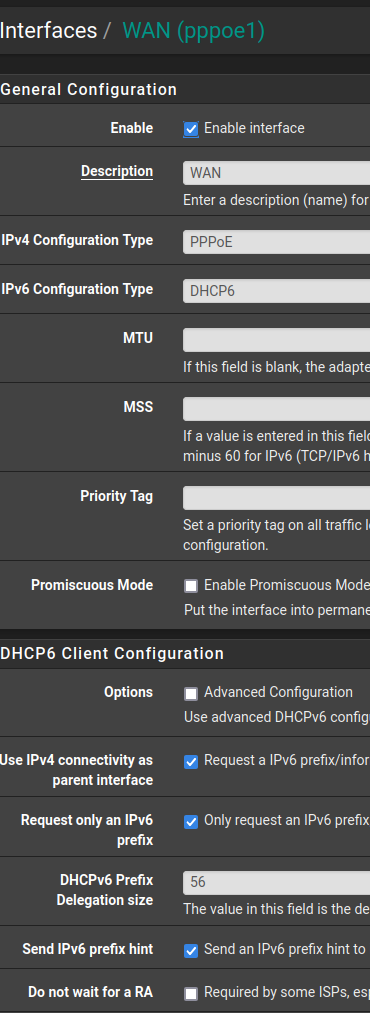

          You WAN interface also merits an 'GUA' IPv6 ^^
          Uncheck


          ?

          No "help me" PM's please. Use the forum, the community will thank you.
          Edit : and where are the logs ??

          A 1 Reply Last reply Reply Quote 0
          • A Offline
            altavatar @Gertjan
            last edited by

            @Gertjan Yep, good call. Done!

            I do think the behavior I saw in the original post might be a bug, though.

            1 Reply Last reply Reply Quote 0
