    Limit any user in Lan to 128kbps down and 128kbps, pls. check my settings

    Scheduled Pinned Locked Moved Traffic Shaping
    3 Posts 2 Posters 1.9k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • M
      mccextreme
      last edited by

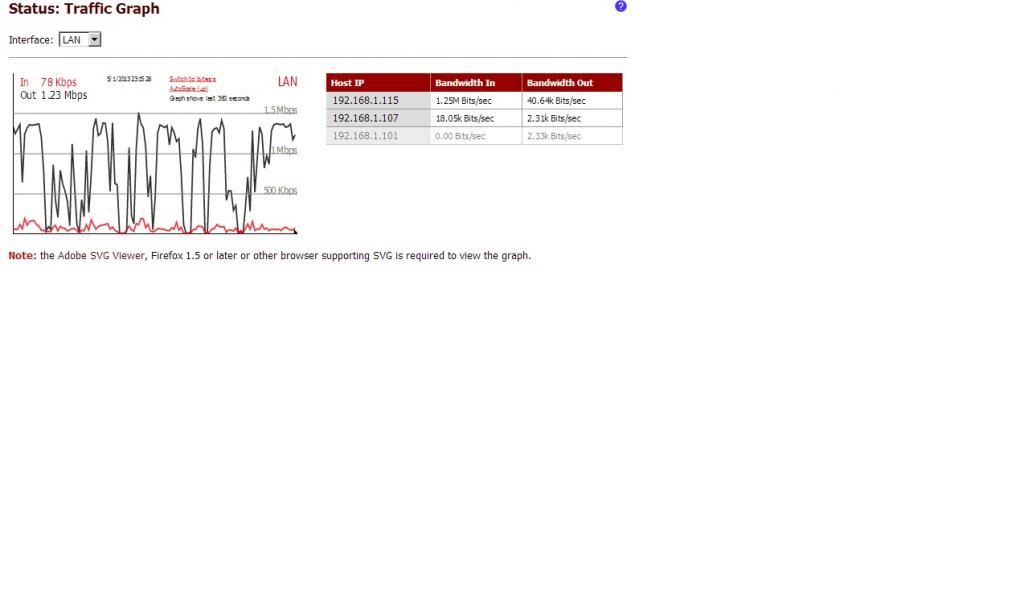

      hi, i have limited the downloads and uploads of my lan users to 128kbps downloads and 128kbps uploads but when i checked the traffic graph there are still users that exceeds the limiter. here's my traffic graph.

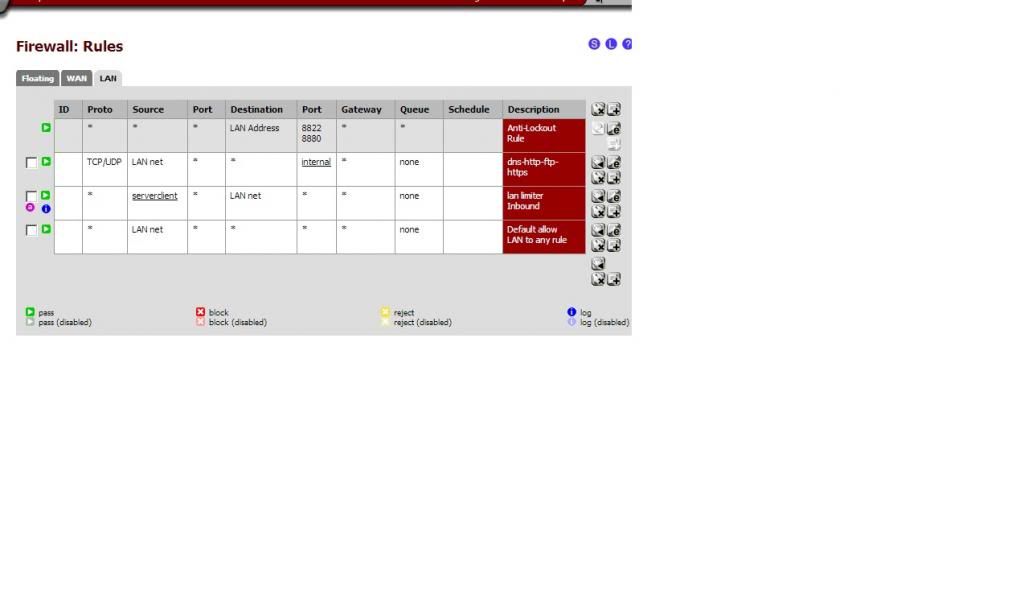

      here's my firewall rules and alias

      [imghttp://i166.photobucket.com/albums/u113/mccextreme/new_floating_rules.jpg~original]http://

      in my floating rules i used 2 limiters webin (Upload) = 400kbps (mask=none) webout (Download) = 1500mbps (mask=none)

      in my lan rule i used also 2 limiters for lan_in_inbound = 128kbps (mask=source) and lan_out_inbound = 128kbps (mask=destination)

      [imghttp://i166.photobucket.com/albums/u113/mccextreme/new_wan_rules.jpg~original]

      in my wan rule i used also 2 limiters for lan_in_outbound = 128kbps (mask=source) and lan_out_outbound = 128kbps (mask=destination)

      hope you can help me on this ,,, TIA !

      1 Reply Last reply Reply Quote 0
      • M
        markuhde
        last edited by

        Sounds overly complex. You just need two limiters. One for LAN inbound with a source mask and one for LAN outbound with a destination mask. Make sure they have schedules or they won't work on 2.1!

        1 Reply Last reply Reply Quote 0
        • M
          mccextreme
          last edited by

          @markluhde
          thanks for the reply ,,, btw can you give an example on how to use it, it is my first time to use limiters with schedule. thanks again.  ;)

          1 Reply Last reply Reply Quote 0
