Multiwan and squid no work properly

aykiri1

version is 2.1 64bit

i have 2 wan and 1 lan

wan1:192.168.1.2 (wangw 192.168.1.1)
wan2:192.168.2.2 (opt1gw 192.168.2.1)

there are 50 pc on network. and first 25 pc going from wan1 second 25 pc going from wan2
without squid its working properly but when i activate squid. all 50 pc's going from default(wan1)
what i must do ?
regards.

hyrol

use pfsense 2.0.3, pfsense 2.1 doesn't work squid engine.

http://forum.pfsense.org/index.php/topic,60977.0.html

aykiri1

@hyrol:

use pfsense 2.0.3, pfsense 2.1 doesn't work squid engine.

http://forum.pfsense.org/index.php/topic,60977.0.html

will try test thx

basitkhan

HI…
I am also facing the same issue i have 3 wan connections and 1 Lan with multiple networks (Distributed network) 10.2.x.x/16 and 172.16.x.x/16 on lan side.
Without squid proxy everything working fine and silk smooth
I have installed

2.1-RELEASE (amd64)
built on Wed Sep 11 18:17:48 EDT 2013

Squid Proxy 3.3.8 pkg 2.2 (Lower version does not support Share Point website so I must have to install this)
Some of my clients use proxy through browser configuration, and some are transparent.
(Required some modules to be copy in /usr/local/lib directory of pfsense http://e-sac.siteseguro.ws/pfsense/8/amd64/All/ldd/ got from here)

When i select LAN+loopback squid does not work at all and stange error show on browser like INVALID ADDRESS

Squid always go though the default wan not the load balancing
I have tried all the tutorials with static nat, floating rule, etc but all in vain.

Please guide me to solve this issue.

Thanks

aykiri1

hyrol answered. use 2.0.2 or 2.0.3
squid engine not work on 2.1

basitkhan

hi..

i did it as in link but not working at all

aykiri1

why selecting loopback ?
only select LAN.

basitkhan

I tried both wiht loopback and without loop back but still not working :(

hyrol

@Basit:

I tried both wiht loopback and without loop back but still not working :(

You still using pfSense 2.1, it does not work because it floating rule does not work.

aykiri1

i fixed it.

create an acl with src and add ip list any text file (every ip per line) then set acl to wan/2 or wan/1 which you want
add this acl to first line. that other acl's work all default gateway.
regards

basitkhan

@aykiri1:

i fixed it.

create an acl with src and add ip list any text file (every ip per line) then set acl to wan/2 or wan/1 which you want
add this acl to first line. that other acl's work all default gateway.
regards

i used pfsense 2.0.3 and share your config or screen shots for better understanding, i m still struck in it :(
waiting…

aykiri1

my version 2.1 64 bit
goto proxy server screen
and see custom options.

default is :

tcp_outgoing_address 127.0.0.1;;redirect_program /usr/pbi/squidguard-amd64/bin/squidGuard -c /usr/pbi/squidguard-amd64/etc/squidGuard/squidGuard.conf;redirector_bypass off;url_rewrite_children 5

then add this string as your config

acl nameofacl src "/usr/local/etc/squid/ip.txt";tcp_outgoing_address X.X.X.X nameofacl;

nameofacl is what you will write of name its not important you can use any
X.X.X.X is your wan interface (not gateway)

"/usr/local/etc/squid/ip.txt" is ip list which you want to ip's going to which interface.
open any txt file. then write per line 1 ip

example:
192.168.1.40
192.168.1.41
192.168.1.42
etc…

no use /24 or /16 /8 for subnet

no need any floating rule .. its working perfect with squid 2.1 and squidguard
i think moderators change thread name to (fixed)

hyrol

@aykiri1:

then add this string as your config

acl nameofacl src "/usr/local/etc/squid/ip.txt";tcp_outgoing_address X.X.X.X nameofacl;

nameofacl is what you will write of name its not important you can use any
X.X.X.X is your wan interface (not gateway)

what happen when WAN PPPoE dynamic "tcp_outgoing_address X.X.X.X nameofacl"

for me it's not roundrobin/loadbalacing

javerleo

@aykiri1:

my version 2.1 64 bit
goto proxy server screen
and see custom options.

default is :

tcp_outgoing_address 127.0.0.1;;redirect_program /usr/pbi/squidguard-amd64/bin/squidGuard -c /usr/pbi/squidguard-amd64/etc/squidGuard/squidGuard.conf;redirector_bypass off;url_rewrite_children 5

then add this string as your config

acl nameofacl src "/usr/local/etc/squid/ip.txt";tcp_outgoing_address X.X.X.X nameofacl;

nameofacl is what you will write of name its not important you can use any
X.X.X.X is your wan interface (not gateway)

"/usr/local/etc/squid/ip.txt" is ip list which you want to ip's going to which interface.
open any txt file. then write per line 1 ip

example:
192.168.1.40
192.168.1.41
192.168.1.42
etc…

no use /24 or /16 /8 for subnet

no need any floating rule .. its working perfect with squid 2.1 and squidguard
i think moderators change thread name to (fixed)

A good contribution. But even if it works, it is not the same functionality we had before pfSense 2.1: Squid Outgoing connections balanced automatically between WAN interfaces.

This is an important topic. Maybe the hero members can contribute with a final post: Can we have Squid working with multi WAN on 2.1? What are the required steps?

:)

Thanks.

basitkhan

Still Waiting to work squid proxy with 2.1 :(
the per ip list is fine but what to do if one wan connection goes down? it will still keep sending the request to failed wan :(
this is major bug! kindly update it as soon as possible

Thanks for all

afrugone

Any news about fixing PfSense 2.1 to work with Multiwan+Squid, I'll need it and don't like to downgrade to 2.03.

Thanks for your comments

Kababayan

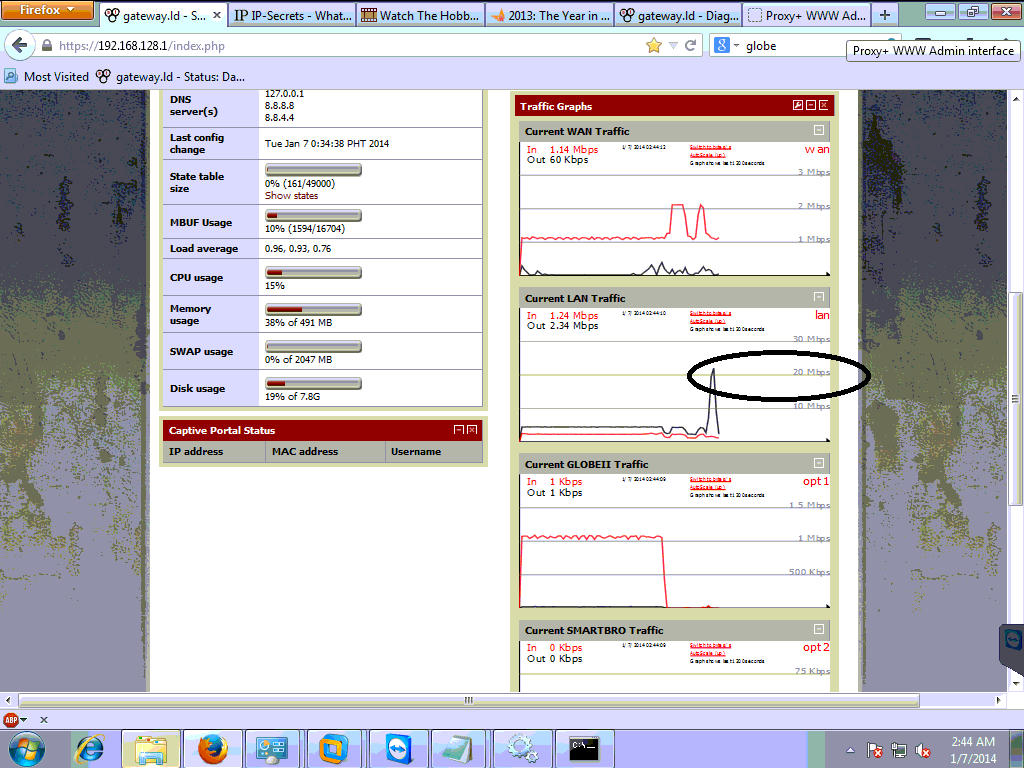

Have 3 wans two wans uses load balance for proxy. third wan is for gaming and other traffic. Using pfsense 2.1 upgraded from 2.0.3. Using Lusca Proxy.

javerleo

So far I was forced to downgrade to 2.0.3 to have squid working with multi-wan but I don't like the idea of losing the new 2.1 functionality.

Hero members: come and save us !!! (as usually they do)

:)

hyrol

I was get a solution, please follow the forum link below.

https://forum.pfsense.org/index.php/topic,66822.0.html
or
https://forum.pfsense.org/index.php/topic,60977.0.html
