Checkpoint T-120U (4200) LCD Screen
-
Good Evening,
I have several of these devices and hate to simply discard them as they are quite good appliances and will function well for pfsense use. That being said, I just loaded pfsense on one of them and it appears to run however, the LCD screen does not reflect any pfsense information.
I was wondering if anyone out there has been able to make it work. I found a few posts albeit a bit dated.
Any information, screenshots, suggestions, commentary, or otherwise are welcome.
Thank you,
Marvin
-
Short datasheet here: https://www.checkpoint.com/download/downloads/products/datasheets/4200-appliance-datasheet.pdf
"Graphic LCD"
Looks interesting…
PS: You might have to open the case and take pictures for more details...
-
Hi here are pic of this LCD - any idea how to setup this?!! !
-
It's also a 4200?
If so it's the EZIO-G500 for which I don't believe there is an lddproc driver. Yet.
It's possible to just write data to it just to ensure it works. You can pipe the system log to it for example.
Steve
-
Did anyone manage to get the LCD screen working on Checkpoint hardware?
I have a Checkpoint t-120 and the LCD screen isn't working.Really appreciate any help with this
-
Not in the last 3 days!
Still needs an lcdproc driver. It's probably more complex that other displays since it can do full graphics not just characters.
However it also appears to have a much simpler mode since you can just send text at it and it will display something.Steve
-
Anyone got the screen to work on this yet?
-
Not yet as far as i know. The issue here is that unlike the EZIO-100/300 there are no example drivers or even any specification to use to write anything. At least not publically, that I have found. If you can find anything let us know.
You can send text to it directly and it will display it but there's no formatting etc.
Steve
-
One way forward is to somehow disassemble the device and take detailed high resolution pictures of all the boards in the hope of discovering the controller chip, and go from there. Chances are the controller chip is documented...
-
any update on this? I got a Checkpoint 13500
-
Unfortunately not AFAIK. There's very little info available with which to make a driver. It requires more reverse engineering.
If you have any info add it here.Steve
-
I can add a few detailed pictures.
https://ibb.co/1GHmCvb
https://ibb.co/s2GGG27
https://ibb.co/dtFs8NRhttps://www.ebay.com/c/1074691387 --- this isn't the exact screen but did pop up in google
-
Hmm, OK that looks like a completely different screen. How many connections to the board does the LCM cable have? That looks like it might be USB connected, does pfSense see it as a USB device?
Does that screen board sit on top of another board with the buttons on it?
It's probably better to start a new thread on this as it's definitely not the EZIO-G500.
Steve
-
Hello,
I've a such module at my labs, take from 4400 series.
According to the EZIO-500 few pictures I've seen, it's exactly the same model (event on the metal frame design).I've play around it with an Ardiuno sending EZIO-100 and 300 command without success, I've get some success reading the "Received bytes" when I press keys, but only on high speed (over 115200 bps).
It's seems to not accept any EZIO standard commands, or at least I didn't find the right RS232 config.
Let me know if you need more information.
I've dissembled and shoot both cards for the documentation:View of the module in place:

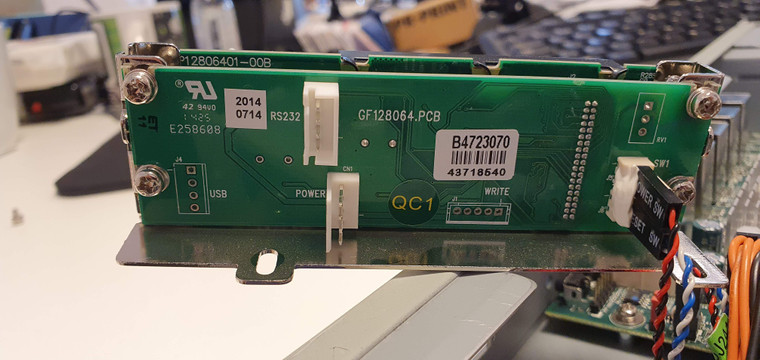

View of the rear of the modules:
The "LCD" board, nothing interesting... unless you love "blobs" and high density connectors:
The "controller/interface" card's back view:
View on the Serial Interface:
Detail of the controller (I guess), I've not found anything on the net so far:
-
See: https://forum.netgate.com/topic/155804/operate-checkpoint-4800-lcd-screen-with-pfsense-ezio-g500
