Issue with setting up interfaces on virtualized instance of Pfsense

Scheduled Pinned Locked Moved Problems Installing or Upgrading pfSense Software
9 Posts 3 Posters 955 Views
Loading More Posts
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • D
    dum258
    last edited by Nov 5, 2018, 5:55 PM

    Hello All,
    I recently took on the task of replacing my home router with a virtualized instance of Pfsense, however, I'm having trouble getting it installed. My issue occurs when attempting to setup my WAN and LAN interfaces. During installation, my WAN receives a static (public) IP, but my LAN does not run DHCP or assign itself an IP.

    I've tried:

    • reinstalling the VM
    • removing, reordering, and re-adding the interfaces
    • redoing the port groups

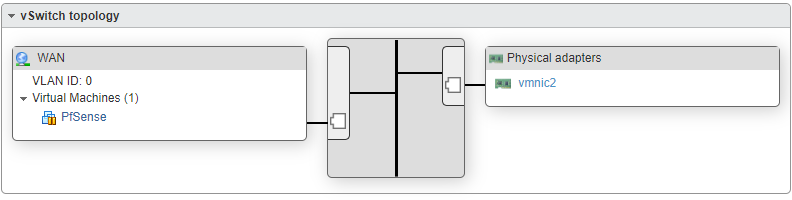

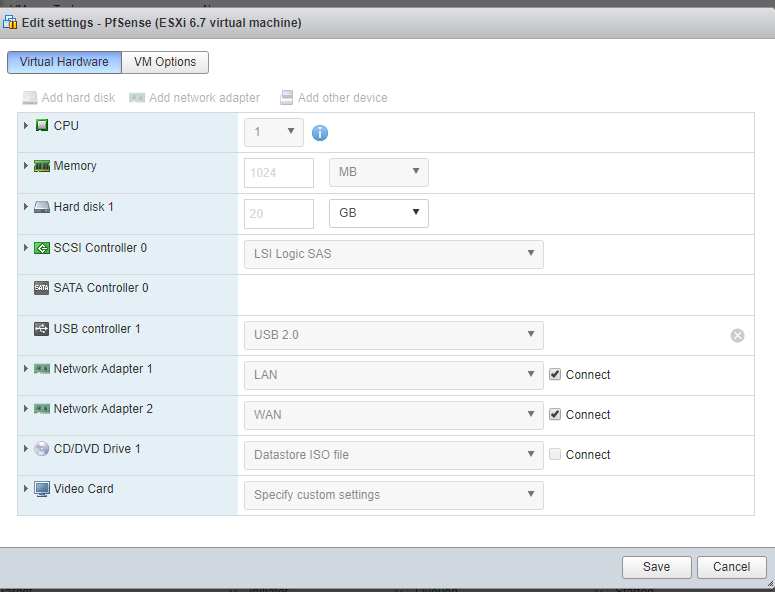

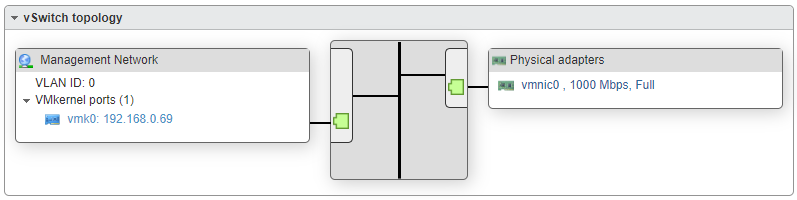

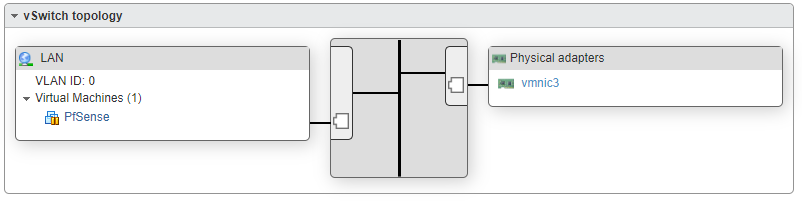

    Here's my network:

    Note: Assume the NIC is actively running

    Note: Assume the NIC is actively running



    Any help would be greatly appreciated.

    G 1 Reply Last reply Nov 5, 2018, 8:36 PM Reply Quote 0
    • G
      gjaltemba @dum258
      last edited by Nov 5, 2018, 8:36 PM

      @dum258
      Lan interface ip by dhcp is a uncommon configuration. Try assigning a unused ip on your subnet or make sure the dhcp server is running.

      D 1 Reply Last reply Nov 6, 2018, 5:57 AM Reply Quote 0
      • J
        johnpoz LAYER 8 Global Moderator
        last edited by Nov 5, 2018, 8:44 PM

        In what scenario would a "lan" interface of your router be dhcp? Set your lan interface for an IP that is on the network you lan is on or will be.

        An intelligent man is sometimes forced to be drunk to spend time with his fools
        If you get confused: Listen to the Music Play
        Please don't Chat/PM me for help, unless mod related
        SG-4860 24.11 | Lab VMs 2.8, 24.11

        1 Reply Last reply Reply Quote 0
        • D
          dum258 @gjaltemba
          last edited by Nov 6, 2018, 5:57 AM

          @gjaltemba said in Issue with setting up interfaces on virtualized instance of Pfsense:

          @dum258
          Lan interface ip by dhcp is a uncommon configuration. Try assigning a unused ip on your subnet or make sure the dhcp server is running.

          @johnpoz said in Issue with setting up interfaces on virtualized instance of Pfsense:

          In what scenario would a "lan" interface of your router be dhcp? Set your lan interface for an IP that is on the network you lan is on or will be.

          My apologies. I did not convey my issue well enough. My current issue is that I am unable to assign a static IP to my LAN interface (I receive a type 1 PHP error on line 417 whenever I try to do so). My goal is to have DHCP hand out leases via the LAN interface. Currently, any devices connected to the LAN int do not receive IPs which makes me think that DHCP is not working.

          Any thoughts?

          1 Reply Last reply Reply Quote 0
          • J
            johnpoz LAYER 8 Global Moderator
            last edited by Nov 6, 2018, 9:59 AM

            What is the exact error your getting.. Out of the box it will by default have 192.168.1.1 on the lan..

            An intelligent man is sometimes forced to be drunk to spend time with his fools
            If you get confused: Listen to the Music Play
            Please don't Chat/PM me for help, unless mod related
            SG-4860 24.11 | Lab VMs 2.8, 24.11

            D 1 Reply Last reply Nov 18, 2018, 6:37 PM Reply Quote 0
            • D
              dum258 @johnpoz
              last edited by Nov 18, 2018, 6:37 PM

              @johnpoz said in Issue with setting up interfaces on virtualized instance of Pfsense:

              What is the exact error your getting.. Out of the box it will by default have 192.168.1.1 on the lan..

              Sorry for the delay, had a few projects I had to finish. Here's a video outlining my steps & the resulting error:

              https://www.youtube.com/watch?v=3J0VFJQgs2U&feature=youtu.be

              1 Reply Last reply Reply Quote 0
              • J
                johnpoz LAYER 8 Global Moderator
                last edited by Nov 18, 2018, 8:46 PM

                Post up a gawd damn picture or text of the error - who has time to go watch some nonsense video?? Really you had 12 days.. And now you want to waste more of my time watching a video...

                An intelligent man is sometimes forced to be drunk to spend time with his fools
                If you get confused: Listen to the Music Play
                Please don't Chat/PM me for help, unless mod related
                SG-4860 24.11 | Lab VMs 2.8, 24.11

                D 1 Reply Last reply Nov 18, 2018, 8:52 PM Reply Quote 0
                • D
                  dum258 @johnpoz
                  last edited by Nov 18, 2018, 8:52 PM

                  @johnpoz said in Issue with setting up interfaces on virtualized instance of Pfsense:

                  Post up a gawd damn picture or text of the error - who has time to go watch some nonsense video?? Really you had 12 days.. And now you want to waste more of my time watching a video...

                  Apologies.


                  1 Reply Last reply Reply Quote 0
                  • D
                    dum258
                    last edited by Nov 26, 2018, 3:47 PM

                    The issue has been resolved. The issue was a result of a bug (#9144). Just in case someone else is running into the same issue, the solution is:

                    Assign a static IP to your PC, then enter the web interface at the IP address set in the previous step, and enable DHCP from there to prevent crashing.

                    Link to bug report:

                    https://redmine.pfsense.org/issues/9144

                    1 Reply Last reply Reply Quote 0
