IPSec mobile VPN using IKEv2 with EAP-MSCHAPv2



  • Hello,

    I have new appliance running v2.4.4-RELEASE-p2, clean install and a basic setup with WAN/LAN interfaces.

    I am trying to setup a VPN for mobile clients and running into an issue with authentication.

    I have followed the step by step instructions in both:

    But always get a "User authentication failed" message on all three native clients; iOS 12.1.4, macOS 10.14.3, and Windows 10. CA certificate is installed on all devices per the instructions.

    Below is the IPSec log (WAN IP and corresponding DNS name are masked, but both are properly setup and active):

    Feb 19 04:38:42  charon   09[IKE] <2> IKE_SA (unnamed)[2] state change: CREATED => CONNECTING
    Feb 19 04:38:42  charon   09[CFG] <2> selecting proposal:
    Feb 19 04:38:42  charon   09[CFG] <2> no acceptable DIFFIE_HELLMAN_GROUP found
    Feb 19 04:38:42  charon   09[CFG] <2> selecting proposal:
    Feb 19 04:38:42  charon   09[CFG] <2> no acceptable DIFFIE_HELLMAN_GROUP found
    Feb 19 04:38:42  charon   09[CFG] <2> selecting proposal:
    Feb 19 04:38:42  charon   09[CFG] <2> no acceptable DIFFIE_HELLMAN_GROUP found
    Feb 19 04:38:42  charon   09[CFG] <2> selecting proposal:
    Feb 19 04:38:42  charon   09[CFG] <2> no acceptable ENCRYPTION_ALGORITHM found
    Feb 19 04:38:42  charon   09[CFG] <2> selecting proposal:
    Feb 19 04:38:42  charon   09[CFG] <2> no acceptable ENCRYPTION_ALGORITHM found
    Feb 19 04:38:42  charon   09[CFG] <2> received proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1536, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:3DES_CBC/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
    Feb 19 04:38:42  charon   09[CFG] <2> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1024
    Feb 19 04:38:42  charon   09[CFG] <2> looking for IKEv2 configs for 39.###.###.136...172.56.40.67
    Feb 19 04:38:42  charon   09[CFG] <2> candidate: %any...%any, prio 24
    Feb 19 04:38:42  charon   09[CFG] <2> candidate: 39.###.###.136...%any, prio 1052
    Feb 19 04:38:42  charon   09[IKE] <2> no matching proposal found, trying alternative config
    Feb 19 04:38:42  charon   09[CFG] <2> selecting proposal:
    Feb 19 04:38:42  charon   09[CFG] <2> proposal matches
    Feb 19 04:38:42  charon   09[CFG] <2> received proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_256, IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_1536, IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024, IKE:3DES_CBC/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
    Feb 19 04:38:42  charon   09[CFG] <2> configured proposals: IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/3DES_CBC/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/HMAC_SHA1_96/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/PRF_HMAC_SHA1/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_6144/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/PRF_HMAC_SHA1/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_6144/MODP_8192/MODP_2048
    Feb 19 04:38:42  charon   09[CFG] <2> selected proposal: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048
    Feb 19 04:38:42  charon   09[IKE] <2> local host is behind NAT, sending keep alives
    Feb 19 04:38:42  charon   09[IKE] <2> remote host is behind NAT
    Feb 19 04:38:42  charon   09[IKE] <2> sending cert request for "CN=bcpivpnca, C=US, ST=Massachusetts, L=Boston, O=BCPI, OU=Datacenter"
    Feb 19 04:38:42  charon   09[ENC] <2> generating IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) CERTREQ N(FRAG_SUP) N(MULT_AUTH) ]
    Feb 19 04:38:42  charon   09[NET] <2> sending packet: from 39.###.###.136[500] to 172.56.40.67[58552] (473 bytes)
    Feb 19 04:38:42  charon   09[NET] <2> received packet: from 172.56.40.67[65496] to 39.###.###.136[4500] (528 bytes)
    Feb 19 04:38:42  charon   09[ENC] <2> unknown attribute type (25)
    Feb 19 04:38:42  charon   09[ENC] <2> parsed IKE_AUTH request 1 [ IDi N(INIT_CONTACT) N(MOBIKE_SUP) IDr CPRQ(ADDR DHCP DNS MASK ADDR6 DHCP6 DNS6 (25)) N(ESP_TFC_PAD_N) N(NON_FIRST_FRAG) SA TSi TSr ]
    Feb 19 04:38:42  charon   09[CFG] <2> looking for peer configs matching 39.###.###.136[bcp5.############.com]...172.56.40.67[2607:fb90:284b:50df:808:910:9e73:4625]
    Feb 19 04:38:42  charon   09[CFG] <2> candidate "bypasslan", match: 1/1/24 (me/other/ike)
    Feb 19 04:38:42  charon   09[CFG] <2> candidate "con-mobile", match: 20/1/1052 (me/other/ike)
    Feb 19 04:38:42  charon   09[CFG] <2> ignore candidate 'con-mobile' without matching IKE proposal
    Feb 19 04:38:42  charon   09[CFG] <bypasslan|2> selected peer config 'bypasslan'
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> peer requested EAP, config unacceptable
    Feb 19 04:38:42  charon   09[CFG] <bypasslan|2> no alternative config found
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP4_ADDRESS attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP4_DHCP attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP4_DNS attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP4_NETMASK attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP6_ADDRESS attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP6_DHCP attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing INTERNAL_IP6_DNS attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> processing (25) attribute
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> received ESP_TFC_PADDING_NOT_SUPPORTED, not using ESPv3 TFC padding
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> peer supports MOBIKE
    Feb 19 04:38:42  charon   09[ENC] <bypasslan|2> generating IKE_AUTH response 1 [ N(AUTH_FAILED) ]
    Feb 19 04:38:42  charon   09[NET] <bypasslan|2> sending packet: from 39.###.###.136[4500] to 172.56.40.67[65496] (80 bytes)
    Feb 19 04:38:42  charon   09[IKE] <bypasslan|2> IKE_SA bypasslan[2] state change: CONNECTING => DESTROYING


    Any ideas as to what may be wrong?

    Thanks in advance!



  • @bcpi
    Hey
    Check IKE proposal on the PFSense side
    Error
    Feb 19 04:38:42 charon 09[CFG] <2> ignore candidate 'con-mobile' without matching IKE proposal

    selected proposal: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048

    It seems that PFSense (conn-mobile) does not have such
    therefore, strongswan ignores mobile connection settings and tries to connect via bypasslan



  • @konstanti Thank you.

    It was indeed P1/P2 proposal issues. Adding 3DES/SHA1 to both allows the connection, thought I am not sure that's the ideal solution.

    I am not using StrongSwan (yet), just trying the native macOS and iOS clients first. They can now connect, but I'd like to have a split VPN setup (only LAN traffic thru the tunnel), but both seem to be sending all traffic through. Any fixes for this you can suggest?


  • Galactic Empire

    https://docs.netgate.com/pfsense/en/latest/vpn/ipsec/ikev2-with-eap-tls.html?highlight=vpn

    Check your P2 settings, bet you have local network = 0.0.0.0/0 set.



  • Hi, for the Windows 10 client, you might want to set up the connection via PowerShell (Add-VpnConnection, Set-VpnConnection). The crypto parameters cannot be specified via the GUI.



  • @nogbadthebad: I have it as "LAN subnet" only, which allows me to get to the local LAN ok. But it seems all other internet traffic is going thru the tunnel and ends up being blocked.

    @Abbys: Thanks, will do.



  • Got it working finally...

    • Routing all traffic to VPN "issue" was actually something else... Specifying the local domain in Mobile Clients > DNS Default Domain, resolved the problem and now I have a split VPN. Found via this post.

    • The 3DES/SHA1/DH 2 requirement for macOS/iOS seems to only apply to the native clients when doing a direct configuration. If one uses the Apple Configurator 2 app to create a profile, other protocols can be specified. This way I was able to use AES268/SHA256 and drop 3DES/SHA1 -- An IKEv2 + Apple Configurator 2 blog post was helpful, though I ended up using for my *.mobileconfig EAP-MSChapv2 settings with only the CA certificate, instead of EAP-TLS and multiple certificates as that tutorial indicates.



  • Hi,

    Registered especially for this issue ... I once had a working config for iOS and pfSense and all was good.

    Now I'm trying to do what you did ... but it fails every time and I don't understand anymore. Can you perhaps share some screenshots of your configuration or list it so I can compare? It's prolly something stupid but I cannot get it to work on iOS. Works fine on Win10...

    I have now tried the exact config of the last blog you referenced... now I'm getting a different error 'a configuration error occurred' on the iPhone.

    I just want safe settings like that and be able to use a username and password. Let me know if you need anything from me.. I'll gladly provide it.

    Part of the logfile... I seem to never get the 'con-mobile' config..

    09[CFG] <2> looking for peer configs matching x.x.x.x[my.hostname.com]...x.x.x.x[10.216.103.237]
    Feb 23 19:16:10 charon 09[CFG] <2> candidate "bypasslan", match: 1/1/24 (me/other/ike)
    Feb 23 19:16:10 charon 09[CFG] <bypasslan|2> selected peer config 'bypasslan'
    Feb 23 19:16:10 charon 09[IKE] <bypasslan|2> peer requested EAP, config unacceptable

    Thanks!



  • @puijken I don't have access to pfSense environment at the moment, but go ahead and post your phase 1 and phase 2 setup screens. I'll see if I can spot anything that could help. Also, for your iOS devices, are you using the native VPN client and configuring it directly on the device or via Apple Configurator 2? Or are you using a 3rd party app like StrongSwan?



  • Hi @bcpi

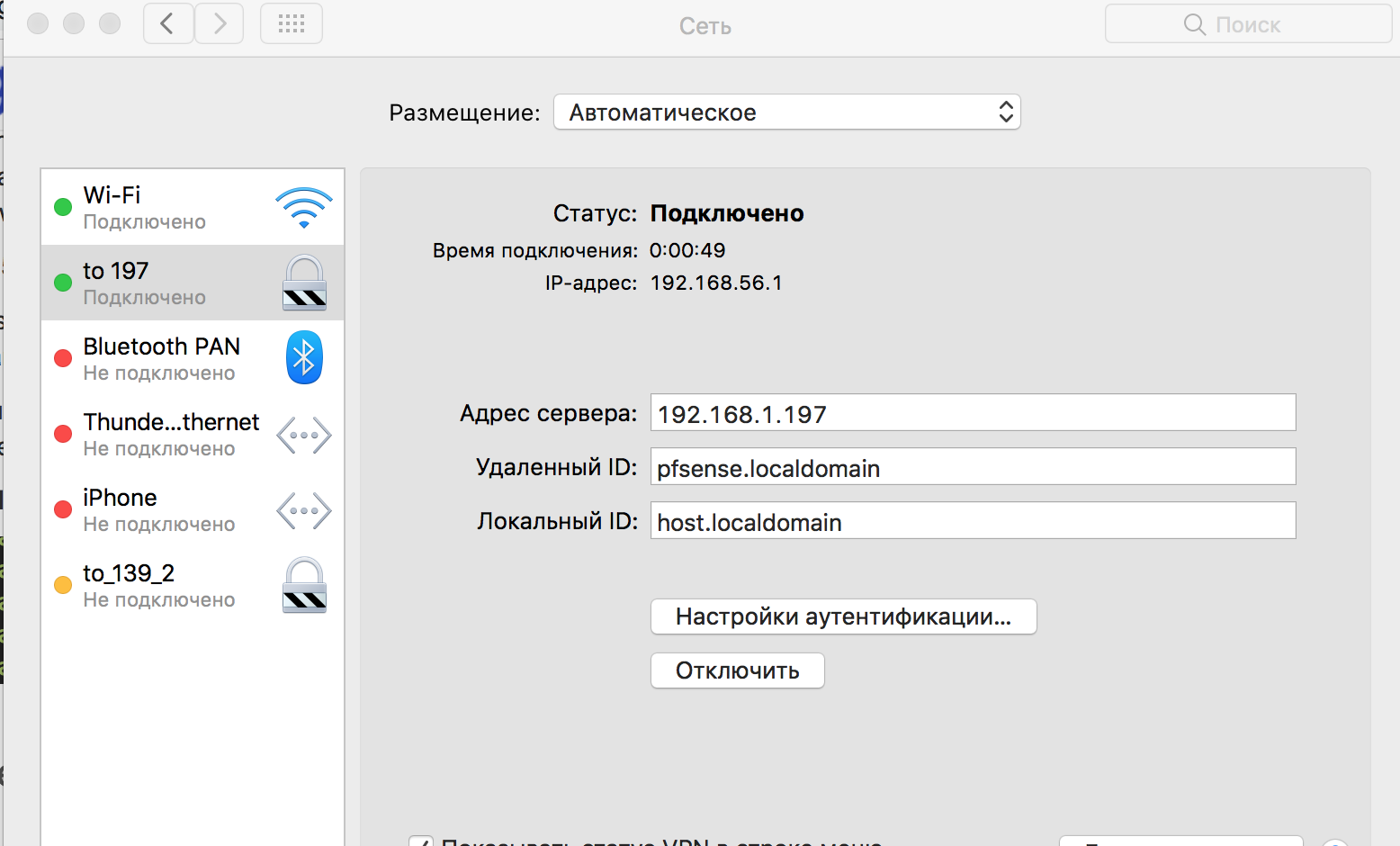

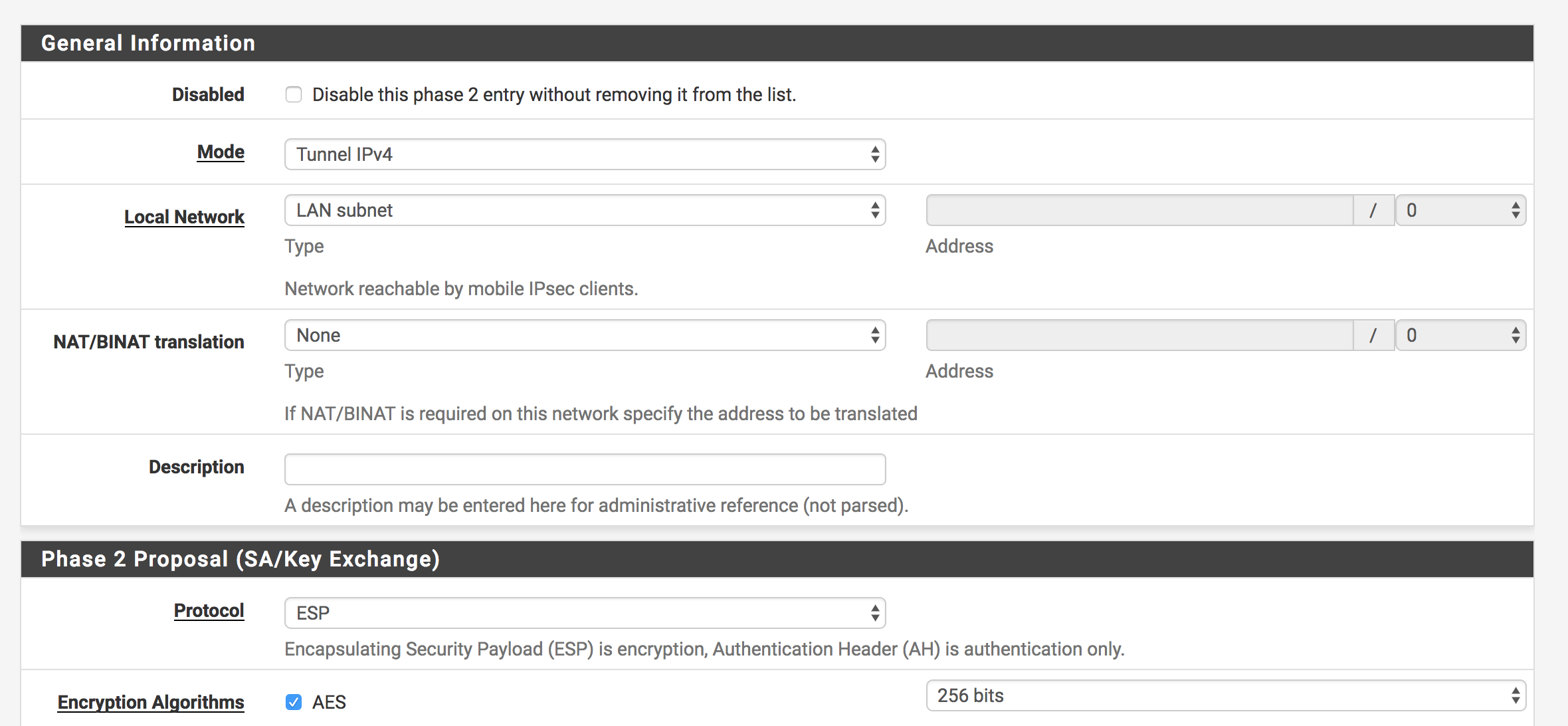

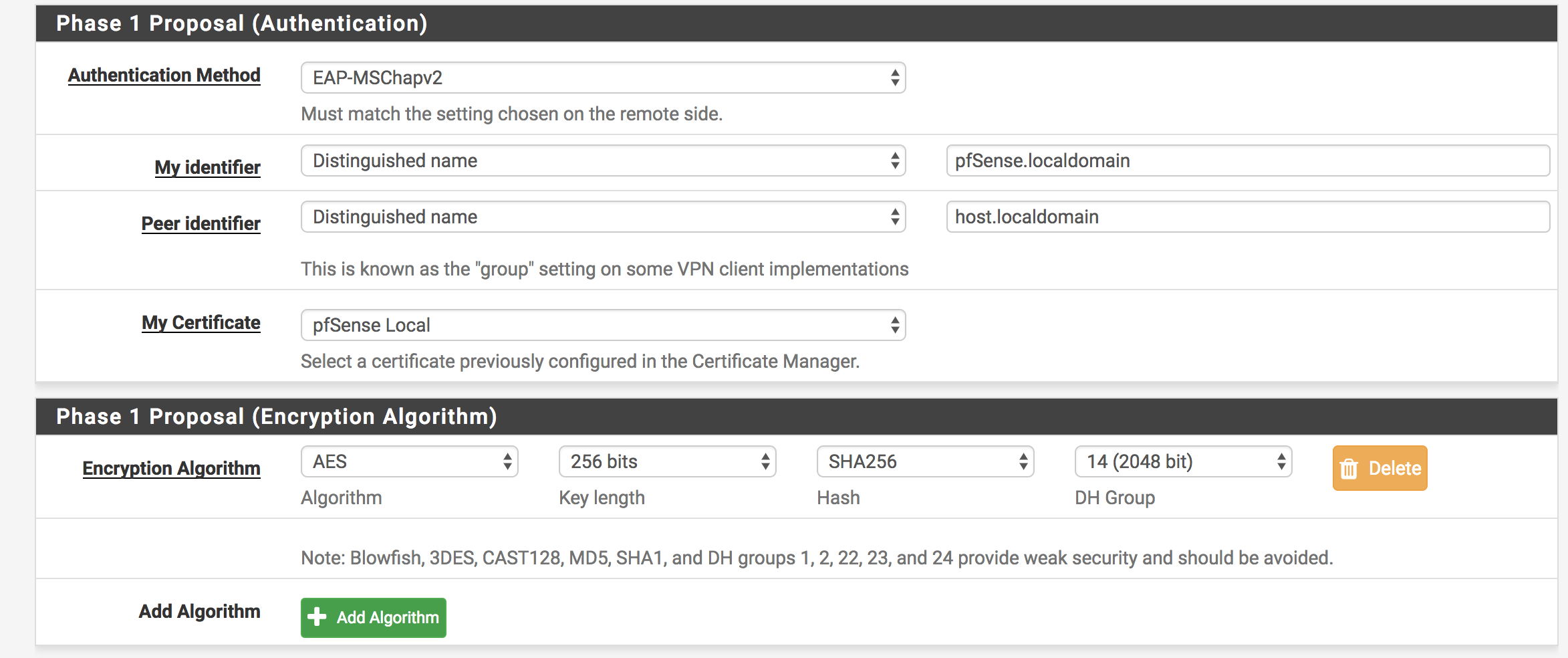

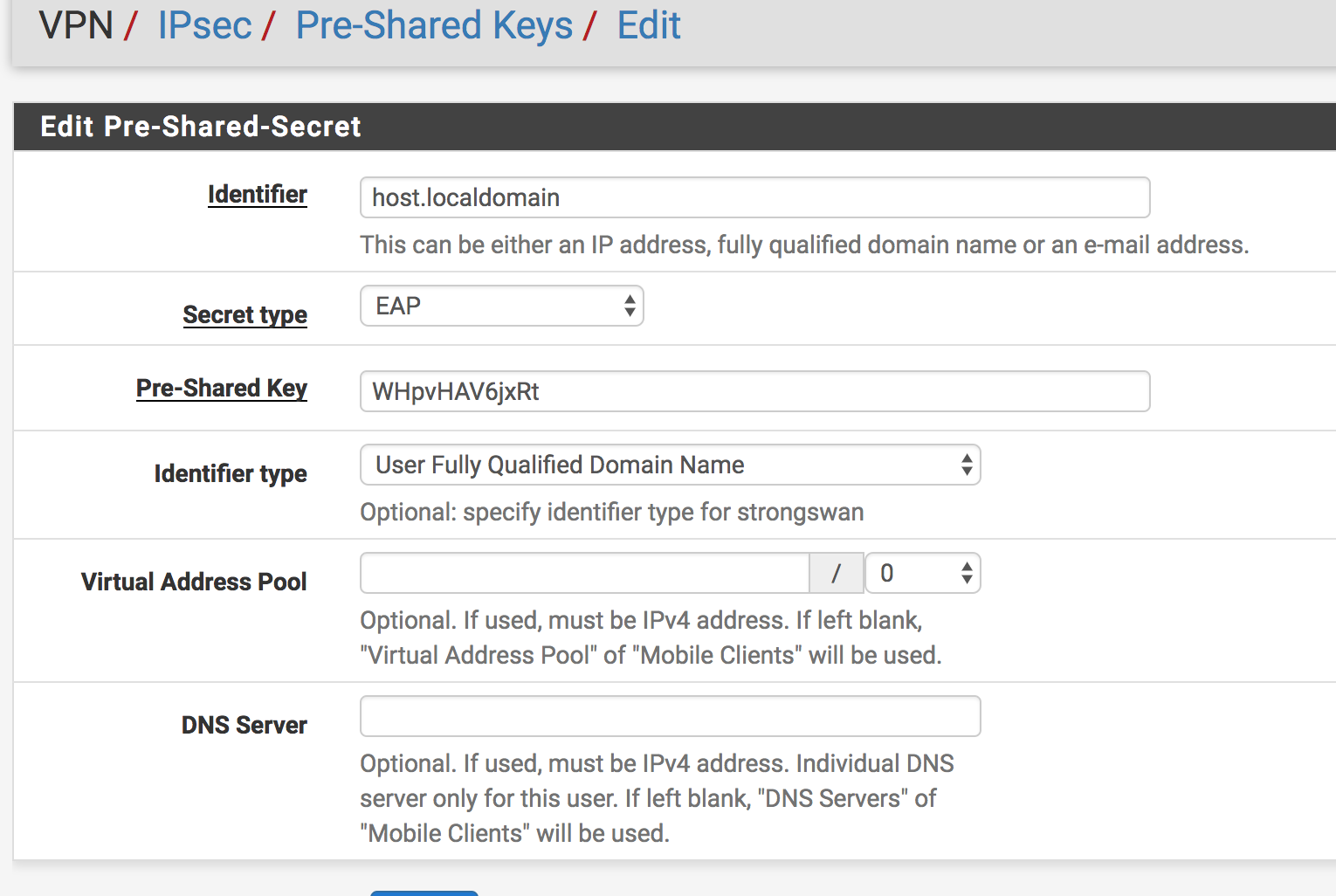

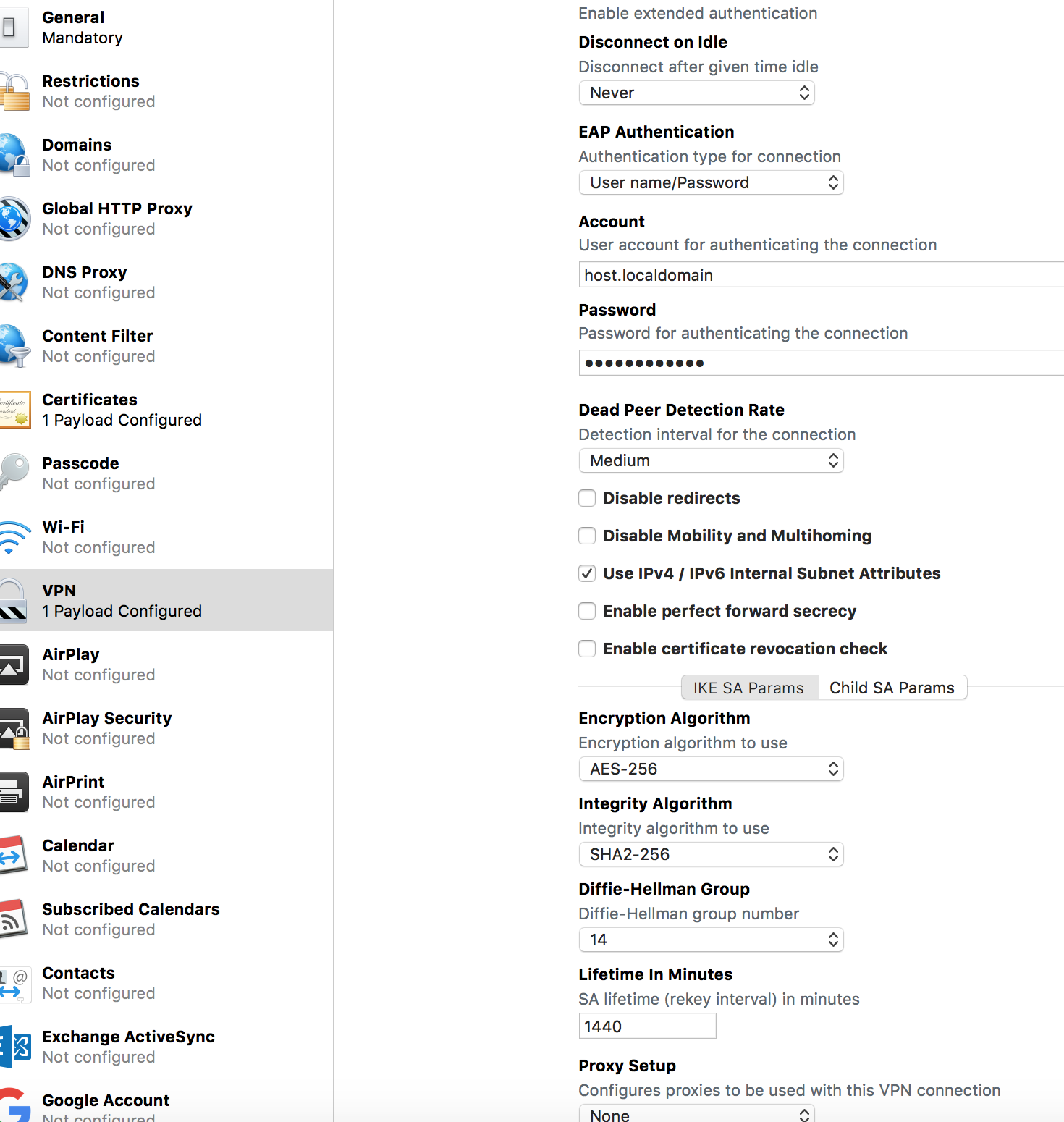

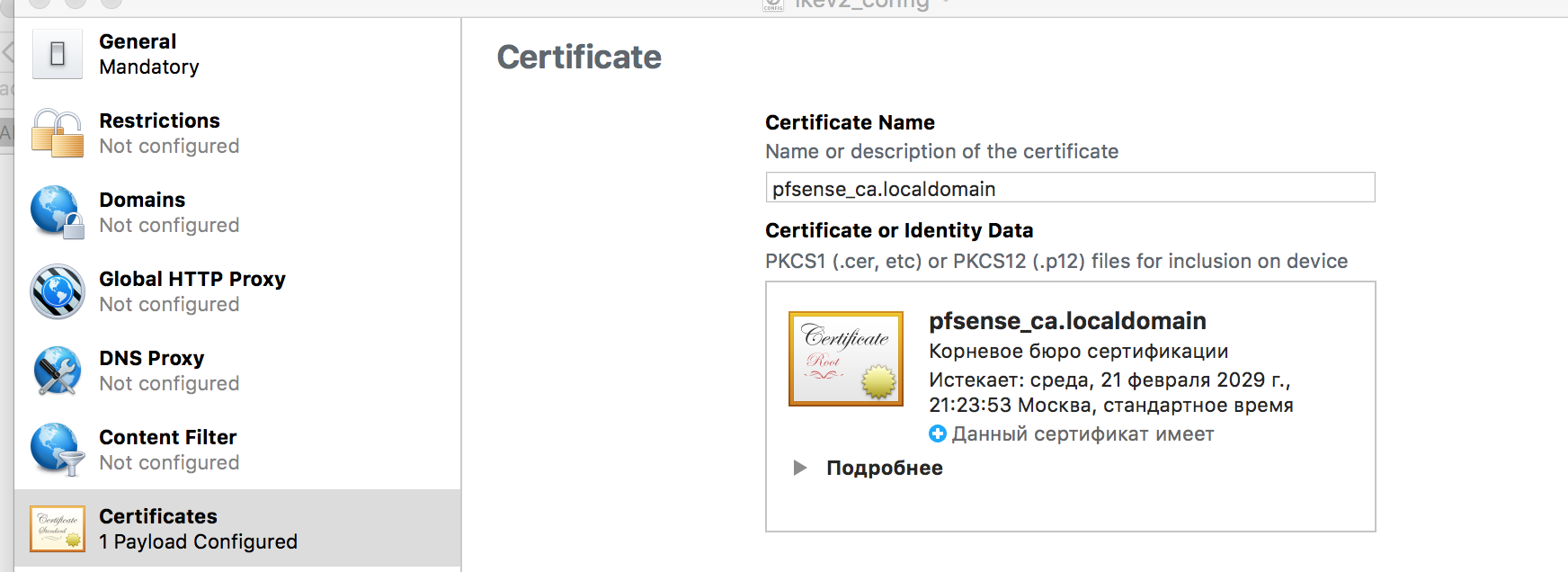

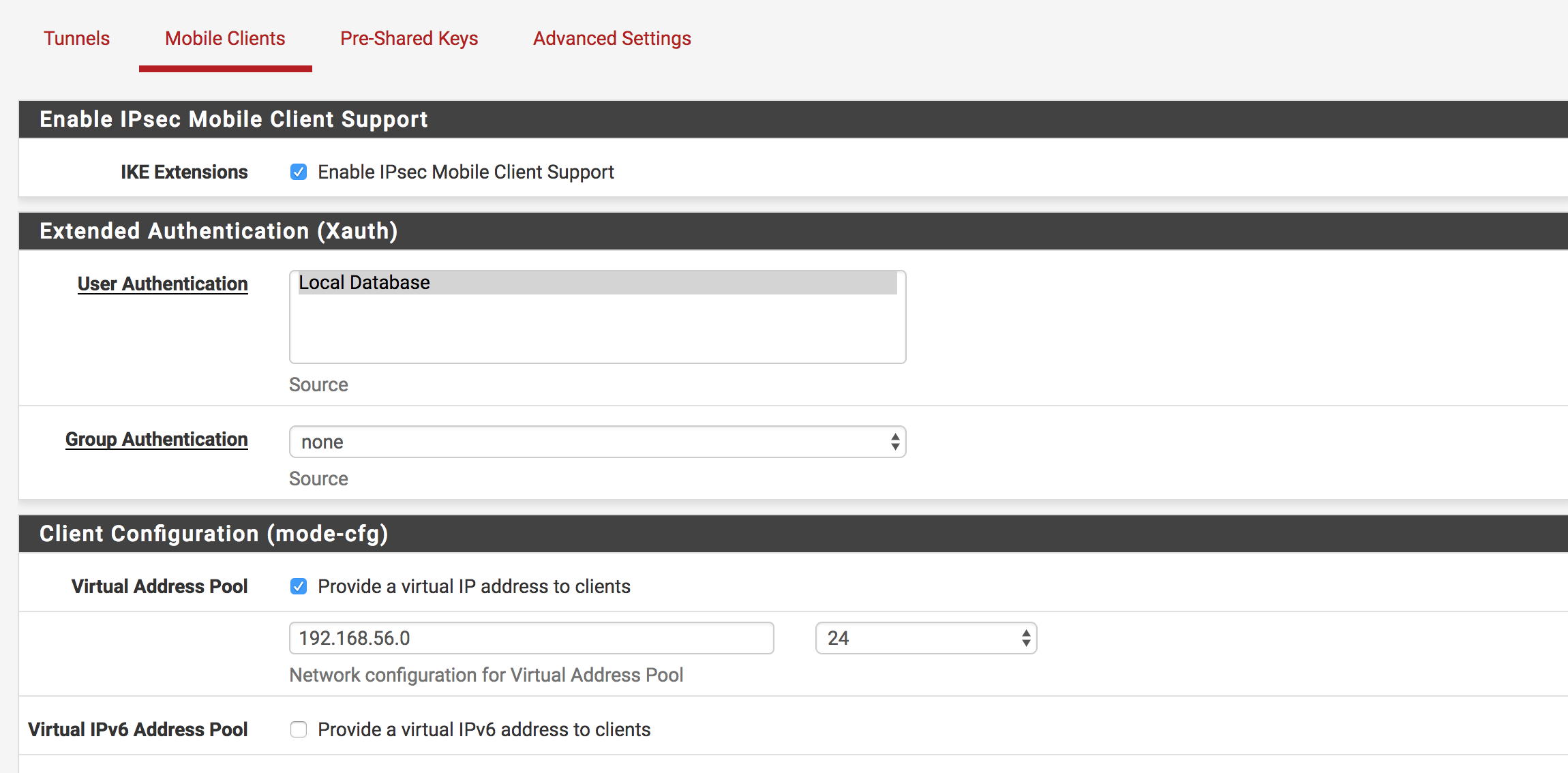

    Thank you! Here some screenshots from my config in pfSense... I will try and extract some screenshots from Apple Configurator too.. and an error log extract from pfSense when connecting with my iPhone.

    https://imgur.com/a/sKUGgfv

    I tried using the native client and Apple configurator.. both are not working. In the past I have used some settings but the config got lost. Now I tried with various settings as there are a lot of guides online.. however none seem to be working. I prefer a more safe config and not the pfSense guide config with 3DES/SHA1/DH2...
    Currently when connecting with my iPhone the Apple Config VPN throws an "a configuration error occurred" and the native config shows "user athentication failed".

    The AES256/SHA384/DH20 config is working on my Windows portable after configuring the VPN connection through PowerShell.

    In my logs I see only "bypasslan" as possible peer and not the "con-mobile" peer that shows in your log.. (don't know if this is normal or not). I only want to access my internal network and not have a vpn gateway from my mobile devices..

    Cleaned up LOG files, PFSENSE_WAN_IP, PEER_IP and EAP_USER have replaced the sensitive information. For the sake of testing I have used the same user for my W10 as for my iPhone, in a working environment they would be 2 different users.

    Succesful connection from W10

    Feb 24 11:52:18	charon		05[NET] <13> received packet: from PEER_IP[18912] to PFSENSE_WAN_IP[500] (384 bytes)
    Feb 24 11:52:18	charon		05[ENC] <13> parsed IKE_SA_INIT request 0 [ SA KE No N(FRAG_SUP) N(NATD_S_IP) N(NATD_D_IP) V V V V ]
    Feb 24 11:52:18	charon		05[CFG] <13> looking for an IKEv2 config for PFSENSE_WAN_IP...PEER_IP
    Feb 24 11:52:18	charon		05[CFG] <13> candidate: %any...%any, prio 24
    Feb 24 11:52:18	charon		05[CFG] <13> candidate: PFSENSE_WAN_IP...%any, prio 1052
    Feb 24 11:52:18	charon		05[CFG] <13> found matching ike config: PFSENSE_WAN_IP...%any with prio 1052
    Feb 24 11:52:18	charon		05[IKE] <13> received MS NT5 ISAKMPOAKLEY v9 vendor ID
    Feb 24 11:52:18	charon		05[IKE] <13> received MS-Negotiation Discovery Capable vendor ID
    Feb 24 11:52:18	charon		05[IKE] <13> received Vid-Initial-Contact vendor ID
    Feb 24 11:52:18	charon		05[ENC] <13> received unknown vendor ID: 01:52:8b:bb:c0:06:96:12:18:49:ab:9a:1c:5b:2a:51:00:00:00:02
    Feb 24 11:52:18	charon		05[IKE] <13> PEER_IP is initiating an IKE_SA
    Feb 24 11:52:18	charon		05[IKE] <13> IKE_SA (unnamed)[13] state change: CREATED => CONNECTING
    Feb 24 11:52:18	charon		05[CFG] <13> selecting proposal:
    Feb 24 11:52:18	charon		05[CFG] <13> no acceptable ENCRYPTION_ALGORITHM found
    Feb 24 11:52:18	charon		05[CFG] <13> selecting proposal:
    Feb 24 11:52:18	charon		05[CFG] <13> proposal matches
    Feb 24 11:52:18	charon		05[CFG] <13> received proposals: IKE:AES_CBC_256/HMAC_SHA2_384_192/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 11:52:18	charon		05[CFG] <13> configured proposals: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384, IKE:AES_CBC_256/HMAC_SHA2_384_192/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 11:52:18	charon		05[CFG] <13> selected proposal: IKE:AES_CBC_256/HMAC_SHA2_384_192/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 11:52:18	charon		05[IKE] <13> remote host is behind NAT
    Feb 24 11:52:18	charon		05[IKE] <13> sending cert request for "C=US, O=Let's Encrypt, CN=Let's Encrypt Authority X3"
    Feb 24 11:52:18	charon		05[ENC] <13> generating IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) CERTREQ N(FRAG_SUP) N(MULT_AUTH) ]
    Feb 24 11:52:18	charon		05[NET] <13> sending packet: from PFSENSE_WAN_IP[500] to PEER_IP[18912] (313 bytes)
    Feb 24 11:52:18	charon		05[NET] <13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (588 bytes)
    Feb 24 11:52:18	charon		05[ENC] <13> parsed IKE_AUTH request 1 [ EF(1/4) ]
    Feb 24 11:52:18	charon		05[ENC] <13> received fragment #1 of 4, waiting for complete IKE message
    Feb 24 11:52:18	charon		11[NET] <13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (588 bytes)
    Feb 24 11:52:18	charon		11[ENC] <13> parsed IKE_AUTH request 1 [ EF(2/4) ]
    Feb 24 11:52:18	charon		11[ENC] <13> received fragment #2 of 4, waiting for complete IKE message
    Feb 24 11:52:18	charon		11[NET] <13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (588 bytes)
    Feb 24 11:52:18	charon		11[ENC] <13> parsed IKE_AUTH request 1 [ EF(3/4) ]
    Feb 24 11:52:18	charon		11[ENC] <13> received fragment #3 of 4, waiting for complete IKE message
    Feb 24 11:52:18	charon		05[NET] <13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (332 bytes)
    Feb 24 11:52:18	charon		05[ENC] <13> parsed IKE_AUTH request 1 [ EF(4/4) ]
    Feb 24 11:52:18	charon		05[ENC] <13> received fragment #4 of 4, reassembled fragmented IKE message (1816 bytes)
    Feb 24 11:52:18	charon		05[ENC] <13> parsed IKE_AUTH request 1 [ IDi CERTREQ N(MOBIKE_SUP) CPRQ(ADDR DNS NBNS SRV ADDR6 DNS6 SRV6) SA TSi TSr ]
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4b:da:32:09:af:b8:21:bb:9e:3a:63:58:7d:29:d4:06:56:11:14:ce
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 6e:01:b9:a1:c6:4e:b8:34:1a:e3:b6:48:9e:70:b4:6b:35:ec:5b:66
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 0e:ac:82:60:40:56:27:97:e5:25:13:fc:2a:e1:0a:53:95:59:e4:a4
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 8c:c4:dd:27:7b:16:78:95:36:e8:de:11:4f:47:09:70:11:a1:87:51
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4b:da:32:09:af:b8:21:bb:9e:3a:63:58:7d:29:d4:06:56:11:14:ce
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid dd:bc:bd:86:9c:3f:07:ed:40:e3:1b:08:ef:ce:c4:d1:88:cd:3b:15
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 5d:fc:6d:71:b4:0f:e4:78:d2:57:0f:74:e2:c0:b3:03:31:3b:83:43
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4a:5c:75:22:aa:46:bf:a4:08:9d:39:97:4e:bd:b4:a3:60:f7:a0:1d
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 5c:b8:69:fe:8d:ef:c1:ed:66:27:ee:b2:12:0f:72:1b:b8:0a:0e:04
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 6a:47:a2:67:c9:2e:2f:19:68:8b:9b:86:61:66:95:ed:c1:2c:13:00
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 1e:e6:e7:7e:76:cb:fc:31:f8:35:f3:68:44:44:18:74:ad:14:c1:f2
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 01:f0:33:4c:1a:a1:d9:ee:5b:7b:a9:de:43:bc:02:7d:57:09:33:fb
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 88:a9:5a:ef:c0:84:fc:13:74:41:6b:b1:63:32:c2:cf:92:59:bb:3b
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid f9:27:b6:1b:0a:37:f3:c3:1a:fa:17:ec:2d:46:17:16:12:9d:0c:0e
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 34:4f:30:2d:25:69:31:91:ea:f7:73:5c:ab:f5:86:8d:37:82:40:ec
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 44:18:5b:b7:ff:a4:8c:a1:a7:01:b9:31:dd:1c:5d:d3:2c:e8:76:7f
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 3e:df:29:0c:c1:f5:cc:73:2c:eb:3d:24:e1:7e:52:da:bd:27:e2:f0
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 8b:90:f4:58:49:86:13:85:20:e7:3a:e8:dc:c0:e6:c2:86:42:93:6a
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 7c:32:d4:85:fd:89:0a:66:b5:97:ce:86:f4:d5:26:a9:21:07:e8:3e
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 37:d7:52:53:4d:27:6e:3a:19:1c:37:41:cb:19:9a:7e:40:46:97:cb
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid ab:76:88:f4:e5:e1:38:c9:e9:50:17:cd:cd:b3:18:17:b3:3e:8c:f5
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid da:ed:64:74:14:9c:14:3c:ab:dd:99:a9:bd:5b:28:4d:8b:3c:c9:d8
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid f8:92:0b:e9:08:a9:c5:d5:a0:fb:f3:9a:aa:98:a5:74:37:49:ad:9f
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 5e:8c:53:18:22:60:1d:56:71:d6:6a:a0:cc:64:a0:60:07:43:d5:a8
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 86:26:cb:1b:c5:54:b3:9f:bd:6b:ed:63:7f:b9:89:a9:80:f1:f4:8a
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid c0:7a:98:68:8d:89:fb:ab:05:64:0c:11:7d:aa:7d:65:b8:ca:cc:4e
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid a8:e3:02:96:70:a6:8b:57:eb:ec:ef:cc:29:4e:91:74:9a:d4:92:38
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid f7:93:19:ef:df:c1:f5:20:fb:ac:85:55:2c:f2:d2:8f:5a:b9:ca:0b
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 30:a4:e6:4f:de:76:8a:fc:ed:5a:90:84:28:30:46:79:2c:29:15:70
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 48:e6:68:f9:2b:d2:b2:95:d7:47:d8:23:20:10:4f:33:98:90:9f:d4
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 90:e2:41:c2:11:41:8b:95:b1:a9:e0:9c:37:24:7e:84:9f:e4:be:a1
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 73:97:82:ea:b4:04:16:6e:25:d4:82:3c:37:db:f8:a8:12:fb:cf:26
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 69:c4:27:db:59:69:68:18:47:e2:52:17:0a:e0:e5:7f:ab:9d:ef:0f
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid ba:42:b0:81:88:53:88:1d:86:63:bd:4c:c0:5e:08:fe:ea:6e:bb:77
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 87:db:d4:5f:b0:92:8d:4e:1d:f8:15:67:e7:f2:ab:af:d6:2b:67:75
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 6e:58:4e:33:75:bd:57:f6:d5:42:1b:16:01:c2:d8:c0:f5:3a:9f:6e
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4a:81:0c:de:f0:c0:90:0f:19:06:42:31:35:a2:a2:8d:d3:44:fd:08
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid d5:2e:13:c1:ab:e3:49:da:e8:b4:95:94:ef:7c:38:43:60:64:66:bd
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid f7:f3:01:94:50:ba:3e:69:ec:9a:50:f5:02:d1:38:45:cc:93:13:72
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 13:8f:7b:5d:6e:da:54:ee:84:4c:7c:78:d4:7e:3f:d0:2a:60:d5:ff
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 59:79:12:de:61:75:d6:6f:c4:23:b7:77:13:74:c7:96:de:6f:88:72
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 6c:ca:bd:7d:b4:7e:94:a5:75:99:01:b6:a7:df:d4:5d:1c:09:1c:cc
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid ab:30:d3:af:4b:d8:f1:6b:58:69:ee:45:69:29:da:84:b8:73:94:88
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 42:32:b6:16:fa:04:fd:fe:5d:4b:7a:c3:fd:f7:4c:40:1d:5a:43:af
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid f0:63:ba:7c:9a:16:74:4a:9c:db:54:ec:23:cd:67:29:8e:7c:49:4d
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid a5:9d:bf:90:15:d9:f1:f5:a8:d8:c0:1d:14:e6:f1:d8:c4:fe:57:17
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid a5:06:8a:78:cf:84:bd:74:32:dd:58:f9:65:eb:3a:55:e7:c7:80:dc
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid e2:7f:7b:d8:77:d5:df:9e:0a:3f:9e:b4:cb:0e:2e:a9:ef:db:69:77
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 5b:bf:1f:74:4a:e0:51:bd:61:7b:20:0d:bb:74:dc:26:8b:d1:3a:02
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 6d:aa:9b:09:87:c4:d0:d4:22:ed:40:07:37:4d:19:f1:91:ff:de:d3
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 83:31:7e:62:85:42:53:d6:d7:78:31:90:ec:91:90:56:e9:91:b9:e3
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 75:b1:bc:dd:db:be:95:b8:7a:80:9c:b6:99:a1:44:d2:1b:74:eb:3d
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid fd:da:14:c4:9f:30:de:21:bd:1e:42:39:fc:ab:63:23:49:e0:f1:84
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 3e:22:d4:2c:1f:02:44:b8:04:10:65:61:7c:c7:6b:ae:da:87:29:9c
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 55:e4:81:d1:11:80:be:d8:89:b9:08:a3:31:f9:a1:24:09:16:b9:70
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid b1:81:08:1a:19:a4:c0:94:1f:fa:e8:95:28:c1:24:c9:9b:34:ac:c7
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 36:12:c2:39:c5:22:b9:1e:20:d4:8e:08:3c:be:69:e1:1d:a8:27:e5
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 21:0f:2c:89:f7:c4:cd:5d:1b:82:5e:38:d6:c6:59:3b:a6:93:75:ae
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid e6:ff:c3:94:e8:38:59:7f:51:d4:80:42:19:76:27:cf:db:94:8e:c6
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid bb:c2:3e:29:0b:b3:28:77:1d:ad:3e:a2:4d:bd:f4:23:bd:06:b0:3d
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid b0:19:89:e7:ef:fb:4a:af:cb:14:8f:58:46:39:76:22:41:50:e1:ba
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid c8:95:13:68:01:97:28:0a:2c:55:c3:fc:d3:90:f5:3a:05:3b:c9:fb
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid ee:e5:9f:1e:2a:a5:44:c3:cb:25:43:a6:9a:5b:d4:6a:25:bc:bb:8e
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 22:f1:9e:2e:c6:ea:cc:fc:5d:23:46:f4:c2:e8:f6:c5:54:dd:5e:07
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 67:ec:9f:90:2d:cd:64:ae:fe:7e:bc:cd:f8:8c:51:28:f1:93:2c:12
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 17:4a:b8:2b:5f:fb:05:67:75:27:ad:49:5a:4a:5d:c4:22:cc:ea:4e
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 68:33:0e:61:35:85:21:59:29:83:a3:c8:d2:d2:e1:40:6e:7a:b3:c1
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 9c:a9:8d:00:af:74:0d:dd:81:80:d2:13:45:a5:8b:8f:2e:94:38:d6
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4f:9c:7d:21:79:9c:ad:0e:d8:b9:0c:57:9f:1a:02:99:e7:90:f3:87
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid c7:9f:3a:76:71:13:14:73:f6:da:c8:49:e6:09:d2:92:a1:db:d4:32
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 34:83:fa:fe:3f:b5:60:7d:1f:8b:35:f3:36:30:f9:6e:48:e6:d8:37
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4b:da:32:09:af:b8:21:bb:9e:3a:63:58:7d:29:d4:06:56:11:14:ce
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4b:da:32:09:af:b8:21:bb:9e:3a:63:58:7d:29:d4:06:56:11:14:ce
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 2c:c9:e2:f9:26:2a:75:41:62:79:85:17:0b:0f:79:f7:15:d7:03:91
    Feb 24 11:52:18	charon		05[IKE] <13> received cert request for unknown ca with keyid 4b:da:32:09:af:b8:21:bb:9e:3a:63:58:7d:29:d4:06:56:11:14:ce
    Feb 24 11:52:18	charon		05[IKE] <13> received 75 cert requests for an unknown ca
    Feb 24 11:52:18	charon		05[CFG] <13> looking for peer configs matching PFSENSE_WAN_IP[%any]...PEER_IP[172.20.10.4]
    Feb 24 11:52:18	charon		05[CFG] <13> candidate "bypasslan", match: 1/1/24 (me/other/ike)
    Feb 24 11:52:18	charon		05[CFG] <13> candidate "con-mobile", match: 1/1/1052 (me/other/ike)
    Feb 24 11:52:18	charon		05[CFG] <con-mobile|13> selected peer config 'con-mobile'
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> initiating EAP_IDENTITY method (id 0x00)
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP4_ADDRESS attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP4_DNS attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP4_NBNS attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP4_SERVER attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP6_ADDRESS attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP6_DNS attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> processing INTERNAL_IP6_SERVER attribute
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> peer supports MOBIKE
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> authentication of 'CN=*.myhostname.com' (myself) with RSA signature successful
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> sending end entity cert "CN=*.myhostname.com"
    Feb 24 11:52:18	charon		05[IKE] <con-mobile|13> sending issuer cert "C=US, O=Let's Encrypt, CN=Let's Encrypt Authority X3"
    Feb 24 11:52:18	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 1 [ IDr CERT CERT AUTH EAP/REQ/ID ]
    Feb 24 11:52:18	charon		05[ENC] <con-mobile|13> splitting IKE message (3448 bytes) into 3 fragments
    Feb 24 11:52:18	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 1 [ EF(1/3) ]
    Feb 24 11:52:18	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 1 [ EF(2/3) ]
    Feb 24 11:52:18	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 1 [ EF(3/3) ]
    Feb 24 11:52:18	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (1244 bytes)
    Feb 24 11:52:18	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (1244 bytes)
    Feb 24 11:52:18	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (1116 bytes)
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (104 bytes)
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> parsed IKE_AUTH request 2 [ EAP/RES/ID ]
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> received EAP identity 'EAP_USER'
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> initiating EAP_MSCHAPV2 method (id 0xE0)
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 2 [ EAP/REQ/MSCHAPV2 ]
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (120 bytes)
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (152 bytes)
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> parsed IKE_AUTH request 3 [ EAP/RES/MSCHAPV2 ]
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 3 [ EAP/REQ/MSCHAPV2 ]
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (152 bytes)
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (88 bytes)
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> parsed IKE_AUTH request 4 [ EAP/RES/MSCHAPV2 ]
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> EAP method EAP_MSCHAPV2 succeeded, MSK established
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 4 [ EAP/SUCC ]
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (88 bytes)
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> received packet: from PEER_IP[29811] to PFSENSE_WAN_IP[4500] (136 bytes)
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> parsed IKE_AUTH request 5 [ AUTH ]
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> authentication of '172.20.10.4' with EAP successful
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> authentication of 'CN=*.myhostname.com' (myself) with EAP
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> IKE_SA con-mobile[13] established between PFSENSE_WAN_IP[CN=*.myhostname.com]...PEER_IP[172.20.10.4]
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> IKE_SA con-mobile[13] state change: CONNECTING => ESTABLISHED
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> scheduling reauthentication in 28028s
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> maximum IKE_SA lifetime 28568s
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> peer requested virtual IP %any
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> reassigning offline lease to 'EAP_USER'
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> assigning virtual IP 10.0.0.1 to peer 'EAP_USER'
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> peer requested virtual IP %any6
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> no virtual IP found for %any6 requested by 'EAP_USER'
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> looking for a child config for 0.0.0.0/0|/0 ::/0|/0 === 0.0.0.0/0|/0 ::/0|/0
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> proposing traffic selectors for us:
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> 192.168.1.0/24|/0
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> proposing traffic selectors for other:
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> 10.0.0.1/32|/0
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> candidate "con-mobile" with prio 2+2
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> found matching child config "con-mobile" with prio 4
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> selecting proposal:
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> proposal matches
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> received proposals: ESP:AES_CBC_256/HMAC_SHA2_256_128/NO_EXT_SEQ
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> configured proposals: ESP:AES_CBC_256/HMAC_SHA2_256_128/ECP_384/NO_EXT_SEQ, ESP:AES_CBC_256/HMAC_SHA2_384_192/ECP_384/NO_EXT_SEQ, ESP:AES_CBC_256/HMAC_SHA2_512_256/ECP_384/NO_EXT_SEQ, ESP:AES_GCM_16_256/ECP_384/NO_EXT_SEQ, ESP:AES_GCM_16_256/ECP_384/NO_EXT_SEQ, ESP:AES_GCM_16_256/ECP_384/NO_EXT_SEQ
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> selected proposal: ESP:AES_CBC_256/HMAC_SHA2_256_128/NO_EXT_SEQ
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> selecting traffic selectors for us:
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> config: 192.168.1.0/24|/0, received: 0.0.0.0/0|/0 => match: 192.168.1.0/24|/0
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> config: 192.168.1.0/24|/0, received: ::/0|/0 => no match
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> selecting traffic selectors for other:
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> config: 10.0.0.1/32|/0, received: 0.0.0.0/0|/0 => match: 10.0.0.1/32|/0
    Feb 24 11:52:19	charon		05[CFG] <con-mobile|13> config: 10.0.0.1/32|/0, received: ::/0|/0 => no match
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> CHILD_SA con-mobile{2} state change: CREATED => INSTALLING
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> using AES_CBC for encryption
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> using HMAC_SHA2_256_128 for integrity
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> adding inbound ESP SA
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> SPI 0xc4ec8c38, src PEER_IP dst PFSENSE_WAN_IP
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> adding outbound ESP SA
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> SPI 0x55a6ea2c, src PFSENSE_WAN_IP dst PEER_IP
    Feb 24 11:52:19	charon		05[IKE] <con-mobile|13> CHILD_SA con-mobile{2} established with SPIs c4ec8c38_i 55a6ea2c_o and TS 192.168.1.0/24|/0 === 10.0.0.1/32|/0
    Feb 24 11:52:19	charon		05[CHD] <con-mobile|13> CHILD_SA con-mobile{2} state change: INSTALLING => INSTALLED
    Feb 24 11:52:19	charon		05[ENC] <con-mobile|13> generating IKE_AUTH response 5 [ AUTH CPRP(ADDR) N(ESP_TFC_PAD_N) SA TSi TSr N(AUTH_LFT) N(MOBIKE_SUP) N(ADD_4_ADDR) N(ADD_4_ADDR) N(ADD_4_ADDR) N(ADD_6_ADDR) N(ADD_6_ADDR) ]
    Feb 24 11:52:19	charon		05[NET] <con-mobile|13> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[29811] (360 bytes)


    AES-256-CGM connection attempt (localid = fqdn from certificate)

    Feb 24 12:22:02	charon		15[NET] <18> received packet: from PEER_IP[26398] to PFSENSE_WAN_IP[500] (272 bytes)
    Feb 24 12:22:02	charon		15[ENC] <18> parsed IKE_SA_INIT request 0 [ SA KE No N(REDIR_SUP) N(NATD_S_IP) N(NATD_D_IP) N(FRAG_SUP) ]
    Feb 24 12:22:02	charon		15[CFG] <18> looking for an IKEv2 config for PFSENSE_WAN_IP...PEER_IP
    Feb 24 12:22:02	charon		15[CFG] <18> candidate: %any...%any, prio 24
    Feb 24 12:22:02	charon		15[CFG] <18> candidate: PFSENSE_WAN_IP...%any, prio 1052
    Feb 24 12:22:02	charon		15[CFG] <18> found matching ike config: PFSENSE_WAN_IP...%any with prio 1052
    Feb 24 12:22:02	charon		15[IKE] <18> PEER_IP is initiating an IKE_SA
    Feb 24 12:22:02	charon		15[IKE] <18> IKE_SA (unnamed)[18] state change: CREATED => CONNECTING
    Feb 24 12:22:02	charon		15[CFG] <18> selecting proposal:
    Feb 24 12:22:02	charon		15[CFG] <18> proposal matches
    Feb 24 12:22:02	charon		15[CFG] <18> received proposals: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:22:02	charon		15[CFG] <18> configured proposals: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384, IKE:AES_CBC_256/HMAC_SHA2_384_192/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:22:02	charon		15[CFG] <18> selected proposal: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:22:02	charon		15[IKE] <18> remote host is behind NAT
    Feb 24 12:22:02	charon		15[IKE] <18> sending cert request for "C=US, O=Let's Encrypt, CN=Let's Encrypt Authority X3"
    Feb 24 12:22:02	charon		15[ENC] <18> generating IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) CERTREQ N(FRAG_SUP) N(MULT_AUTH) ]
    Feb 24 12:22:02	charon		15[NET] <18> sending packet: from PFSENSE_WAN_IP[500] to PEER_IP[26398] (305 bytes)
    Feb 24 12:22:02	charon		15[NET] <18> received packet: from PEER_IP[30491] to PFSENSE_WAN_IP[4500] (352 bytes)
    Feb 24 12:22:02	charon		15[ENC] <18> unknown attribute type (25)
    Feb 24 12:22:02	charon		15[ENC] <18> parsed IKE_AUTH request 1 [ IDi N(INIT_CONTACT) N(MOBIKE_SUP) IDr CPRQ(ADDR DHCP DNS MASK ADDR6 DHCP6 DNS6 (25)) N(ESP_TFC_PAD_N) N(NON_FIRST_FRAG) SA TSi TSr N(EAP_ONLY) ]
    Feb 24 12:22:02	charon		15[CFG] <18> looking for peer configs matching PFSENSE_WAN_IP[vpn.myhostname.com]...PEER_IP[vpn.myhostname.com]
    Feb 24 12:22:02	charon		15[CFG] <18> candidate "bypasslan", match: 1/1/24 (me/other/ike)
    Feb 24 12:22:02	charon		15[CFG] <bypasslan|18> selected peer config 'bypasslan'
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> peer requested EAP, config unacceptable
    Feb 24 12:22:02	charon		15[CFG] <bypasslan|18> no alternative config found
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP4_ADDRESS attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP4_DHCP attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP4_DNS attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP4_NETMASK attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP6_ADDRESS attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP6_DHCP attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing INTERNAL_IP6_DNS attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> processing (25) attribute
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> received ESP_TFC_PADDING_NOT_SUPPORTED, not using ESPv3 TFC padding
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> peer supports MOBIKE
    Feb 24 12:22:02	charon		15[ENC] <bypasslan|18> generating IKE_AUTH response 1 [ N(AUTH_FAILED) ]
    Feb 24 12:22:02	charon		15[NET] <bypasslan|18> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[30491] (65 bytes)
    Feb 24 12:22:02	charon		15[IKE] <bypasslan|18> IKE_SA bypasslan[18] state change: CONNECTING => DESTROYING


    AES-256-CGM connection attempt (localid = EAP_USER)

    Feb 24 12:29:13	charon		04[NET] <22> received packet: from PEER_IP[25047] to PFSENSE_WAN_IP[500] (272 bytes)
    Feb 24 12:29:13	charon		04[ENC] <22> parsed IKE_SA_INIT request 0 [ SA KE No N(REDIR_SUP) N(NATD_S_IP) N(NATD_D_IP) N(FRAG_SUP) ]
    Feb 24 12:29:13	charon		04[CFG] <22> looking for an IKEv2 config for PFSENSE_WAN_IP...PEER_IP
    Feb 24 12:29:13	charon		04[CFG] <22> candidate: %any...%any, prio 24
    Feb 24 12:29:13	charon		04[CFG] <22> candidate: PFSENSE_WAN_IP...%any, prio 1052
    Feb 24 12:29:13	charon		04[CFG] <22> found matching ike config: PFSENSE_WAN_IP...%any with prio 1052
    Feb 24 12:29:13	charon		04[IKE] <22> PEER_IP is initiating an IKE_SA
    Feb 24 12:29:13	charon		04[IKE] <22> IKE_SA (unnamed)[22] state change: CREATED => CONNECTING
    Feb 24 12:29:13	charon		04[CFG] <22> selecting proposal:
    Feb 24 12:29:13	charon		04[CFG] <22> proposal matches
    Feb 24 12:29:13	charon		04[CFG] <22> received proposals: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:29:13	charon		04[CFG] <22> configured proposals: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384, IKE:AES_CBC_256/HMAC_SHA2_384_192/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:29:13	charon		04[CFG] <22> selected proposal: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:29:13	charon		04[IKE] <22> remote host is behind NAT
    Feb 24 12:29:13	charon		04[IKE] <22> sending cert request for "C=US, O=Let's Encrypt, CN=Let's Encrypt Authority X3"
    Feb 24 12:29:13	charon		04[ENC] <22> generating IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) CERTREQ N(FRAG_SUP) N(MULT_AUTH) ]
    Feb 24 12:29:13	charon		04[NET] <22> sending packet: from PFSENSE_WAN_IP[500] to PEER_IP[25047] (305 bytes)
    Feb 24 12:29:14	charon		04[NET] <22> received packet: from PEER_IP[19142] to PFSENSE_WAN_IP[4500] (352 bytes)
    Feb 24 12:29:14	charon		04[ENC] <22> unknown attribute type (25)
    Feb 24 12:29:14	charon		04[ENC] <22> parsed IKE_AUTH request 1 [ IDi N(INIT_CONTACT) N(MOBIKE_SUP) IDr CPRQ(ADDR DHCP DNS MASK ADDR6 DHCP6 DNS6 (25)) N(ESP_TFC_PAD_N) N(NON_FIRST_FRAG) SA TSi TSr N(EAP_ONLY) ]
    Feb 24 12:29:14	charon		04[CFG] <22> looking for peer configs matching PFSENSE_WAN_IP[vpn.myhostname.com]...PEER_IP[EAP_USER]
    Feb 24 12:29:14	charon		04[CFG] <22> candidate "bypasslan", match: 1/1/24 (me/other/ike)
    Feb 24 12:29:14	charon		04[CFG] <bypasslan|22> selected peer config 'bypasslan'
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> peer requested EAP, config unacceptable
    Feb 24 12:29:14	charon		04[CFG] <bypasslan|22> no alternative config found
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP4_ADDRESS attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP4_DHCP attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP4_DNS attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP4_NETMASK attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP6_ADDRESS attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP6_DHCP attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing INTERNAL_IP6_DNS attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> processing (25) attribute
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> received ESP_TFC_PADDING_NOT_SUPPORTED, not using ESPv3 TFC padding
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> peer supports MOBIKE
    Feb 24 12:29:14	charon		04[ENC] <bypasslan|22> generating IKE_AUTH response 1 [ N(AUTH_FAILED) ]
    Feb 24 12:29:14	charon		04[NET] <bypasslan|22> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[19142] (65 bytes)
    Feb 24 12:29:14	charon		04[IKE] <bypasslan|22> IKE_SA bypasslan[22] state change: CONNECTING => DESTROYING



  • Previous post got to long... last log included here..

    AES-256 connection attempt (localid = EAP_USER) - maybe not needed but while we are at it..

    Feb 24 12:33:24	charon		10[NET] <23> received packet: from PEER_IP[26871] to PFSENSE_WAN_IP[500] (272 bytes)
    Feb 24 12:33:24	charon		10[ENC] <23> parsed IKE_SA_INIT request 0 [ SA KE No N(REDIR_SUP) N(NATD_S_IP) N(NATD_D_IP) N(FRAG_SUP) ]
    Feb 24 12:33:24	charon		10[CFG] <23> looking for an IKEv2 config for PFSENSE_WAN_IP...PEER_IP
    Feb 24 12:33:24	charon		10[CFG] <23> candidate: %any...%any, prio 24
    Feb 24 12:33:24	charon		10[CFG] <23> candidate: PFSENSE_WAN_IP...%any, prio 1052
    Feb 24 12:33:24	charon		10[CFG] <23> found matching ike config: PFSENSE_WAN_IP...%any with prio 1052
    Feb 24 12:33:24	charon		10[IKE] <23> PEER_IP is initiating an IKE_SA
    Feb 24 12:33:24	charon		10[IKE] <23> IKE_SA (unnamed)[23] state change: CREATED => CONNECTING
    Feb 24 12:33:24	charon		10[CFG] <23> selecting proposal:
    Feb 24 12:33:24	charon		10[CFG] <23> no acceptable ENCRYPTION_ALGORITHM found
    Feb 24 12:33:24	charon		10[CFG] <23> selecting proposal:
    Feb 24 12:33:24	charon		10[CFG] <23> no acceptable INTEGRITY_ALGORITHM found
    Feb 24 12:33:24	charon		10[CFG] <23> received proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_384
    Feb 24 12:33:24	charon		10[CFG] <23> configured proposals: IKE:AES_GCM_16_256/PRF_HMAC_SHA2_384/ECP_384, IKE:AES_CBC_256/HMAC_SHA2_384_192/PRF_HMAC_SHA2_384/ECP_384
    Feb 24 12:33:24	charon		10[CFG] <23> looking for IKEv2 configs for PFSENSE_WAN_IP...PEER_IP
    Feb 24 12:33:24	charon		10[CFG] <23> candidate: %any...%any, prio 24
    Feb 24 12:33:24	charon		10[CFG] <23> candidate: PFSENSE_WAN_IP...%any, prio 1052
    Feb 24 12:33:24	charon		10[IKE] <23> no matching proposal found, trying alternative config
    Feb 24 12:33:24	charon		10[CFG] <23> selecting proposal:
    Feb 24 12:33:24	charon		10[CFG] <23> proposal matches
    Feb 24 12:33:24	charon		10[CFG] <23> received proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_384
    Feb 24 12:33:24	charon		10[CFG] <23> configured proposals: IKE:AES_CBC_128/AES_CBC_192/AES_CBC_256/CAMELLIA_CBC_128/CAMELLIA_CBC_192/CAMELLIA_CBC_256/3DES_CBC/HMAC_SHA2_256_128/HMAC_SHA2_384_192/HMAC_SHA2_512_256/HMAC_SHA1_96/AES_XCBC_96/AES_CMAC_96/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/PRF_HMAC_SHA1/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_6144/MODP_8192/MODP_2048, IKE:AES_GCM_16_128/AES_GCM_16_192/AES_GCM_16_256/AES_GCM_12_128/AES_GCM_12_192/AES_GCM_12_256/AES_GCM_8_128/AES_GCM_8_192/AES_GCM_8_256/PRF_HMAC_SHA2_256/PRF_HMAC_SHA2_384/PRF_HMAC_SHA2_512/PRF_AES128_XCBC/PRF_AES128_CMAC/PRF_HMAC_SHA1/ECP_256/ECP_384/ECP_521/ECP_256_BP/ECP_384_BP/ECP_512_BP/CURVE_25519/MODP_3072/MODP_4096/MODP_6144/MODP_8192/MODP_2048
    Feb 24 12:33:24	charon		10[CFG] <23> selected proposal: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/ECP_384
    Feb 24 12:33:24	charon		10[IKE] <23> remote host is behind NAT
    Feb 24 12:33:24	charon		10[IKE] <23> sending cert request for "C=US, O=Let's Encrypt, CN=Let's Encrypt Authority X3"
    Feb 24 12:33:24	charon		10[ENC] <23> generating IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) CERTREQ N(FRAG_SUP) N(MULT_AUTH) ]
    Feb 24 12:33:24	charon		10[NET] <23> sending packet: from PFSENSE_WAN_IP[500] to PEER_IP[26871] (313 bytes)
    Feb 24 12:33:24	charon		10[NET] <23> received packet: from PEER_IP[22973] to PFSENSE_WAN_IP[4500] (368 bytes)
    Feb 24 12:33:24	charon		10[ENC] <23> unknown attribute type (25)
    Feb 24 12:33:24	charon		10[ENC] <23> parsed IKE_AUTH request 1 [ IDi N(INIT_CONTACT) N(MOBIKE_SUP) IDr CPRQ(ADDR DHCP DNS MASK ADDR6 DHCP6 DNS6 (25)) N(ESP_TFC_PAD_N) N(NON_FIRST_FRAG) SA TSi TSr N(EAP_ONLY) ]
    Feb 24 12:33:24	charon		10[CFG] <23> looking for peer configs matching PFSENSE_WAN_IP[vpn.myhostname.com]...PEER_IP[EAP_USER]
    Feb 24 12:33:24	charon		10[CFG] <23> candidate "bypasslan", match: 1/1/24 (me/other/ike)
    Feb 24 12:33:24	charon		10[CFG] <bypasslan|23> selected peer config 'bypasslan'
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> peer requested EAP, config unacceptable
    Feb 24 12:33:24	charon		10[CFG] <bypasslan|23> no alternative config found
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP4_ADDRESS attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP4_DHCP attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP4_DNS attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP4_NETMASK attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP6_ADDRESS attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP6_DHCP attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing INTERNAL_IP6_DNS attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> processing (25) attribute
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> received ESP_TFC_PADDING_NOT_SUPPORTED, not using ESPv3 TFC padding
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> peer supports MOBIKE
    Feb 24 12:33:24	charon		10[ENC] <bypasslan|23> generating IKE_AUTH response 1 [ N(AUTH_FAILED) ]
    Feb 24 12:33:24	charon		10[NET] <bypasslan|23> sending packet: from PFSENSE_WAN_IP[4500] to PEER_IP[22973] (80 bytes)
    Feb 24 12:33:24	charon		10[IKE] <bypasslan|23> IKE_SA bypasslan[23] state change: CONNECTING => DESTROYING



  • @puijken
    Hey
    Do not pay attention to the Russian language ( the pictures are clear)
    On the test machine configured access using Apple Configurator ( see pictures)
    1 . Create CA / Server certificate
    2. Configure Mobile IPSEC




    3 Upload server CA without key
    4 Apple Configurator



    5 Set the profile


    6 Check the connection




  • @puijken:

    It looks like your Apple Configurator 2 profile is missing the certificate setup.

    I'll point out some differences from your setup and mine:

    Phase 1

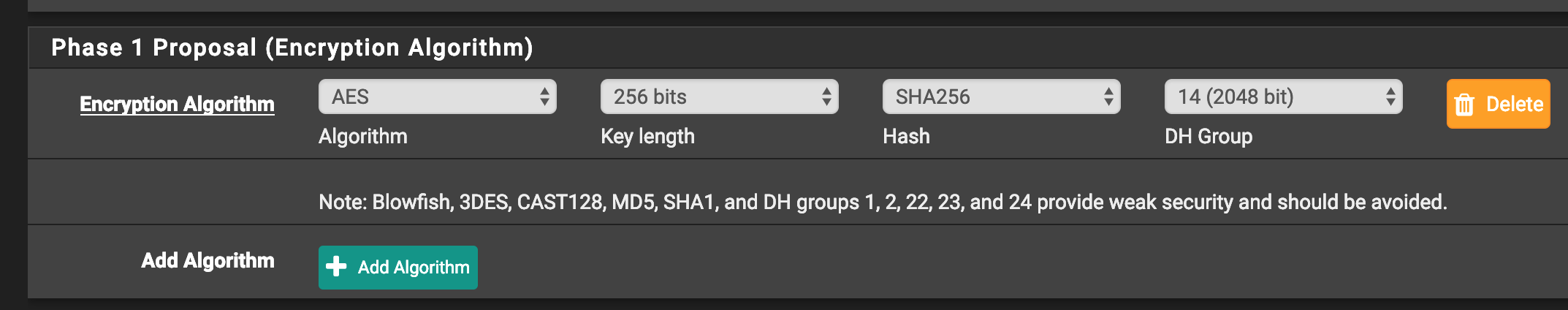

    • I only have one Encryption Algorithm entry: AES / 256 bits / SHA256 / 14 (2048bit)
    • Enable DPD 10 / 5 (you probably have this, but didn't see in image)
    • Note: Make sure My Certificate is the server certificate, and not the webConfigurator certificate.

    Phase 2

    • I only have one Encryption Algorithm entry: AES / Auto
    • PFS key group disabled
    • Lifetime 3600

    Mobile Clients

    • Same setup. Just remember the pool should not overlap with anything you have in your LAN, which looks like the case.

    Apple Configurator 2

    Certificates section:

    • Make sure you drop the CA certificate here. Download by clicking the "seal" icon in the CA section of System > Certificate Manager

    VPN section:

    • Local Identifier 0.0.0.0 (any mobile client IP)
    • Machine Authentication: Certificate
    • Certificate Type RSA
    • Server Certificate Issuer Common Name (the name of your CA)
    • Server Certificate Common Name (FQDN as in server certificate)
    • EAP Authentication User name/Password
    • Account (leave blank for user to setup, or pre-fill)
    • Password (leave blank for user to setup, or pre-fill with user's shared key)
    • IKE SA Params AES-256 / SHA2-256 / 14 / Lifetime: 1440 / Proxy setup: none
    • Child SA Params (same as IKE SA Params above)

    Server certificate note: Be sure to have FQDN or IP in Common Name, and ALSO add both FQDN and IP in Alternative Names. For other settings I used defaults or what was suggested in the how-to's linked in the original post.



  • Hi guys,

    Thank you for the provided information. As I have had a very busy week with training and courses I was not able to do some in depth tests yet.

    I did some quick and dirty testing with the information in these last 2 posts provided by you. I've tried various settings and combinations but all seem to fail.

    I think the problem is somewhere in the Apple Configurator profile, as everything is working very well on my W10 machine. I have also tried on a Macbook but was also unable to connect. I will provide a more detailed log later when I have some more time at home.

    Only thing what seems to be different in my setup is that I'm not using a self-signed certificate from a pfSense CA. There I was thinking it was not necesarry to add this certificate into the Apple Configurator profile. I'm using a Let's Encrypt wildcard certificate on my setup -> ACME installation in pfSense with auto-renewal, etc.. So I was thinking, like on my W10 it should work out of the box. However I did some quick tests with the settings provided by you guys (Machine Authentication, Server Certificate Issues Common Name, Server Certificate Common Name, etc..) but all with the same result.

    Anyway I justed wanted to let you know I'm not inactive but currently have no time to perform further troubleshooting. I will update this topic further this weekend with more screenshots and error logs.

    Thanks!


Log in to reply
