CPU Usage when network used
-
The PCIe lanes would have no effect on pf performance as far as I know. I just posted that data to show that enabling pf has a huge impact on throughput, which is what you're seeing.
Steve
-
I agree with you guys. I initially asked what was installed and operating on the system to see if there might be the risk of running out of PCIe lanes. But with the setup as described that seems less likely now. More generally speaking, having enough PCIe lanes does matter though when it comes networking appliances. I think to get to the bottom of this particular case seeing some throughput numbers (e.g. packets per second) will prove to be very insightful. Hope this helps.
-
Hi all,
So hopefully I've done this correctly. :)
Did a few tests adjusting the mss with IPERF. With and without PF enabled. I also ran another perf tool to see the interface info. I've renamed the interfaces a little to better identify them here; not sure if it adds value or not.
With PF enabled:
netstat -ihw1
iperf3 ... -M 90 -T60
207k 0 0 26M 170k 0 17M 0 327k 0 0 41M 262k 0 27M 0 336k 0 0 43M 270k 0 28M 0 340k 0 0 43M 274k 0 29M 0 328k 0 0 42M 264k 0 28M 0 331k 0 0 42M 267k 0 28M 0 324k 0 0 41M 259k 0 27M 0 339k 0 0 43M 273k 0 29M 0 341k 0 0 43M 275k 0 29M 0 329k 0 0 42M 265k 0 28M 0-P2 = 400k avg
-P3 = 350-370kWithout -M its actually slightly higher with -P2
411k 0 0 525M 276k 0 268M 0 418k 0 0 541M 280k 0 276M 0 454k 0 0 586M 315k 0 317M 0 461k 0 0 602M 301k 0 315M 0and about 530k with 1 stream
systat -ifstat
Interface Traffic Peak Total
pppoe0 in 0.095 KB/s 28.351 MB/s 23.278 GB
out 0.103 KB/s 98.508 KB/s 867.165 MBix1.na in 0.000 KB/s 0.017 KB/s 39.170 KB out 0.000 KB/s 2.116 KB/s 5.986 MB ix1.fs in 110.583 MB/s 366.930 MB/s 72.624 GB out 415.854 KB/s 28.619 MB/s 4.516 GB lo0 in 0.000 KB/s 0.000 KB/s 3.539 KB out 0.000 KB/s 0.000 KB/s 3.539 KB ix3 (test box) in 394.976 KB/s 1.631 MB/s 2.970 GB out 96.656 MB/s 368.782 MB/s 93.678 GB ix1 in 96.936 MB/s 369.768 MB/s 73.133 GB out 416.906 KB/s 37.982 MB/s 4.687 GB ix0 in 0.597 KB/s 38.081 MB/s 23.697 GB out 0.478 KB/s 181.235 KB/s 1.221 GBWith PF Disabled
iperf3 ... -M 90 -P1 -T60
1.4M 0 0 200M 785k 0 104M 0 1.4M 0 0 196M 768k 0 102M 0 1.5M 0 0 204M 802k 0 107M 0 1.5M 0 0 209M 822k 0 109M 0 1.4M 0 0 199M 790k 0 105M 0 1.4M 0 0 197M 775k 0 103M 0-P2 = 1.7M
-P3 = 1.7M1 stream is about 1.5M
systat -ifstat
Interface Traffic Peak Total pppoe0 in 5.459 KB/s 5.938 KB/s 23.280 GB out 1.890 KB/s 2.957 KB/s 867.481 MB ix1.na in 0.000 KB/s 0.017 KB/s 40.049 KB out 0.000 KB/s 2.116 KB/s 6.121 MB ix1.fs in 1015.734 MB/s 1.018 GB/s 112.744 GB out 632.733 KB/s 3.091 MB/s 4.669 GB lo0 in 0.000 KB/s 0.000 KB/s 3.539 KB out 0.000 KB/s 0.000 KB/s 3.539 KB ix3 (test box) in 661.888 KB/s 3.274 MB/s 3.131 GB out 950.307 MB/s 1.028 GB/s 133.273 GB ix1 in 953.310 MB/s 1.031 GB/s 112.940 GB out 700.685 KB/s 3.462 MB/s 4.858 GB ix0 in 6.222 KB/s 6.518 KB/s 23.698 GB out 2.733 KB/s 3.419 KB/s 1.222 GBCheers!
-
Hi @qwaven - those are interesting results and I'm a little surprised you are getting lower pps throughput with multiple iperf streams. A couple new ideas came to mind:
-
https://docs.netgate.com/pfsense/en/latest/hardware/tuning-and-troubleshooting-network-cards.html#intel-ix-4-cards -- if you adjust up the "hw.intr_storm_threshold" tunable do you see any difference when running tests?
-
If you temporarily disable and remove your pppoe connection along with the "net.isr.dispatch = deferred" tunable, do you see any difference when running the tests?
Some justification for asking you to try 1) and 2) above: After reading your results, I actually tried a similar test on my pfSense box using iperf3 across the firewall between two hosts: Running iperf3 .... -M 90 resulted in approximately 300K packets per second (similar to what you saw). However, increasing the number of parallel streams to 16 increased packets per second to approximately 1.3M and all of the firewall's CPU's cores were busy handling interrupts from the Chelsio NIC. Do you see similar behavior when you increase the number of parallel streams during an iperf test? Or does it appear like just 1 CPU core is trying to manage everything?
Hope this helps.
-
-
@tman222 said in CPU Usage when network used:
hw.intr_storm_threshold
Hi there,
I have set hw.intr_storm_threshold to 8000 which was a value I saw recommended before. I do not see any noticeable difference. I did also try 1 test with P16 and 10000 but it also did not appear any different so stopped.
I also set isr dispatch to direct? I was not clear if that was the default or not. Also did not appear to do anything. :p
In regards to CPU core usage. I believe usage looks some-what similar to tests done earlier with most core's not really being utilized all that much. PPS similar to what I already posted and thus wont post again.
Here are some snippets...
-M 90 -P20 -T60last pid: 12425; load averages: 0.01, 0.13, 0.13 up 0+23:58:44 10:04:41 374 processes: 18 running, 248 sleeping, 108 waiting CPU 0: 0.0% user, 0.0% nice, 0.0% system, 11.9% interrupt, 88.1% idle CPU 1: 0.0% user, 0.0% nice, 0.0% system, 10.7% interrupt, 89.3% idle CPU 2: 0.0% user, 0.0% nice, 0.0% system, 18.6% interrupt, 81.4% idle CPU 3: 0.0% user, 0.0% nice, 0.0% system, 21.6% interrupt, 78.4% idle CPU 4: 0.0% user, 0.0% nice, 0.0% system, 16.5% interrupt, 83.5% idle CPU 5: 0.0% user, 0.0% nice, 0.0% system, 13.9% interrupt, 86.1% idle CPU 6: 0.0% user, 0.0% nice, 0.0% system, 19.6% interrupt, 80.4% idle CPU 7: 0.0% user, 0.0% nice, 0.0% system, 19.6% interrupt, 80.4% idle CPU 8: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 9: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 10: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 11: 0.4% user, 0.0% nice, 0.0% system, 0.0% interrupt, 99.6% idle CPU 12: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 13: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 14: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 15: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle Mem: 40M Active, 232M Inact, 579M Wired, 40M Buf, 15G Free Swap: 3979M Total, 3979M Free-M 90 -P16 -T60
last pid: 87357; load averages: 0.03, 0.12, 0.12 up 1+00:01:03 10:07:00 374 processes: 18 running, 248 sleeping, 108 waiting CPU 0: 0.0% user, 0.0% nice, 0.0% system, 43.7% interrupt, 56.3% idle CPU 1: 0.0% user, 0.0% nice, 0.0% system, 33.0% interrupt, 67.0% idle CPU 2: 0.0% user, 0.0% nice, 0.0% system, 7.4% interrupt, 92.6% idle CPU 3: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 4: 0.0% user, 0.0% nice, 0.0% system, 24.1% interrupt, 75.9% idle CPU 5: 0.4% user, 0.0% nice, 0.0% system, 11.9% interrupt, 87.8% idle CPU 6: 0.0% user, 0.0% nice, 0.0% system, 25.6% interrupt, 74.4% idle CPU 7: 0.0% user, 0.0% nice, 0.0% system, 15.2% interrupt, 84.8% idle CPU 8: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 9: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 10: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 11: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 12: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 13: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 14: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 15: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle Mem: 35M Active, 241M Inact, 579M Wired, 40M Buf, 15G Free Swap: 3979M Total, 3979M Free-M 90 -P2 -T60
last pid: 21234; load averages: 0.28, 0.18, 0.14 up 1+00:02:14 10:08:11 374 processes: 21 running, 248 sleeping, 105 waiting CPU 0: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 1: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 2: 0.0% user, 0.0% nice, 0.0% system, 50.0% interrupt, 50.0% idle CPU 3: 0.0% user, 0.0% nice, 0.0% system, 82.2% interrupt, 17.8% idle CPU 4: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 5: 0.0% user, 0.0% nice, 0.0% system, 45.6% interrupt, 54.4% idle CPU 6: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 7: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 8: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 9: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 10: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 11: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 12: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 13: 0.0% user, 0.0% nice, 0.4% system, 0.0% interrupt, 99.6% idle CPU 14: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 15: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle Mem: 35M Active, 241M Inact, 579M Wired, 40M Buf, 15G Free Swap: 3979M Total, 3979M Free-M 90 -P100 -T60
last pid: 84603; load averages: 0.67, 0.31, 0.20 up 1+00:03:53 10:09:50 374 processes: 18 running, 248 sleeping, 108 waiting CPU 0: 0.0% user, 0.0% nice, 0.0% system, 26.7% interrupt, 73.3% idle CPU 1: 0.0% user, 0.0% nice, 0.0% system, 21.2% interrupt, 78.8% idle CPU 2: 0.0% user, 0.0% nice, 0.0% system, 19.2% interrupt, 80.8% idle CPU 3: 0.0% user, 0.0% nice, 0.0% system, 15.7% interrupt, 84.3% idle CPU 4: 0.0% user, 0.0% nice, 0.0% system, 20.4% interrupt, 79.6% idle CPU 5: 0.0% user, 0.0% nice, 0.0% system, 19.6% interrupt, 80.4% idle CPU 6: 0.0% user, 0.0% nice, 0.0% system, 22.0% interrupt, 78.0% idle CPU 7: 0.0% user, 0.0% nice, 0.0% system, 22.0% interrupt, 78.0% idle CPU 8: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 9: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 10: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 11: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 12: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 13: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 14: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 15: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle Mem: 35M Active, 241M Inact, 579M Wired, 40M Buf, 15G Free Swap: 3979M Total, 3979M Freewith pf disabled and P16 does not look any different.
last pid: 17311; load averages: 0.36, 0.33, 0.22 up 1+00:05:27 10:11:24 373 processes: 25 running, 247 sleeping, 101 waiting CPU 0: 0.0% user, 0.0% nice, 0.0% system, 26.1% interrupt, 73.9% idle CPU 1: 0.0% user, 0.0% nice, 0.0% system, 31.7% interrupt, 68.3% idle CPU 2: 0.0% user, 0.0% nice, 0.0% system, 29.1% interrupt, 70.9% idle CPU 3: 0.0% user, 0.0% nice, 0.0% system, 16.8% interrupt, 83.2% idle CPU 4: 0.0% user, 0.0% nice, 0.0% system, 40.3% interrupt, 59.7% idle CPU 5: 0.0% user, 0.0% nice, 0.0% system, 25.4% interrupt, 74.6% idle CPU 6: 0.0% user, 0.0% nice, 0.0% system, 39.9% interrupt, 60.1% idle CPU 7: 0.0% user, 0.0% nice, 0.0% system, 34.0% interrupt, 66.0% idle CPU 8: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 9: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 10: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 11: 0.0% user, 0.0% nice, 0.4% system, 0.0% interrupt, 99.6% idle CPU 12: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 13: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 14: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle CPU 15: 0.0% user, 0.0% nice, 0.0% system, 0.0% interrupt, 100% idle Mem: 35M Active, 241M Inact, 579M Wired, 40M Buf, 15G Free Swap: 3979M Total, 3979M FreeI have not removed PPPoE at this time as its not really something I want to do as it will be somewhat more destructive.
Cheers!
-
Thanks @qwaven - I appreciate the update. Something still seems amiss here: When I run an iperf test and keep increasing the number of parallel streams, the cores on my pfSense system eventually all become fully loaded down. From the data in your last reply, it seems the majority of your cores still sit idle no matter how many streams you choose to use. I don't use pppoe on my system, but wanted to make sure that having it enabled wasn't somehow limiting the total capabilities of your system (this why I asked for you to temporarily try testing without it enabled just to see if there was any difference in performance).
If you don't mind, there's one other thing that would be good to see right now: Could you please post the output of "netstat -Q" for us?
Thanks in again and hope this helps.
-
Hi there,
I am assuming -Q is relevant at anytime? I have not done anything other than enter the command.
netstat -Q
Configuration: Setting Current Limit Thread count 16 16 Default queue limit 256 10240 Dispatch policy direct n/a Threads bound to CPUs disabled n/a Protocols: Name Proto QLimit Policy Dispatch Flags ip 1 3000 flow default --- igmp 2 256 source default --- rtsock 3 1024 source default --- arp 4 256 source default --- ether 5 256 source direct --- ip6 6 256 flow default --- Workstreams: WSID CPU Name Len WMark Disp'd HDisp'd QDrops Queued Handled 0 0 ip 0 945 3899897 0 0 32668248 36568145 0 0 igmp 0 3 0 0 0 6 6 0 0 rtsock 0 5 0 0 0 850 850 0 0 arp 0 0 1266 0 0 0 1266 0 0 ether 0 0 101484612 0 0 0 101484612 0 0 ip6 0 0 0 0 0 0 0 1 1 ip 0 552 2405223 0 0 5549277 7954500 1 1 igmp 0 0 0 0 0 0 0 1 1 rtsock 0 0 0 0 0 0 0 1 1 arp 0 1 0 0 0 2883 2883 1 1 ether 0 0 23487698 0 0 0 23487698 1 1 ip6 0 0 0 0 0 0 0 2 2 ip 0 939 3450247 0 0 7992399 11442646 2 2 igmp 0 0 0 0 0 0 0 2 2 rtsock 0 0 0 0 0 0 0 2 2 arp 0 0 0 0 0 0 0 2 2 ether 0 0 52851635 0 0 0 52851635 2 2 ip6 0 0 0 0 0 0 0 3 3 ip 0 1848 3627402 0 0 15327765 18955167 3 3 igmp 0 0 0 0 0 0 0 3 3 rtsock 0 0 0 0 0 0 0 3 3 arp 0 0 0 0 0 0 0 3 3 ether 0 0 83754924 0 0 0 83754924 3 3 ip6 0 0 0 0 0 0 0 4 4 ip 0 1934 3000592 0 0 12546591 15547183 4 4 igmp 0 0 0 0 0 0 0 4 4 rtsock 0 0 0 0 0 0 0 4 4 arp 0 1 0 0 0 15 15 4 4 ether 0 0 35382809 0 0 0 35382809 4 4 ip6 0 0 0 0 0 0 0 5 5 ip 0 2043 2925436 0 0 11129328 14054764 5 5 igmp 0 0 0 0 0 0 0 5 5 rtsock 0 0 0 0 0 0 0 5 5 arp 0 0 0 0 0 0 0 5 5 ether 0 0 42080649 0 0 0 42080649 5 5 ip6 0 0 0 0 0 0 0 6 6 ip 0 2013 2767600 0 0 18088497 20856097 6 6 igmp 0 0 0 0 0 0 0 6 6 rtsock 0 0 0 0 0 0 0 6 6 arp 0 0 0 0 0 0 0 6 6 ether 0 0 73731512 0 0 0 73731512 6 6 ip6 0 0 0 0 0 0 0 7 7 ip 0 976 2383106 0 0 7019003 9402109 7 7 igmp 0 0 0 0 0 0 0 7 7 rtsock 0 0 0 0 0 0 0 7 7 arp 0 0 0 0 0 0 0 7 7 ether 0 0 39100484 0 0 0 39100484 7 7 ip6 0 1 0 0 0 4 4 8 8 ip 0 868 0 0 0 28748443 28748443 8 8 igmp 0 0 0 0 0 0 0 8 8 rtsock 0 0 0 0 0 0 0 8 8 arp 0 0 0 0 0 0 0 8 8 ether 0 0 0 0 0 0 0 8 8 ip6 0 0 0 0 0 0 0 9 9 ip 0 886 0 0 0 7866336 7866336 9 9 igmp 0 0 0 0 0 0 0 9 9 rtsock 0 0 0 0 0 0 0 9 9 arp 0 0 0 0 0 0 0 9 9 ether 0 0 0 0 0 0 0 9 9 ip6 0 0 0 0 0 0 0 10 10 ip 0 1922 0 0 0 18281823 18281823 10 10 igmp 0 0 0 0 0 0 0 10 10 rtsock 0 0 0 0 0 0 0 10 10 arp 0 0 0 0 0 0 0 10 10 ether 0 0 0 0 0 0 0 10 10 ip6 0 0 0 0 0 0 0 11 11 ip 0 1675 0 0 0 25873794 25873794 11 11 igmp 0 0 0 0 0 0 0 11 11 rtsock 0 0 0 0 0 0 0 11 11 arp 0 0 0 0 0 0 0 11 11 ether 0 0 0 0 0 0 0 11 11 ip6 0 0 0 0 0 0 0 12 12 ip 0 842 0 0 0 4971446 4971446 12 12 igmp 0 0 0 0 0 0 0 12 12 rtsock 0 0 0 0 0 0 0 12 12 arp 0 1 0 0 0 14660 14660 12 12 ether 0 0 0 0 0 0 0 12 12 ip6 0 0 0 0 0 0 0 13 13 ip 0 1035 0 0 0 10699300 10699300 13 13 igmp 0 0 0 0 0 0 0 13 13 rtsock 0 0 0 0 0 0 0 13 13 arp 0 1 0 0 0 1341 1341 13 13 ether 0 0 0 0 0 0 0 13 13 ip6 0 0 0 0 0 0 0 14 14 ip 0 992 0 0 0 19460583 19460583 14 14 igmp 0 0 0 0 0 0 0 14 14 rtsock 0 0 0 0 0 0 0 14 14 arp 0 0 0 0 0 0 0 14 14 ether 0 0 0 0 0 0 0 14 14 ip6 0 0 0 0 0 0 0 15 15 ip 0 1169 0 0 0 13328102 13328102 15 15 igmp 0 0 0 0 0 0 0 15 15 rtsock 0 0 0 0 0 0 0 15 15 arp 0 0 0 0 0 0 0 15 15 ether 0 0 0 0 0 0 0 15 15 ip6 0 0 0 0 0 0 0Cheers!
-
Thanks @qwaven - I appreciate the additional info. Your numbers in the WMark (Watermark) column are a lot higher than what I see, but I'm not 100% sure how to interpret that. For instance, is this the amount of packets that crossed the water mark or is this a global limit? I think @stephenw10 or someone else with a better knowledge of the FreeBSD networking stack might be able to set shed some more light on these statistics.
After some additional thought, seeing the queue statistics on your ix and igb interfaces might also be useful.
For RX Stats:
sysctl -a | grep rx_packetsFor TX Stats:
sysctl -a | grep tx_packetsand then post the tx and rx queue statistics for all active igb and ix interfaces. How are packets distributed across the tx and rx queues for all the different interfaces that are currently active?
Thanks in advance and hope this helps.
-
@tman222 said in CPU Usage when network used:
sysctl -a | grep rx_packets
sysctl -a | grep rx_packets
dev.ix.3.queue7.rx_packets: 6387858 dev.ix.3.queue6.rx_packets: 6755233 dev.ix.3.queue5.rx_packets: 7452156 dev.ix.3.queue4.rx_packets: 5690876 dev.ix.3.queue3.rx_packets: 5994398 dev.ix.3.queue2.rx_packets: 6624108 dev.ix.3.queue1.rx_packets: 8177888 dev.ix.3.queue0.rx_packets: 8585302 dev.ix.2.queue7.rx_packets: 0 dev.ix.2.queue6.rx_packets: 0 dev.ix.2.queue5.rx_packets: 0 dev.ix.2.queue4.rx_packets: 0 dev.ix.2.queue3.rx_packets: 0 dev.ix.2.queue2.rx_packets: 0 dev.ix.2.queue1.rx_packets: 0 dev.ix.2.queue0.rx_packets: 0 dev.ix.1.queue7.rx_packets: 16551499 dev.ix.1.queue6.rx_packets: 33534177 dev.ix.1.queue5.rx_packets: 17563120 dev.ix.1.queue4.rx_packets: 15072354 dev.ix.1.queue3.rx_packets: 39145147 dev.ix.1.queue2.rx_packets: 23228763 dev.ix.1.queue1.rx_packets: 7950923 dev.ix.1.queue0.rx_packets: 41279340 dev.ix.0.queue7.rx_packets: 22 dev.ix.0.queue6.rx_packets: 210025 dev.ix.0.queue5.rx_packets: 43 dev.ix.0.queue4.rx_packets: 861 dev.ix.0.queue3.rx_packets: 26 dev.ix.0.queue2.rx_packets: 15 dev.ix.0.queue1.rx_packets: 29 dev.ix.0.queue0.rx_packets: 23467772sysctl -a | grep tx_packets
dev.ix.3.queue7.tx_packets: 16140452 dev.ix.3.queue6.tx_packets: 33202115 dev.ix.3.queue5.tx_packets: 17090472 dev.ix.3.queue4.tx_packets: 14520542 dev.ix.3.queue3.tx_packets: 38602349 dev.ix.3.queue2.tx_packets: 22896318 dev.ix.3.queue1.tx_packets: 7152241 dev.ix.3.queue0.tx_packets: 57226399 dev.ix.2.queue7.tx_packets: 0 dev.ix.2.queue6.tx_packets: 0 dev.ix.2.queue5.tx_packets: 0 dev.ix.2.queue4.tx_packets: 0 dev.ix.2.queue3.tx_packets: 0 dev.ix.2.queue2.tx_packets: 0 dev.ix.2.queue1.tx_packets: 0 dev.ix.2.queue0.tx_packets: 0 dev.ix.1.queue7.tx_packets: 4275957 dev.ix.1.queue6.tx_packets: 4377190 dev.ix.1.queue5.tx_packets: 3828586 dev.ix.1.queue4.tx_packets: 2886044 dev.ix.1.queue3.tx_packets: 4404683 dev.ix.1.queue2.tx_packets: 5183075 dev.ix.1.queue1.tx_packets: 5869218 dev.ix.1.queue0.tx_packets: 11726952 dev.ix.0.queue7.tx_packets: 2607146 dev.ix.0.queue6.tx_packets: 2812508 dev.ix.0.queue5.tx_packets: 4187141 dev.ix.0.queue4.tx_packets: 3436090 dev.ix.0.queue3.tx_packets: 2184920 dev.ix.0.queue2.tx_packets: 1856375 dev.ix.0.queue1.tx_packets: 3202041 dev.ix.0.queue0.tx_packets: 4121751Cheers!
-
Hi @qwaven - thanks for the additional information. It looks like the packets are well distributed across the queues on the non pppoe interfaces, which is good. I apologize for not asking you this in the previous post, but could you please also give us the output of "netstat -m" Thanks again.
-
netstat -m
106492/19253/125745 mbufs in use (current/cache/total) 98297/10023/108320/1000000 mbuf clusters in use (current/cache/total/max) 98297/9987 mbuf+clusters out of packet secondary zone in use (current/cache) 0/24/24/524288 4k (page size) jumbo clusters in use (current/cache/total/max) 0/0/0/524288 9k jumbo clusters in use (current/cache/total/max) 0/0/0/84549 16k jumbo clusters in use (current/cache/total/max) 223217K/24955K/248172K bytes allocated to network (current/cache/total) 0/0/0 requests for mbufs denied (mbufs/clusters/mbuf+clusters) 0/0/0 requests for mbufs delayed (mbufs/clusters/mbuf+clusters) 0/0/0 requests for jumbo clusters delayed (4k/9k/16k) 0/0/0 requests for jumbo clusters denied (4k/9k/16k) 0 sendfile syscalls 0 sendfile syscalls completed without I/O request 0 requests for I/O initiated by sendfile 0 pages read by sendfile as part of a request 0 pages were valid at time of a sendfile request 0 pages were requested for read ahead by applications 0 pages were read ahead by sendfile 0 times sendfile encountered an already busy page 0 requests for sfbufs denied 0 requests for sfbufs delayedCheers!
-
Hi @qwaven - those mbuf cluster number also look good. After thinking about this a bit more and doing some more reading, I am starting to believe that we're hitting some sort of I/O constraint here (whether real or artificial). Have a look at these two sites:
https://calomel.org/network_performance.html
https://bsdrp.net/documentation/examples/forwarding_performance_lab_of_a_superserver_5018a-ftn4_with_10-gigabit_chelsio_t540-crWhat's interesting to me about the BSDRP page in particular is that the benchmark hardware was a previous generation Intel Atom CPU with half as many cores, yet the throughput was approximately twice as high (even under pure forwarding conditions, i.e. no pf, ipf, or ipfw enabled). I realize the tests were done on FreeBSD 11.1 vs. pfSense, but I wouldn't expect the difference between the two under normal circumstances to be this drastic.
Having said that, I'm not sure if the limitations that you're seeing are due to having pppoe enabled on the system or there is some type of limitation with the onboard 10Gbit ports. One thing that might be worth trying is duplicating the iperf3 tests, but using the Chelsio NIC instead to see if there is any difference in throughput.
Other than that, I'm basically out of ideas now on this one. Perhaps the other responders in this thread will have some more thoughts on what to try. Thanks again sharing the additional data with us, and hope this helps.
-
Well I've done this. I popped the chelsio in. Steps after:
- Moved JUST the NAS to the chelsio, no change (no vlan)
- Moved the test box/network to the chelsio, no change (no vlan)
- Started playing with the options in PFSense
i) adjusted the firewall policy to aggressive (was normal) , possibly saw marginal increase with parallel streams but not enough to really mention.
ii) Disabled "insert stronger ID..." and let the races start! :)
Immediately speeds are improved. I can't quite get as good as without PF at all but its def a lot better. I am unclear if this option is default enabled in PF or not?
With 6 streams:
[SUM] 0.00-10.00 sec 8.79 GBytes 7.55 Gbits/sec 1784 sender
[SUM] 0.00-10.00 sec 8.77 GBytes 7.53 Gbits/sec receiverSaw some spikes above 9.
I suspect it is not 100% required to use the chelsio card but actually may see even further speed increases if I move one network back to the built in which I imagine would be using different PCIe lanes than the addon card.
Also keep in mind I have done no modifications like previously done so flow control appears active...etc.
Some more numbers:
last pid: 10762; load averages: 0.87, 0.33, 0.26 up 0+00:43:07 11:32:13 400 processes: 22 running, 256 sleeping, 122 waiting CPU 0: 0.0% user, 0.4% nice, 0.8% system, 4.3% interrupt, 94.5% idle CPU 1: 0.0% user, 0.4% nice, 1.6% system, 10.6% interrupt, 87.5% idle CPU 2: 0.0% user, 0.4% nice, 1.2% system, 60.4% interrupt, 38.0% idle CPU 3: 0.0% user, 0.0% nice, 0.4% system, 7.5% interrupt, 92.2% idle CPU 4: 0.0% user, 0.8% nice, 0.0% system, 9.0% interrupt, 90.2% idle CPU 5: 0.0% user, 0.4% nice, 1.2% system, 34.8% interrupt, 63.7% idle CPU 6: 0.0% user, 0.0% nice, 0.0% system, 21.2% interrupt, 78.8% idle CPU 7: 0.0% user, 0.8% nice, 0.8% system, 37.3% interrupt, 61.2% idle CPU 8: 0.0% user, 0.4% nice, 0.0% system, 37.3% interrupt, 62.4% idle CPU 9: 0.0% user, 0.4% nice, 0.4% system, 29.0% interrupt, 70.2% idle CPU 10: 0.0% user, 0.0% nice, 0.8% system, 17.3% interrupt, 82.0% idle CPU 11: 0.0% user, 0.0% nice, 1.2% system, 34.1% interrupt, 64.7% idle CPU 12: 0.0% user, 0.0% nice, 0.4% system, 23.9% interrupt, 75.7% idle CPU 13: 0.0% user, 0.8% nice, 0.0% system, 13.7% interrupt, 85.5% idle CPU 14: 0.0% user, 0.0% nice, 0.0% system, 48.2% interrupt, 51.8% idle CPU 15: 0.0% user, 0.4% nice, 0.0% system, 16.5% interrupt, 83.1% idle Mem: 115M Active, 168M Inact, 675M Wired, 41M Buf, 15G Free Swap: 3979M Total, 3979M Freeiperf3 -M90 -P10
input (Total) output packets errs idrops bytes packets errs bytes colls 719k 0 0 98M 719k 0 98M 0 716k 0 0 98M 716k 0 98M 0 721k 0 0 99M 721k 0 99M 0 710k 0 0 97M 710k 0 97M 0 720k 0 0 99M 720k 0 99M 0Cheers!
-
@qwaven - that's great news!!
I just checked on my pfSense box and I do not see the "IP Random ID generation" option enabled. I don't believe it's enabled by default either. Any idea how it might have become enabled on your system?
In any case, those throughput numbers look a lot better and are more in line with what I was expecting for your C3000 based hardware originally. If you have some time, feel free to re-run some of the iperf3 tests from earlier in this thread to see where the pps limits are now -- I imagine you should be closer to 1M pps with pf enabled and potentially well above 2M pps with pf turned off.
Anyway, I'm glad this finally resolved. I'll be honest, I probably would have never have thought of the "IP Random ID generation" option :). But good to know now for future reference.
-
If its not on by default I must have enabled it during my initial setup way back when I was on the other hardware even. The description does make it sound like it should be a good thing to have enabled. I'm a bit surprised that it would be capable of throttling the throughput so much. I'm guessing it must function in some sort of single thread which would make sense why my CPU cores were not utilized very evenly before. In the post above it looks more distributed to me.
The 719k is my iperf3 test. I did a few different P# options and based on the different numbers it seems to level out about 7xxk.
Cheers!
-
Not read all 3 pages, just page 1 so far, here is my initial thoughts.
As has been stated PPPoE is a cpu hog, compared to other protocols it is cpu heavy and single threaded.
You do have multiple queues configured on nic which is good tho.
Check RSS status with netstat -Q.
Try disabling PTI (meltdown mitigation), is an option in the UI to disable it, and reboot after disabling it to apply it.
PowerD should enable turbo clocks, so if that isnt working I expect its disabled in the bios.
With all this said I dont know what you can expect out of PPPoE on that chip, especially if you also using NAT, so I got no idea what the baseline expected performance is.
-
Thanks for the reply chrcoluk. However, I think we've managed to figure things out.
Thanks all for all the help/support with this. I think things have been concluded well enough. Lots of learning! :)
Cheers!
-
So what numbers did/do you achieve now with those 10G interfaces? Copper/SFP+ modules? And what changes/values from sysctl or loader.conf.local did you set for it?
-
Hi,
The numbers I got were posted earlier. The changes I made to the loader/sysctl for the most part do not seem to have changed much. The speed increase happened once I turned off the option to insert a stronger ID.

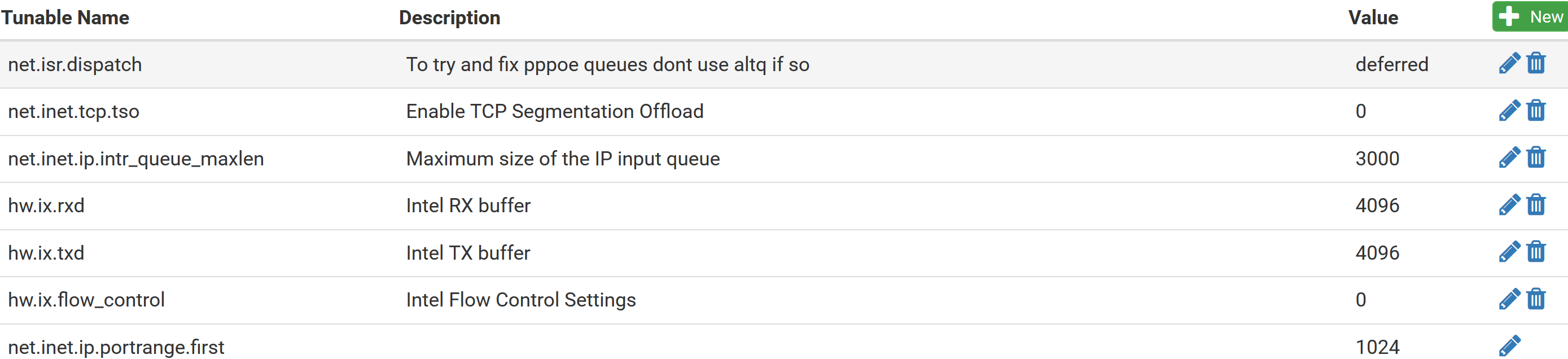

For reference here are the system tunables page (sysctl) and boot/loader.conf.local file. Most of which is now commented out and/or for the built in interface card and not the chelsio. :p
#Improve Cache size hw.ix.rxd="4096" hw.ix.txd="4096" #Change processing limit -1 is unlimited hw.ix.tx_process_limit="-1" hw.ix.rx_process_limit="-1" #Set the queues to cores #hw.ix.num_queues="16" #force flow control settings 0 to disable. hw.ix.flow_control="0" dev.ix.0.fc=0 dev.ix.1.fc=0 dev.ix.2.fc=0 dev.ix.3.fc=0 #disable cache connection detail #net.inet.tcp.hostcache.cachelimit="0" #ensure HT is disabled machdep.hyperthreading_allowed="0" #enable optimized version of soreceive #net.inet.tcp.soreceive_stream="1" #unlimited isr threads to maximize all core use #net.isr.maxthreads="-1" #net.isr.bindthreads="1" #use msix instead #hw.ix.enable_msix="1" #use aim to improve efficency on network stack #hw.ix.enable_aim="1" #hw.ix.max_interrupt_rate="16000" #increase max interrupts #hw.intr_storm_threshold="9000"
Hope that helps.
