    Hardware Advice

    Scheduled Pinned Locked Moved Hardware
    13 Posts 4 Posters 1.4k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • F
      froussy
      last edited by

      Good day,

      I'm using actually a few SG-2220 in my stores..

      Need to upgrade one.. as I see that it wont really go over 400mbits throughput on a 500mbits connection..

      Using a 1gbits connection, 9 ipsec tunnel, 2 vlan on the wan and 2 on the lan nic, IGMP for IPTV

      Shoud an Intel I5-3570 3.4ghz, with 8gb ram will be ok ?

      1 Reply Last reply Reply Quote 0
      • stephenw10S
        stephenw10 Netgate Administrator
        last edited by

        Yes. More than OK. But that doesn't support development like the SG-5100 does. 😉

        Steve

        1 Reply Last reply Reply Quote 0
        • F
          froussy
          last edited by

          What do you mean? Financially?

          1 Reply Last reply Reply Quote 0
          • stephenw10S
            stephenw10 Netgate Administrator
            last edited by stephenw10

            Yes. Unless this is a completely different site or you already have that hardware it looked like you were asking about using the SG-5100 for this which we would obviously prefer.

            Steve

            F 1 Reply Last reply Reply Quote 0
            • F
              froussy @stephenw10
              last edited by

              @stephenw10

              That is for my test site (home).. because in our store directly i will always use branded hardware.

              1 Reply Last reply Reply Quote 1
              • F
                froussy
                last edited by

                Hi @stephenw10

                any idea why I dont achive 1gb speed with the hardware I have? I have 2 intel nic into it (em0 and igb0) ?

                I'm getting around 750

                A 1 Reply Last reply Reply Quote 0
                • A
                  akuma1x @froussy
                  last edited by

                  @froussy said in Hardware Advice:

                  Hi @stephenw10

                  any idea why I dont achive 1gb speed with the hardware I have? I have 2 intel nic into it (em0 and igb0) ?

                  I'm getting around 750

                  If you're still talking about the SG-2220, and depending on what type of broadband internet connection you have, I think that's about all you're going to get from that box. As I understand it, the SG-2220 can do "almost" gigabit routing. It really depends on how you have it configured.

                  Jeff

                  1 Reply Last reply Reply Quote 0
                  • chrismacmahonC
                    chrismacmahon
                    last edited by

                    Another option that is faster than the SG2200, is the SG-3100. Might be a better value than the custom build (especially when you look into daily power usage).

                    Need help fast? Our support is available 24/7 https://www.netgate.com/support/

                    Do Not PM For Help!

                    1 Reply Last reply Reply Quote 0
                    • F
                      froussy
                      last edited by

                      Sorry, I meant on my i5-3570..

                      but finally, i ordered a 5100 🐶

                      1 Reply Last reply Reply Quote 1
                      • stephenw10S
                        stephenw10 Netgate Administrator
                        last edited by

                        Hmm, I would expect an i5-3570 to pass 1Gbp pretty easily unless maybe it's all tiny packets.

                        Do you see any errors on either of those NICs?

                        What does the system activity table show when you are passing 750Mbps?

                        How are you testing?

                        Steve

                        1 Reply Last reply Reply Quote 0
                        • F
                          froussy
                          last edited by

                          Hi,

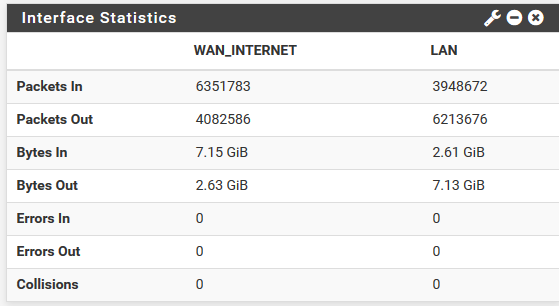

                          No errors on the nic.. attached the interface and the system activity table.. the max I got is 791mbps down, 685 up..


                          1 Reply Last reply Reply Quote 0
                          • stephenw10S
                            stephenw10 Netgate Administrator
                            last edited by

                            Mmm, so very little CPU usage there. How are you testing that throughput?

                            Steve

                            1 Reply Last reply Reply Quote 0
                            • F
                              froussy
                              last edited by

                              Sorry, forgot to mention..

                              speedtest.net
                              one from my isp
                              and another from another isp

                              1 Reply Last reply Reply Quote 0
